MAGNA Lifting Products 20 Ton Geared Trolley GTR2000
MAGNA Lifting Products 20 Ton Geared Trolley GTR2000
Couldn't load pickup availability
Details
Details

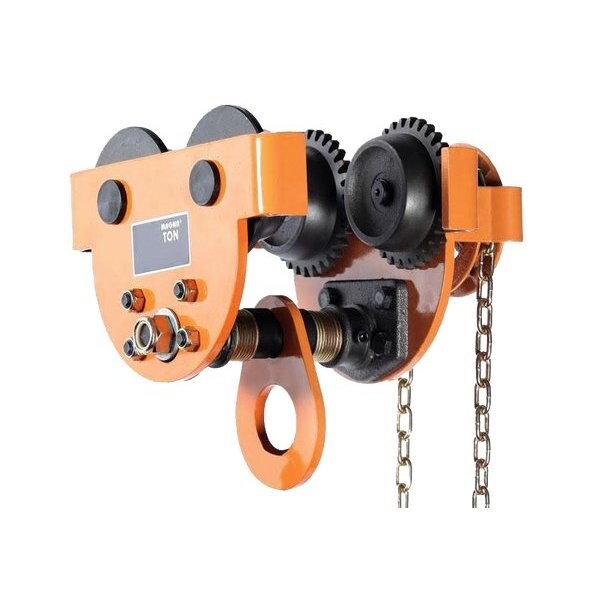

MAGNA 20 Ton Geared Trolley GTR2000
The MAGNA GTR2000 stands as the highest capacity geared trolley in the series, offering 20 Tons (44,000 lbs) of lifting support with precise load control. Engineered for critical heavy rigging in power plants and shipyards, the geared drive system ensures that massive loads can be positioned accurately and safely.
Designed for large structural beams, the GTR2000 features a wide adjustment range and heavy-duty steel wheels with sealed ball bearings for maintenance-free operation. The robust construction includes anti-drop lugs to guarantee the trolley remains on the beam under all conditions. Proof tested to 150% of its rated capacity, this trolley provides absolute reliability for the heaviest lifts.
Features & Benefits
- Maximum Precision: Geared drive for accurate control of 44,000 lbs loads.
- Wide Beam Capable: Fits flange widths from 6.0 to 12.0 inches.
- Maintenance Free: Sealed ball bearings ensure longevity and smooth travel.
- Critical Safety: Heavy-duty anti-drop lugs protect against derailment.
- Rigorous Testing: Load tested to 150% of capacity; ANSI/ASME compliant.
Specifications
- Model Number: GTR2000
- Working Load Limit (WLL): 20 Ton (44,000 lbs)
- Trolley Type: Geared
- Fits Flange Width: 6.0 - 12.0 in.
- Minimum Radius Curve: 157 in.
- Headroom: 18.0 in.
- Standard Hand Chain Drop: 10 ft.
- Net Weight: 607 lbs
Specifications
Specifications
| MAGNA Lifting Products 20 Ton Geared Trolley GTR2000 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| CAPACITY | 20 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Material Handling/Lifting - Trolleys |
| TOOL TYPE | Material Handling/Lifting |
| TROLLEY TYPE | Geared Trolley |
