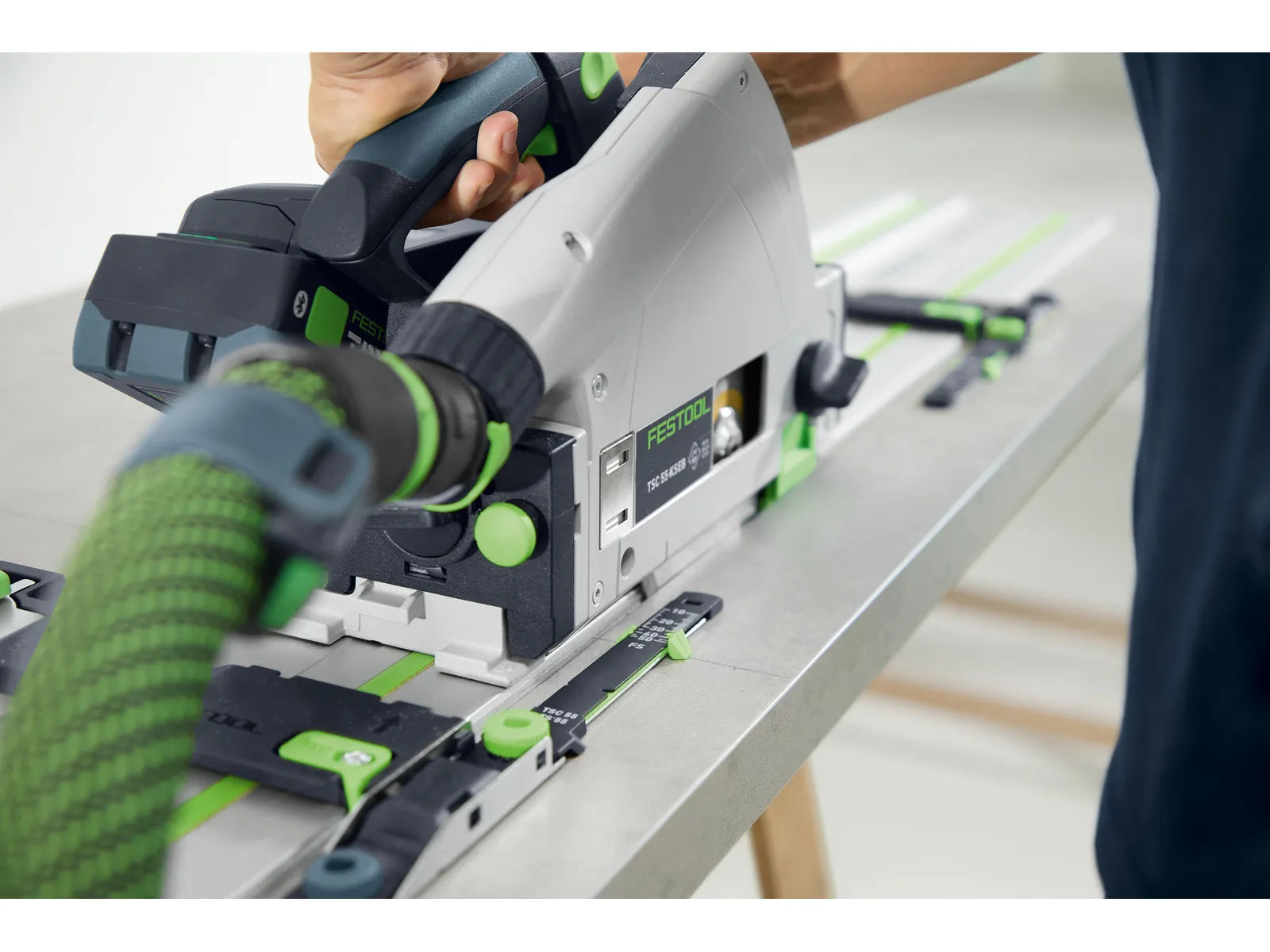

The Festool FS-EP TS/TSC 55 Depth Position Indicator (578695) is a guide rail positioning accessory engineered for precise plunge cuts and cut-outs using Festool TS 55 series track saws. Compatible with TS 55 R, TS 55 F, TSC 55, TSC 55 K, and TSC 55 KS plunge-cut saws paired with Festool FS/2 guide rails, this positioning aid clearly indicates the exact entry and exit points of the saw blade at any preset cutting depth. Designed for finish carpenters, cabinetmakers, and installers, it eliminates guesswork during sink cut-outs, window openings, and wall-adjacent cuts.

Operating directly within the top guide rail channel, the positioning aid functions as both a front and rear guide rail stop to control cut start and stop locations with high repeatability. Its symmetrical housing design permits tool-free installation on either the left or right side of the guide rail, enabling accurate cut-out alignment even in tight corners or against existing walls where sightlines are restricted. Integrated support plates help stabilize the saw during plunge entry to prevent lifting, while built-in fine adjustment screws allow exact calibration to match specific saws, guide rails, or resharpened saw blades.

For layout and narrow material sizing, the front indicator displays cutting width for accurate alignment when working to the right of the guide rail. The system drops into place from above without requiring tools, speeding up setup and eliminating the need for test cuts or manual spacers.

Features & Benefits

• Exact Blade Entry & Exit Indication: Displays the precise start and stop points of the saw blade at set cutting depths to eliminate overcuts during plunge cuts and openings.
• Dual-Sided Rail Mounting: Symmetrical design mounts on either side of the guide rail for precise alignment when working close to walls or in restricted spaces.
• Integrated Front & Rear Stops: Serves as physical start and stop limits along the guide rail to deliver consistent, highly repeatable cut-outs.
• Tool-Free Drop-In Installation: Drops directly into the top guide rail channel from above and locks securely without extra tools for fast layout adjustments.
• Cutting Width Scale: Clearly indicates cut width for accurate layout and positioning when working on the right side of the blade or cutting narrow panel strips.
• Plunge Stability Support: Built-in support plates keep the plunge-cut saw firmly planted against the guide rail to prevent lifting during entry into the workpiece.
• Fine Adjustment Calibration: Integrated calibration screws enable fine-tuning to account for specific saw models, guide rail tolerances, and resharpened blade diameters.
• TS 55 Series Fitment: Engineered specifically for seamless integration with Festool TS 55 R, TS 55 F, TSC 55, TSC 55 K, and TSC 55 KS track saws on FS/2 guide rails.

What's Included

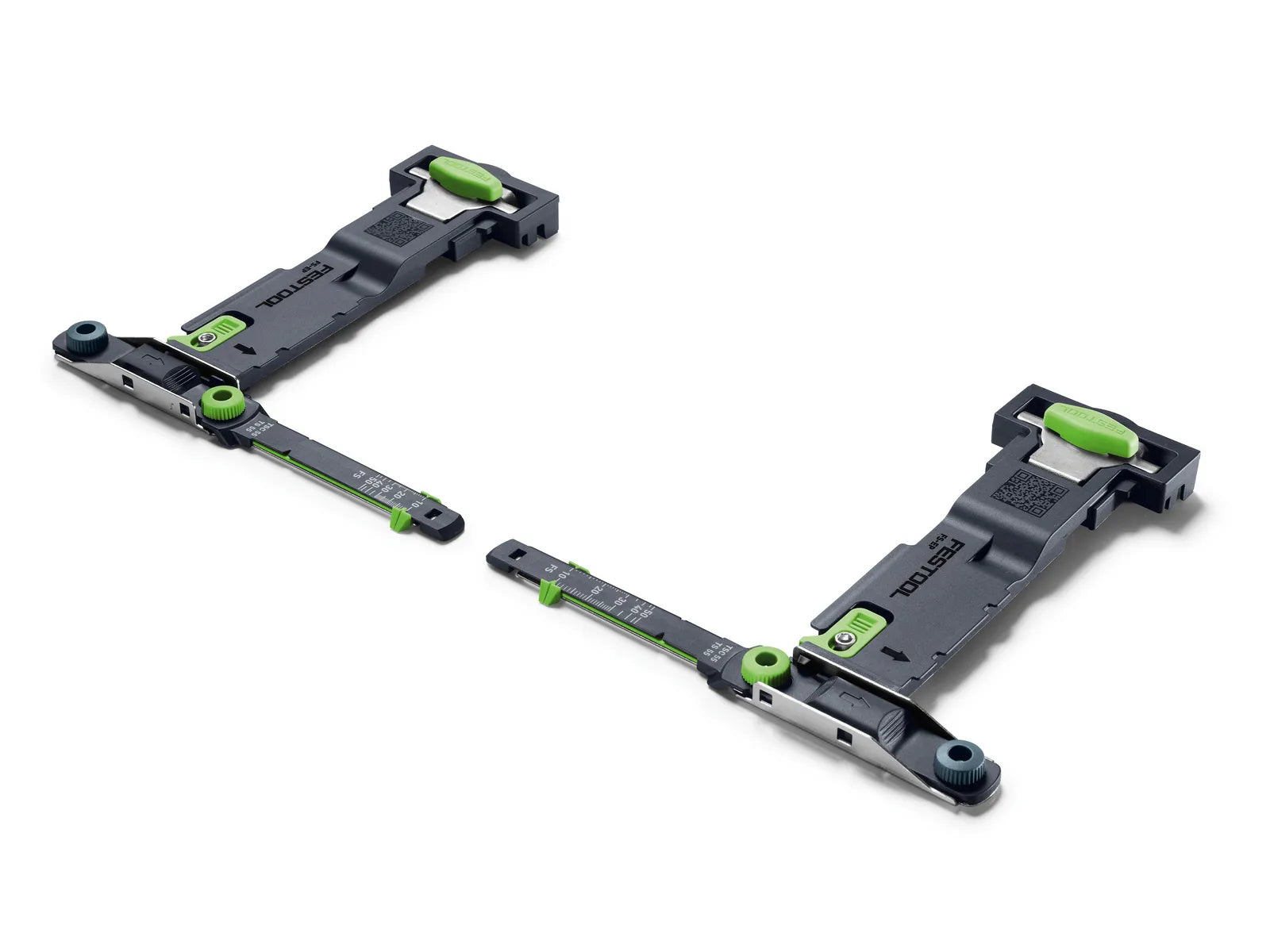

• (1) Front Position Indicator with Support Plate and Marking Indicator
• (1) Rear Position Indicator with Support Plate and Marking Indicator

Select the FS-EP TS/TSC 55 (578695) for dedicated depth positioning with Festool TS 55 and TSC 55 series track saws. If operating the larger Festool TS 60 K track saw, choose the model-specific FS-EP TS 60 (578696). For a complete kit that includes the TS 55 depth position indicator, two FS-EZ 150 one-hand guide rail clamps, and a Systainer SYS3 M 112 storage case, select the Accessory Kit ZS FS-EP TS/TSC 55 (578697).
