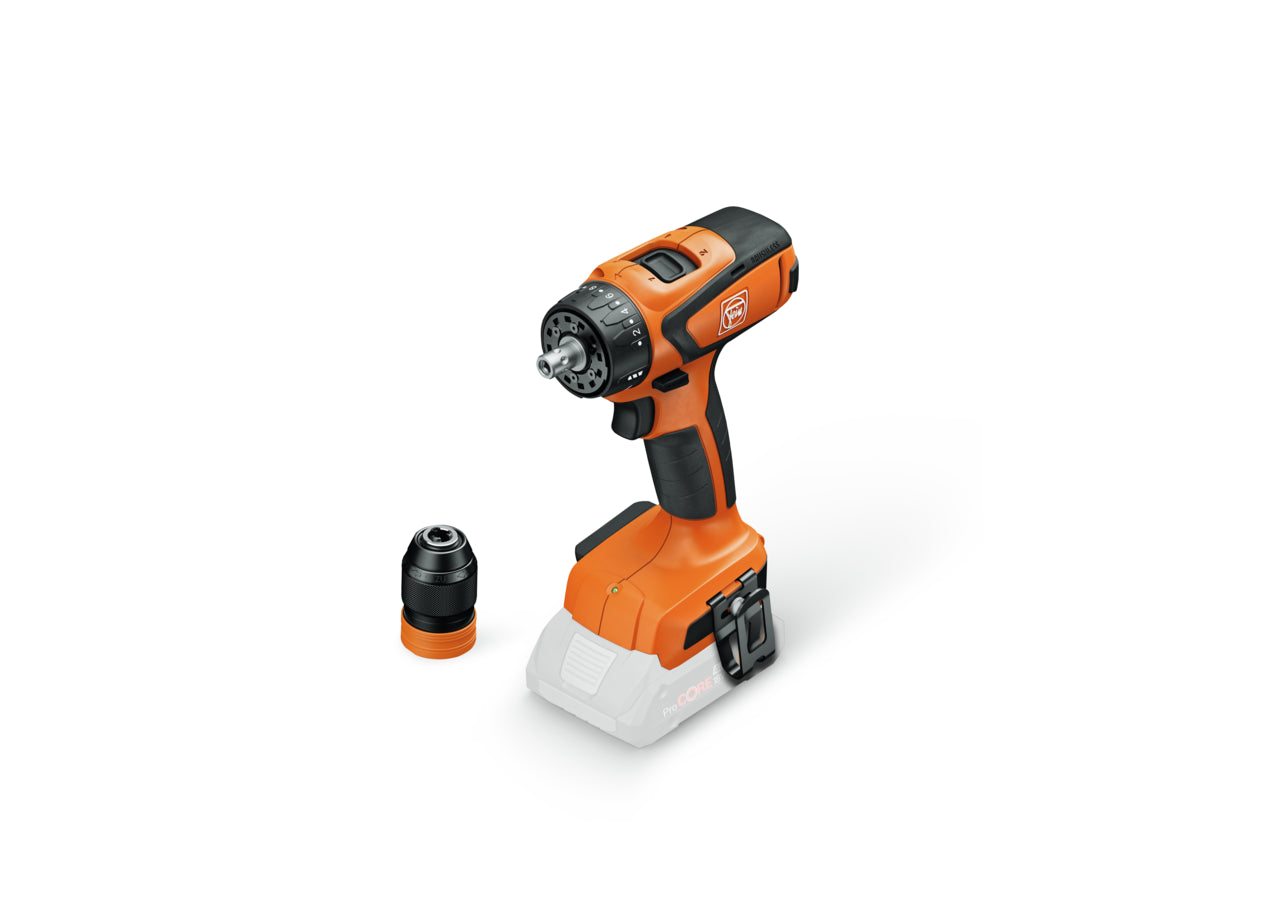

Fein Cordless Drill Driver 4-Speed ASCM 18 QSW AS 71161461090
Fein Cordless Drill Driver 4-Speed ASCM 18 QSW AS 71161461090
Couldn't load pickup availability
Details
Details
Smaller and lighter 4-speed cordless drill/driver with brushless motor and QuickIN interface. Ideal for universal drilling and screw applications.
Features & Benefits
- Solid metal gearbox with 4 speeds for optimal cutting speeds for drilling in metal.
- QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
- With the compact and lightweight 2.18 lbs design, the ASCM 18 QSW is the lightest 4-speed wrench compared to others on the market.
- Brushless FEIN PowerDrive motor with 30% greater efficiency and longer service life.
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
- Mechanical torque setting.
- Drives up to 1,100 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah).
- User safe with restart and electronic overload protection.
- Comes with a magnetic bit holder and belt clip.
- Compatible with Bosch Professional 18 V storage batteries since 2008 and AMPShare storage batteries.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- Easily transported with our stackable L-BOXX system.
Specifications
Specifications
| Battery voltage | 18 V |
| Battery compatibility | Li-ion / CORE 18 V Li-ions |
| Battery interface | 18 V AMPShare |
| Motor | brushless |
| Gearbox | 4-speed |
| Accessory interface | QuickIN |
| No load speed | 400 / 700 / 1,400 / 2,500 rpm |
| Max. torque (hard/soft) | 354 [40] / 266 [30] in/lbs[Nm] |
| Torque steps | 20 + 1 |
| Chuck capacity | 1/16 [1.5] - 1/2 [13] in[mm] |
| Fastening | 3/8 [8] x 7-7/8 [200] in[mm] |
| Twist drill diameter capacity in steel | 1/2 [13] in[mm] |
| Holesaw diameter capacity in wood | 1-9/16 [40] in[mm] |
| Tapping | 5/16" |
| Weight without battery | 2.18 [0.99] lbs[kg] |
