Fein ASCM 18-4 QMP AS QuickIn Hammer Drill 71161565090
Fein ASCM 18-4 QMP AS QuickIn Hammer Drill 71161565090
Couldn't load pickup availability
Details
Details
ASCM 18-4 QMP AS QuickIn Hammer Drill

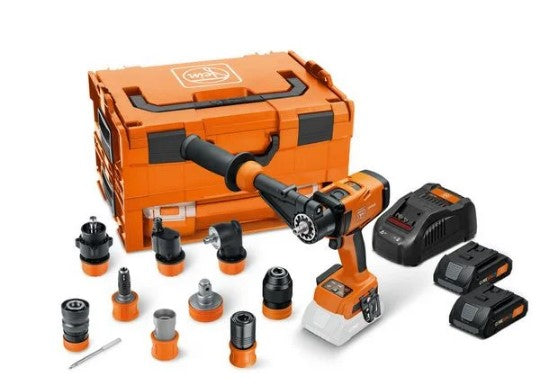

The 4-speed drill/driver with 8 QuickIN accessories is perfect for a wide range of tasks using just one tool. The QuickIN attachments make it easy to switch between drilling, holemaking, tapping, and screwdriving, even in hard-to-reach areas with the offset and right-angle heads. The set includes interconnectable L-BOXX and i-BOXX cases for organized storage of the drill/driver and accessories, along with 2 CORE18 V 4Ah AMPShare batteries and a quick charger.
Features:
- 4-speed gearbox with hammer function for optimal cutting speeds in metal for holes from 1/16" to 3-1/8".
- Great versatility with the FEIN QuickIN system for multi-functional use related to drilling, core drilling, tapping, countersinking, and screw applications.
- QuickIn accessories allows for quick change flexibility between metal and wood applications in seconds.
- Extremely safe with kickback monitoring which stops the tool.
- More control with the extendable auxiliary handle.
- Selectable hammer function for drilling in stone and masonry up to 1/2".
- The brushless, high-performance FEIN PowerDrive motor with up to 30% higher efficiency extends the service life.
- High torque up to a maximum of 1,150 in/lb.
- QuickIN solid metal drill chuck with carbide jaws and 1,062 in/lb clamping force.
- Electronic torque setting (15+1).
- Intuitive control panel with dimmable LED for perfect illumination of the work area.
- Comes with a magnetic bit holder and belt clip.
- QuickIn set includes: 1/4" bit holder, 1/2" socket adapter, self reversing tapping attachment, tap collet holder, offset driver, holesaw adapter, QuickIn Plus cutters adapter, angle head and VARIO adapter.
- Drives 3/8 x 15-3/4 in [10 x 400 mm] screws without pre-drilling.
- Over screw driving function to prevent screw from driving too deep into the wood.
- Drives up to 1,400 1/4 x 1-1/2" screws in wood with one battery charge (CORE 18 V 4 Ah)
- User safe with restart and electronic overload protection.
- Compatible with Bosch Professional 18 V batteries since 2008 and AMPShare batteries.
- COOLPACK 2.0 technology ensures a 135% longer battery service life, enabling longer operation time.
- Perfectly equipped for any job with our L-BOXX system.
Specifications:
- Battery voltage — 18 V
- Battery compatibility — Li-ion / CORE 18 V Li-ions
- Battery interface — 18 V AMPShare
- Motor — Brushless
- Gearbox — 4-speed
- Accessory interface — QuickIN
- No load speed — 430 / 850 / 2 000 / 4 000
- Impacts per minute — 6 450 / 12 750 / 30 000 / 60 000
- Max. torque (hard/soft) in/lbs[Nm] — 1,151 [130] (620 [70] / 443 [50] )
- Torque steps — 15 + 1
- Chuck capacity — 1/16 [1.5] - 1/2 [13] in[mm]
- Fastening — 3/8 [10] x 15-3/4 [400] in[mm]
- Drill steel twist drill — 1/2 [13] in[mm]
- Holesaw diameter capacity in wood — 2-3/8 [60] in[mm]
- Capacity in stone — 1/2 [13] in[mm]
- Tapping — 1/2" [M14]
- Weight without battery — 3.09 [1.40] lbs[kg]
Additional Information:
Specifications
Specifications
| Fein ASCM 18-4 QMP AS QuickIn Hammer Drill 71161565090 | |
| APPLICATION | Concrete / Wood Working / Metal Working |
| Brand | Fein |
| POWER SOURCE | Electric - Cordless |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB - TYPE | Drills - Hammer Drills / Drills - Cordless Drills |
| TOOL TYPE | Drills |
