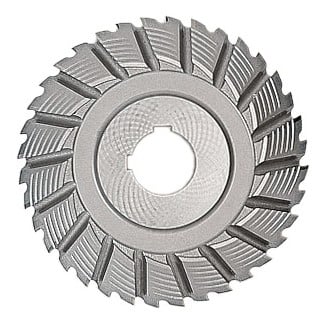

Fein 7" HSS V-Shape Form Cutter for Pipe Milling, 30deg Angle 63508085008
The Fein 63508085008 Form Cutter is a heavy-duty accessory designed for industrial pipe milling and weld seam preparation. Constructed from premium High-Speed Steel (HSS), this cutter features a specialized V-shape geometry to produce a precise 30-degree bevel, a common requirement for specific welding standards.
This model offers a larger footprint than the 160mm version, boasting a full 7-inch (180 mm) diameter and a 1-5/8 inch (42 mm) width. These expanded dimensions provide increased stability and heat dissipation, making it the ideal choice for continuous use on large-diameter pipes. It is engineered for seamless compatibility with Fein's pipe milling machines (Gearbox Type A), ensuring reliable performance on high-alloy steel, unalloyed steel, and cast iron.
Features & Benefits
- 30° Bevel Geometry: Specifically ground to cut a 30° V-shape chamfer for precise weld prep.
- Maximized Dimensions: Large 180mm diameter and 42mm width offer superior stability and durability compared to smaller cutters.
- High-Speed Steel (HSS): High-grade steel construction ensures long tool life even when machining tough alloys.
- Heavy-Duty Performance: Capable of handling pipe wall thicknesses up to 3/8 in. (10 mm).
- 36-Tooth Design: Ensures smooth cutting action and rapid chip removal for efficient workflow.
- Heavy-duty preparation of 30° V-seams on industrial piping.
- Machining of large-diameter steel and cast iron pipes in pipeline construction.
Designed for Fein Pipe Milling Machines (Gearbox Type A), including:
- Fein RDG 18-3a / 18-3b
- Fein RDG 1500 A / 1500 B
- Fein RSG EX 1500 A / 1500 B
Specifications
- Part Number: 63508085008 (6 35 08 085 00 8)
- Type: Form Cutter (V-Shaped)
- Chamfer Angle: 30°
- Material: HSS (High-Speed Steel)
- Diameter: 7 in. (180 mm)
- Width: 1-5/8 in. (42 mm)
- Number of Teeth: 36
- Max. Wall Thickness: 3/8 in. (10 mm)
- Max. Pipe Diameter: 63 in. (1,600 mm)
Specifications
Specifications
| Fein 7" HSS V-Shape Form Cutter for Pipe Milling, 30deg Angle 63508085008 | |
| Brand | Fein |
