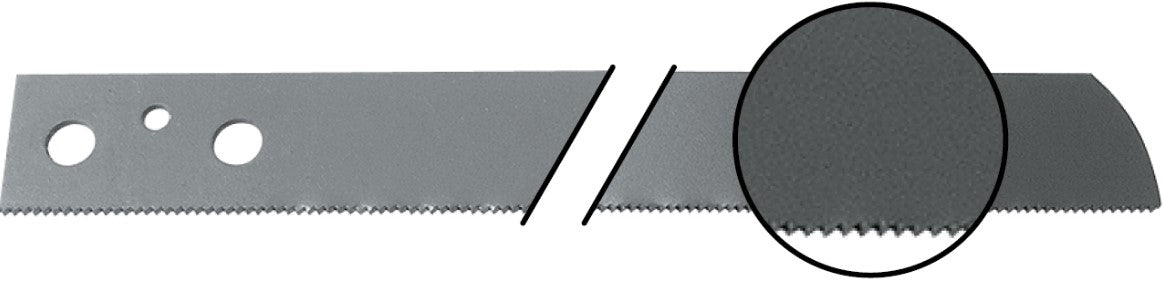

Fein 20 in HSS Hacksaw Blade 14 TPI 63503072002
The FEIN 63503072002 is an ultra-long-reach industrial saw blade engineered for the largest capacities of the FEIN pipe sawing system. At 20 inches (500 mm) in length, it enables single-pass cutting of pipes up to approximately 17 inches in diameter, or larger when using rotational cutting techniques. This blade is crafted from Solid High-Speed Steel (HSS) and features a thickened 2.0 mm body, a critical engineering enhancement that prevents the long blade from buckling under feed pressure. The 14 TPI (1.8 mm pitch) tooth geometry is specifically selected for harder alloys; the finer spacing ensures that multiple teeth are engaged in the cut at all times. This reduces shock loading on individual teeth, delivering a smooth, chatter-free finish that is essential when cutting work-hardening materials like stainless steel or Inconel.
Features & Benefits
- Massive Cutting Capacity: 20-inch length provides the reach necessary for cutting large municipal and industrial pipes (up to ~440mm diameter).
- Stainless Steel Optimized: 14 TPI pitch reduces vibration and tooth impact, preventing the work-hardening effect common when sawing stainless steel alloys.
- Enhanced Structural Rigidity: Features a robust 2.0 mm thickness (vs standard 1.5 mm) to act as a stable beam, ensuring cut squareness even at full extension.
- Industrial Durability: HSS construction resists the high heat generated during long, deep cuts in large diameter piping, maintaining cutting speed and edge retention.
Applications: Large diameter stainless steel process piping, medium-wall steel tubes, and broad structural profiles in fabrication and demolition.
Compatible Accessories: Requires FEIN Power Hacksaws (PCS 1000 E, STS 325 R) equipped with appropriate extended chain clamping fixtures for large diameters.
Specifications
- Part Number: 63503072002
- Material: High-Speed Steel (HSS)
- Length: 19-5/8" (500 mm)
- Teeth Per Inch: 14 TPI (1.8 mm pitch)
- Thickness: 0.079" (2.0 mm)
- Width: 1-1/8" (28 mm)
- Max Pipe Capacity: Approx. 17-1/4" (440 mm)
- Pack Quantity: 1 Blade
What's Included: (1) 20" HSS Hacksaw Blade - 14 TPI.
Specifications
Specifications
| Fein 20 in HSS Hacksaw Blade 14 TPI 63503072002 | |
| Brand | Fein |
Shipping & Returns
Shipping & Returns
Shipping: Beaver Industrial Supply offers free shipping on orders over $199, with the exception of Sawstop and Laguna, which require additional fees to be collected. Other exceptions apply as noted on product pages.
We reserve the right to determine the fastest and most cost-effective manner of transportation for all orders that qualify for free shipping. Our shipping carriers cannot deliver to PO box or U.S. military post office box addresses, such as APO and FPO, so we require a physical street address for delivery. We use USPS, which typically takes 2-8 days for delivery, depending on your location, for smaller items and UPS Ground for all other ground shipments under 150 pounds.
• Returns: We accept returns and exchanges for a fee up to 30 days in unopened, new, and unused condition in the original packaging. Exceptions apply.
Please note, NO REFUNDS will be given on any new, used, or damaged item if it is not returned in the original packaging, no matter what condition the packaging is in. If the item qualifies for free shipping, you will be charged the original shipping cost and are responsible for shipping the product back with the shipping carrier of your choice.
We must receive the item undamaged. We recommend you package it accordingly and purchase insurance for higher-priced items to ensure you receive the full refund minus any incurred fees as applicable. We reserve the right to refuse the return of accessories.
Because items are your responsibility until they reach us, we recommend that you send the parcel using a delivery service that insures you of the value of the goods. Return shipping is at the customer's cost. At Beaver Industrial Supply’s discretion, delivery charges can be refunded if the goods are defective.
Returns require a return authorization number. Please call customer service at 314-773-5999 or submit a customer service inquiry to start the exchange or return process and receive an authorization number.
Machinery too large for parcel shipment (palletized or crated) is only returnable if there is a material defect that cannot be resolved by replacing components.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products

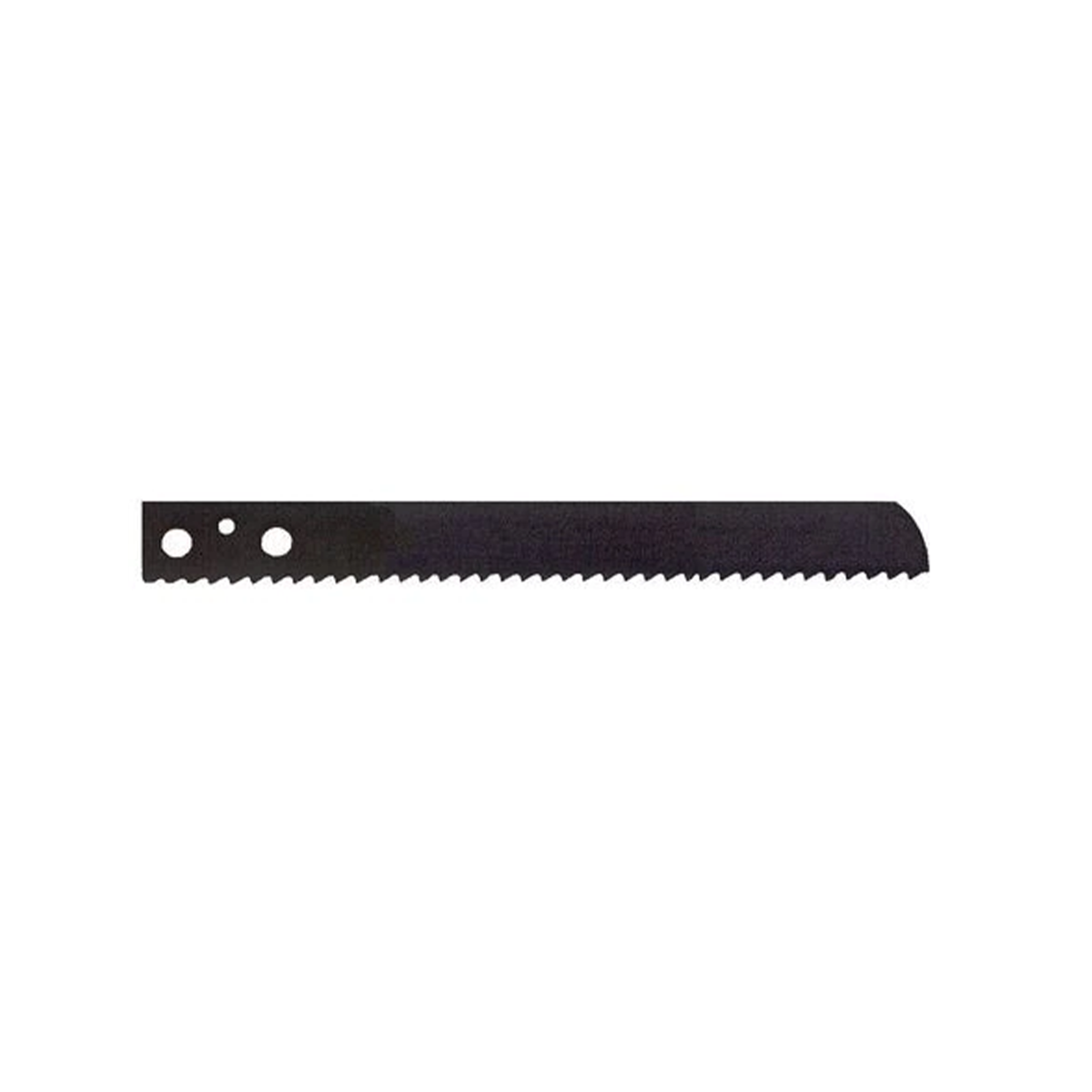

Fein BLADE 24inch 14 tooth, Z22-73 HSS 63503073006
