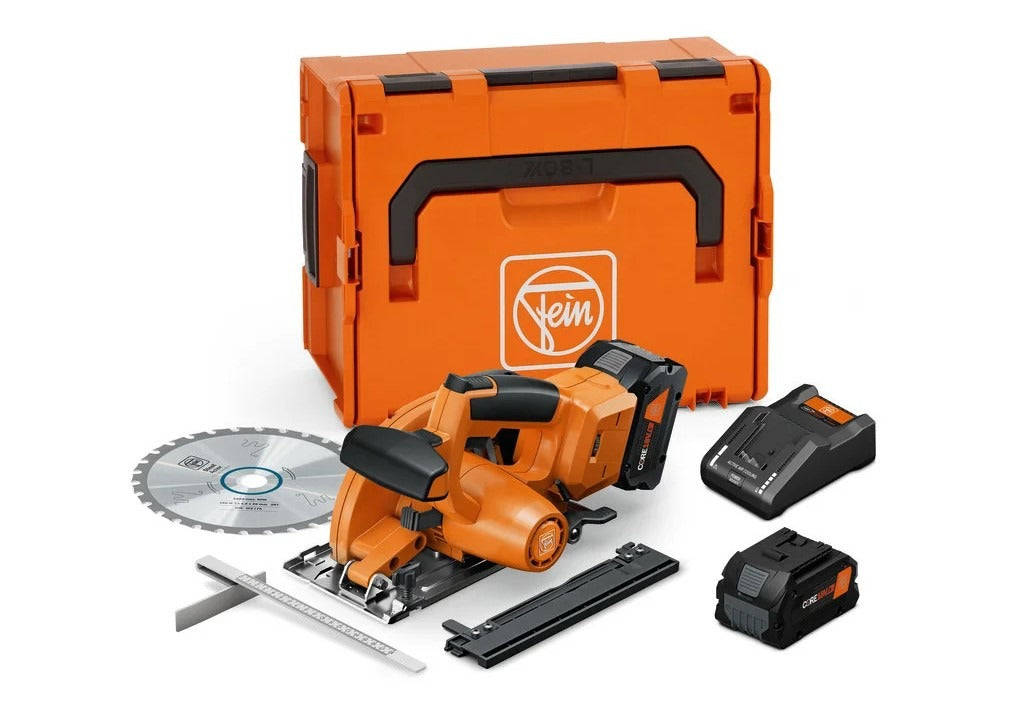

High-performance cordless metal circular saw for fast, precise cold cuts in sheet metal, pipes and profiles up to 2-1/4 in (57 mm) cutting depth. Including storage battery starter set 2 x 8 Ah CORE 18 V batteries and rapid charger.

Features & Benefits

• Strong performance - lightweight: featuring a brushless motor, workers achieve a 50% higher material removal than conventional metal handheld circular saws. CORE 18 V battery and optimally coordinated saw blade with a weight of only 6.72 lbs (3 kg).
• Housing and safety guard in die-cast aluminum and chip collection bin made of flame-retardant material for maximum safety against hot metal chips with sharp edges. With its LED light, you always have a clear view of cutting line.
• Fast and precise sawing of pipes, profiles, metal grids and sheets up to 57 mm (2-1/4 in) cutting depth possible. Straight, long cuts with a guide rail adapter - compatible with guide rails from Makita, BOSCH, Festool and Mafell.
• Manual speed adjustment for optimal work results for a wide range of materials without reworking (6 levels).
• Cold cuts in metal with virtually no sparks and no burrs.
• Activation of the LED light in advance with the unlocking switch.
• Safety guard closing time < 0.3 s even after 50,000 cycles.
• Improved handling - lightweight, ergonomic handle including Softgrip for right- and left-handed users.
• Electronic user protection: Effective brake (0.2 s), thermal overload for avoiding permanent damage to the tool and battery, restart protection, dead man's switch.
• Large chip collection bin made of flame retardant material for long emptying intervals.
• Heat-, scratch- and impact-resistant housing made of die-cast aluminum.
• Compatible with all CORE 18 V AMPShare batteries and chargers, for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless tools.
• CORE 18V AMPShare batteries: COOLPACK 2.0 technology ensures a 135% longer battery service life. State-of-the-art cell technology and intelligent battery management ensure 87% more power than conventional batteries. Electronic cell protection (ECP) protects batteries against overloading, overheating and deep discharge.

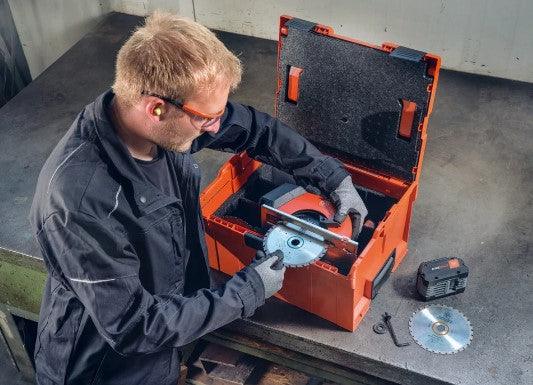

• Easily transported with our stackable L-BOXX system.

Technical Data

• Battery voltage — 18 V
• Battery capacity — 8 Ah
• Battery compatibility — Li-ion / CORE 18 V Li-ions
• Battery interface — 18 V AMPShare
• No load speed — 1 300 - 2 800
• Max. depth of cut — 2-1/4 [57] in[mm]
• Max. saw blade thickness — 3/32 [2] in[mm]
• Saw blade diameter — 6 [150] in[mm]
• Mounting hole diameter — 3/4 [20] in[mm]
• Width — 7 [179] in[mm]
• Height — 9-3/4 [249] in[mm]
• Length — 11-1/4 [287] in[mm]
• Steel 58,000 lbf/in² — 1 [24] in[mm]
• Steel 116,000 lbf/in² — 1/4 [4] in[mm]
• Non-ferrous metals up to 36,000 lbf/in² — 1-9/16 [40] in[mm]
• Base plate dimensions — 10-1/16 [256] x 5-3/16 [131] in[mm]
• Weight without battery — 6.72 [3.05] lbs[kg]
