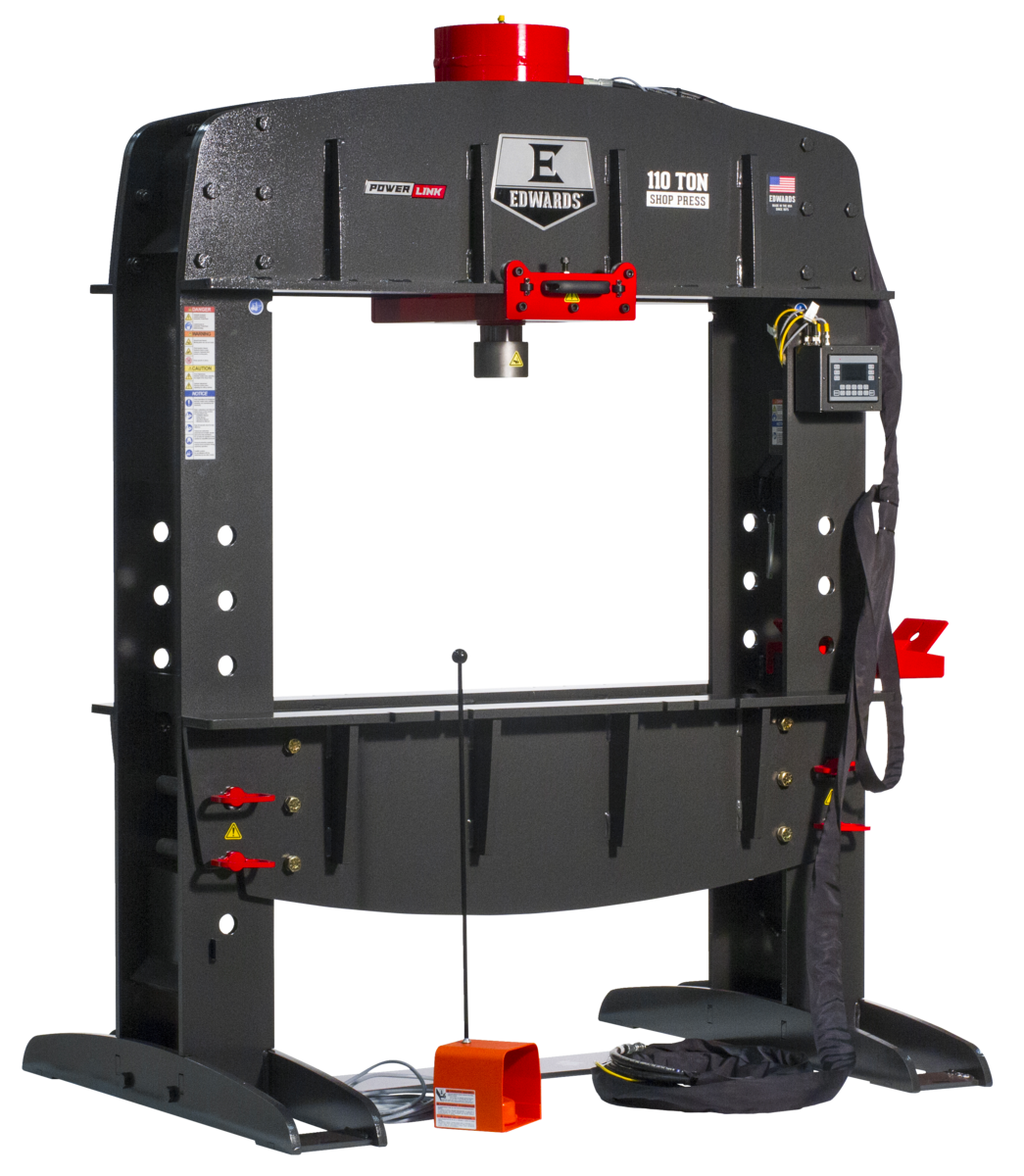

HAT9060, Edwards 110 Ton Shop Press with PLC and Portable Power Unit 230V, 1Ph

Our most powerful Shop Press, this 110 Ton Shop Press includes a Programmable Logic Control (PLC) to maximize your efficiency with shorter cycle times - over a 50% time savings. With the greatest capacity this Shop Press is able to accept all of our standard tooling along with custom tooling in its large work table area, the 110 Ton can press bearings, bend metal or straighten your parts. The rolling cylinder, open-sided design, and electric foot pedal make this machine simple to use. This Shop Press package includes a Portable Power Unit and is ready to PLUG IN & POWER UP.

Features:

• • Rolling cylinder provides maximum adaptability
• • Open-sided design allows longer material to pass through the frame
• • Accepts a variety of standard and custom tooling
• • Requires an Edwards Ironworker with PowerLink System or a Portable Power Unit to operate (included)
• • Electric foot pedal with integrated jog control
• • 20' quick-connect hoses for simple "plug & play" operation
• • Hydraulic-assist adjustable work table heights to maximize operator safety includes lift chains and bracket
• • Programmable Logic Control (PLC) allows operators to create repeatable actions improving efficiency
• • The PLC offers adjustable up/down stroke control providing up to 50% time savings
• • The PLC delivers adjustable PSI allows the user to set the desired pressure accurately
• • Magnetic PLC control box mounts anywhere on the Shop Press for user performance and comfort

Specifications:

Country of Origin	USA
Cylinder (In.)	4
Minimum Ram Speed (In./Sec)	.186
Minimum Return Speed (In./Sec)	.220
Rating (Tons)	110
Steel Frame Thickness (In.)	3/4
Stroke (In.)	12-1/4
Work Table (In.)	37-7/16 x 48
Product Dimensions (In.)	48 x 64 x 88
Shipping Dimensions (In.)	72 x 112 x 123
Weight (lbs.)	3120
Height	123.0000
Length	72.0000
Weight	2200.0000
Width	112.0000
