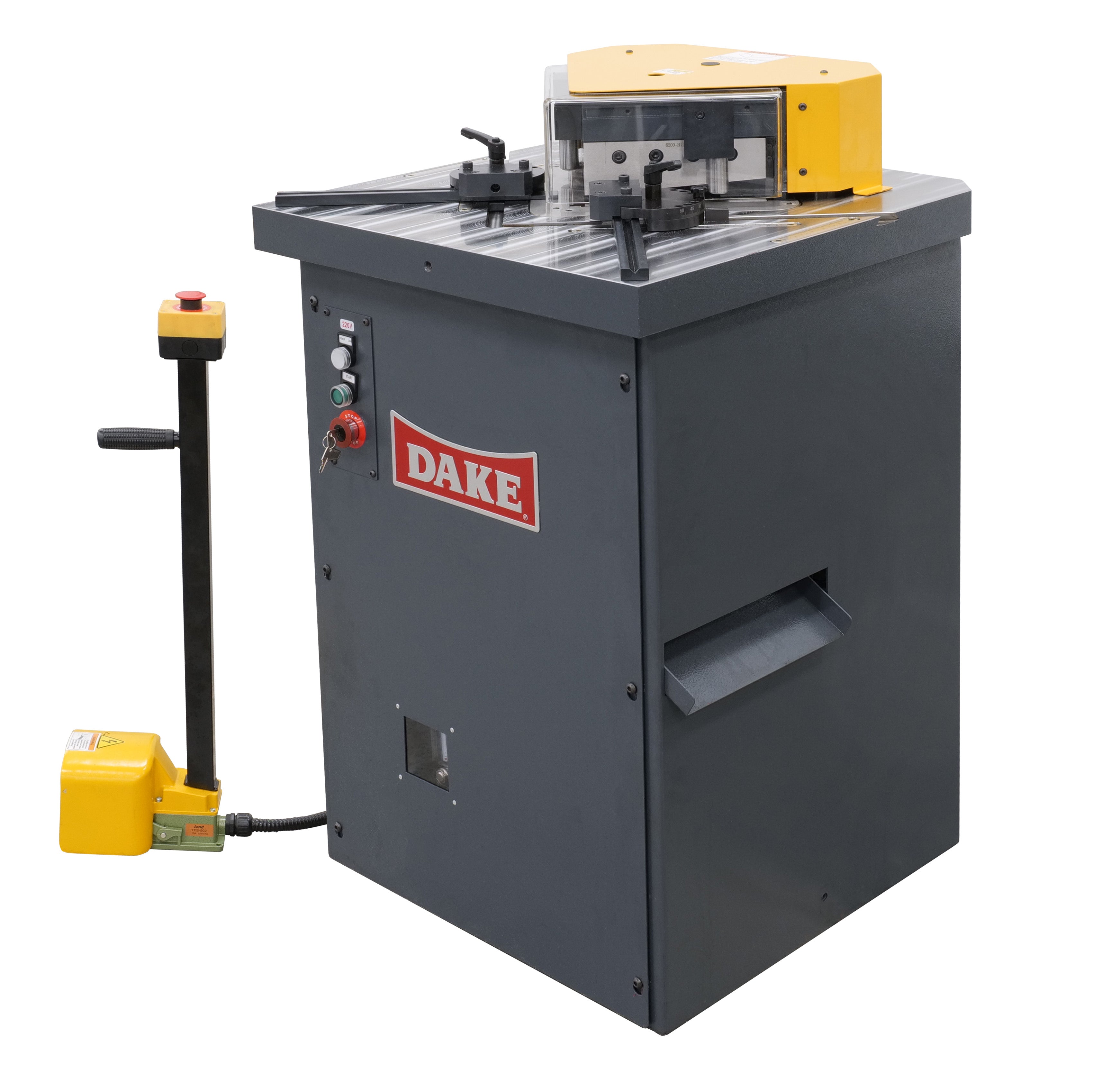

DAKE Machinery DLN-6200 24-Ton Fixed 90deg Hydraulic Sheet Metal Notcher, 4 Ga. Capacity, 220V 3Ph 960400
Hydraulic sheet-metal corner notcher with fixed 90° blades for clean, precise notches in up to 4 ga (6 mm) mild steel. Oversized 25.5″ × 25.5″ table with guides and foot-pedal control delivers up to 15 strokes/min under a 4 HP, 220 V 3-phase motor.
Features & Benefits
- Oversized 25.5″ × 25.5″ table with material guides
- Fixed 90° blade angle for consistent notching
- Foot-pedal control for operator safety and comfort
- Resharpenable 8.5″ blades with negative rake for accuracy
- Up to 15 strokes per minute for high productivity
Specifications
- Max material thickness: 4 ga (6 mm)
- Blade length: 8.5″
- Table dimensions: 25.5″ × 25.5″
- Control: Foot pedal switch
- Operation: Foot-switch actuation
- Horsepower: 4 HP, 220 V 3-phase
- Max strokes/min: 15
- Blade angle: 90° fixed
- Max notch size: 8.5″ × 8.5″
- Overall size: 31.5″ × 25.59″ × 46.85″
Specifications
Specifications
| Dake Machinery DLN-6200 24-Ton Fixed 90deg Hydraulic Sheet Metal Notcher, 4 Ga. Capacity, 220V 3Ph 960400 | |
| Brand | Dake Machinery |
