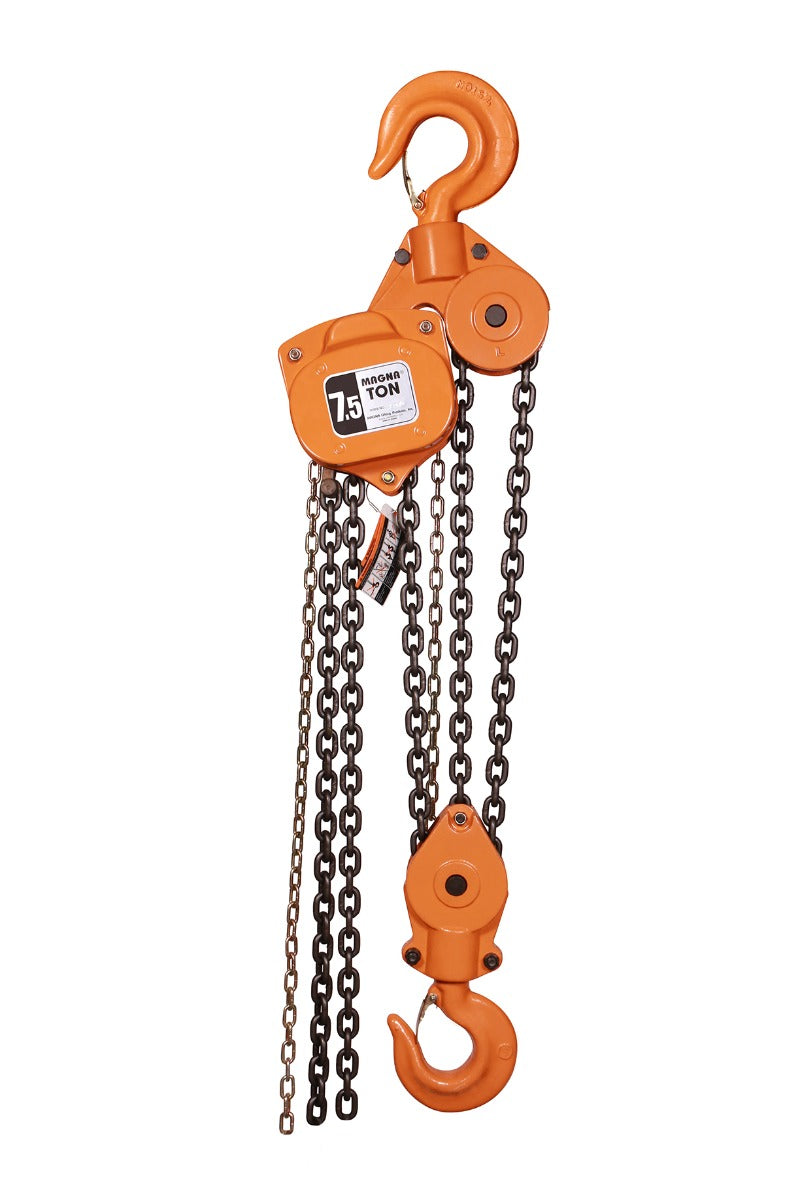

MAGNA 7.5 Ton Chain Hoist, 20 ft. Lift CH75020
For heavy infrastructure and construction requiring significant vertical travel, the MAGNA CH75020 delivers 7.5 Tons (16,500 lbs) of capacity with a 20-foot lift. This hoist is ideal for bridge work and heavy plant maintenance, utilizing a stable 3-fall Grade 100 chain system to handle massive loads safely at height.
The CH75020 features a durable steel housing and fully repairable design, ensuring long-term value. Factory lubricated for -49°F operation, it performs reliably in all weather conditions. The 20-foot chain length provides the reach necessary for deep lifts or high installations, backed by a 150% proof load test for maximum safety.
Features & Benefits
- Extreme High Reach: 20-foot lift for 16,500 lb loads.
- Grade 100 Chain: 3-fall configuration for stability.
- Rugged Build: Steel housing for heavy duty use.
- Service Friendly: Fully repairable architecture.
- Cold Capable: Works down to -45°C (-49°F).
- Safety Certified: 150% proof load tested.
Compatible Accessories: Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR750 (7.5 Ton Plain Trolley), GTR750 (7.5 Ton Geared Trolley), BC1000P/BC1000RE (10 Ton Beam Clamps), ULBC1000F/S (10 Ton Universal Beam Clamps)
Specifications
- Model Number: CH75020
- Working Load Limit (WLL): 7.5 Ton (16,500 lbs)
- Standard Lift: 20 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 3
- Pull to Lift Full Load: 90 lbs
- Headroom (Dimension C): 27.56 in.
- Hook Throat Opening (Dimension G): 1.81 in.
- Net Weight: 187.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 7.5 Ton Chain Hoist, 20 ft. Lift CH75020 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 20 ft |
| LIFTING CAPACITY | 7.5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
