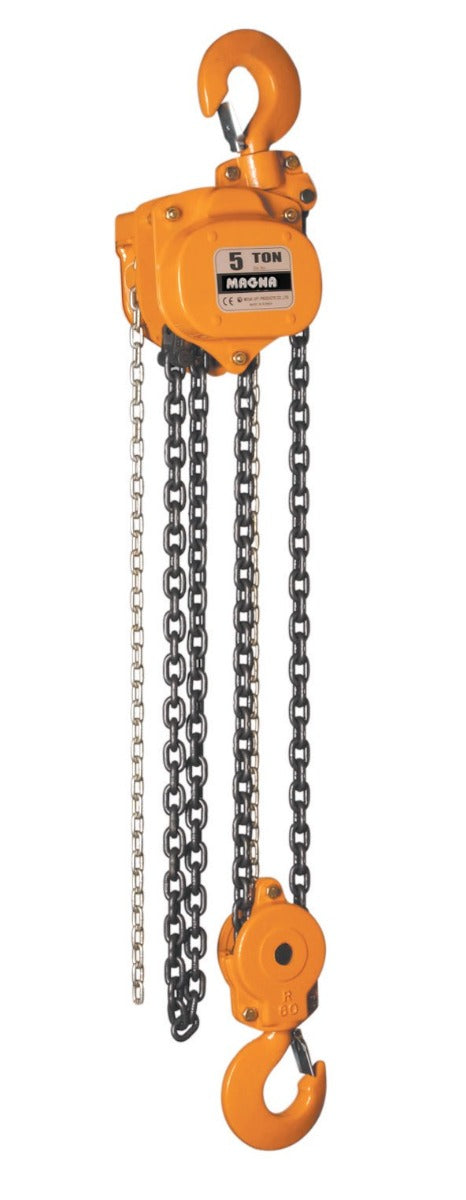

MAGNA 5 Ton Chain Hoist, 15 ft. Lift CH50015
The MAGNA CH50015 provides a substantial 5 Ton (11,000 lbs) lifting capacity coupled with a 15-foot lift, making it the ideal solution for heavy machinery installation and structural steel erection in taller industrial buildings. Utilizing a 2-fall configuration of premium Grade 100 chain, it offers superior strength and reliability for critical heavy lifts.
Built to withstand the toughest environments, this hoist features a stamped steel housing and a fully accessible, repairable design. The large mechanical load brake ensures safety, while the low-temperature grease allows for operation in cold storage or outdoor winter conditions. The 15-foot reach allows operators to handle massive loads from the floor, maximizing safety and control.
Features & Benefits
- Heavy Duty Reach: 15-foot lift for large-scale industrial projects.
- 11,000 lb Capacity: Robust lifting power for heavy equipment.
- Grade 100 Chain: Premium alloy chain for maximum durability.
- Repairable: Bolt-together design allows for easy maintenance.
- All-Weather: -49°F rated grease prevents freezing and binding.
- Safety Tested: Proof loaded to 150% of rated capacity.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Zinc Plated Load Chain, Slip Clutch, PTR500 (5 Ton Plain Trolley), GTR500 (5 Ton Geared Trolley), BC500P/BC500RE (5 Ton Beam Clamps), ULBC500F/FW/S (5 Ton Universal Beam Clamps)
Specifications
- Model Number: CH50015
- Working Load Limit (WLL): 5 Ton (11,000 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 2
- Pull to Lift Full Load: 86 lbs
- Headroom (Dimension C): 25.00 in.
- Hook Throat Opening (Dimension G): 1.81 in.
- Net Weight: 103.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 5 Ton Chain Hoist, 15 ft. Lift CH50015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
