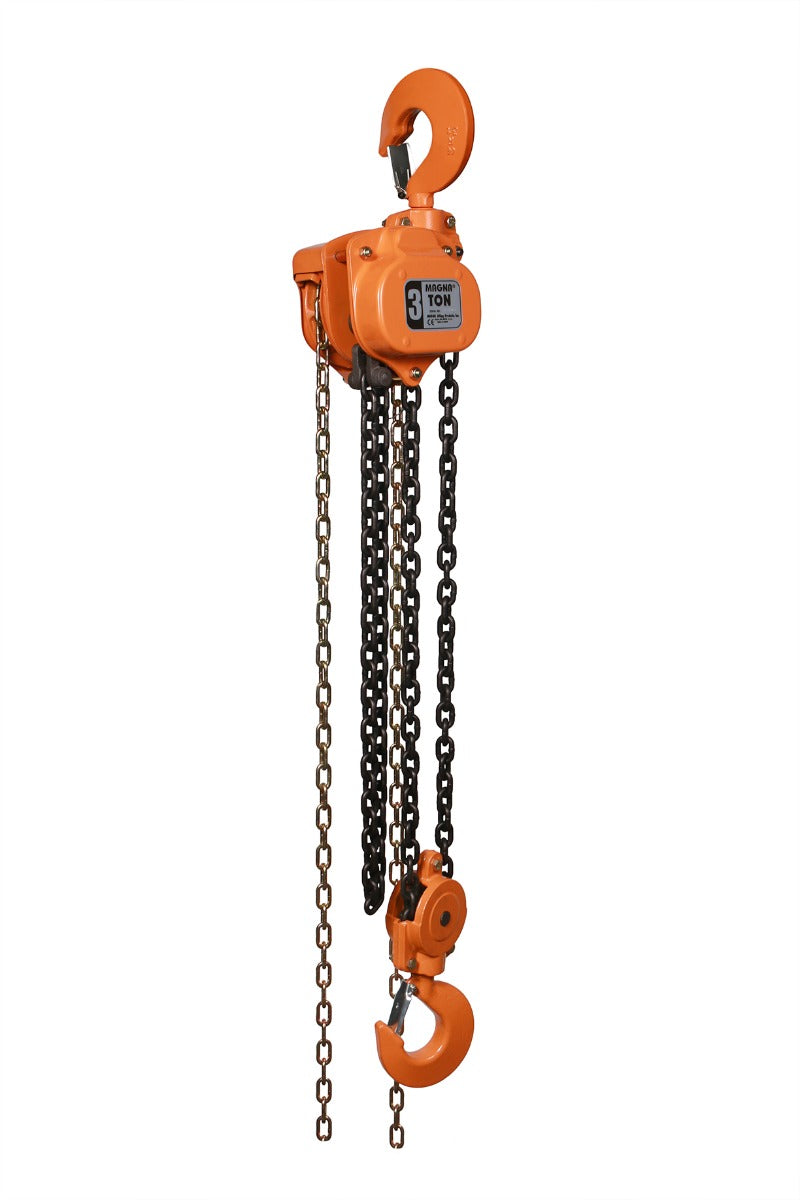

MAGNA 3 Ton Chain Hoist, 20 ft. Lift CH30020
The MAGNA CH30020 provides 3 Tons (6,600 lbs) of lifting power with an extended 20-foot lift, making it suitable for heavy rigging in tall industrial buildings. The double-fall Grade 80 chain configuration ensures stability and control when moving heavy loads over long vertical distances. This hoist is essential for plant maintenance and construction projects requiring high-reach capabilities.
Built for durability, the CH30020 features a stamped steel housing and a robust Weston-style brake. The -45°C rated grease ensures reliable operation in cold environments, while the fully repairable design allows for cost-effective maintenance. Proof tested to 150% capacity, this hoist offers safety and performance for demanding heavy lifts.
Features & Benefits
- High Reach Power: 20-foot lift with 6,600 lb capacity.
- Stable Load: Double-fall chain system for smooth lifting.
- Durable Construction: All-steel body resists impact.
- Service Friendly: Accessible parts for easy repair.
- All-Weather: Functions down to -49°F.
- Safety Assured: 150% proof load tested.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR300 (3 Ton Plain Trolley), GTR300 (3 Ton Geared Trolley), BC300P/BC300RE (3 Ton Beam Clamps), ULBC300F/FW/S (3 Ton Universal Beam Clamps)
Specifications
- Model Number: CH30020
- Working Load Limit (WLL): 3 Ton (6,600 lbs)
- Standard Lift: 20 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 2
- Pull to Lift Full Load: 77 lbs
- Headroom (Dimension C): 18.70 in.
- Hook Throat Opening (Dimension G): 1.69 in.
- Net Weight: 72.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 3 Ton Chain Hoist, 20 ft. Lift CH30020 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 20 ft |
| LIFTING CAPACITY | 3 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
