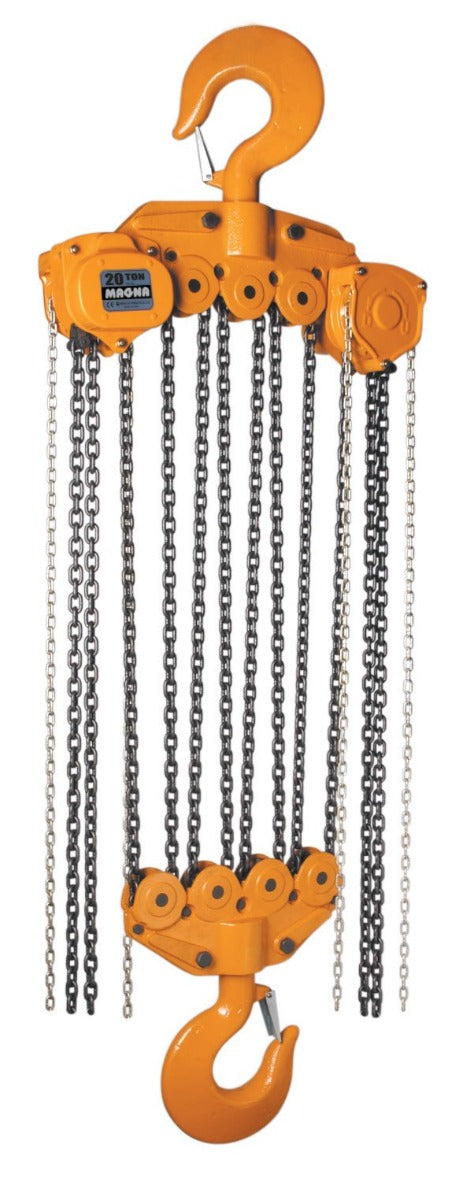

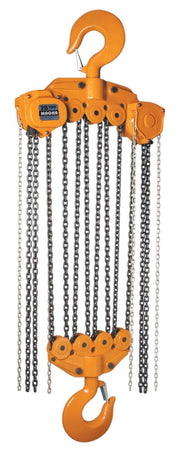

MAGNA 20 Ton Chain Hoist, 15 ft. Lift CH200015
The MAGNA CH200015 is engineered for the most demanding heavy-lift scenarios, providing 20 Tons (44,000 lbs) of capacity with a 15-foot lift. This hoist is crucial for large-scale infrastructure projects, such as bridge assembly and heavy equipment manufacturing, where immense loads must be lifted to significant heights. It employs an 8-fall Grade 100 chain system for ultimate safety and stability.
Constructed with a heavy-duty stamped steel housing, the CH200015 is built to endure severe industrial environments. Its low-temperature lubrication ensures smooth operation in extreme cold, while the massive hook throat opening accommodates large rigging hardware. Tested to 150% of its rated capacity, this hoist offers unmatched reliability for critical lifts.
Features & Benefits
- Ultimate Reach: 15-foot lift for 44,000 lb loads.
- Grade 100 Chain: 8-fall configuration for maximum security.
- Heavy Duty Build: Steel housing for industrial durability.
- Cold Weather: -49°F rated grease for all-condition use.
- Safety Certified: Proof tested to 66,000 lbs (150% WLL).
- Precise Positioning: Capable of micro-adjustments for massive loads.
Compatible Accessories: Zinc Plated Load Chain, Slip Clutch, PTR2000 (20 Ton Plain Trolley), GTR2000 (20 Ton Geared Trolley), ULBC2000FW (20 Ton Universal Beam Clamp)
Specifications
- Model Number: CH200015
- Working Load Limit (WLL): 20 Ton (44,000 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 9.0 x 27.0 mm
- Load Chain Grade: Grade 100
- Number of Falls: 8
- Pull to Lift Full Load: 90 lbs x 2
- Headroom (Dimension C): 34.25 in.
- Hook Throat Opening (Dimension G): 3.54 in.
- Net Weight: 537.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 20 Ton Chain Hoist, 15 ft. Lift CH200015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 20 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
