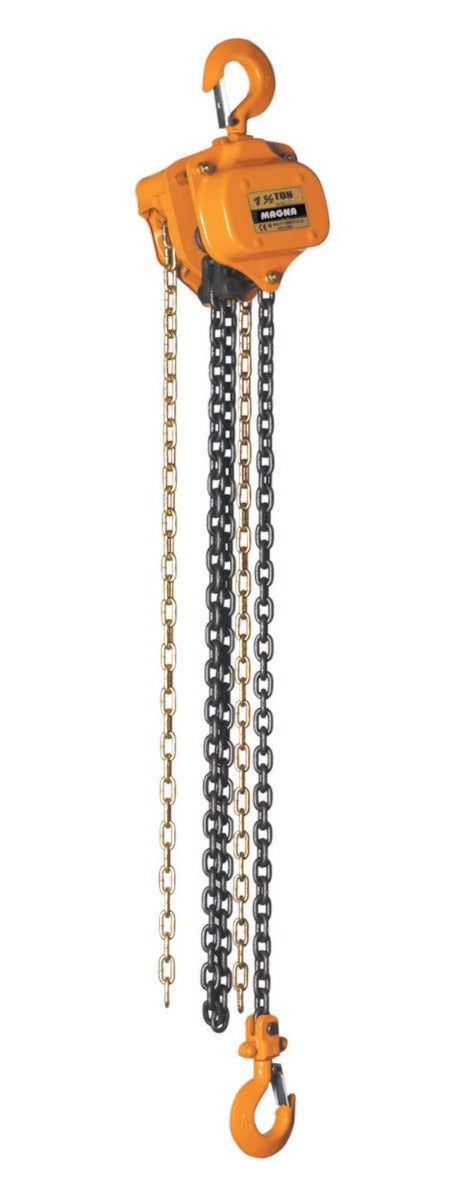

MAGNA Lifting Products 1.5 Ton Chain Hoist, 20 ft. Lift CH15020
MAGNA Lifting Products 1.5 Ton Chain Hoist, 20 ft. Lift CH15020
Couldn't load pickup availability
Details
Details
MAGNA 1.5 Ton Chain Hoist, 20 ft. Lift CH15020
The MAGNA CH15020 provides 1.5 Tons (3,300 lbs) of capacity with an extended 20-foot lift, catering to applications that require both power and reach. This hoist is perfect for lifting equipment to second-story levels or servicing tall machinery in industrial plants. The 20-foot chain length ensures that operators can safely control the lift from the ground.
Featuring a robust steel housing and Grade 80 alloy chain, the CH15020 is designed for durability and ease of maintenance. The cold-weather lubrication guarantees smooth performance in temperatures as low as -45°C. With 360-degree swiveling hooks and a 150% proof load test, this hoist offers safe and reliable lifting for intermediate loads.
Features & Benefits
- Versatile Reach: 20-foot lift for multi-level operations.
- Mid-Range Power: 3,300 lb capacity for substantial loads.
- Durable Design: Steel chassis resists impact and wear.
- Smooth Action: Machined gears and quality grease.
- Cold Capable: Works in -49°F environments.
- Safety Assured: ANSI compliant with 150% overload test.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)
Specifications
- Model Number: CH15020
- Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
- Standard Lift: 20 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 75 lbs
- Headroom (Dimension C): 13.39 in.
- Hook Throat Opening (Dimension G): 1.34 in.
- Net Weight: 45.0 lbs
Specifications
Specifications
| MAGNA Lifting Products 1.5 Ton Chain Hoist, 20 ft. Lift CH15020 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 20 ft |
| LIFTING CAPACITY | 1.5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
