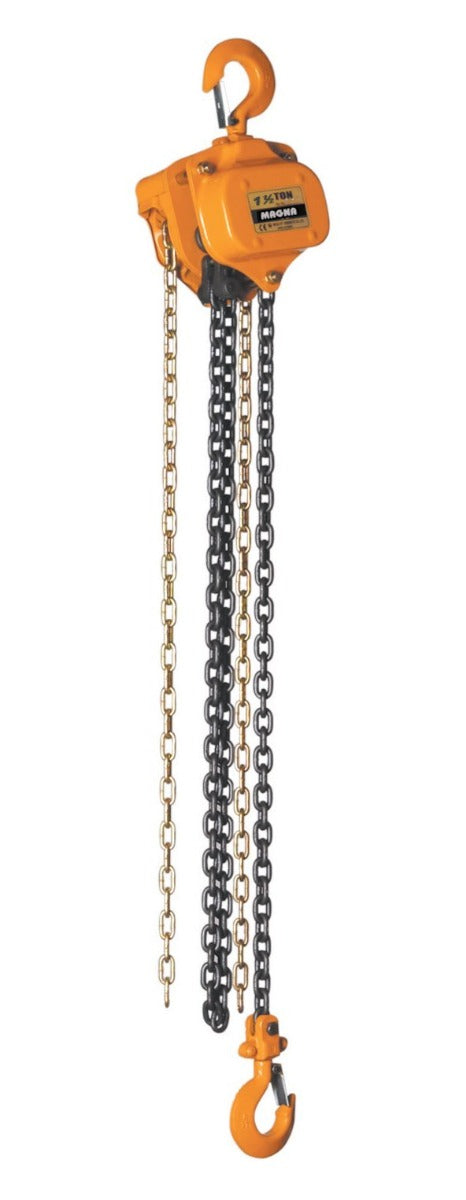

MAGNA Lifting Products 1.5 Ton Chain Hoist, 15 ft. Lift CH15015
MAGNA Lifting Products 1.5 Ton Chain Hoist, 15 ft. Lift CH15015
Couldn't load pickup availability
Details
Details
MAGNA 1.5 Ton Chain Hoist, 15 ft. Lift CH15015
The MAGNA CH15015 combines a versatile 1.5 Ton (3,300 lbs) capacity with a 15-foot lift, bridging the gap for applications requiring more power than a 1-ton unit and more reach than a standard hoist. This configuration is frequently used in mezzanine loading operations and equipment installation where vertical travel distance is a key factor.
Constructed with a stamped steel body and high-strength Grade 80 load chain, this hoist is built for resilience. The 360-degree swiveling hooks facilitate easy attachment to overhead beams and loads, while the heavy-duty safety latches ensure secure connection. With its cold-weather grease and fully repairable design, the CH15015 is a long-term investment in safe and efficient material handling.
Features & Benefits
- Versatile Lift: 15-foot chain length for mid-to-high rigging tasks.
- Increased Capacity: 3,300 lb WLL handles intermediate industrial loads.
- Robust Design: Steel housing offers impact resistance and durability.
- Smooth Gearing: Precision machined gears ensure ease of operation.
- Winter Ready: Operates efficiently in temperatures down to -49°F.
- Safety First: 150% proof loaded and ANSI/ASME compliant.
Compatible Accessories: Chain Bag, Lug Mount Attachment, Self-Locking Hook, Shipyard Hook, Zinc Plated Load Chain, Slip Clutch, PTR200 (2 Ton Plain Trolley), GTR200 (2 Ton Geared Trolley), BC200P/BC200RE (2 Ton Beam Clamps)
Specifications
- Model Number: CH15015
- Working Load Limit (WLL): 1.5 Ton (3,300 lbs)
- Standard Lift: 15 ft.
- Load Chain Dimensions: 7.1 x 21.0 mm
- Load Chain Grade: Grade 80
- Number of Falls: 1
- Pull to Lift Full Load: 75 lbs
- Headroom (Dimension C): 13.39 in.
- Hook Throat Opening (Dimension G): 1.34 in.
- Net Weight: 37.9 lbs
Specifications
Specifications
| MAGNA Lifting Products 1.5 Ton Chain Hoist, 15 ft. Lift CH15015 | |
| APPLICATION | Material Handling |
| Brand | MAGNA Lifting Products |
| HOIST LIFT | 15 ft |
| LIFTING CAPACITY | 1.5 Ton |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Hoists - Manual Chain Hoists |
| TOOL TYPE | Hoists |
