Maksiwa PLATINUM Sliding Panel Saw, 3 Phase, 7.5HP, 220V BMP.3200.IR PLATINUM
Maksiwa PLATINUM Sliding Panel Saw, 3 Phase, 7.5HP, 220V BMP.3200.IR PLATINUM
Couldn't load pickup availability
Details
Details

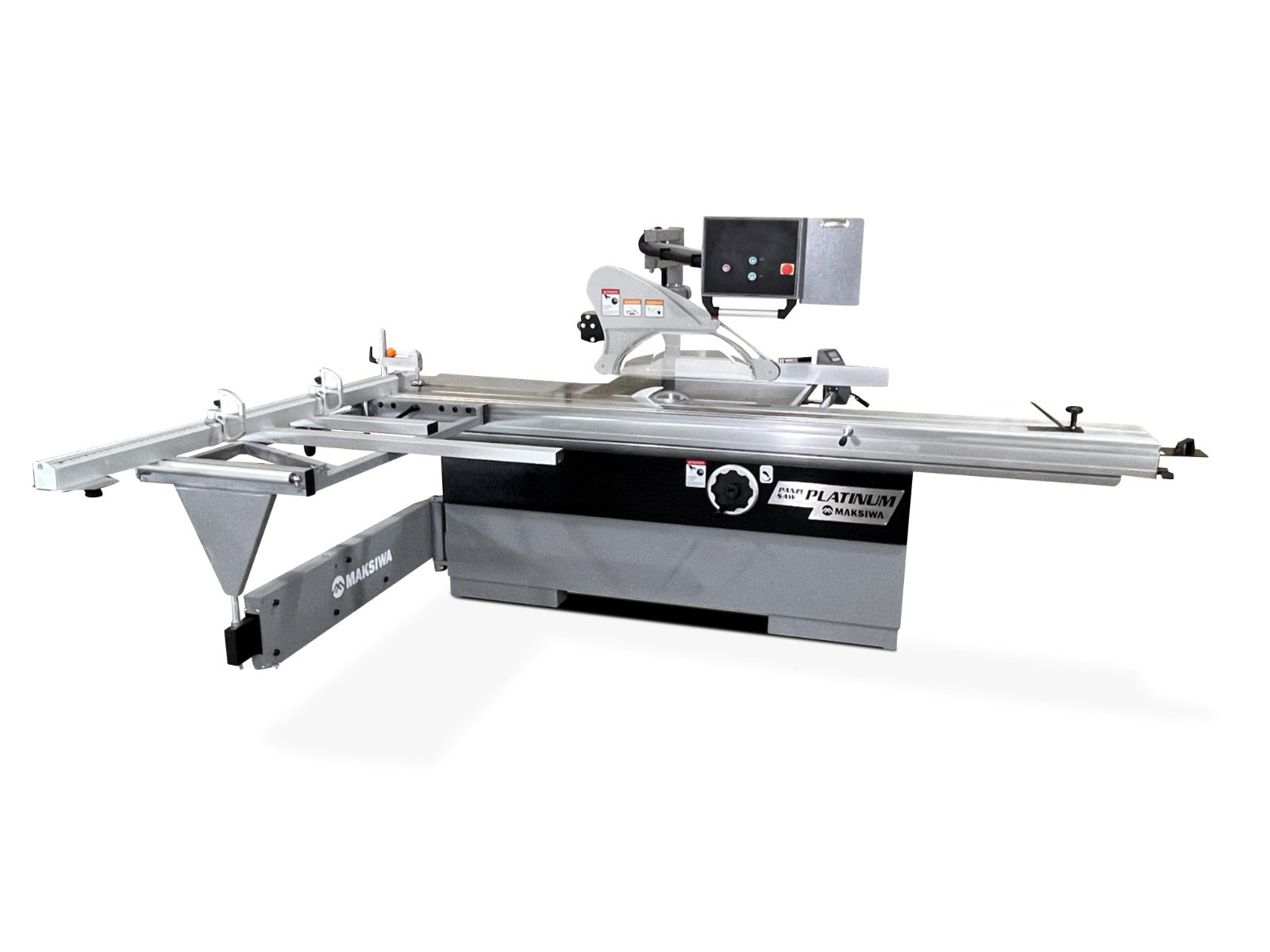

BMP.3200.IR PLATINUM, Maksiwa Sliding Panel Saw

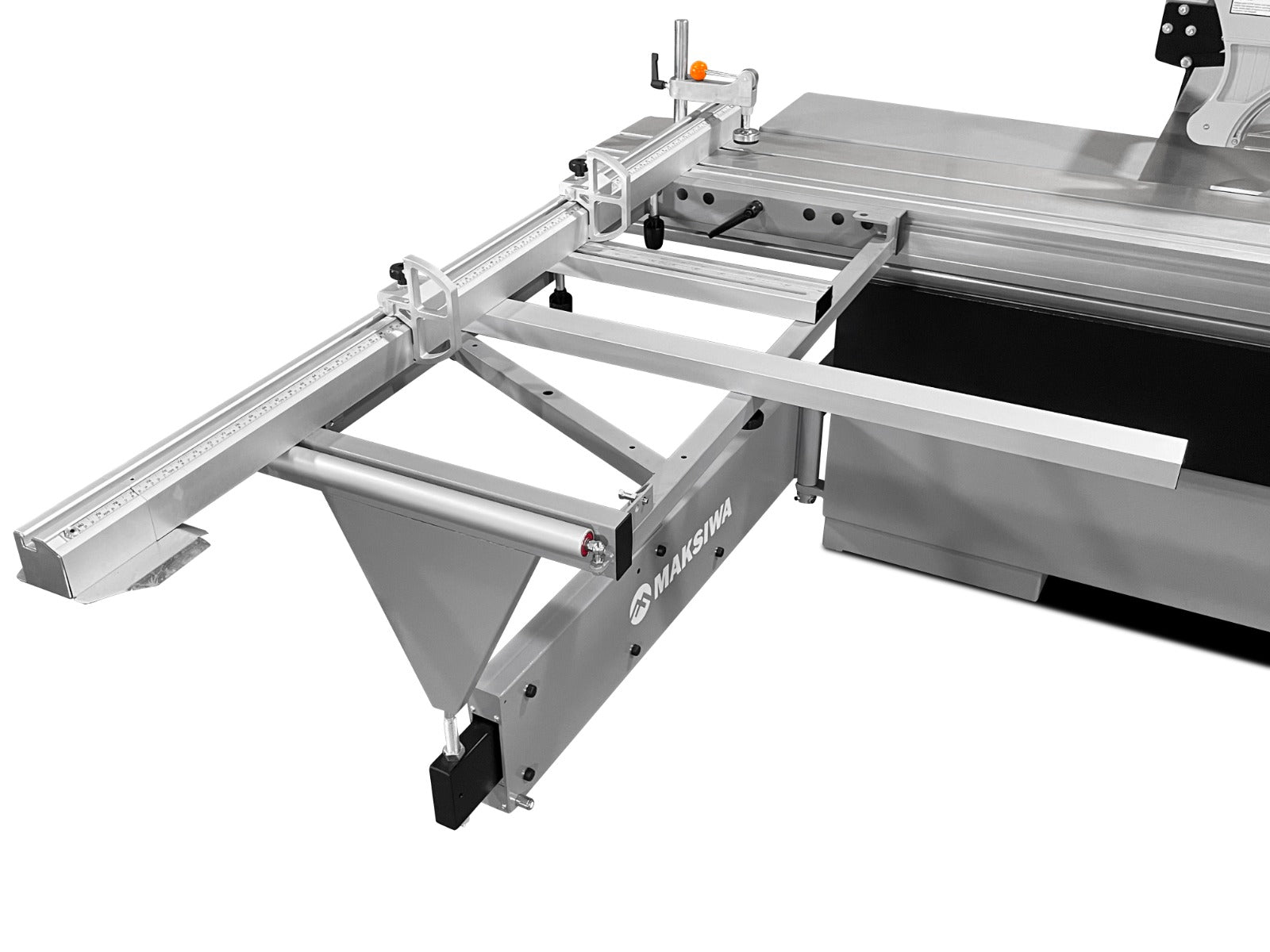

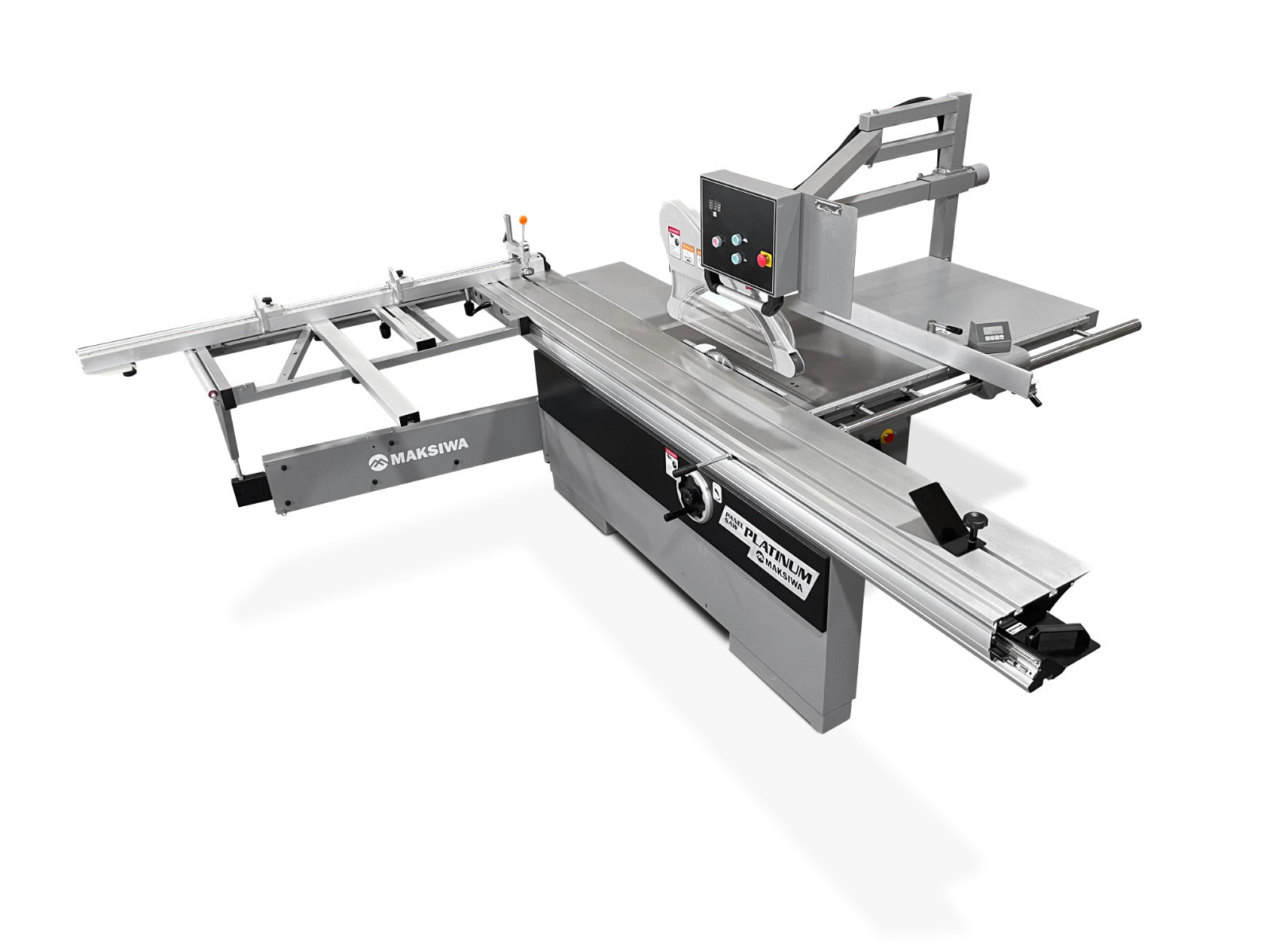

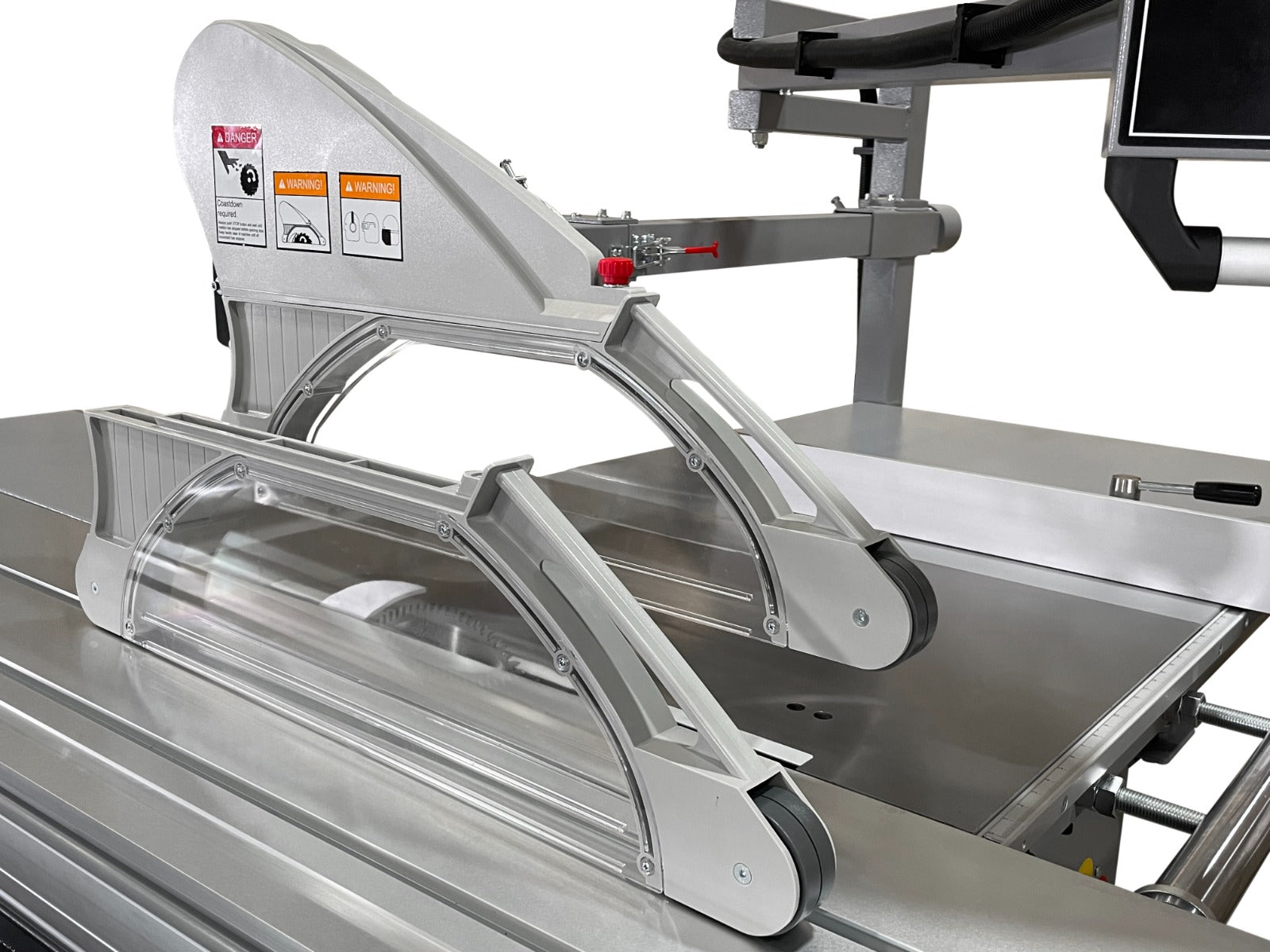

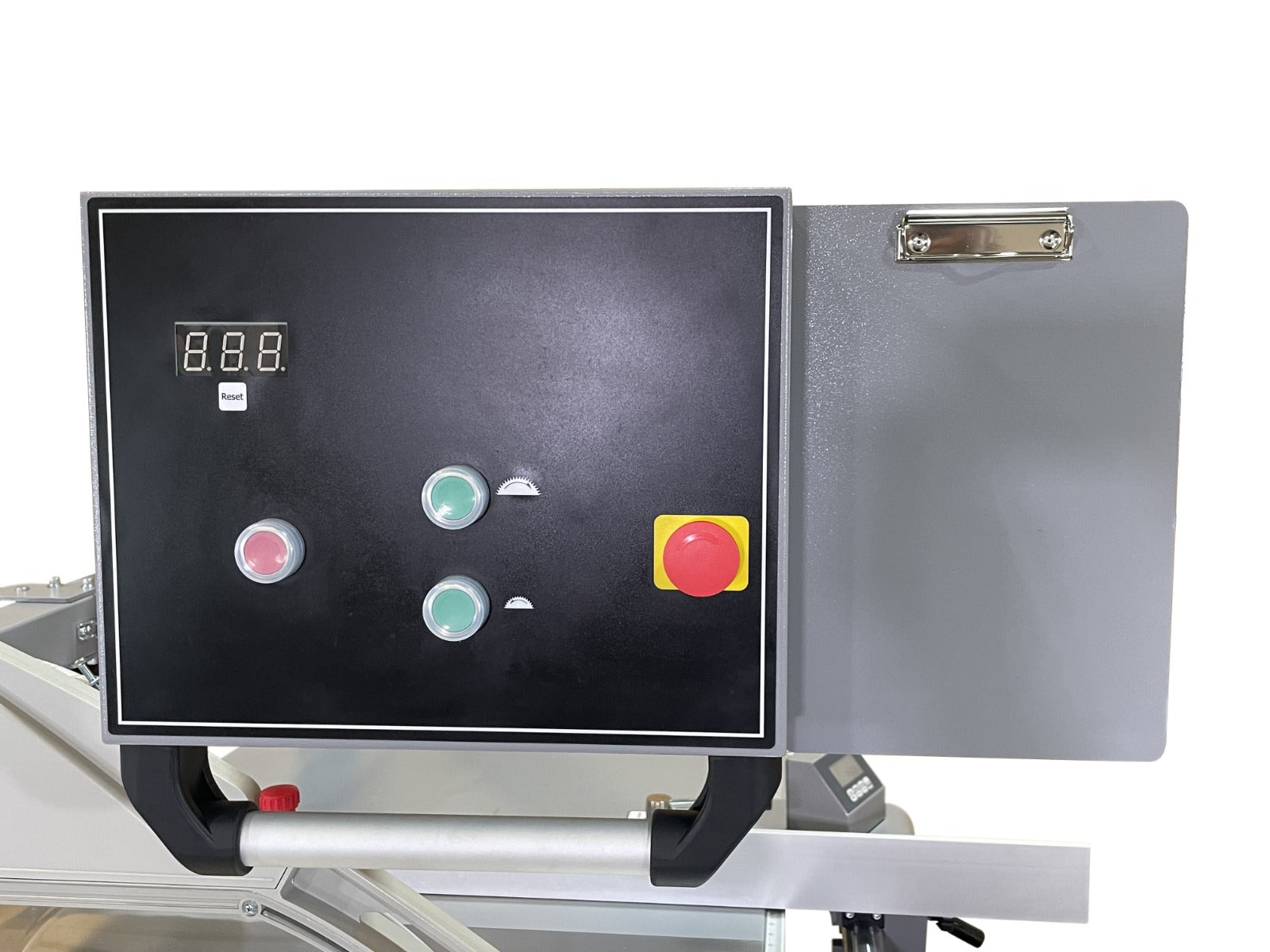

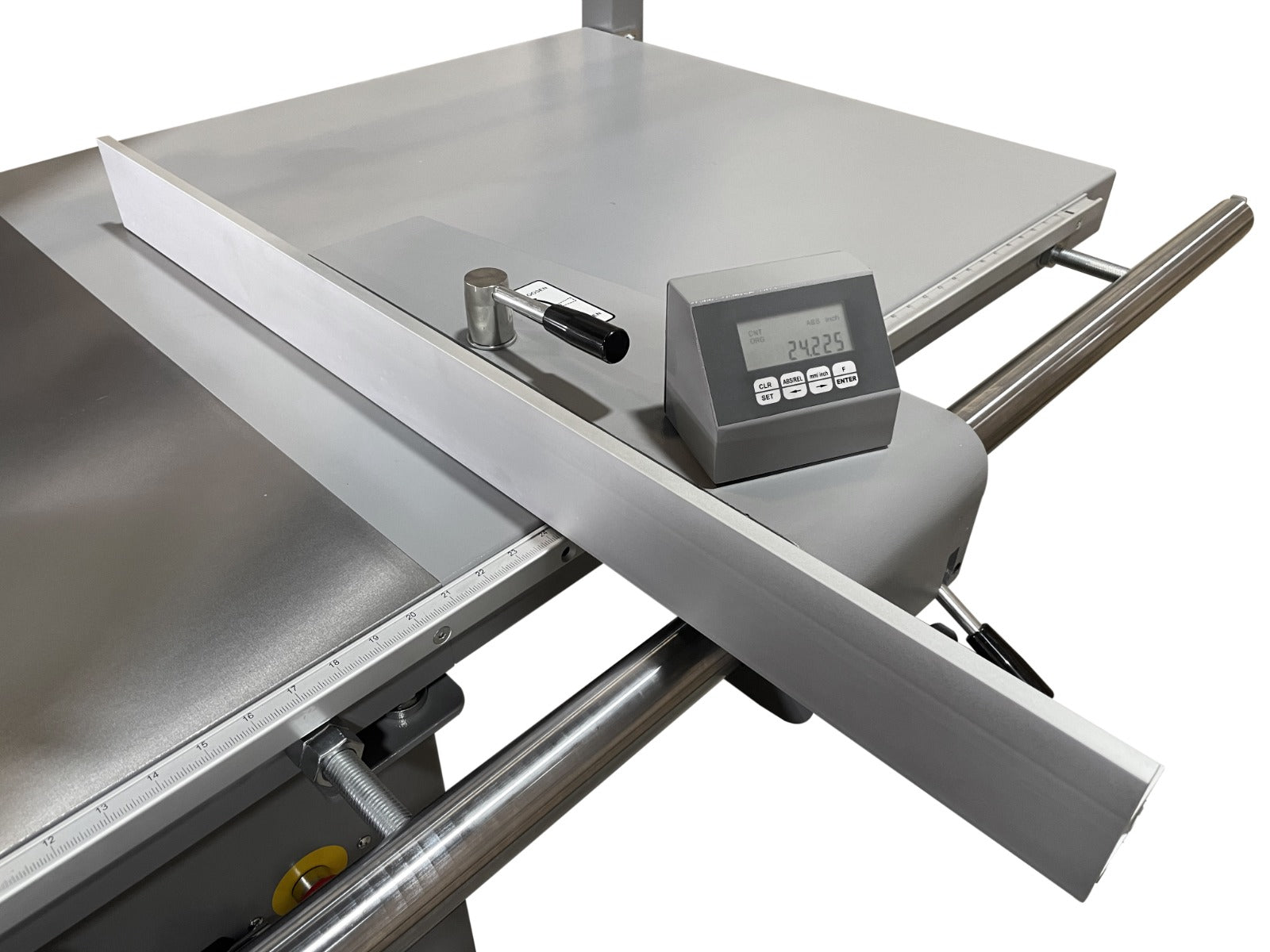

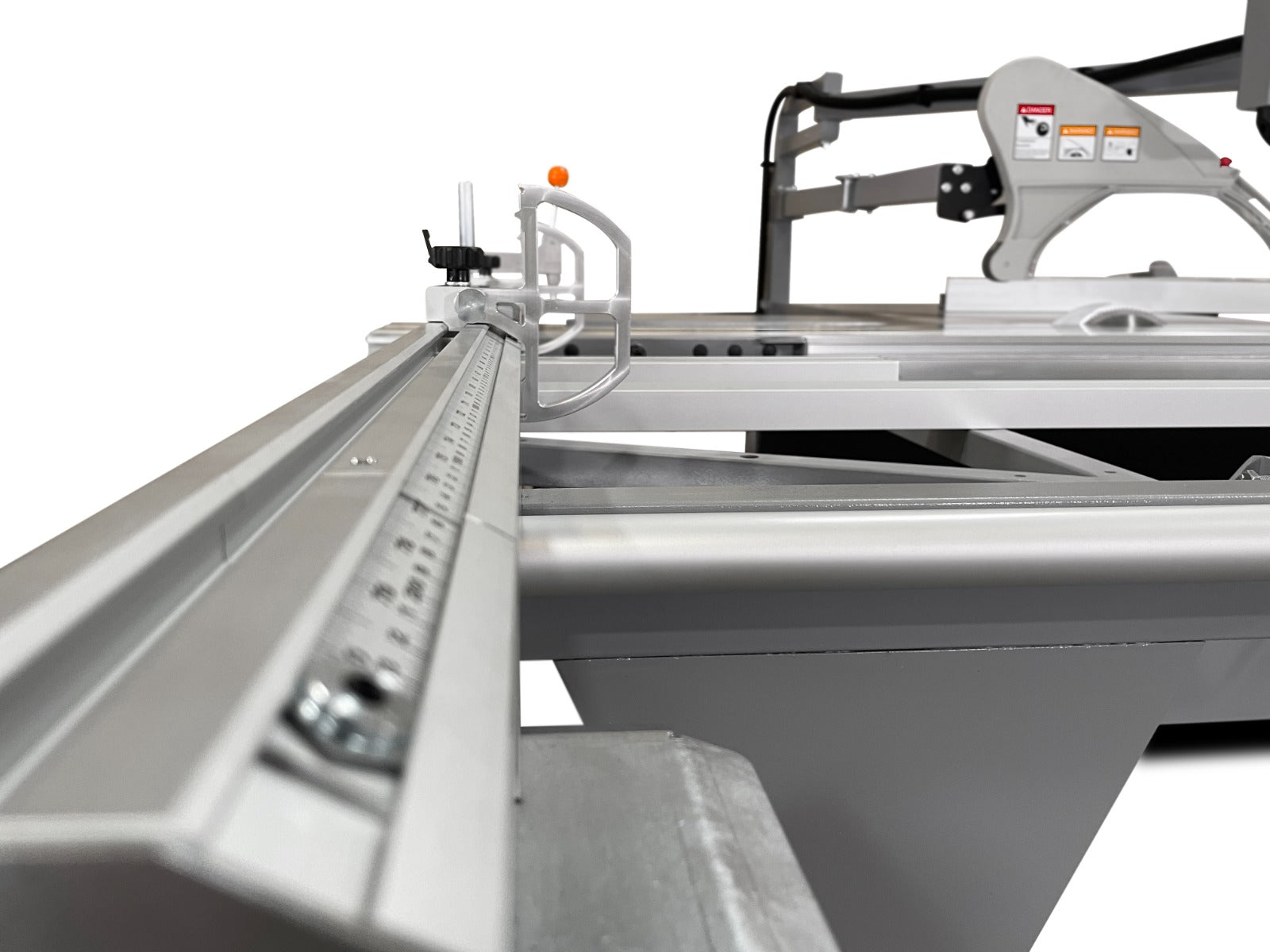

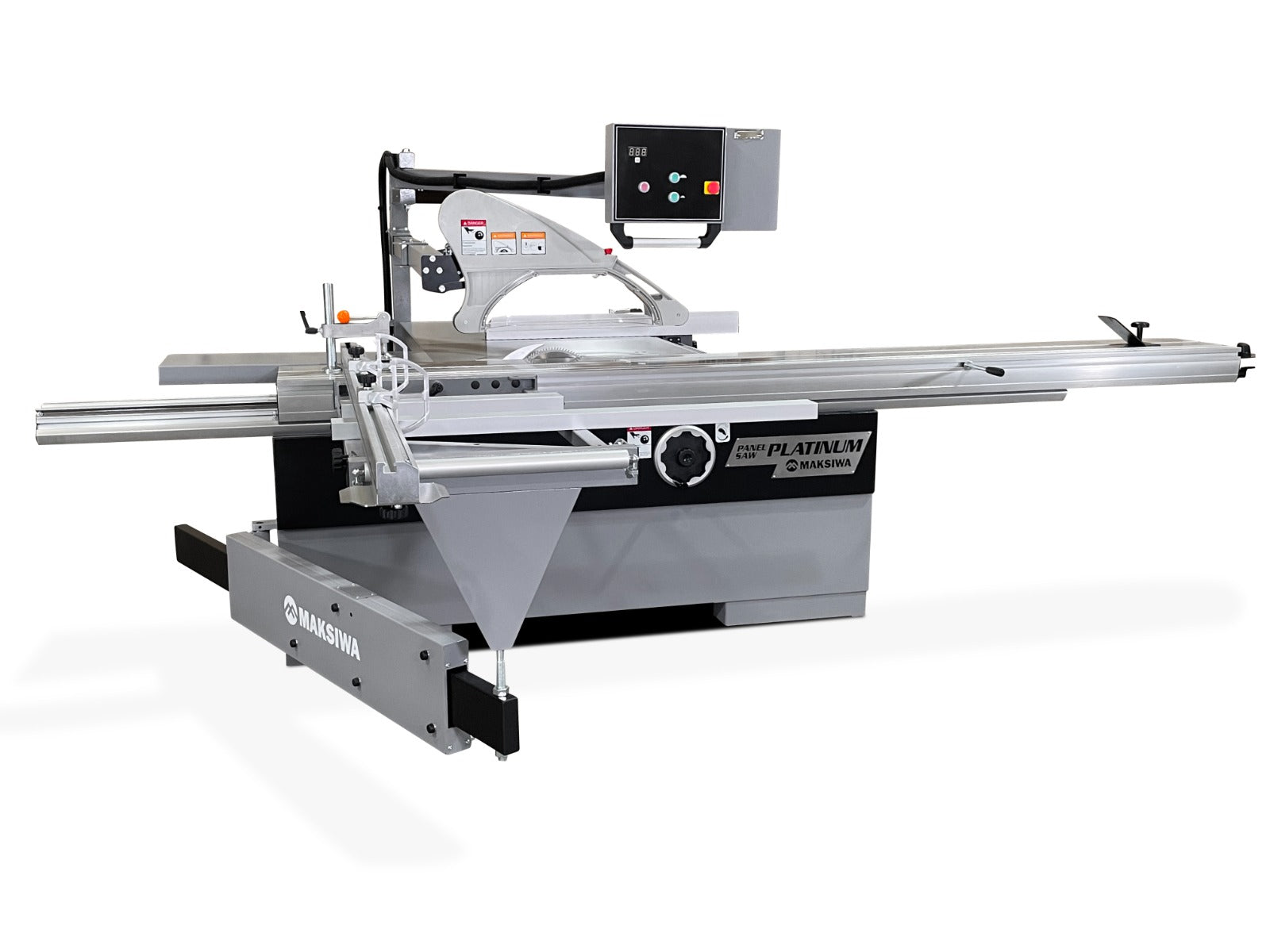

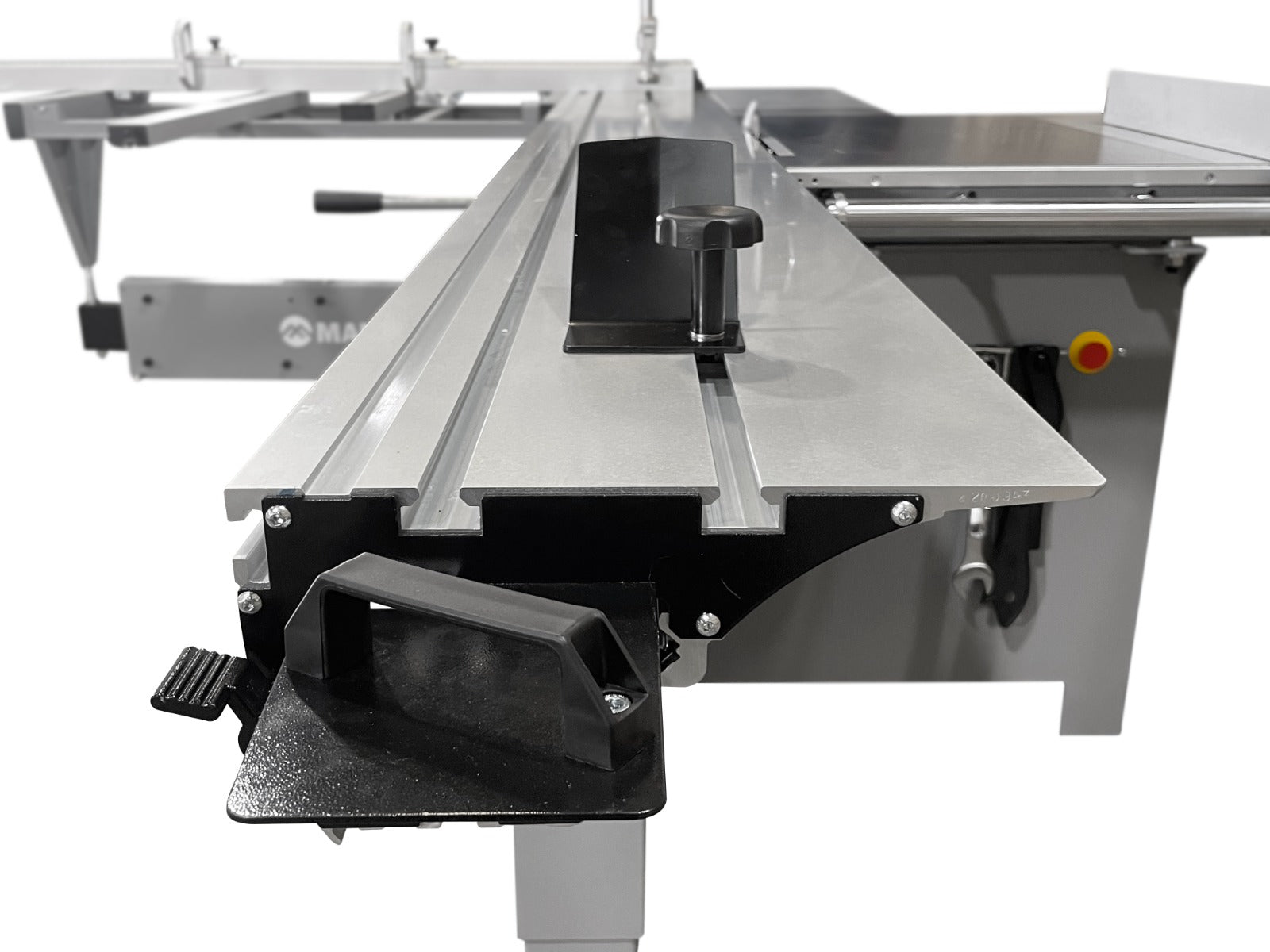

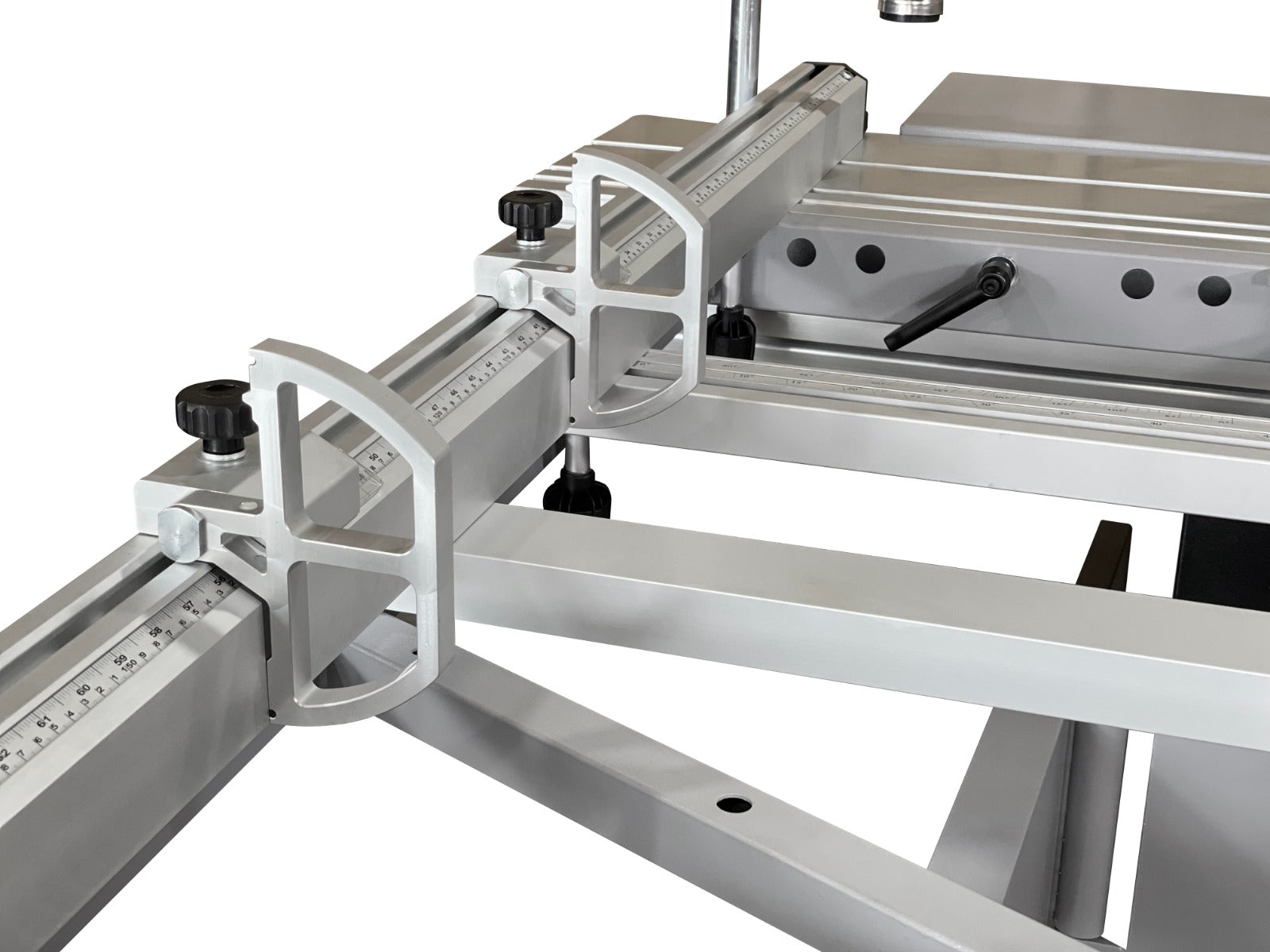

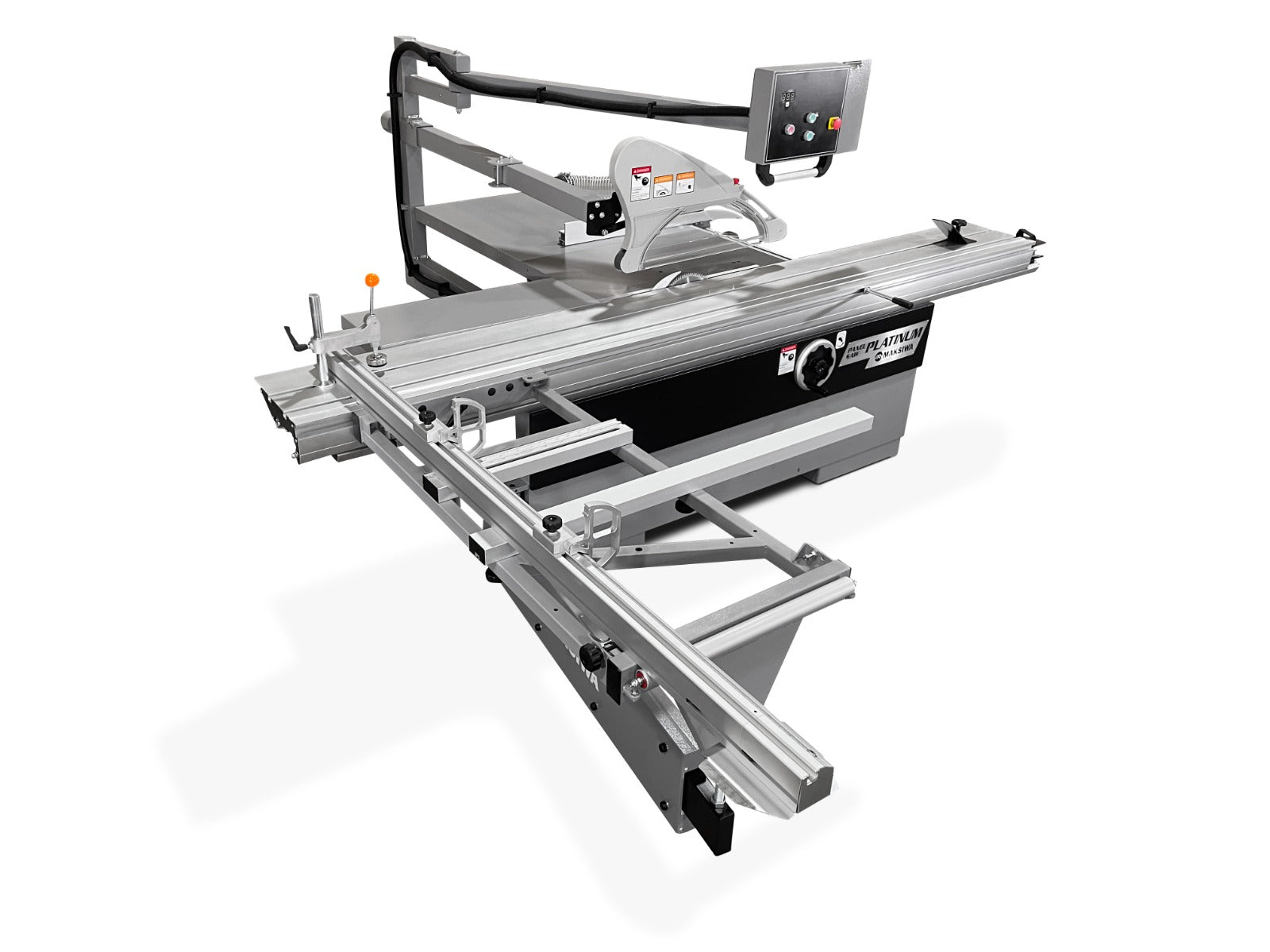

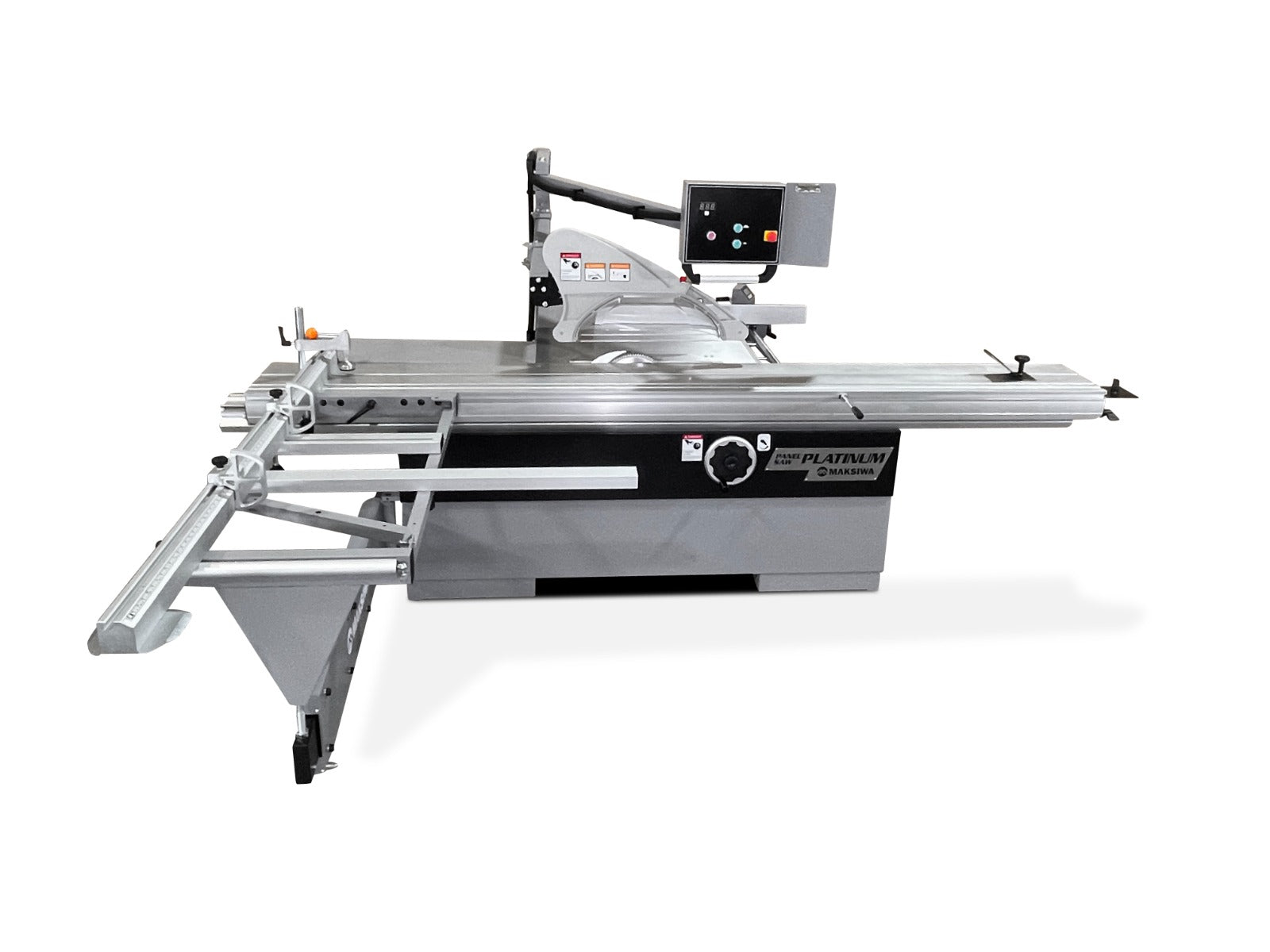

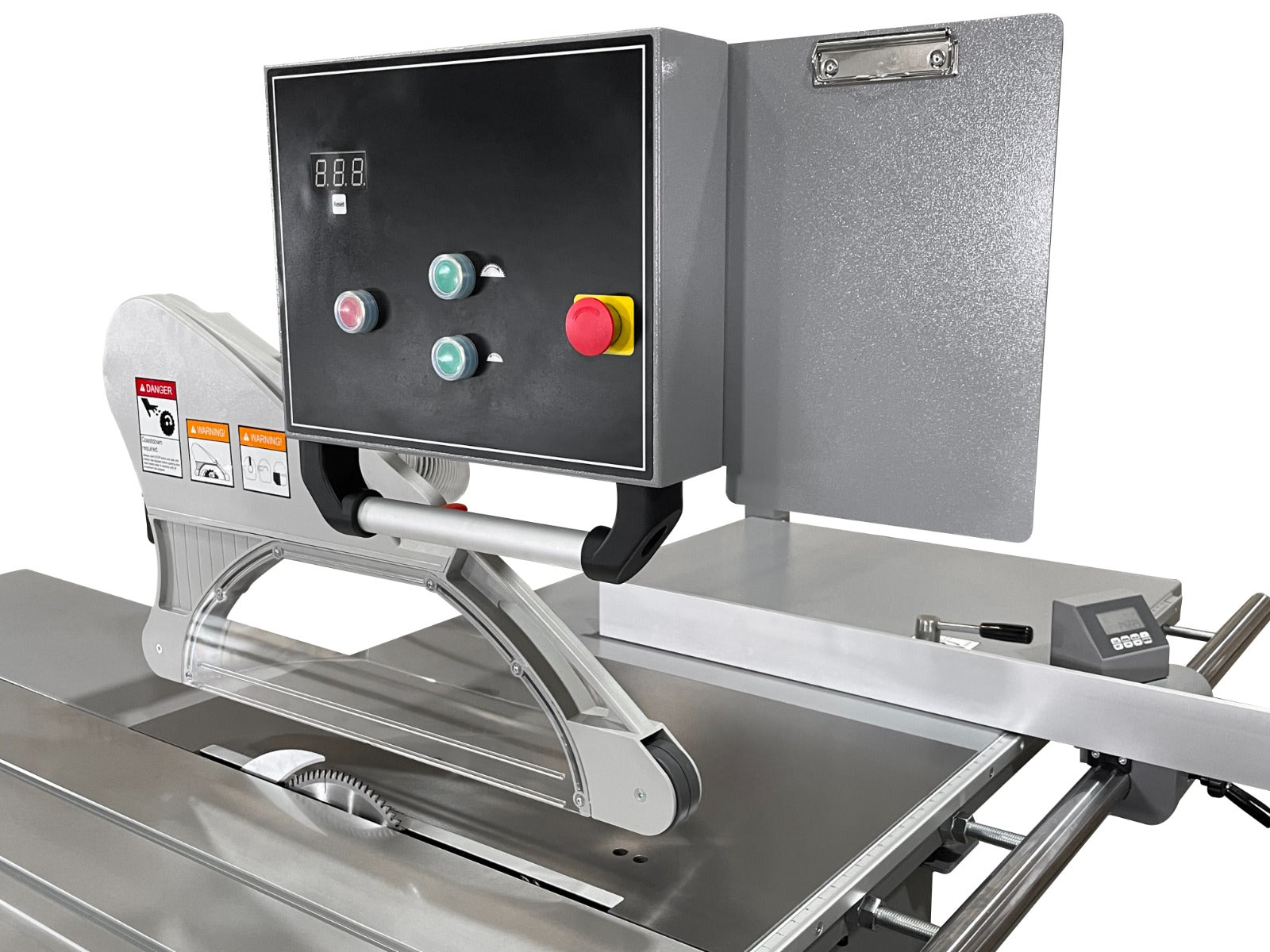

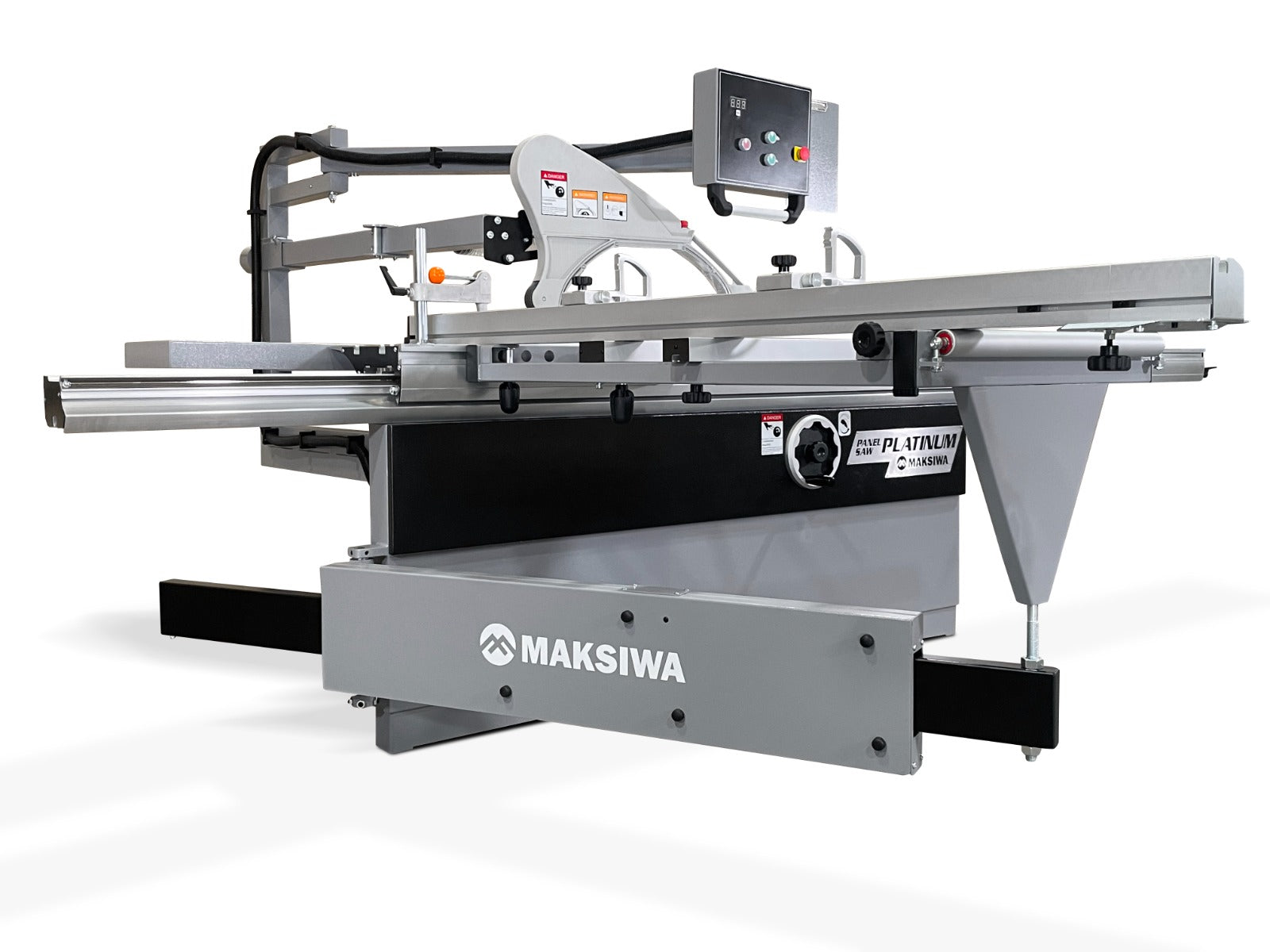

The BMP.3200.IR Platinum is the most powerful sliding panel saw from Maksiwa, equipped with a 7.5HP main motor and ¾ HP Scoring motor (3 phase). The 126” sliding table is constructed of anodized aluminum and runs on precision linear guide rails that gives you an ultra-smooth movement allowing you to move the table effortlessly. Designed with a European style 51″ rip fence, it has a digital readout with a micro adjustment for fine-tuning; simply lock it in place and adjust the fence incrementally. The rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. Our heavy-duty anodized aluminum crosscut fence features two solid flip-stops, telescoping function (max 140″), and 45° miter, and is ergonomically designed to make it easier to read the tape. The control panel is conveniently located in an eye-level position with easy access to the main operation buttons. It comes standard with two overhead guards 90° and 45° featuring a quick-change and swing-away function, easily switching from one to the other in a matter of seconds, and moving the guard out of the way easily if necessary. It also includes a push handle, hold-down clamp, and wedge clamp.
Specifications:
- Sliding table dimension: 132”x 14 1/8”
- Sliding table max travel length: 286”

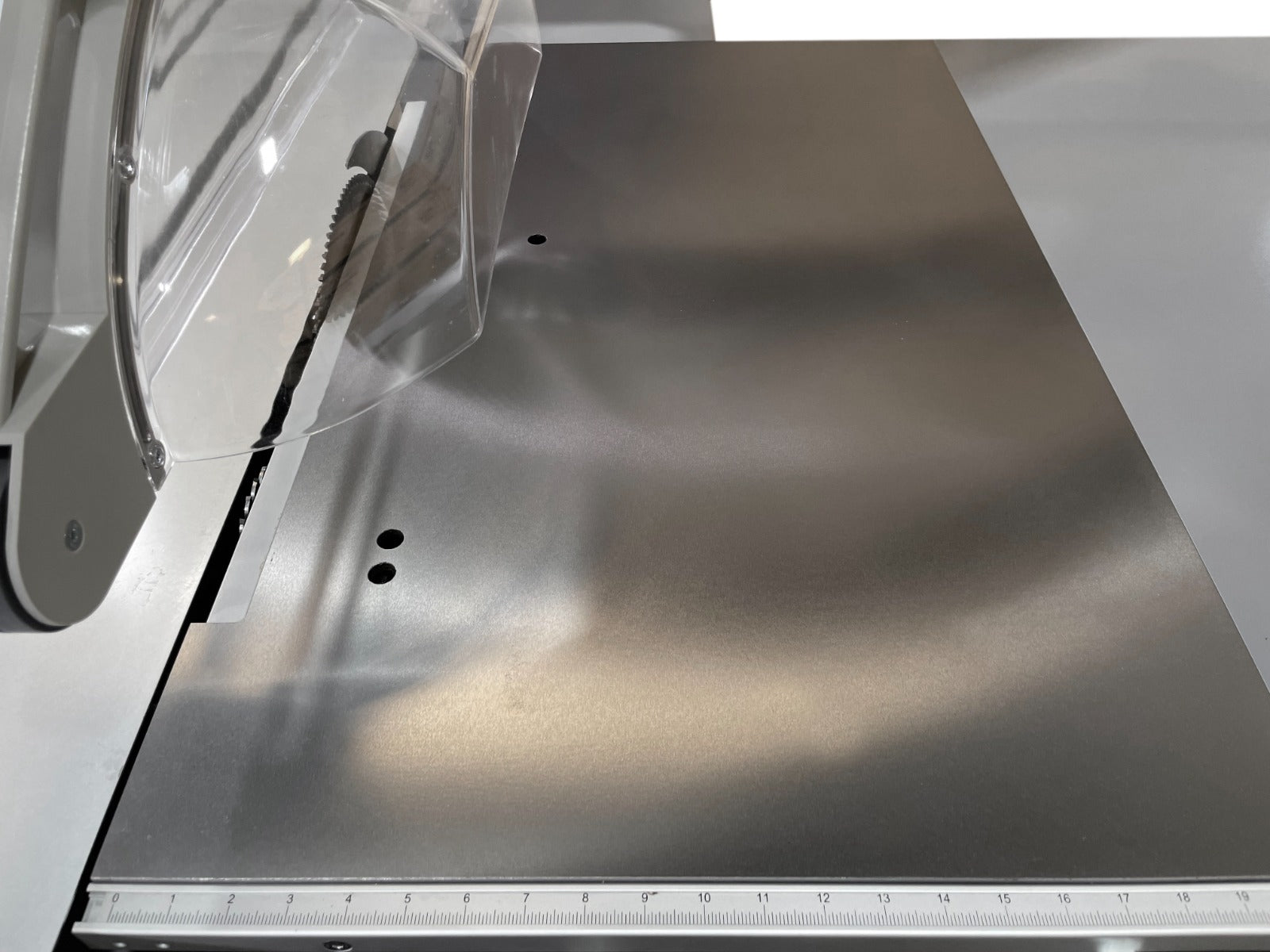

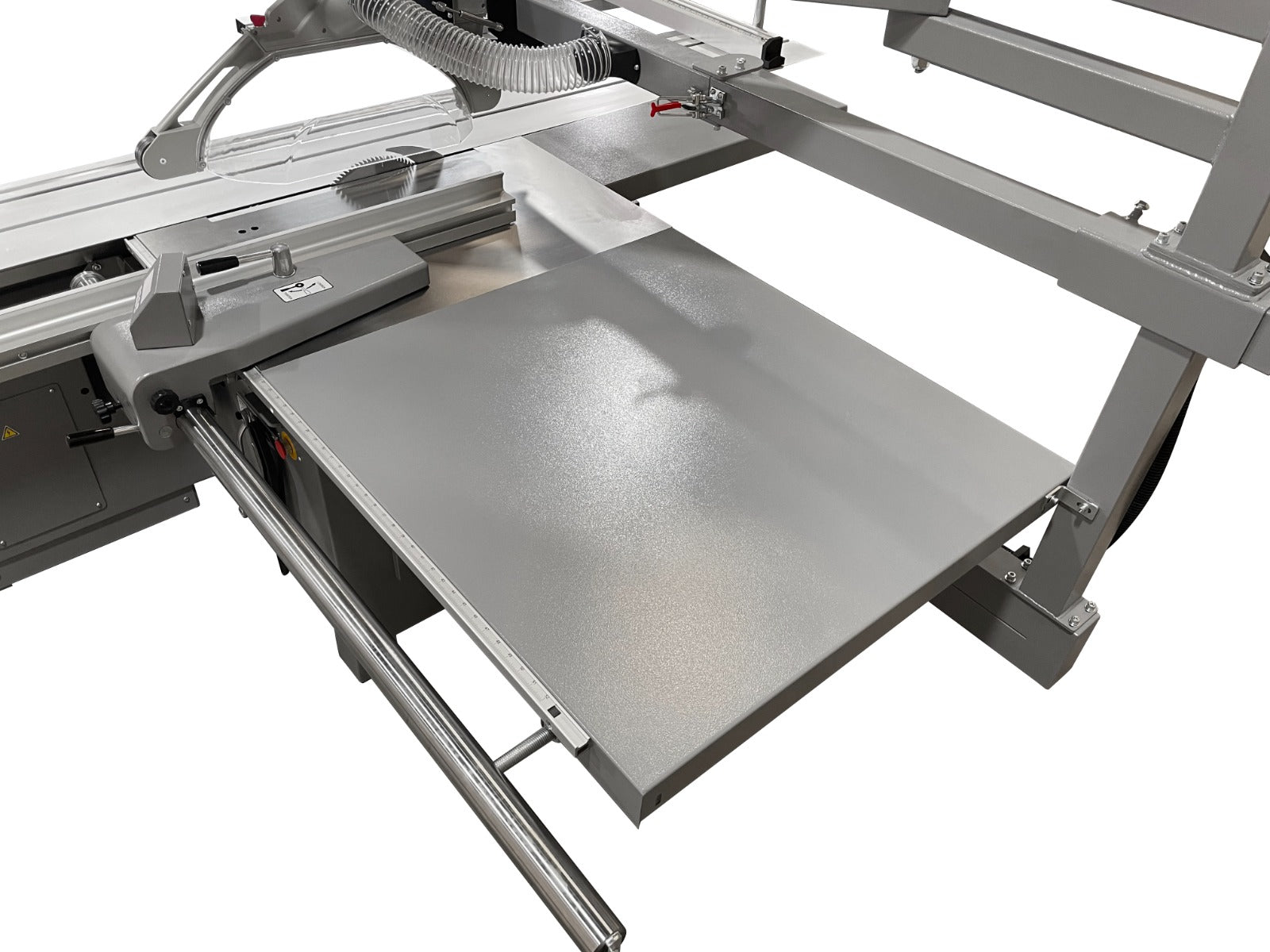

- Main table with supporting table width: 59”
- Crosscut Fence stoppers: 2
- Crosscut Fence: Tape
- Crosscut Fence Max. Collapsed: 78"

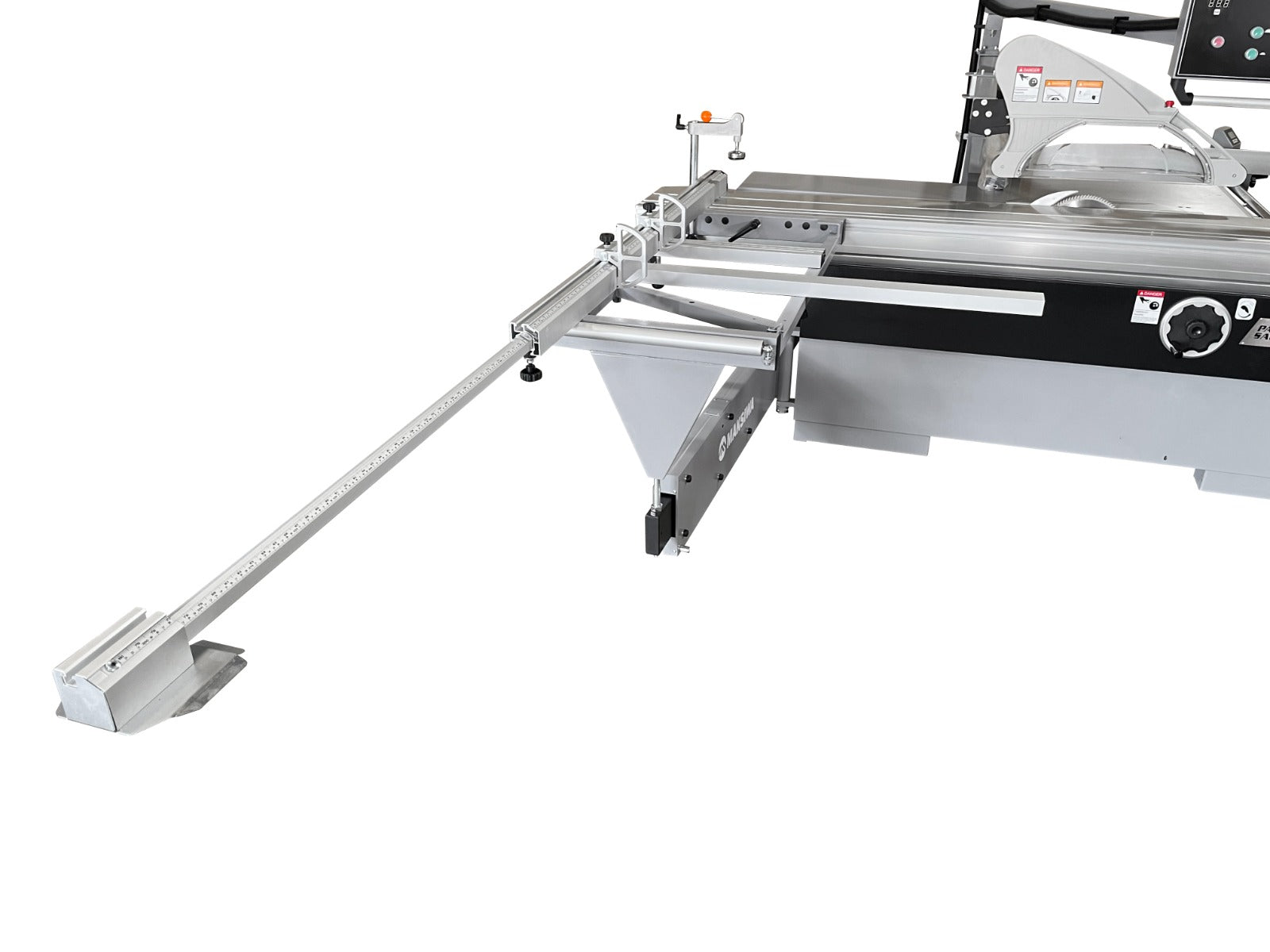

- Crosscut Fence Max. Extended: 140"

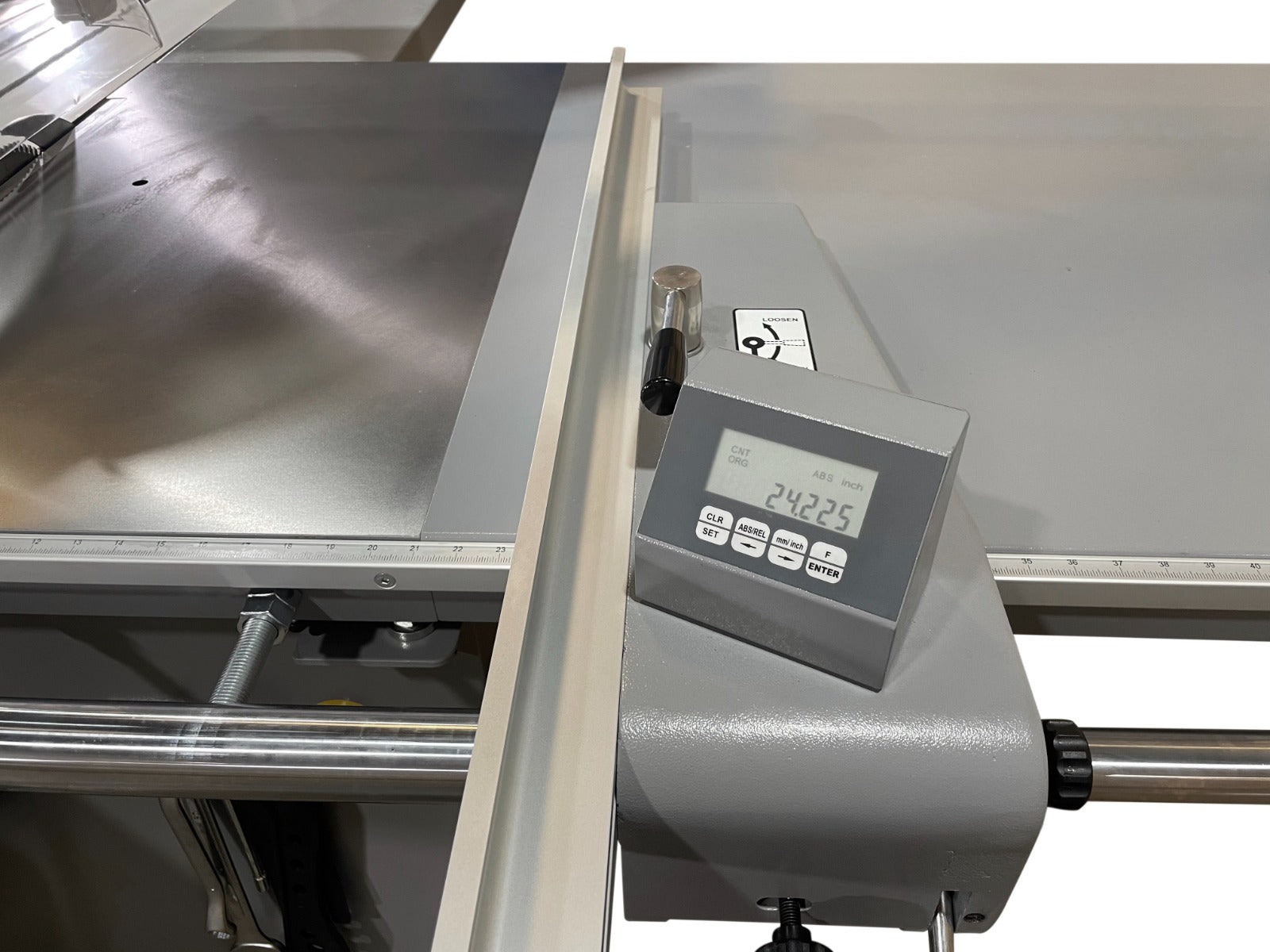

- Rip Fence with digital readout
- Rip Fence micro adjustment

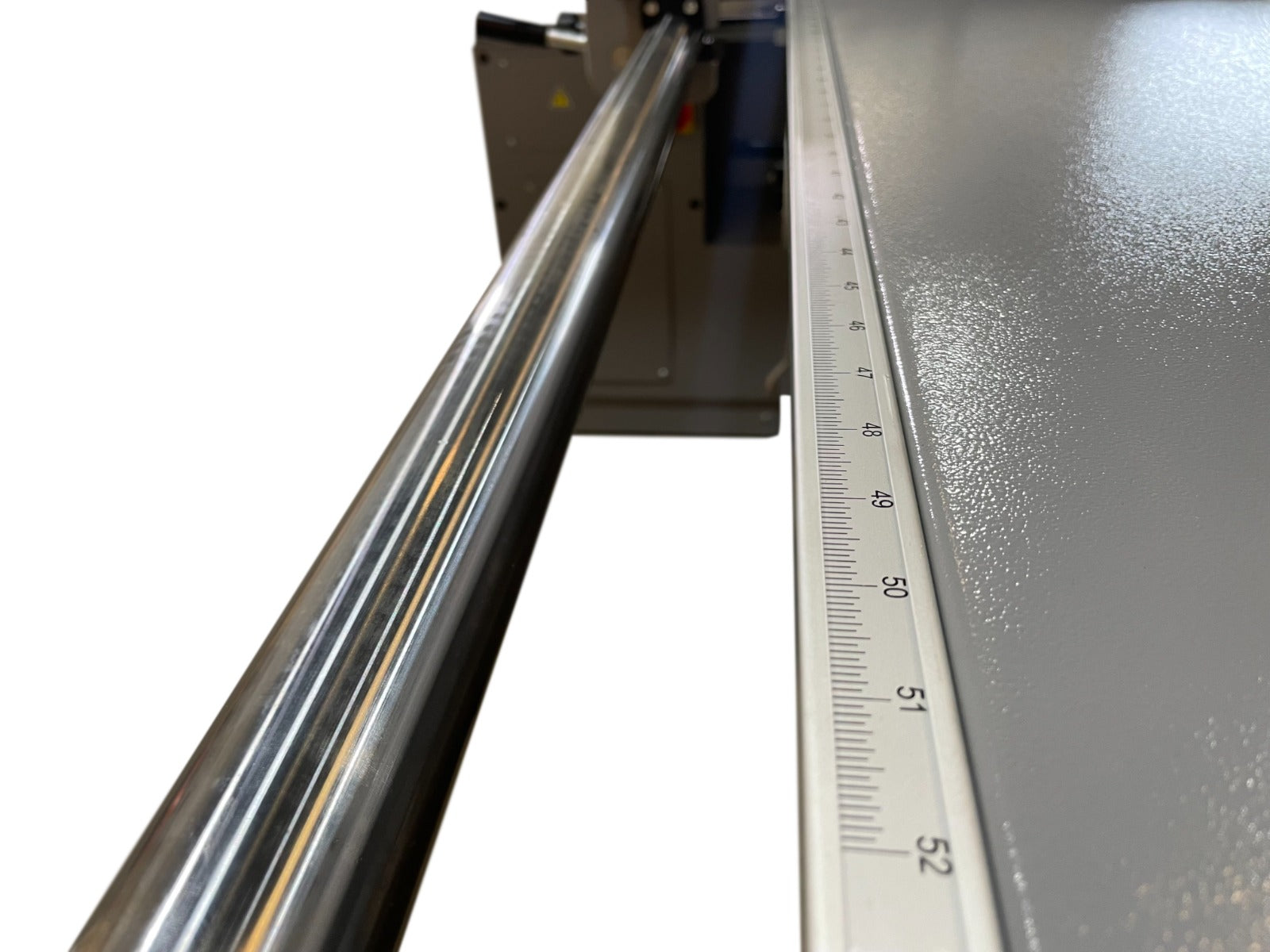

- Rip Fence bar: Solid Steel Micro Polished: 2"
- 2 Blade Covers 90° & 45°
- Lockable main power switch

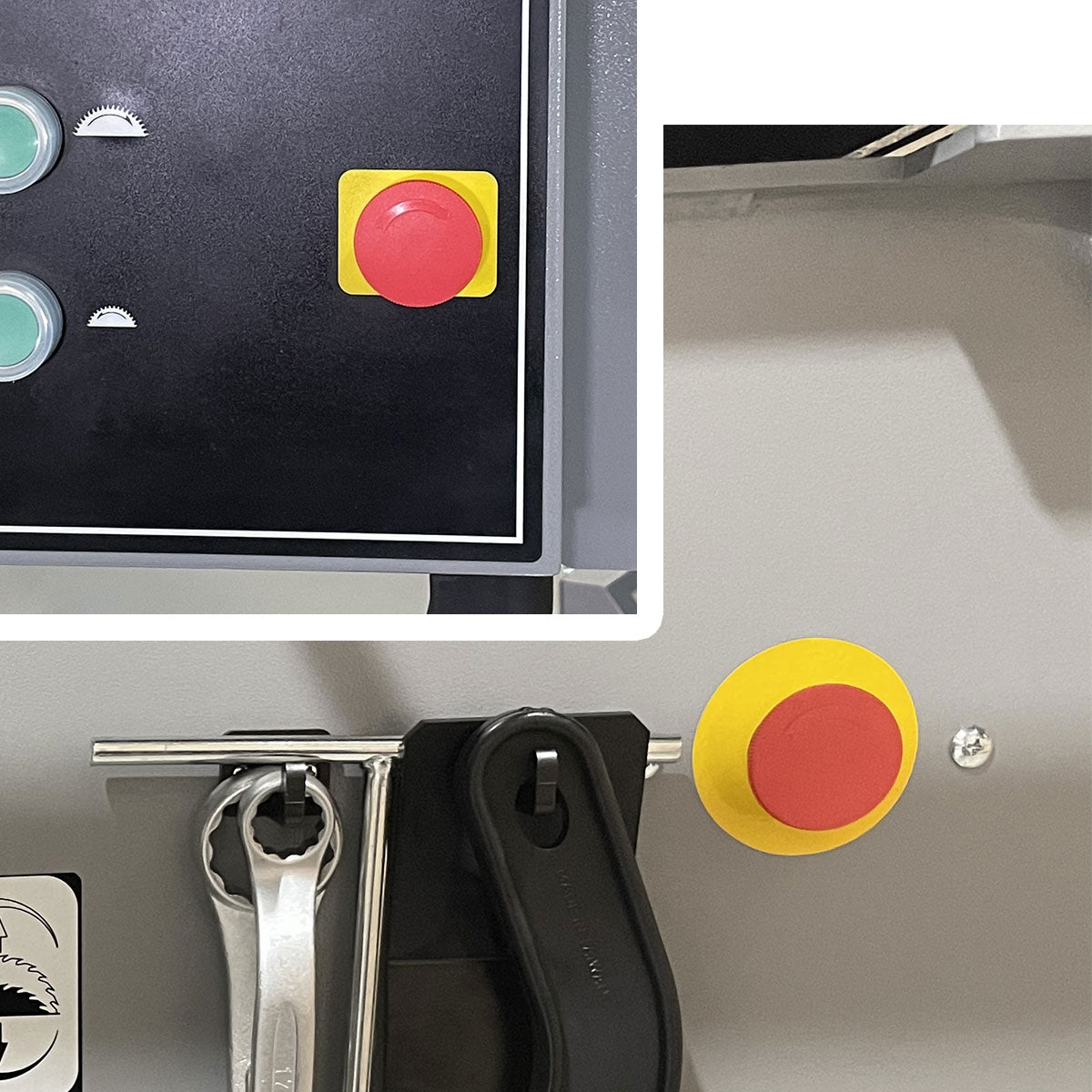

- 2 Emergency buttons

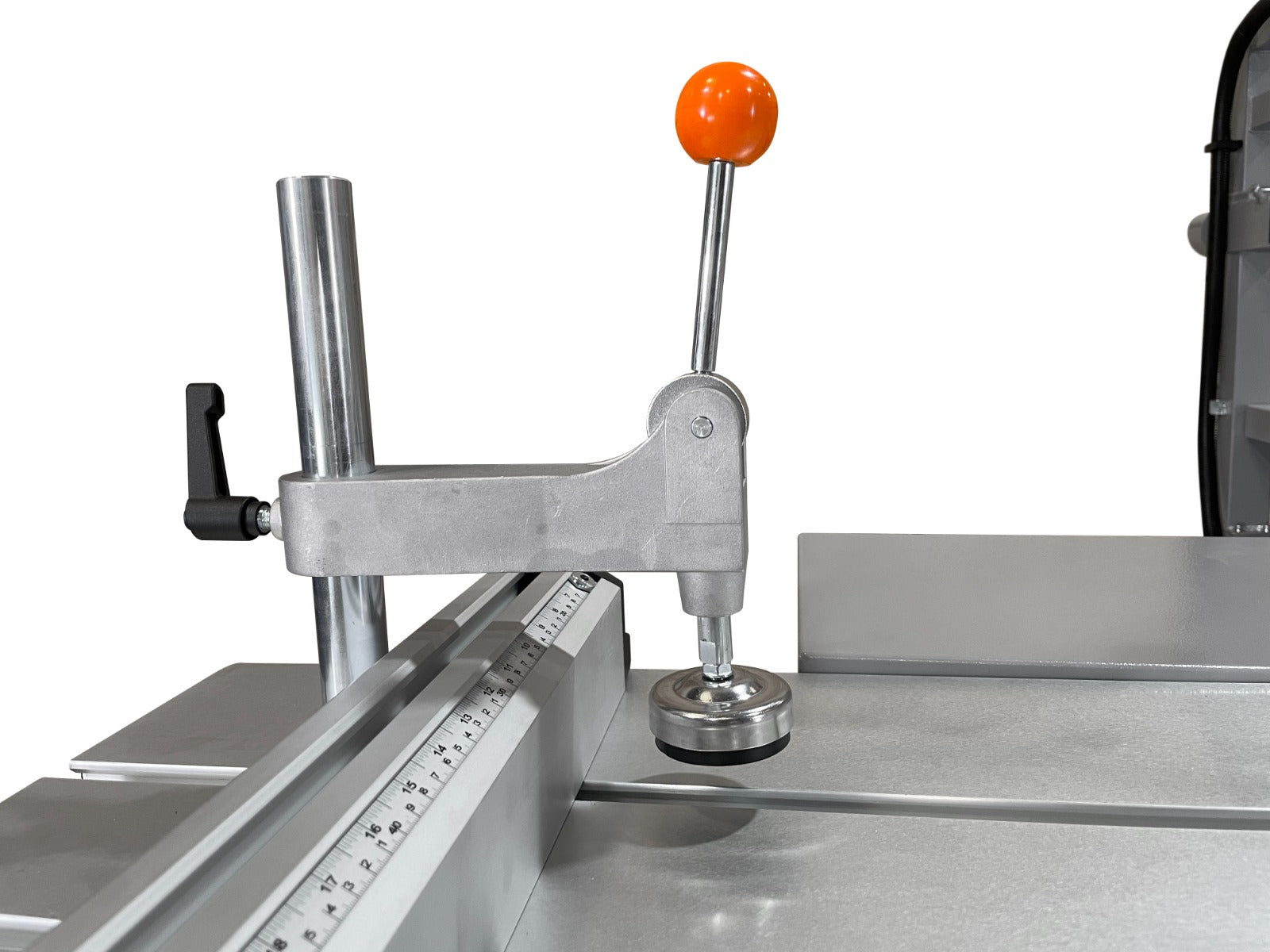

- Hold Down Clamp: Included
- Max tilt: 45°
- Max depth cut: 3"
- Max cutting length: 120”
- Max cutting height with blade at 90°: 3 1/2" / 90mm
- Max cutting height with blade at 45°: 2 3/8" / 62mm

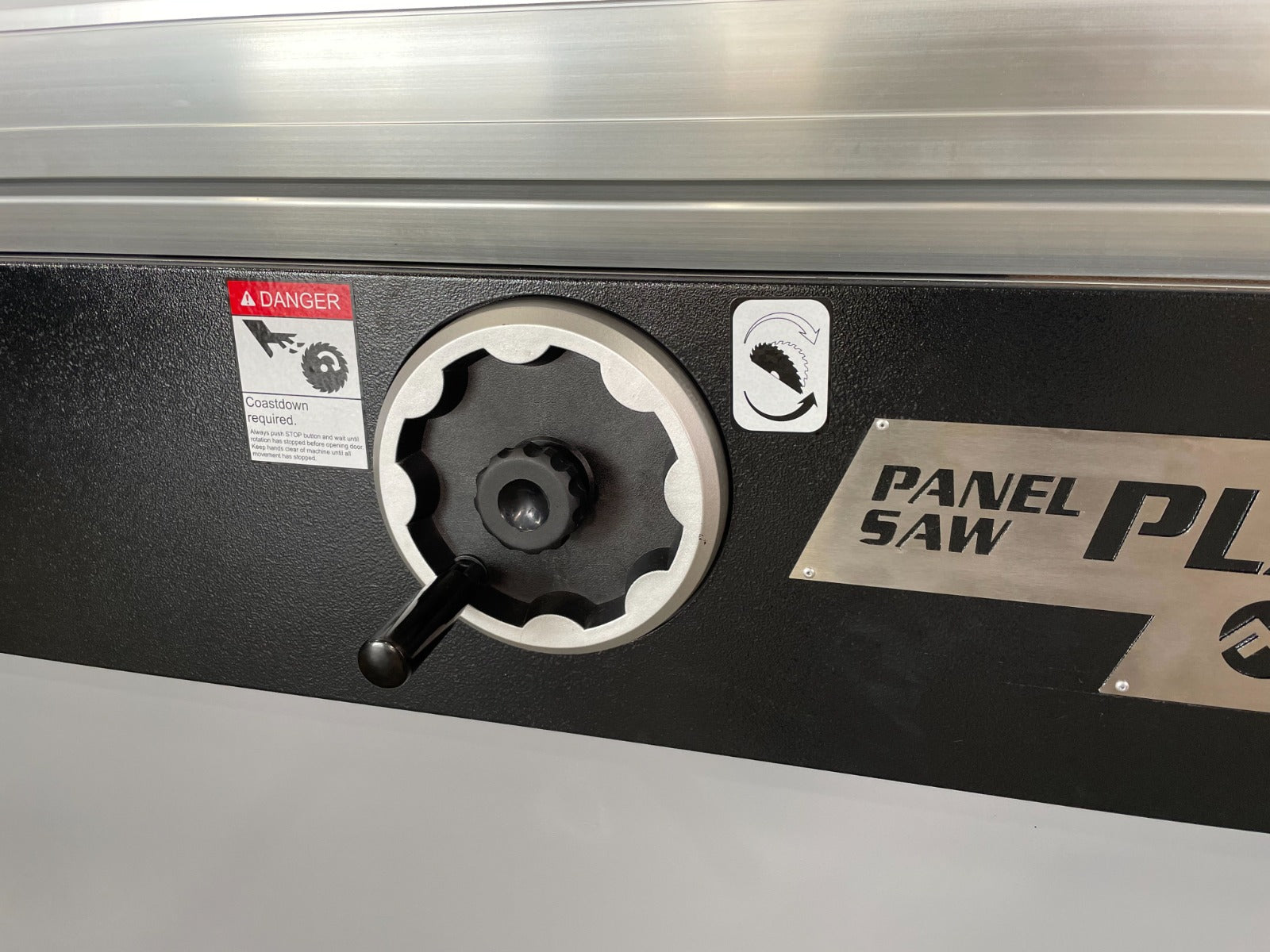

- Digital Tilt Display
- Weight N/G: 1519 LBS / 1752 LBS
- Machine dimensions (collapsed): L 132” X W 135” X H 65’’
- Machine dimensions (extended): L 192” X W 280” X H 65’’
- Main blade diameter: 12” / 305mm
- Main blade arbor size: 1” 3/16" / 30mm
- Scoring blade diameter: 4 ¾’’ / 120mm
- Scoring blade arbor size: 3/4” / 20mm

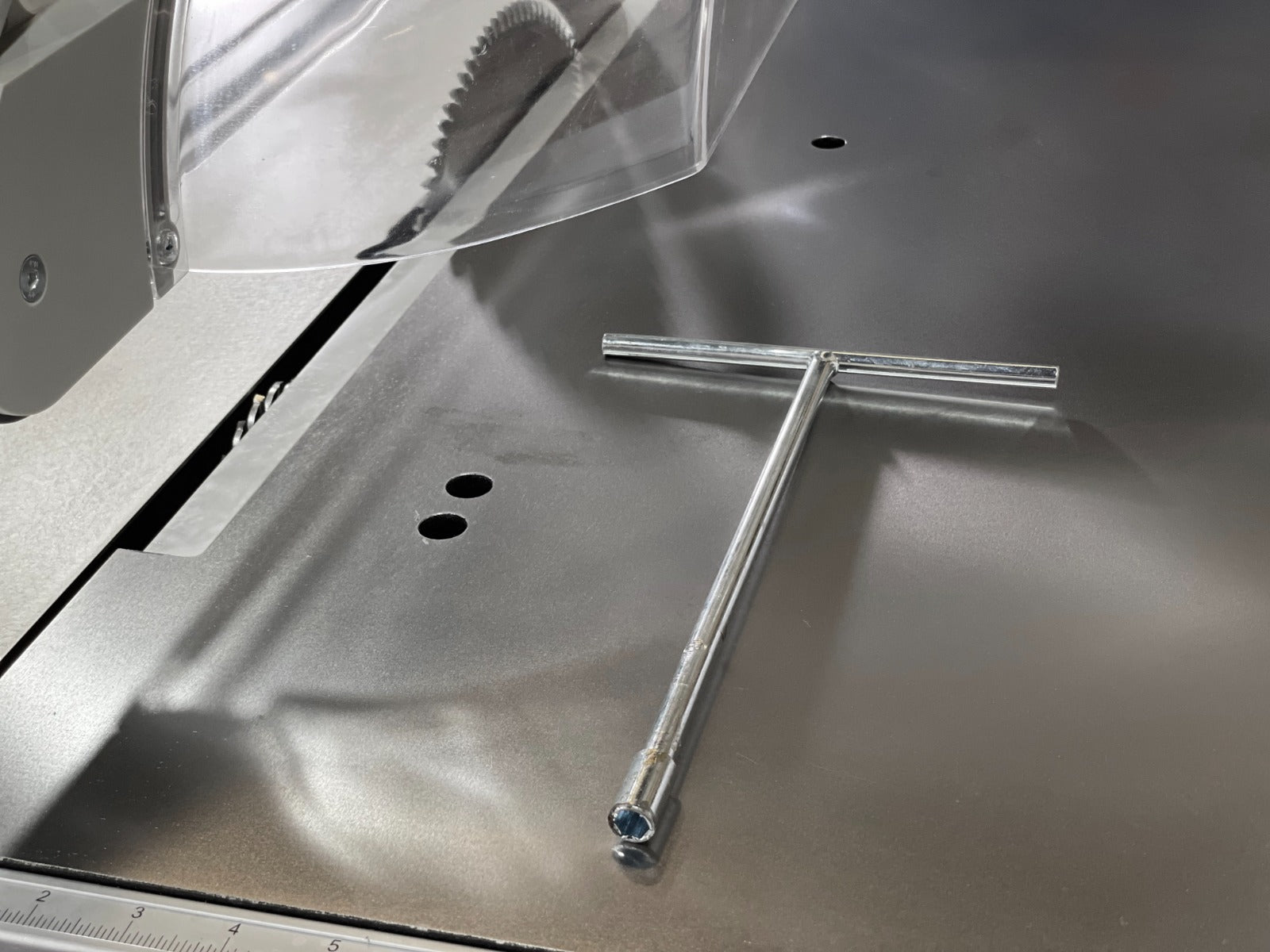

- Scoring blade adjustment: T-Handle through cast top
Blade
- Main blade diameter: 12” / 305mm
- Main blade arbor size: 1” 3/16" / 30mm
- Scoring blade diameter: 4 ¾’’ / 120mm
- Scoring blade arbor size: 3/4” / 20mm
- Scoring blade adjustment: T-Handle through cast top
Dust Collection
- Port 1 diameter: 4"
- Port 2 diameter: 4"
- Minimum CFM needed: 1000 CFM
Electrical
- 3 Phase Model: 7.5 HP - 24 Amps 60 HZ 3.7 KW
- Blade Speed: 4000 RPM
- Scoring motor: 3/4 HP - 6 Amps 0.55 KW
- Blade Speed: 8000 RPM
Specifications
Specifications
| Maksiwa PLATINUM Sliding Panel Saw, 3 Phase, 7.5HP, 220V BMP.3200.IR PLATINUM | |
| APPLICATION | Wood Working |
| Brand | Maksiwa |
| DIAMETER | 12 in |
| HORSEPOWER | 7.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Panel Saws |
| TOOL TYPE | Saws |
| VARIABLE SPEED | No |
| VOLTAGE | 208V-240V 3Ph |
| WATTAGE | Over 2000 |
