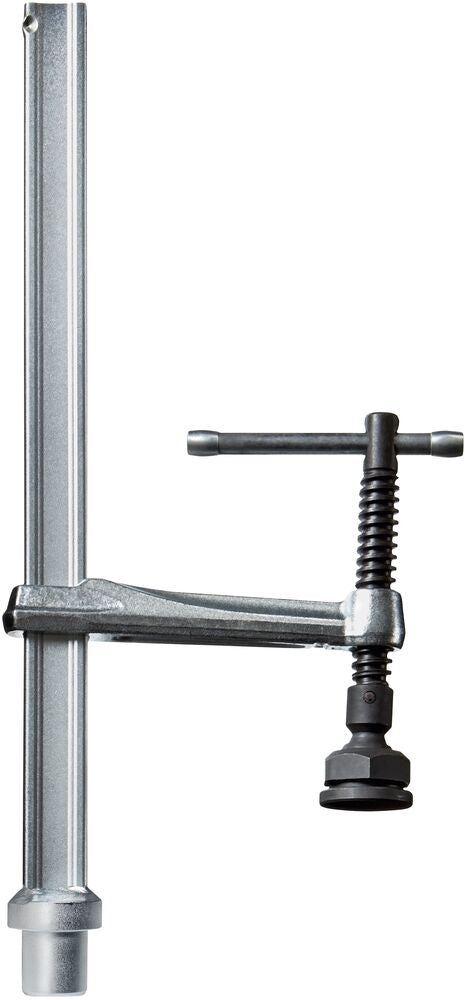

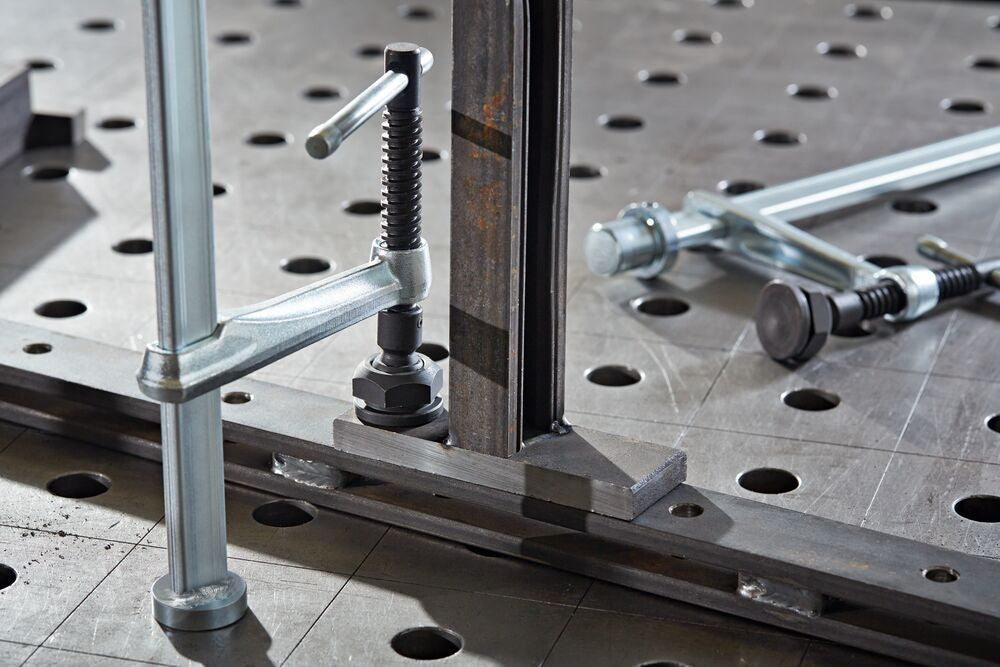

The BESSEY TWM28-30-12 is a heavy-duty hold-down clamp engineered for 28 mm matrix welding tables. Featuring a 12 in. clamping capacity and a fixed 4-3/4 in. throat depth, this clamp secures metal workpieces directly onto matrix table surfaces during fabrication and welding applications.

Built with a tempered profiled rail and drop-forged sliding arm, the TWM28-30-12 delivers up to 1,400 lbs. of clamping force. It comes equipped with a heavy-duty MorPad pressure plate that tilts up to 35 degrees to seat against uneven workpieces, driven by a smooth-running trapezoidal threaded spindle with a steel T-bar handle.

Features & Benefits

• 28 mm Table Compatibility: Inserts into standard 28 mm matrix welding table holes for hold-down clamping.
• Heavy-Duty MorPad: Heavy-duty pressure plate tilts up to 35 degrees to maintain surface contact on angled components.
• Forged Sliding Arm: Drop-forged steel arm and tempered profiled rail provide strength under clamping loads.
• T-Bar Handle Drive: Smooth-running trapezoidal thread spindle driven by a T-bar handle for high clamping pressure.
• 1,400 lbs. Clamping Force: Rated clamping force calculated at 2 to 3 in. clamping height on solid steel table platforms.

What's Included

• (1) BESSEY TWM28-30-12 Hold-Down Clamp with T-Bar Handle and Heavy-Duty MorPad

Choose the TWM28-30-12 for high-load fixed-reach clamping with a heavy-duty tilting MorPad, or select TWV28 series variable throat clamps when adjustable reach is needed on 28 mm matrix tables.
