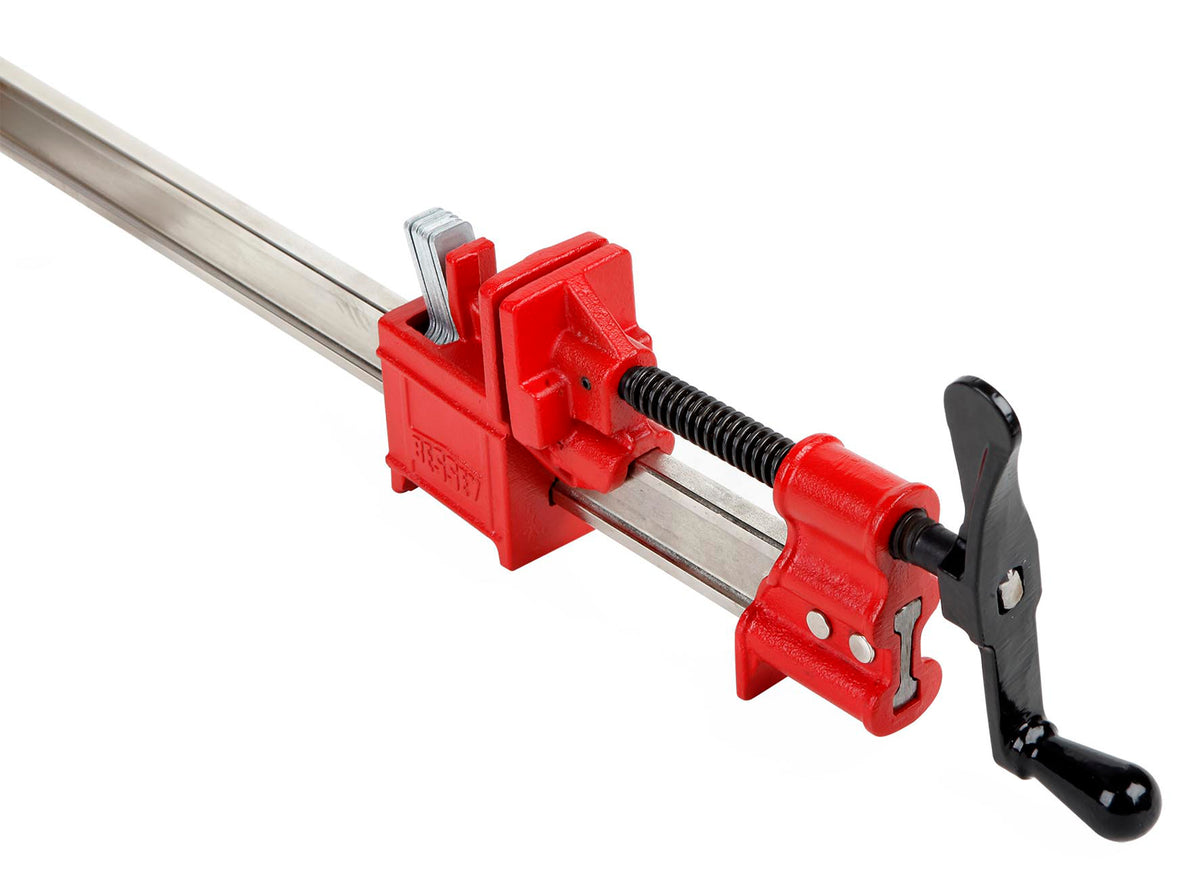

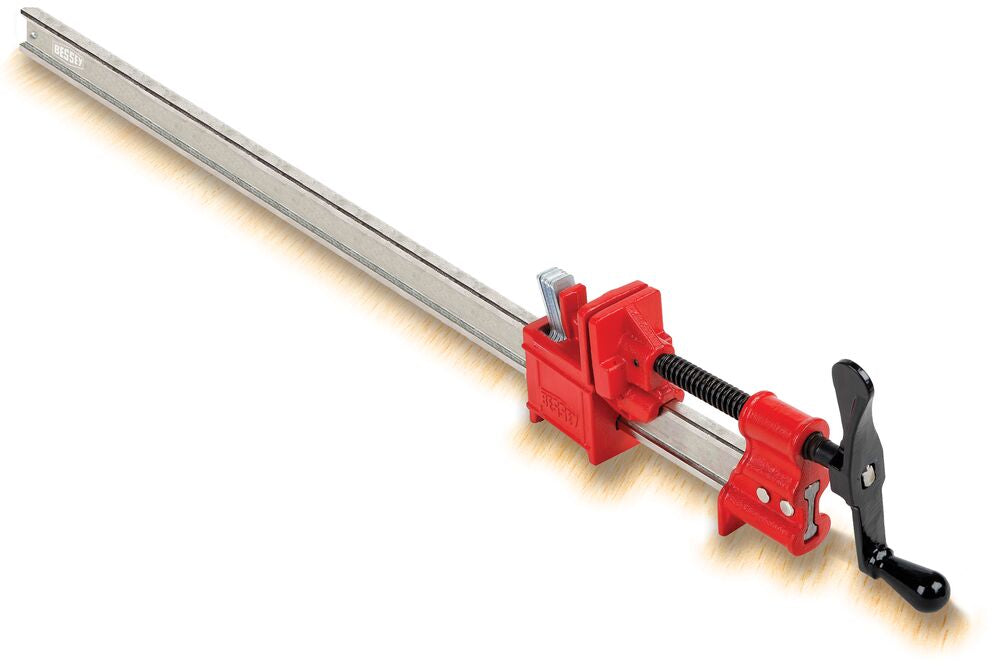

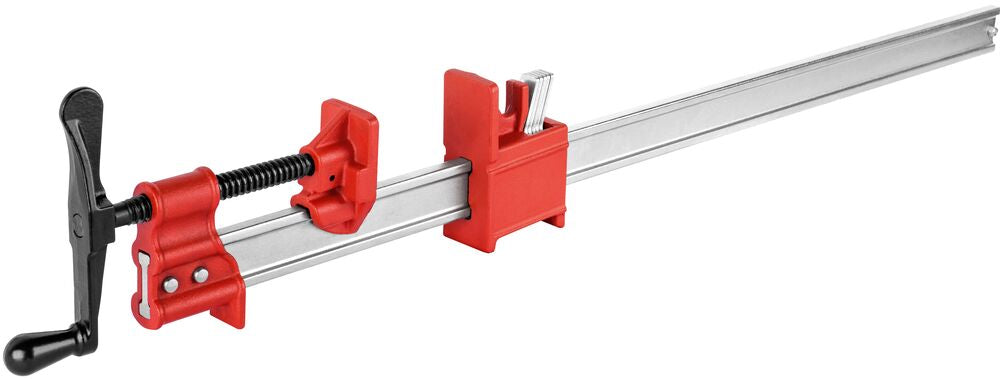

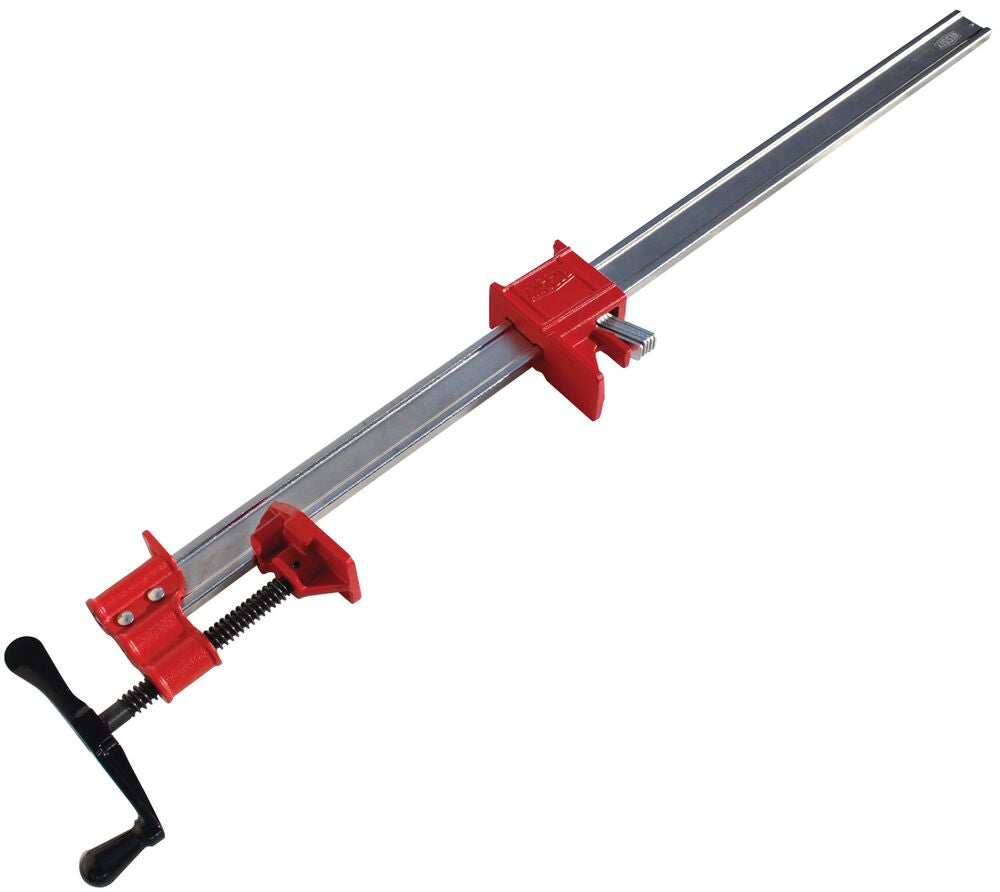

The BESSEY IBEAM48 is an industrial 48 in. I-beam bar clamp built for heavy-duty woodworking, panel glue-ups, and architectural millwork. Built with a nickel-plated steel I-beam rail profile, it offers exceptional beam strength that prevents deflection or twisting across 48 in. clamping spans under holding forces up to 7,000 lbs.

Featuring ductile cast iron jaws and an ACME-threaded steel spindle, the IBEAM48 delivers consistent pressure to maintain workpiece alignment during glue drying and frame assembly. A sliding jaw mechanism equipped with 5 hardened clutch plates grips the rail firmly to eliminate slip under load, while the easy-turn crank handle enables controlled tightening with reduced operator fatigue.

Features & Benefits

• I-Beam Steel Profile: Provides maximum structural rigidity to eliminate beam flex over 48 in. clamping spans.
• Ductile Cast Iron Fixtures: Heavy-duty jaws withstand high clamping pressure without distorting or cracking.
• 7,000 lbs. Load Capacity: Ensures high clamping force for panel lamination, tabletop assembly, and timber framing.

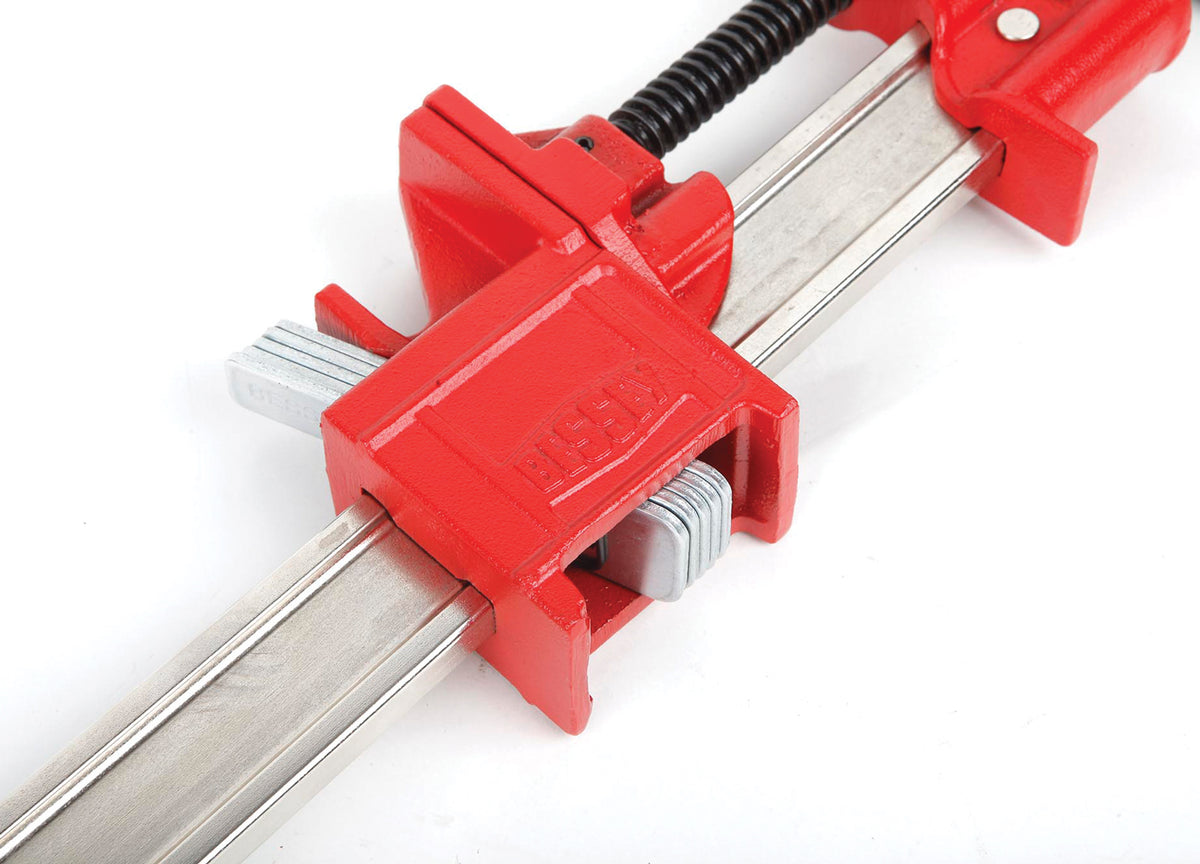

• 5 Hardened Clutch Plates: Grip the rail securely to maintain jaw position under maximum holding tension.
• ACME Threaded Spindle: Allows rapid thread action and efficient power conversion during tightening.
• Nickel-Plated Rail: Resists corrosion and smooths sliding jaw motion in production environments.
• Crank Handle: Delivers superior hand leverage for precise pressure application.

What's Included

• (1) BESSEY IBEAM48 48 in. Industrial I-Beam Bar Clamp

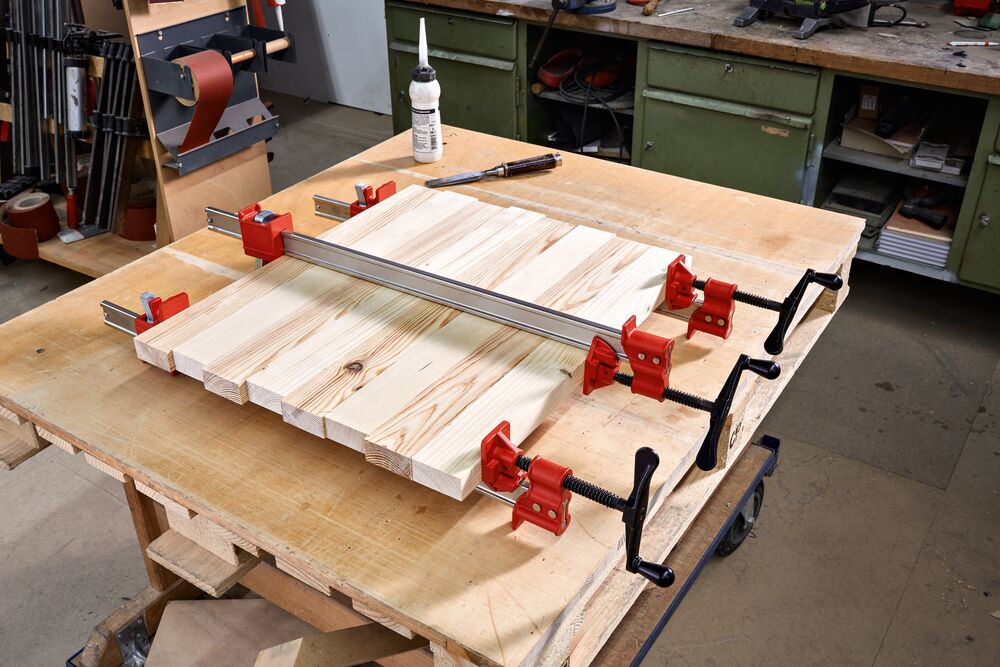

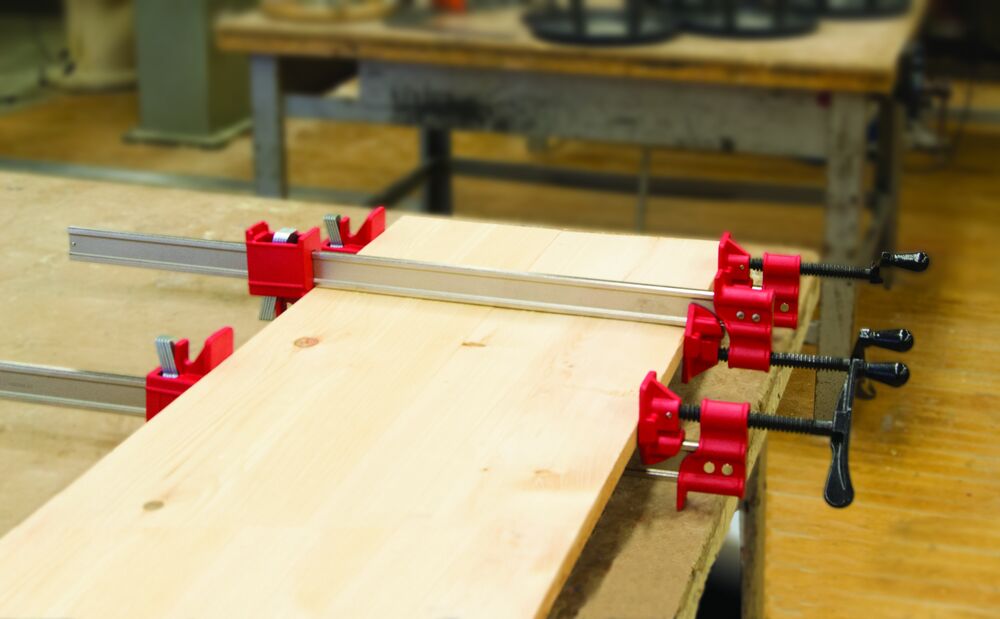

Choose the IBEAM48 for 4 ft. clamping spans in panel gluing and door manufacturing, or select shorter models (24 in.–36 in.) or longer variants (60 in.–96 in.) to match specific shop workloads.
