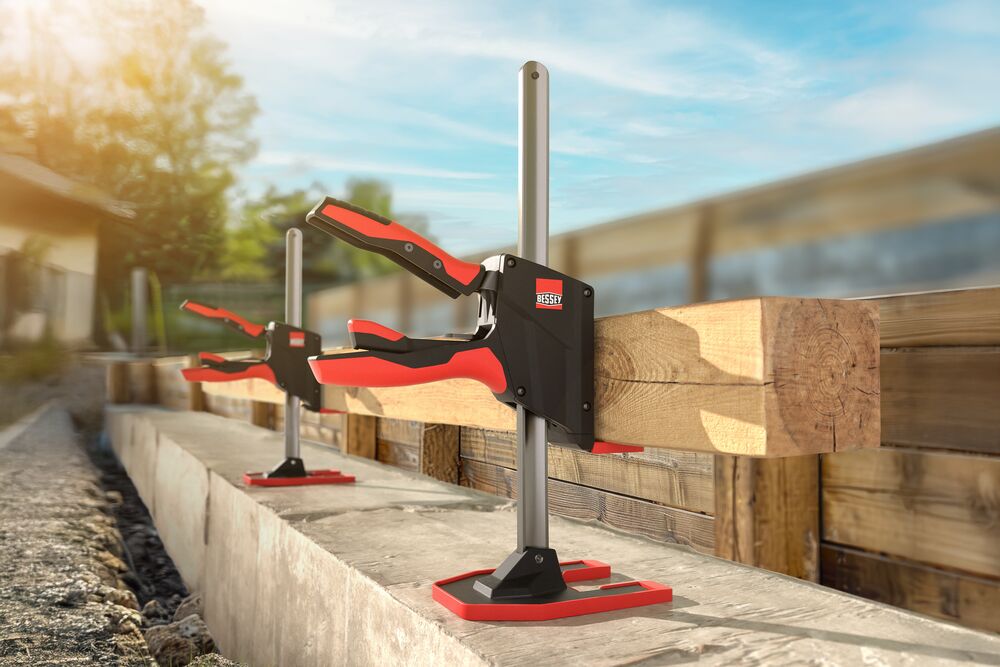

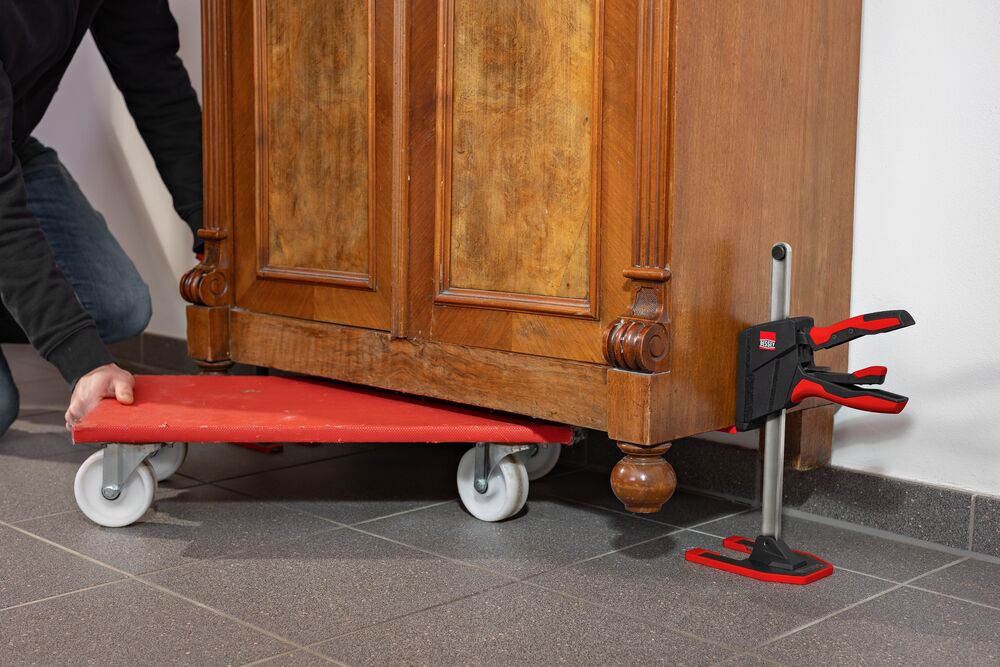

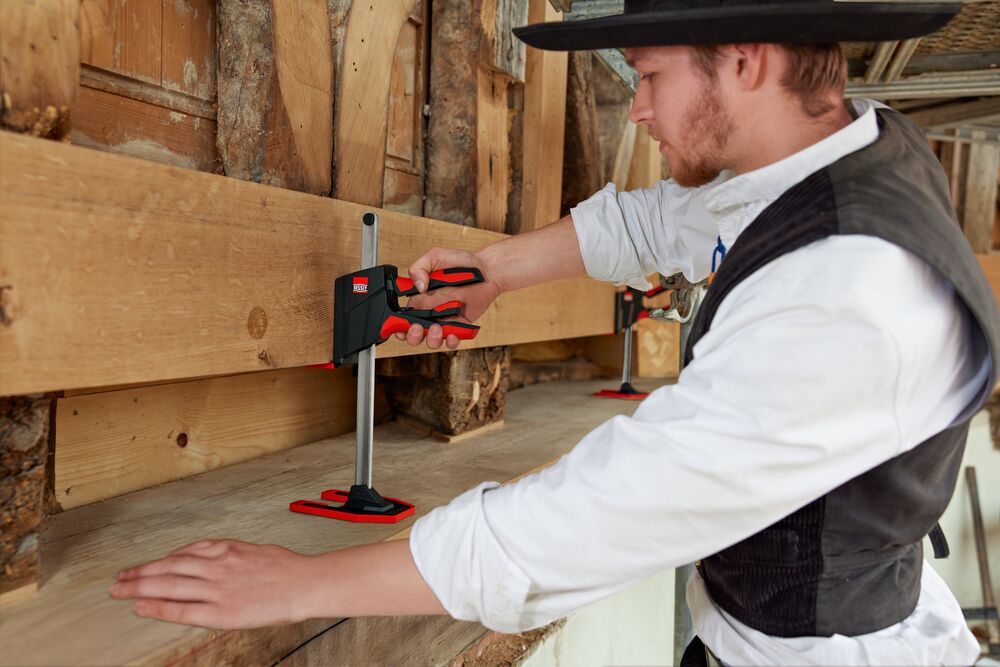

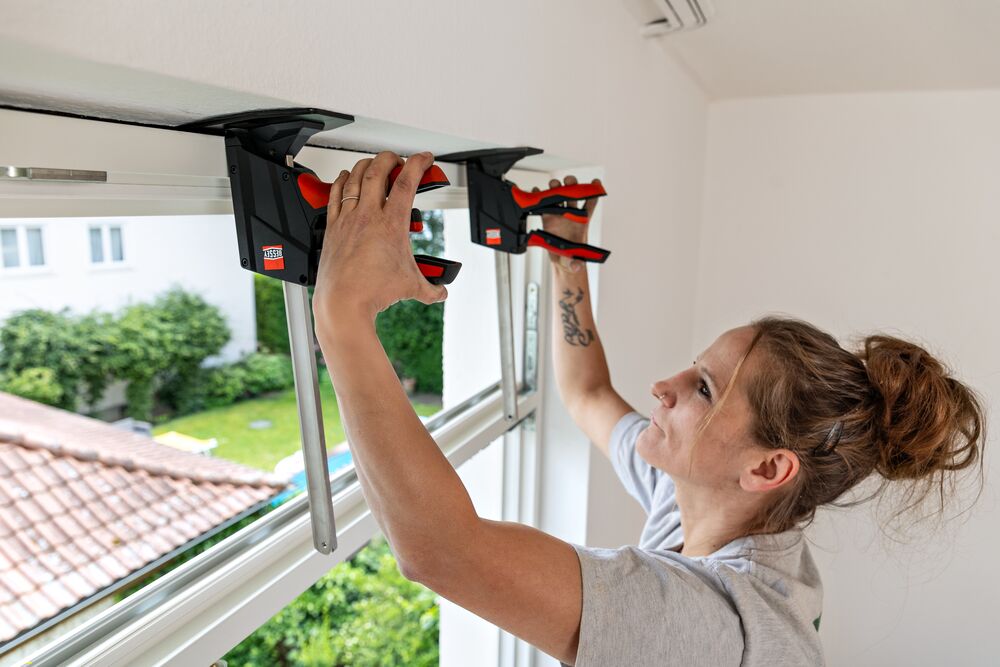

The Bessey BEY9 BEYCEPS is a heavy-duty, one-handed mechanical lifting and assembly tool engineered to lift, level, support, and align building components weighing up to 400 lbs. Designed for solo tradespeople handling cabinet installations, door and window framing, flooring, deck building, and appliance positioning, this precision tool eliminates the need for improvised shims or secondary assistance during installation.

Precision adjustment is driven by independent stepping levers that allow controlled height changes under full load. Each stroke of the upper pump lever raises the load by 5/16 in. (8 mm), while the separate fine-lowering lever lowers the load in 5/32 in. (4 mm) increments for exact alignment with laser lines and pre-drilled fasteners. A recessed brake-release lever allows immediate retraction without the hazard of accidental trip activation. For hands-free work holding, the lifting mechanism can be operated by either hand or foot, allowing both hands to remain free to adjust, plumb, and secure the workpiece.

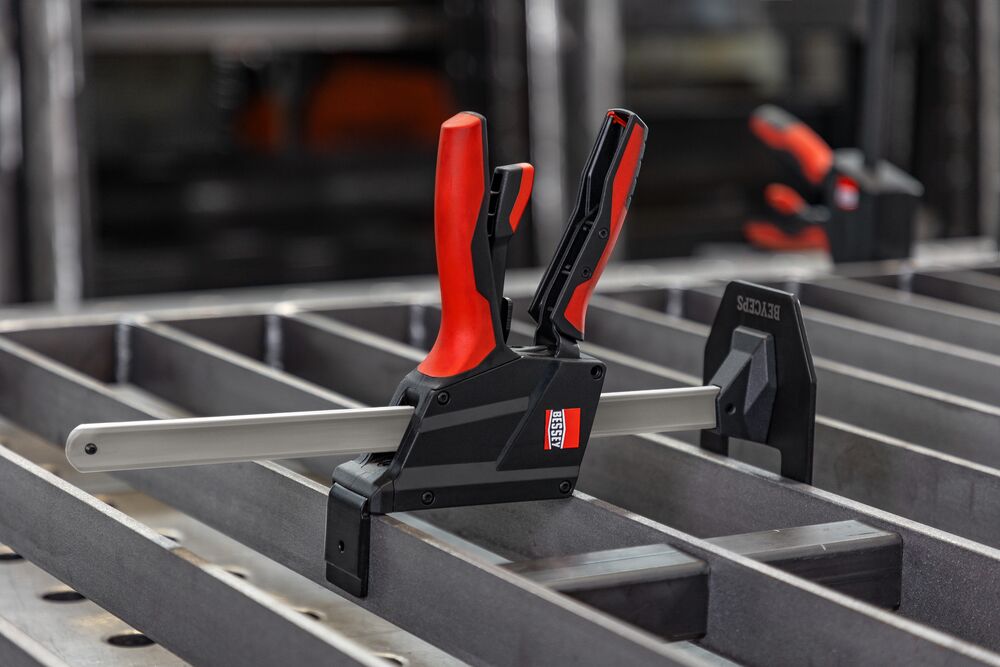

Beyond vertical lifting, the BEY9 converts into a spreading tool and a parallel clamp. Inverting the upper arm and reinstalling the lower jaw across the coated steel hollow rail converts the mechanism into a clamping clamp with a clamping range from 6-11/16 in. to 15-23/32 in., allowing installers to draw face frames or casing assemblies together. Removable non-marring protective caps on both the stainless steel base and the lifting toe ensure finished surfaces remain protected under maximum clamping and lifting forces.

Features & Benefits

• 400 lbs. Lifting Capacity: Delivers mechanical lifting power capable of hoisting heavy cabinets, fire doors, large appliances, and structural assemblies.
• Two-Speed Stepping Mechanism: Raises loads in 5/16 in. (8 mm) increments and lowers in controlled 5/32 in. (4 mm) increments for millimeter-accurate positioning.
• Dual-Action Hand or Foot Operation: Allows the installer to actuate the pump lever by foot or hand, freeing both hands to hold, check level, and fasten materials.
• Concealed Brake Release: Recessed release lever prevents accidental engagement while under load, ensuring safe descent and quick retraction when the job is done.
• 3-in-1 Lifting, Spreading, and Clamping: Reversing the jaw configuration converts the tool from a lifting jack into a spreading fixture or a 15-23/32 in. assembly clamp.
• Protective Non-Marring Caps: Removable soft caps shield pre-finished cabinetry, millwork, and delicate flooring from pressure marks and scratching.
• Durable Enclosed Construction: Glass-fiber reinforced PA6 housing seals internal mechanical gearing against jobsite dust, debris, and impacts.
• Rigid Steel Rail and Stainless Base: Coated hollow profile steel rail and stainless steel baseplate resist flex and corrosion during demanding commercial use.

What's Included

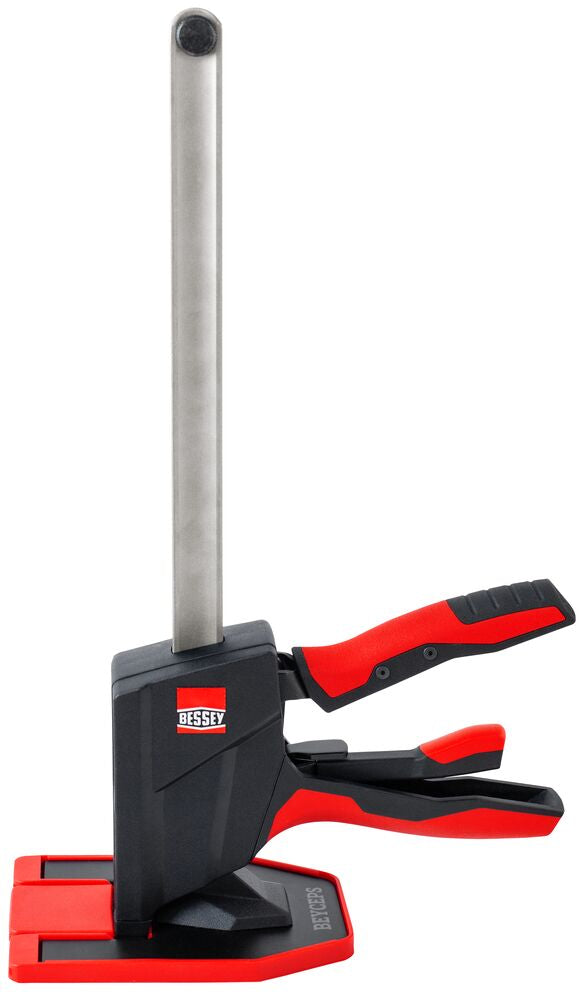

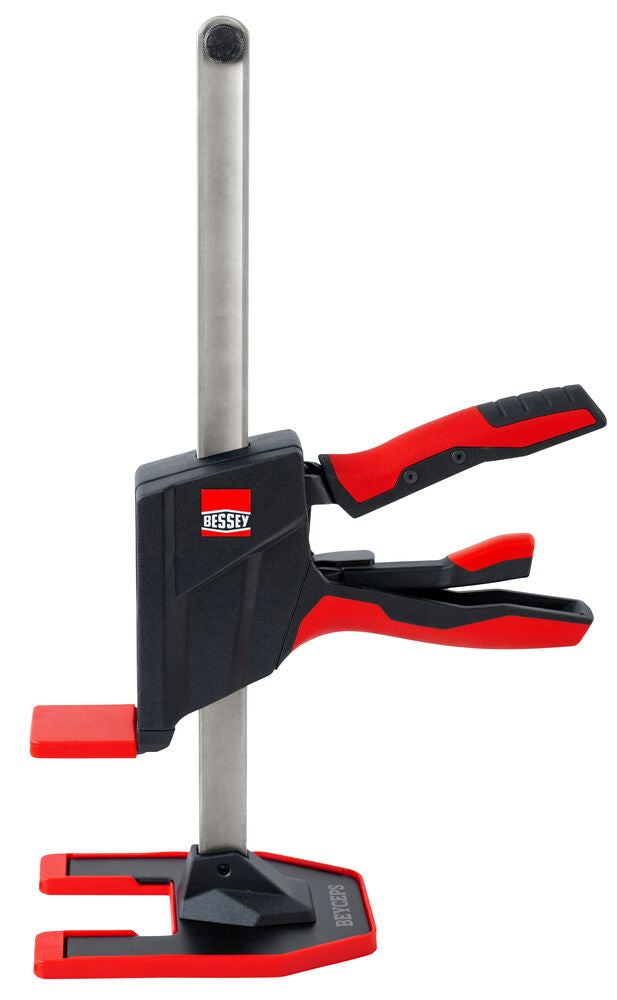

• (1) Bessey BEY9 BEYCEPS Lifting and Assembly Tool
• (1) Removable Protective Cap for Base
• (1) Removable Protective Cap for Lifting Plate
