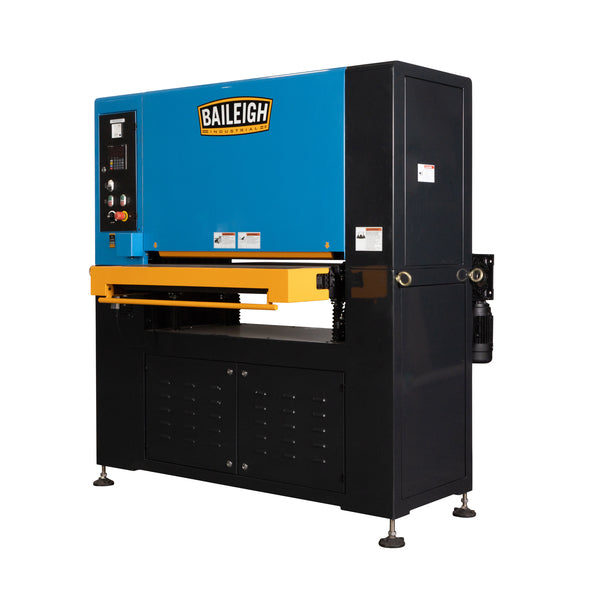

The Baileigh WBS-37H is the 460V build of Baileigh's 37" x 60" wide belt sander, for shops running higher voltage three phase service. It takes on slag removal from plasma and flame-cut plate, post-machining deburring, edge breaking, oxide and corrosion removal, and pre-coating surface prep across mild steel, stainless, non-ferrous metals, and plastics.

The 10 HP main motor turns the abrasive belt at 2,700 FPM. Conveyor feed is adjustable from 2 to 26 FPM, so operators can slow down for aggressive stock removal or speed up for a light finish pass, and auto belt tracking holds the abrasive in position so the finish stays uniform edge to edge.

Where a manually cranked table costs time and introduces variation, the WBS-37H senses material thickness and sets sanding height on its own. Ten programmable height presets on the HMI make recurring jobs a one-button setup, and the digital readout keeps height and feed rate visible throughout the run. Status indicator lights, interior work lights, a powered table lift, and adjustable leveling feet complete the package.

Key Features

• 37" sanding width with a 37" x 60" abrasive belt, 6" maximum thickness
• 10 HP main motor wired for 460V three phase power
• 2,700 FPM abrasive belt speed
• Variable conveyor feed from 2 to 26 FPM
• Automatic thickness sensing and automatic sanding height adjustment

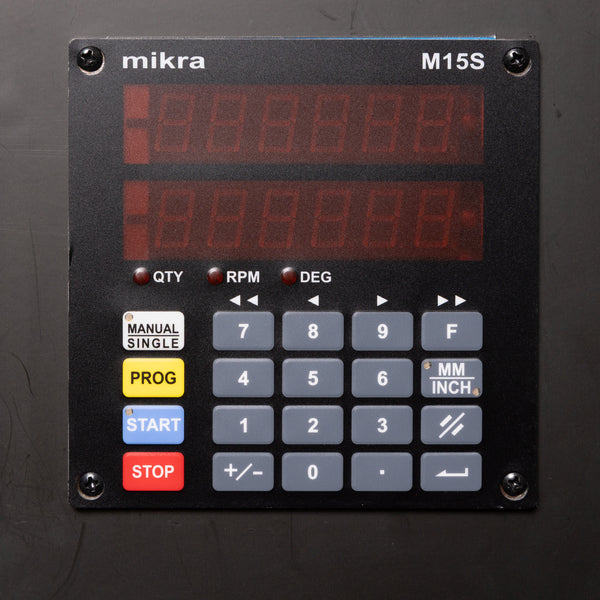

• HMI with 10 programmable height presets
• Digital readout for sanding height and conveyor speed
• Auto belt tracking for consistent finish and longer belt life
• Powered table lift motor and adjustable leveling feet
• Work lights plus machine fault and readiness indicators
• Certified to UL 987 with door interlocks, emergency stop, infeed emergency stop, height detection bar, quick-stop abrasive brake, and locking on/off switch
• Handles mild steel, stainless steel, non-ferrous metals, and plastics
• 5" dust port, 80 grit belt installed from the factory
• 1 year parts warranty with Baileigh lifetime technical support

Need 230V instead? Order the WBS-37. For small part work, the vacuum hold-down WBS-37VH is the 460V equivalent and handles pieces down to 2" x 2".
