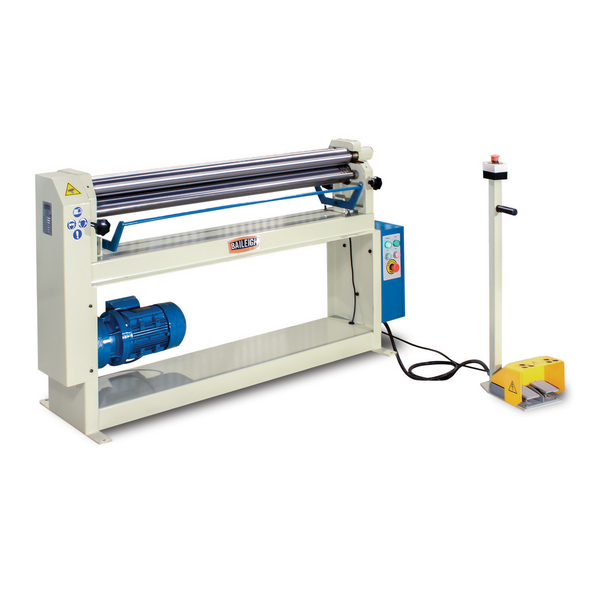

The Baileigh SR-5016E is a 50 in. powered electric slip roll engineered for efficient sheet metal forming in HVAC departments, general fabrication shops, and custom metalworking facilities. Powered by a 110V, 1 HP electric motor system, this slip roll provides controlled rolling power across a maximum forming length of up to 51 in., with a rated capacity of 16 gauge mild steel (.060 in.). Its open stand design provides unobstructed access for material feeding and workpiece removal, optimizing workflow during cylindrical and curved part production.

The machine utilizes a two-driven-roll system with hardened and polished rolls to deliver positive material traction while protecting sheet surfaces from marring. Hands-free forward and reverse roll rotation is controlled via a dual foot switch, allowing operators to maintain precise two-handed material alignment throughout the bend. For consistent repeatability, both ends of the rear roll feature integrated scales and measurement indicators to simplify setup across varied production runs. An adjustable back roll allows quick adjustments to achieve tighter radii and customized sheet curves, while machined wire grooves enable wire and round stock forming.

For operator safety, the SR-5016E incorporates three emergency-stop functions, including an accessible E-stop button on the foot pedal controller. Constructed with a heavy-duty welded steel frame, the machine maintains rigid roll alignment under load, reducing frame deflection and ensuring consistent shaping across full-width sheets.

Features & Benefits

• 50 in. Working Width: Accommodates standard sheet metal sizes with up to a 51 in. maximum forming length.
• 16 Gauge Mild Steel Capacity: Formally rated to roll up to 16 gauge (.060 in.) mild steel sheet across its full working width.

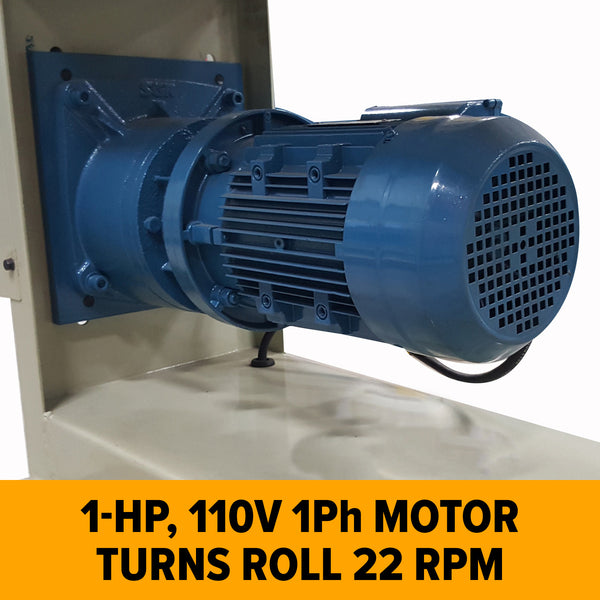

• 110V 1 HP Electric Drive: Runs on standard single-phase 110-volt power for convenient operation anywhere in the shop.
• 2 Driven Rolls: Dual driven roll design provides positive sheet feeding and smooth rolling performance.

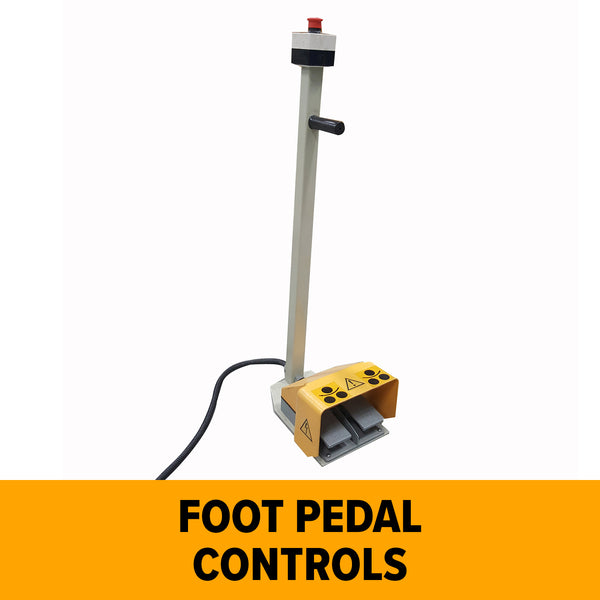

• Dual Foot Switch Control: Hands-free foot pedal operation controls forward and reverse roll motion for complete material control.
• Hardened & Polished Rolls: High-grade roll surfaces resist wear and protect workpiece finish during forming operations.

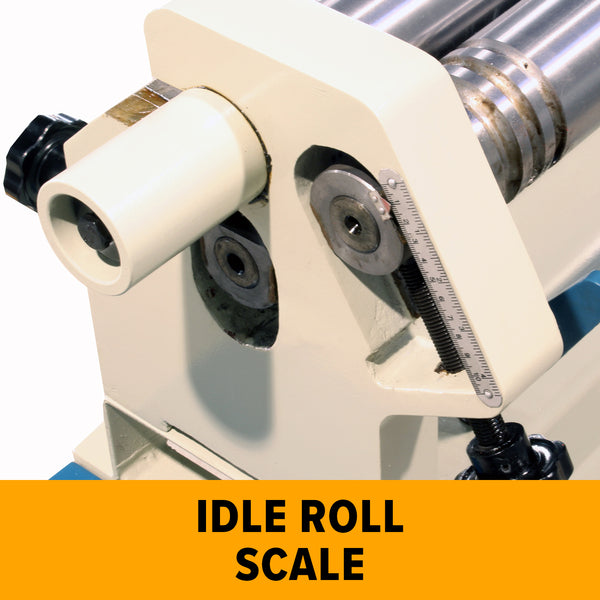

• Rear Roll Alignment Scales: Integrated scales and indicators on both ends of the rear roll ensure precise, repeatable settings.
• Adjustable Back Roll: Quickly adjusts roll position to form tighter radii and diverse cylindrical profiles.

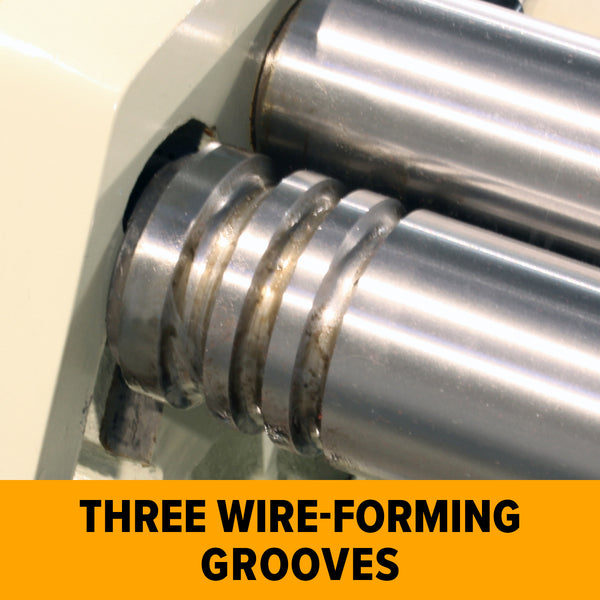

• Integrated Wire Grooves: Machined grooves in the rolls support round stock and wire forming applications.

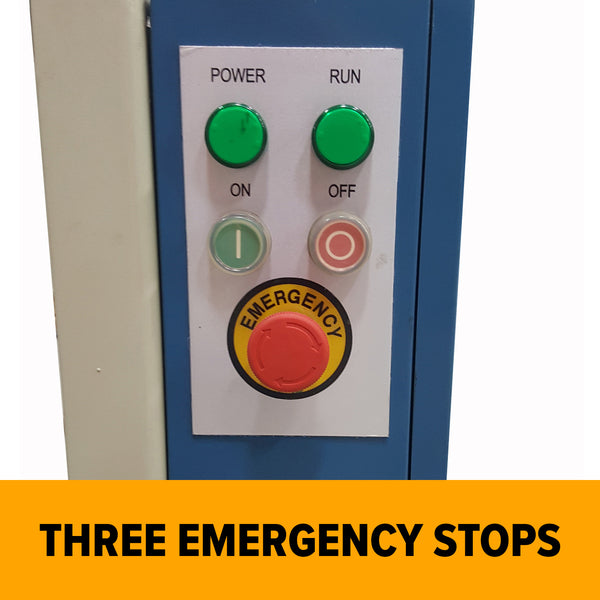

• Emergency Stop Controls: Features three integrated E-stop safety controls including a pedal-mounted emergency stop switch.
• Heavy-Duty Welded Frame: Rigid open stand construction prevents frame flexing and maintains structural stability during heavy rolling.

What's Included

• (1) 50 in. Electric Slip Roll with Open Stand (SR-5016E)
• (1) Dual Foot Switch Assembly with Emergency Stop Button
• (1) Adjustable Depth Stop
