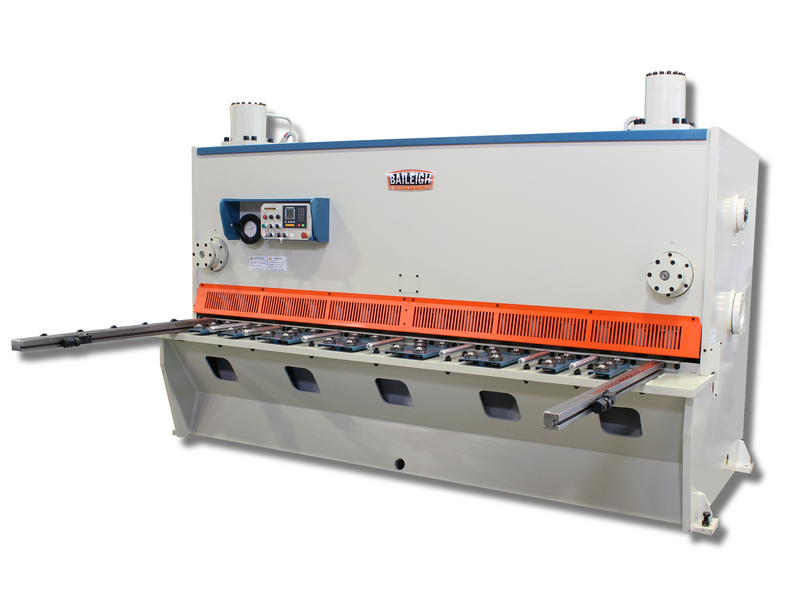

The Baileigh SH-120500-HD is an industrial-grade hydraulic sheet metal shear engineered for high-production metal fabrication shops, steel service centers, and heavy manufacturing facilities. Powered by a 30 HP motor running on 220V 3-phase power, this machine cuts sheet metal up to 120 in. wide with a maximum capacity of 1/2 in. mild steel.

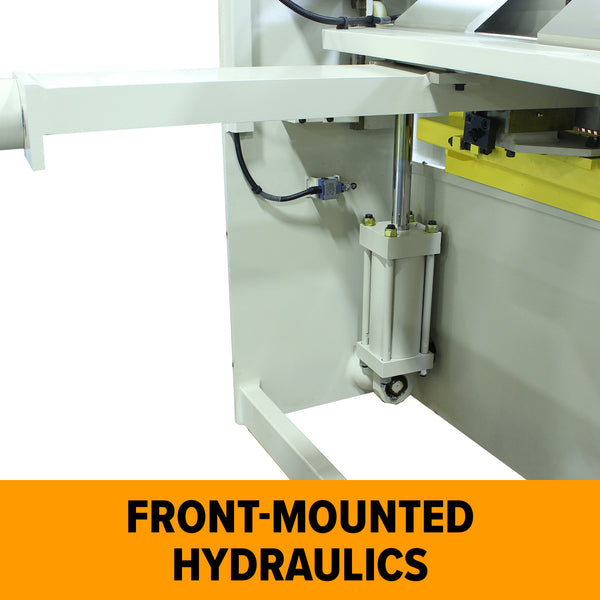

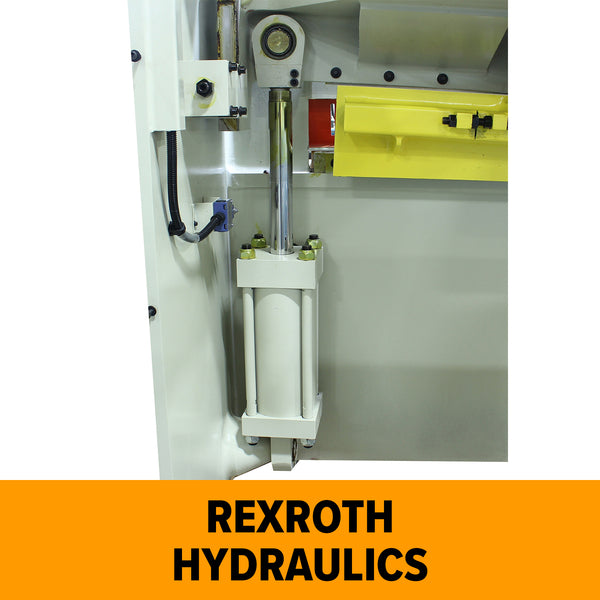

Constructed with a fully welded heavy-duty steel frame, the SH-120500-HD eliminates frame flex under full hydraulic pressure to deliver clean, square cuts across 10 ft sheets while extending blade life. The hydraulic drive system provides smooth cutting action, while adjustable hold-downs clamp workpieces tightly prior to shearing to prevent material shift and minimize edge burrs.

To maximize shop efficiency and repeatability, the shear is equipped with a fully programmable backgauge accurate to +/- .01mm and capable of storing up to 100 programs in internal memory. Setup and workpiece positioning are further simplified by front support arms and a 48 in. squaring arm that can be mounted on either the left or right side and includes four bump stops. Adjustable blade gap and rake angle controls allow operators to tune edge quality for varying material thicknesses.

Features & Benefits

• 120 in. Cutting Length: Processes sheet materials up to 10 ft wide in a single stroke.
• 1/2 in. Mild Steel Capacity: Delivers heavy-duty shearing force for thick sheet and plate fabrication.
• 30 HP Motor: Driven by a 30 HP motor operating on 220V 3-phase power for demanding industrial workloads.
• Welded Steel Frame: Rigid, fully welded frame prevents flex to maintain straight, accurate cuts and preserve blade condition.

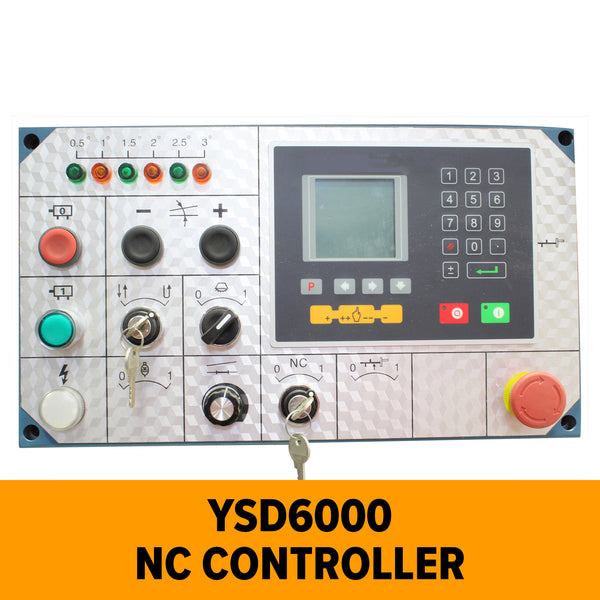

• Programmable Backgauge: NC backgauge features +/- .01mm accuracy and an internal memory storing up to 100 programs.
• Hydraulic Hold-Downs: Secures sheets firmly against the bed before blade engagement to ensure clean, burr-free cuts.

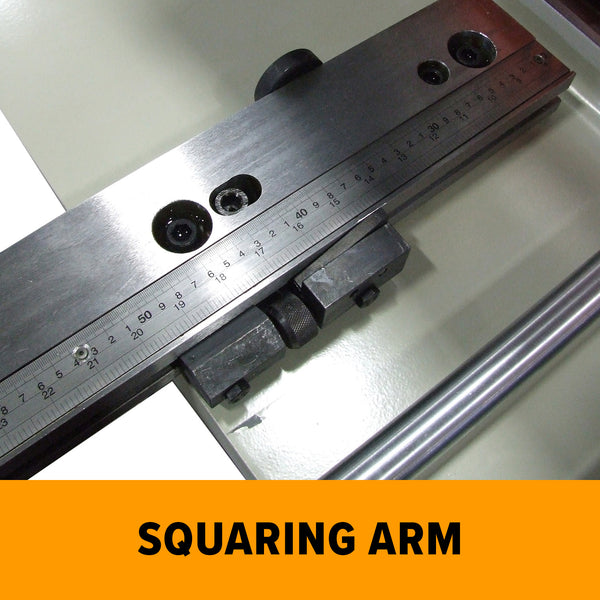

• 48 in. Squaring Arm: Mounts on either the right or left side and includes four bump stops for fast, precise sheet alignment.

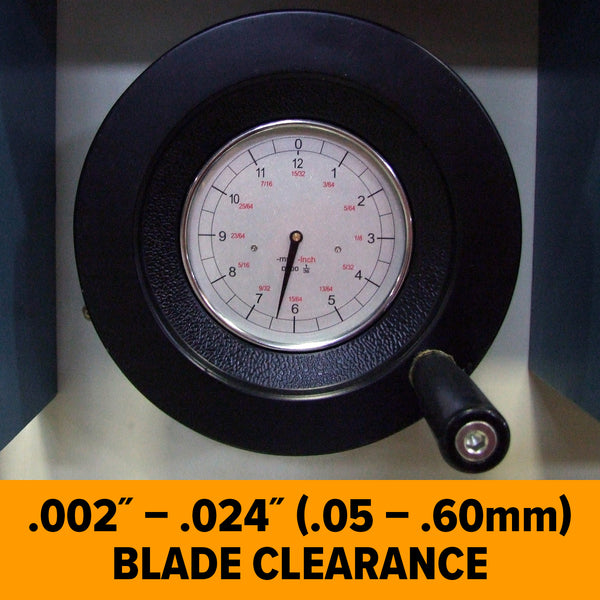

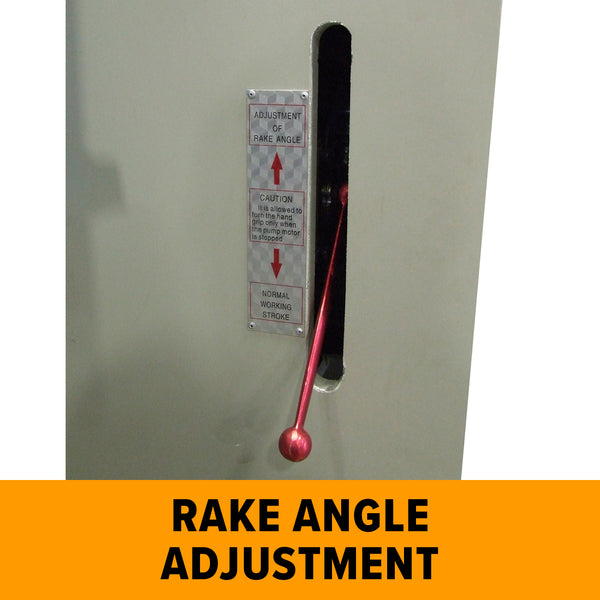

• Adjustable Blade Gap and Rake Angle: Enables quick adjustments to optimize cut finish and reduce distortion across various material gauges.
• Operator Safety Guards: Integrated guards and safety interlocks help protect shop operators during cycle execution.
