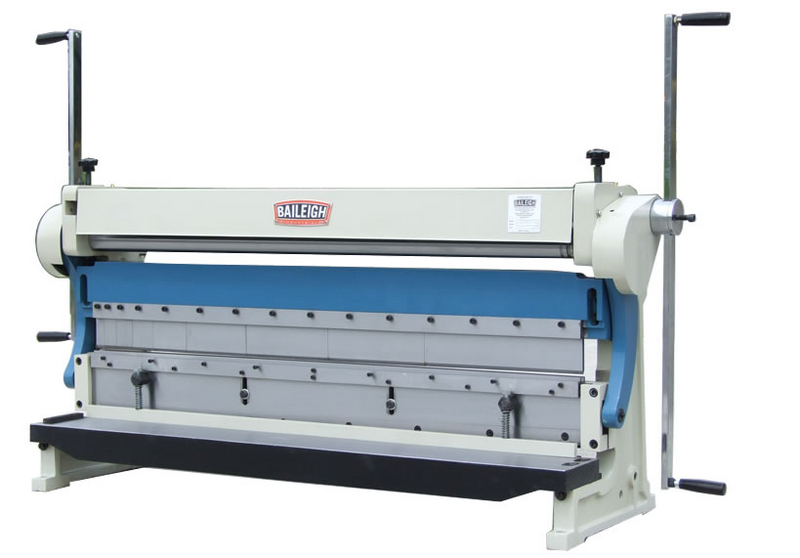

The Baileigh SBR-5216 is a 52 in. 3-in-1 combination shear, brake, and roll machine designed to perform three essential sheet-metal forming operations in a single compact unit. Capable of handling up to 16 gauge mild steel across a full 52 in. bed width, this manual machine allows metalworking shops to perform shearing, bending, and slip rolling without requiring separate dedicated machinery.

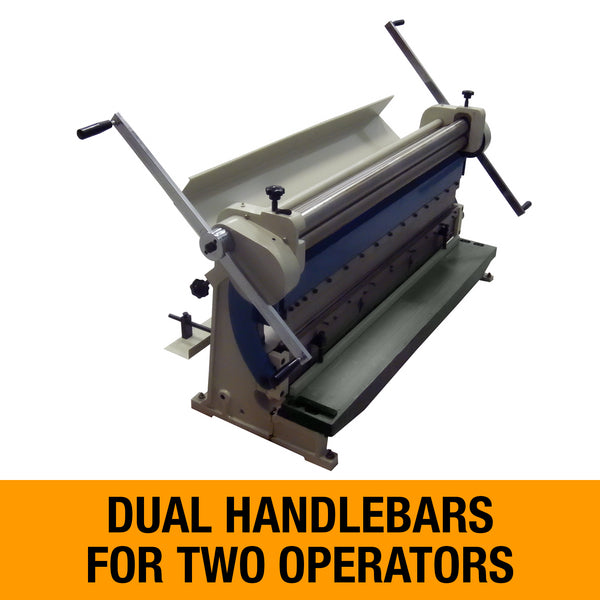

Built with a fully welded heavy-duty steel frame, the SBR-5216 maintains rigidity during manual operation to deliver consistent forming accuracy and clean shearing cuts. Its 52 in. working width accommodates full 4 ft. sheet stock, making it a versatile asset for light fabrication, HVAC work, prototyping, and maintenance applications. An integrated manual back gauge enables repeatable material positioning for duplicate cuts and bends, while adjustable handlebars provide the leverage needed for smooth control across all three forming functions.

Features & Benefits

• 3-in-1 Versatility: Combines a manual sheet metal shear, press brake, and slip roll in a single space-saving machine.
• 52 in. Working Width: Accommodates standard 4 ft. wide sheet stock for full-width shearing, bending, and rolling.
• 16 Gauge Capacity: Rated to shear, bend, and roll mild steel up to 16 gauge (0.0598 in.) thickness.
• Manual Lever Operation: Requires no electrical connection, providing full operational flexibility anywhere in the shop.

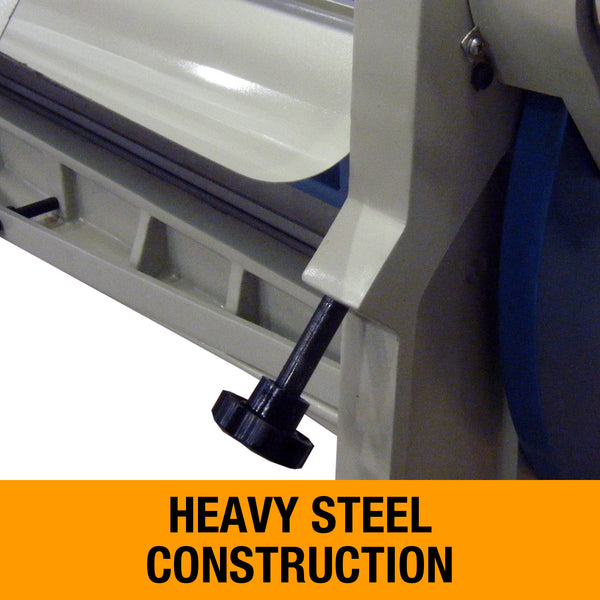

• Fully Welded Steel Frame: Heavy-duty frame construction prevents flexing to ensure precise cuts and uniform bends.

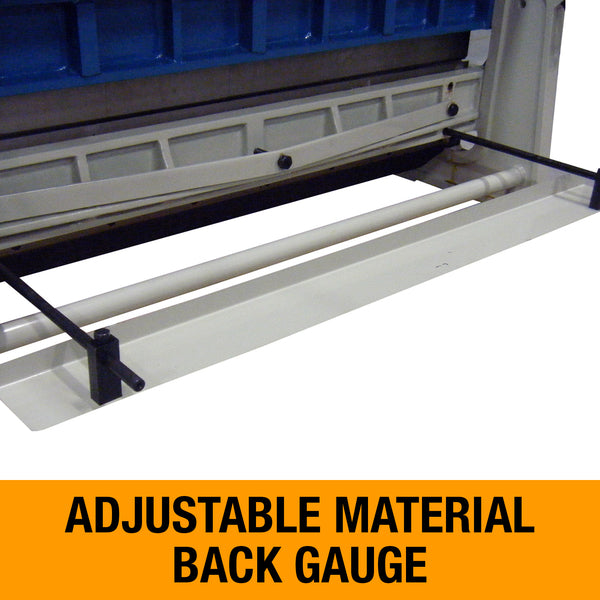

• Manual Back Gauge: Allows quick, repeatable material stop settings for accurate batch production.
• 1.70 in. Minimum Roll Diameter: Enables slip rolling of tight cylinders, radiused curves, and rounded sheet components.

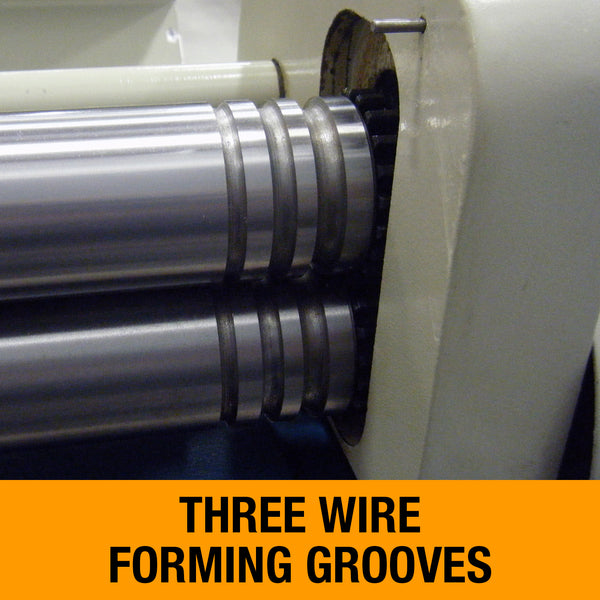

• Wire and Rod Grooves: Features three forming grooves on the rolls for working with solid wire, small rods, and tubing.
