Baileigh MH-19 Variable-Speed Power Hammer, 19" Throat, 220V 1-Phase MDL-MH19
Baileigh MH-19 Variable-Speed Power Hammer, 19" Throat, 220V 1-Phase MDL-MH19
Couldn't load pickup availability
Details
Details

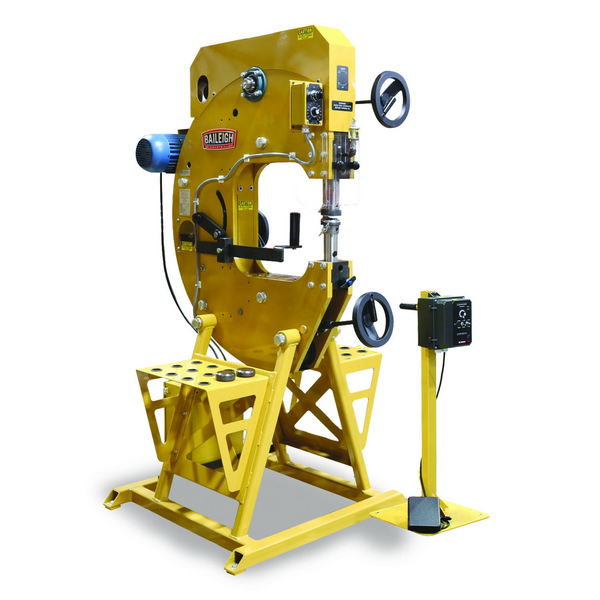

Industrial Construction: The Baileigh Industrial MH-19 Power Hammer is built with a rigid, fully welded industrial steel frame designed to withstand heavy and continuous forming workloads. Its durable USA-made construction prevents flex and vibration for precise and consistent shaping results.
Variable Speed & Control: Powered by 220 V single-phase electricity and equipped with an inverter-driven motor, the MH-19 delivers variable speed control from 0–1,500 beats per minute so operators can fine-tune impact rate from gentle planishing to aggressive shrinking and stretching.
Versatile Metal Shaping: With a 19″ throat depth and quick-change tooling system, this power hammer accommodates deep panels and a variety of forming tasks such as doming, edge turning, stretching, and shrinking. It combines multiple hammering modes for comprehensive shaping flexibility.
Features & Benefits
- Throat depth: 19″ throat depth accommodates deep panels and complex shapes.
- Input power: Operates on 220 V single-phase electrical power.

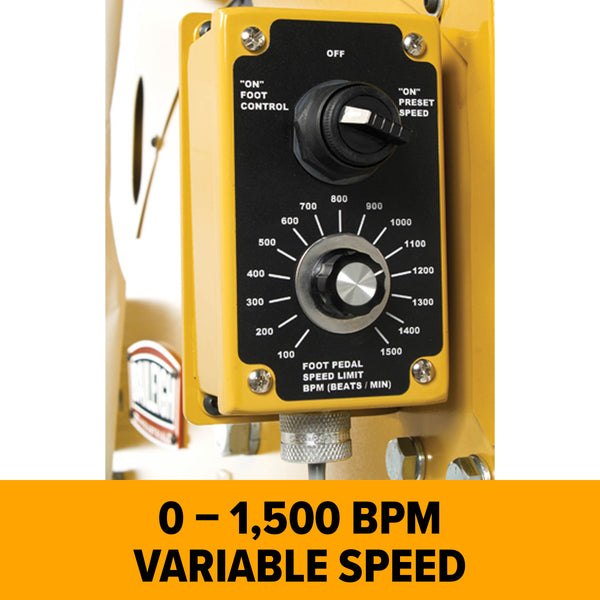

- Variable speed: Adjustable from 0–1,500 beats per minute for controlled shaping.
- Mild steel capacity: Handles up to 16 gauge mild steel material.
- Aluminum capacity: Suitable for 12 gauge aluminum work.
- Heavy-duty construction: Fully welded industrial steel frame for rigidity.

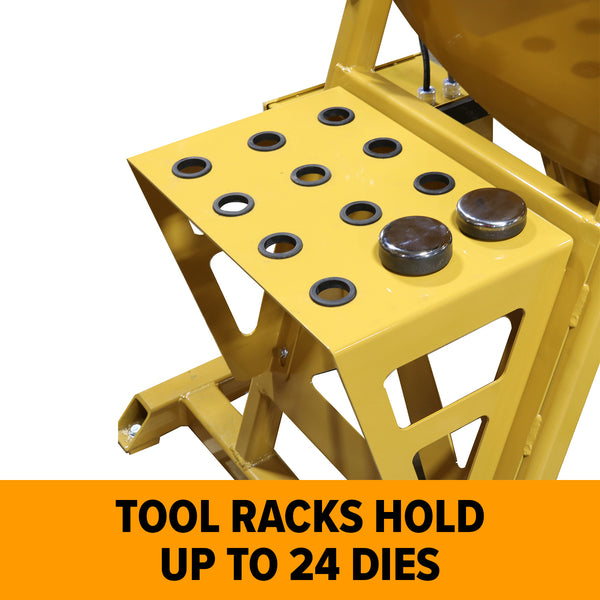

- Quick-change tooling: Tooling swaps easily for a range of forming tasks.
- Multiple forming modes: Combines rigid and spring-slapping styles for shaping versatility.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
Specifications
| Specification | Value |
|---|---|
| Model Number | MH-19 |
| Stock / SKU Number | BA9-MDL-MH19 |
| UPC | 19907529064 |
| Mild Steel Capacity | 16 Gauge (1.52 mm) |
| Aluminum Capacity | 12 Gauge (2.0 mm) |
| Throat Depth | 19" (483 mm) |

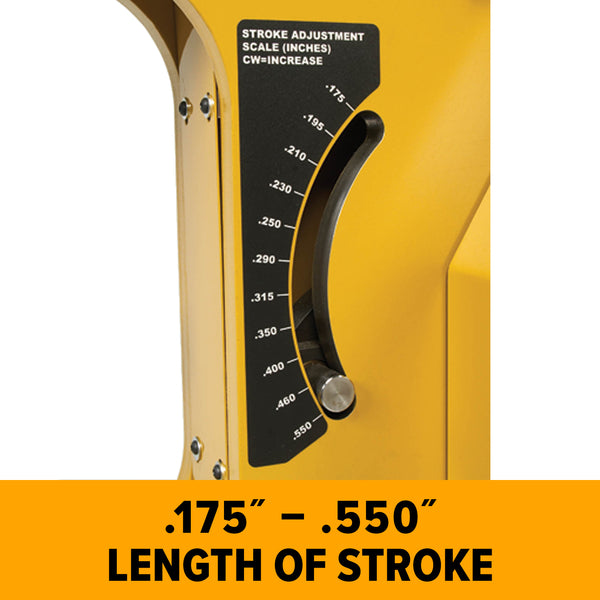

| Stroke Length Adjustment | 0.177" - 0.550" (4.5 - 14 mm) |

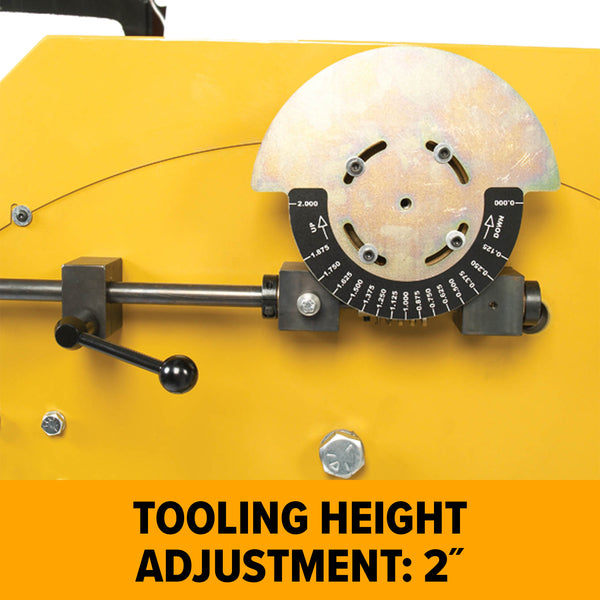

| Tooling Height Adjustment | 2" (50.8 mm) |
| Operating Speed | 0 - 1,500 BPM |
| Motor | 2 HP (1.5 kW), Inverter-Driven |
| Input Power | 220V, 1-Phase, 20A, 50/60 Hz |
| Frame Construction | 1" (25.4 mm) Thick Welded Steel |
| Shipping Weight | 1,600 lbs (726 kg) |
| Shipping Dimensions | 60" × 60" × 84" (1,524 × 1,524 × 2,134 mm) |
| Warranty | 1 Year Parts |
