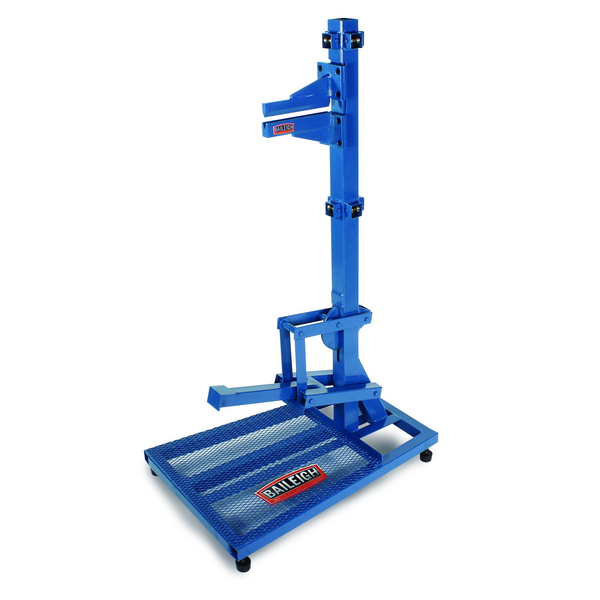

The Baileigh LB-8 Manual Open-Ended Letter Brake is engineered for sign fabrication shops producing channel letters and small-profile sheet metal bends. Designed with an 8 in. working length and a 20 gauge mild steel capacity, this specialized brake forms tight, accurate bends required for custom sign making and metal lettering.

Featuring an open-jaw design, the LB-8 allows material lips to extend out the front of the frame, facilitating significantly faster reverse bending than traditional box and pan brakes. Its 2.25 in. x 2.25 in. boxed tube main column provides structural rigidity to minimize deflection during manual forming tasks.

The bending slide is supported by sealed ball bearings to deliver smooth, low-friction operation. Operating manually without electrical power or compressed air requirements, this letter brake includes a complete stand assembly for a stable, floor-mounted workstation setup.

Features & Benefits

• 8 in. Working Length: Accommodates 8 in. bending width, specifically suited for channel letter formation and small sheet metal components.
• 20 Gauge Mild Steel Capacity: Formed for lighter sheet work, handling mild steel up to 20 gauge as well as aluminum sheet.
• Open-Jaw Design: Allows material lips to extend out front for faster production of reverse bends compared to standard box and pan brakes.
• 135 Degree Maximum Bend Angle: Delivers up to 135 degrees of bending potential on mild steel workpieces.
• Boxed Tube Construction: Built with a 2.25 in. x 2.25 in. boxed tube main column to maintain structural rigidity under load.

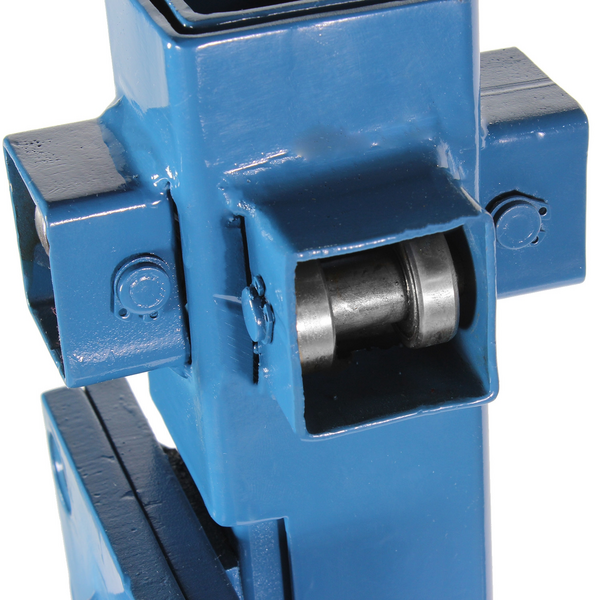

• Sealed Ball Bearings: Supports the bending slide assembly for smooth, controlled motion during repetitive operation.

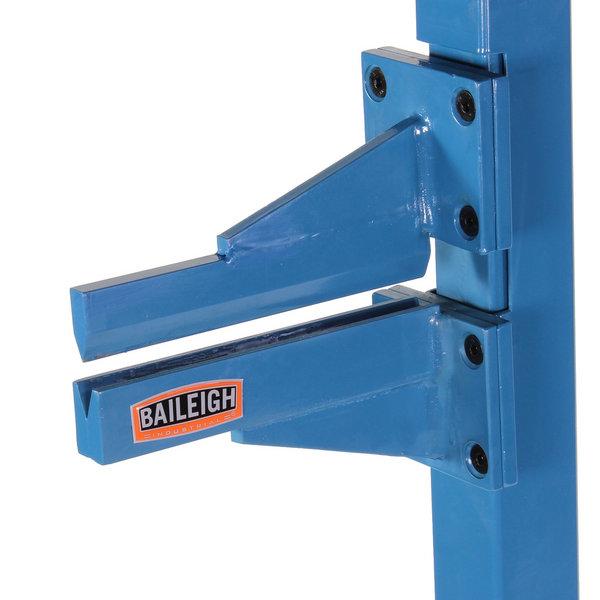

• 8 in. x 1/2 in. Single Vee Tooling: Comes equipped with dedicated single vee brake tooling for precise angle forming.

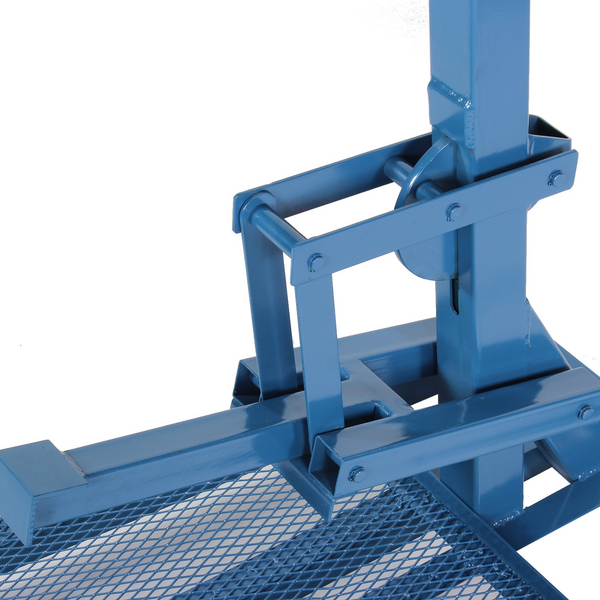

• Complete Stand Assembly Included: Includes a full floor stand for immediate, rigid shop installation.

What's Included

• (1) Baileigh LB-8 Open-Ended Letter Brake
• (1) 8 in. x 1/2 in. Single Vee Brake Tooling
• (1) Complete Stand Assembly
