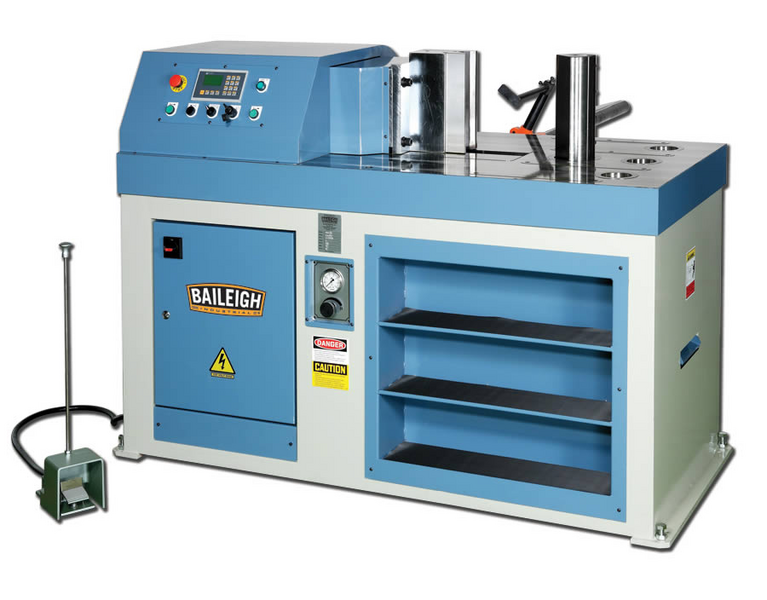

The Baileigh HPB-78NC is a heavy-duty 78 ton horizontal press brake engineered for industrial production environments, fabrication shops, and heavy manufacturers. Powered by a 7.5 HP hydraulic motor operating on 220V 3-phase electricity, this press brake delivers 78 tons of pressing force with an unlimited material length capacity for bending, punching, shearing, and straightening applications.

Constructed with an all-steel frame built from inch-thick flat bar, the HPB-78NC maintains structural rigidity under full hydraulic load to deliver consistent accuracy during heavy output. A machined work table provides a 37.4 in. working height for optimal material support and ergonomic handling during production runs.

For repeatable precision and efficient cycle times, the machine features a programmable NC controller that stores multiple bend programs along with electronic encoders accurate to +/- .002 in. A manual back gauge bolted directly to the frame supports accurate part alignment, while an approach speed of 1.69 in. per second maximizes throughput.

Features & Benefits

• 78 Tons of Pressure: Delivers reliable hydraulic force to handle heavy-duty bending, punching, shearing, and straightening operations.
• 13.78 in. Stroke Length: Provides deep travel depth to accommodate a wide variety of tooling setups.
• 7.5 HP Hydraulic Motor: Operates on 220V 3-phase power for sustained industrial production.
• Programmable NC Controller: Stores multiple bend sequences for fast setup times and repeatable batch output.
• Electronic Encoders: Maintain high positioning accuracy within +/- .002 in. for tight-tolerance forming.
• Heavy Flat-Bar Steel Frame: Built with inch-thick flat bar steel for maximum frame rigidity and long-term durability.
• 37.4 in. Working Height: Machined work table supports heavy workpieces at an ergonomic working height.
• Manual Back Gauge: Bolted directly to the machine structure to enhance accuracy on production runs.
• Tooling Fixture Holes: Equipped with one 4.5 in. diameter hole and three 3.25 in. diameter holes for flexible tooling attachment.
