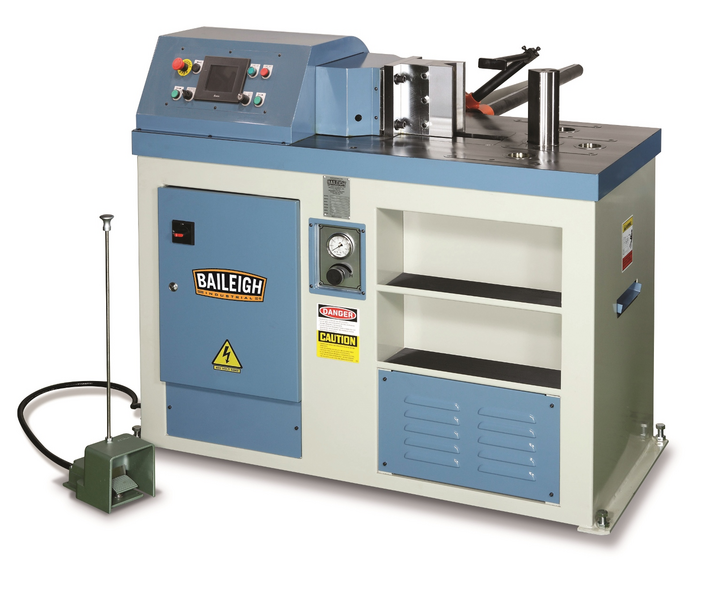

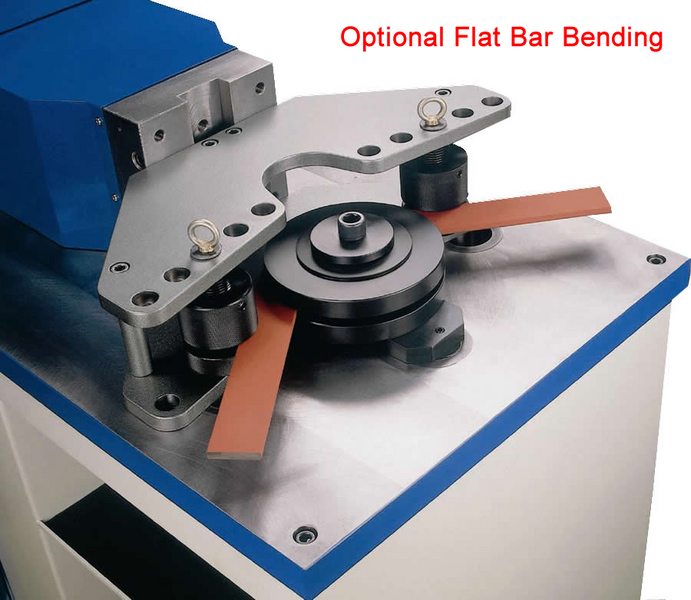

The Baileigh HPB-45NC is a 45-ton hydraulic horizontal press brake designed for bending, punching, shearing, and pipe bending operations in industrial production facilities and fabrication shops. Powered by a 5 HP motor and operating on 220V 3-phase electrical power, this machine handles small-to-medium workpiece fabrication such as flanges and brackets with precise, repeatable performance.

Equipped with a numerical control (NC) programmer capable of storing up to 50 programs with 10 bends per program, operator setup time is minimized during complex multi-bend production runs. Integrated electronic encoders deliver stroke positioning accuracy to within +/- .002 in., ensuring consistent bend angles across workpieces and batch runs.

The machine features a heavy-steel frame built from 1-in. thick flat bar and includes a machined flat table with a 36 in. working height. Operators can adjust hydraulic pressure to suit specific material types and choose between manual operation, two-button stroke control, or a hands-free foot pedal to keep hands free for guiding material during the bending stroke.

Features & Benefits

• 45-Ton Hydraulic Pressure: Delivers up to 45 tons of bending force for heavy metal forming and bracket production.
• Programmable NC Controller: Stores up to 50 programs with 10 bends per program for efficient, repeatable setups.
• 5 HP Motor: Driven by a 5 HP motor operating on 220V 3-phase power to maintain force under production loads.
• Electronic Encoders: Provides stroke positioning accuracy to +/- .002 in. for precise bend repeatability.
• Adjustable Hydraulic Pressure: Allows pressure adjustment to prevent material distortion across varied stock thicknesses.
• Multiple Operating Controls: Features two-button hand controls, hands-free foot pedal operation, and a manual mode for setup and one-off projects.
• 36 in. Working Table Height: Machined flat table provides an ergonomic working height for material support and handling.
• Manual Back Gauge: Includes a manual back gauge for fast and repeatable stock positioning.

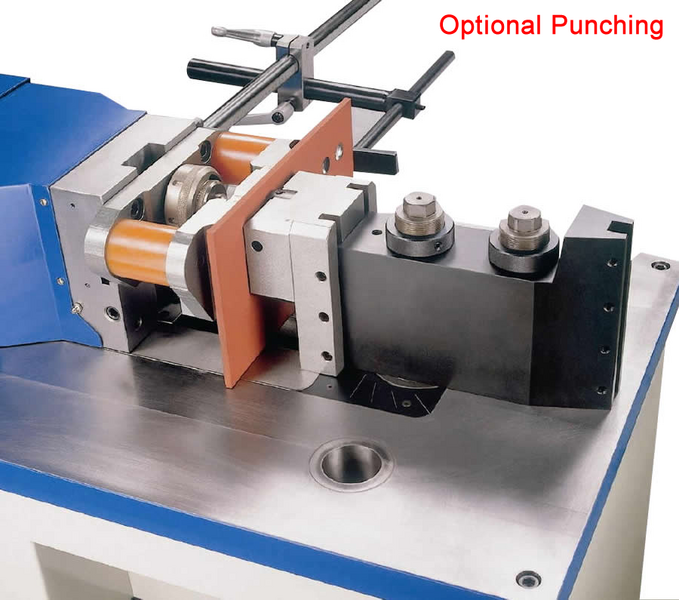

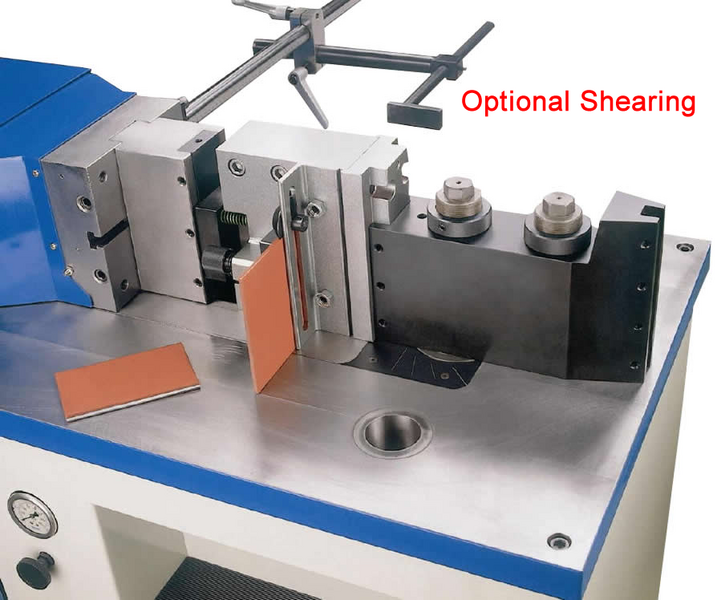

• Quick-Release Tooling System: Simplifies tool changes for bending, punching, shearing, and pipe bending applications.
