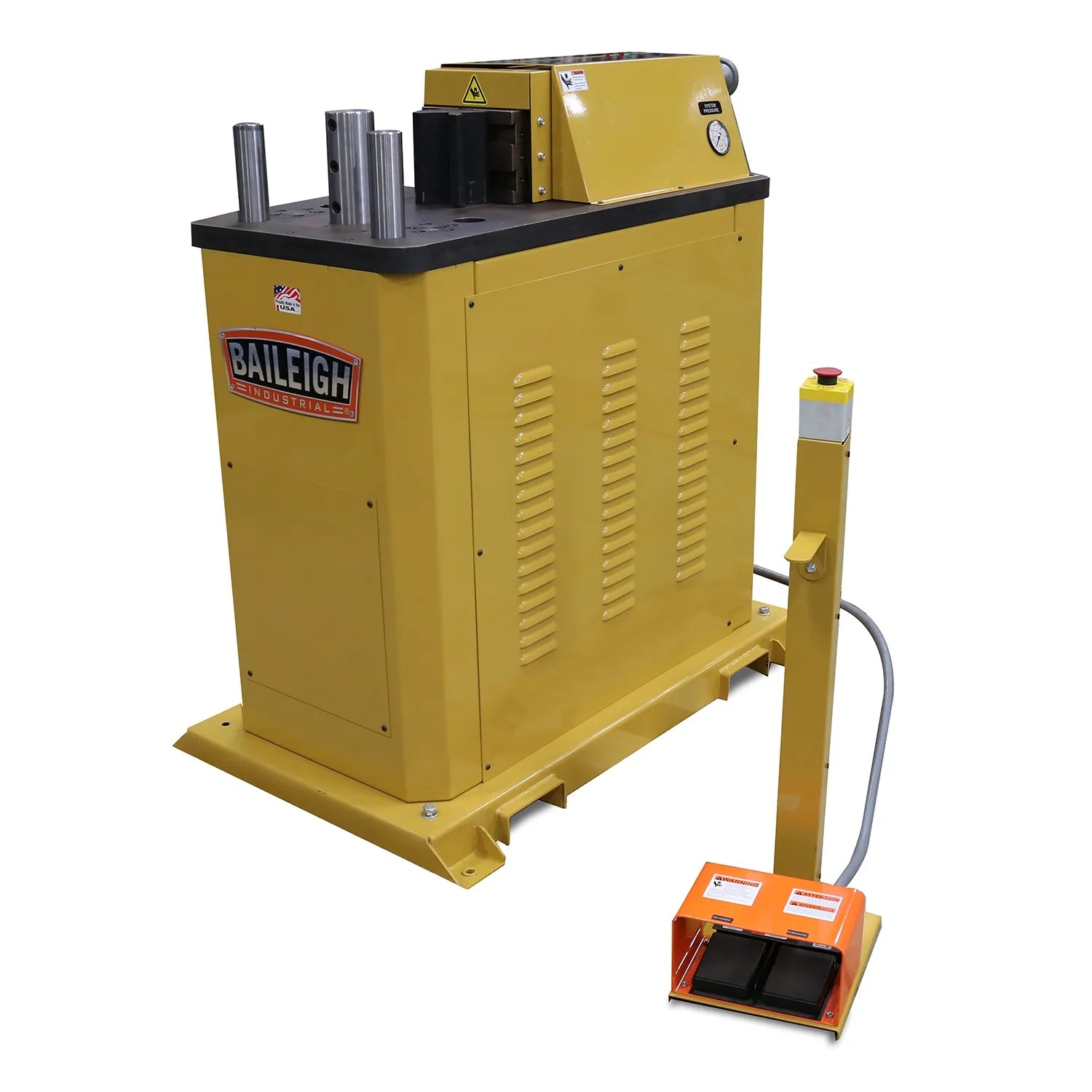

Industrial Construction: The Baileigh Industrial HPB-20 Horizontal Bending Press is built with a rugged, industrial-grade frame and hydraulic system located on top of the machine to reduce flex and provide stable performance in busy fabrication environments. Its machined work surface at 39″ height supports precise positioning of material for bending, punching, and shearing tasks.

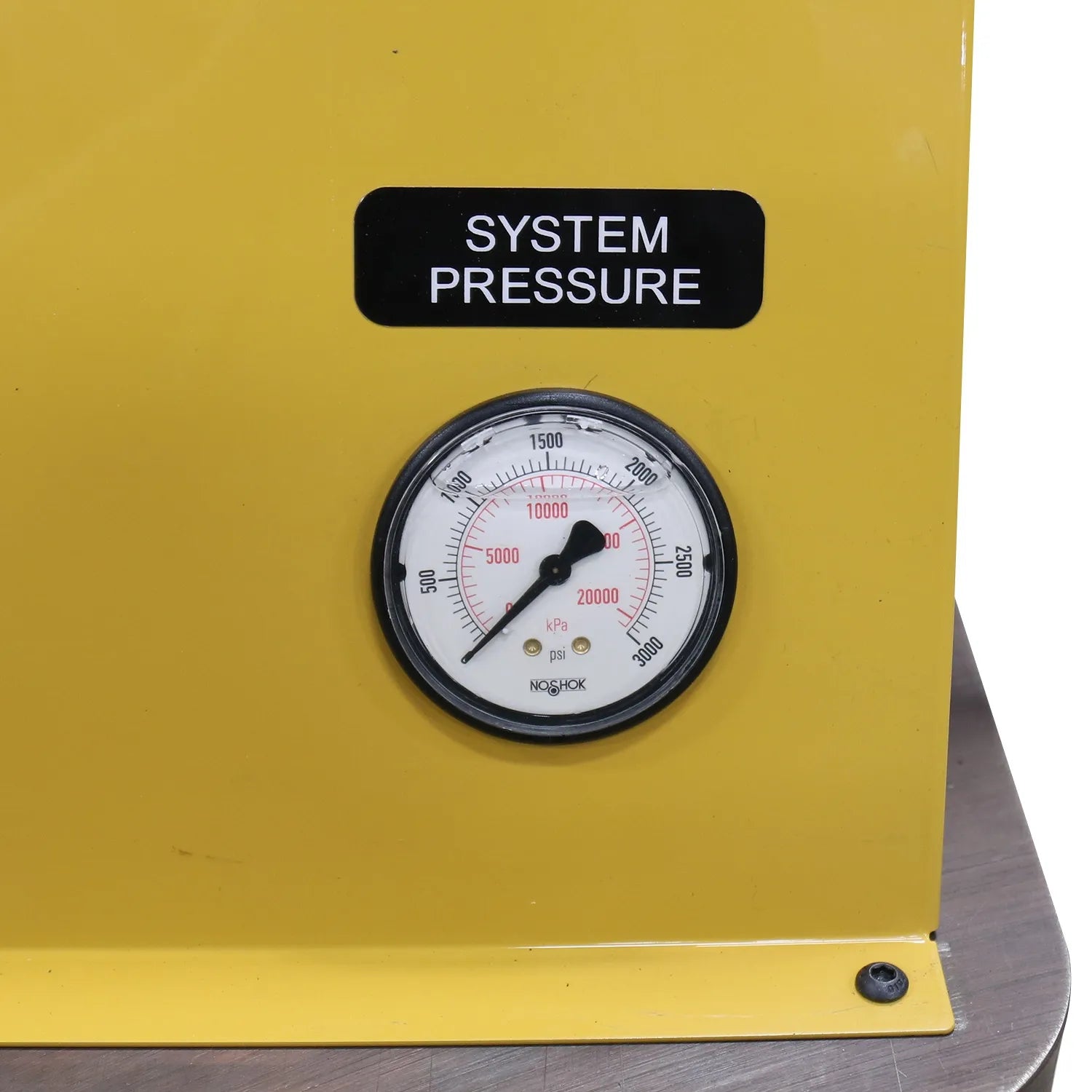

Hydraulic Power & Control: Powered by 220V 3-phase electricity and a 5 hp motor, this press delivers up to 20 tons of bending force with adjustable pressure and a 12″ stroke length. The foot pedal control frees both hands to guide material during operation.

Versatile Tooling & Operation: Designed for straightforward operation that can be learned quickly, the HPB-20 includes a quick-release tooling system with Multi-V tooling (V-opening die and V-post) and accepts additional tooling sets for a variety of forming tasks.

Features & Benefits

• Pressure rating: Provides 20 tons of hydraulic bending force.

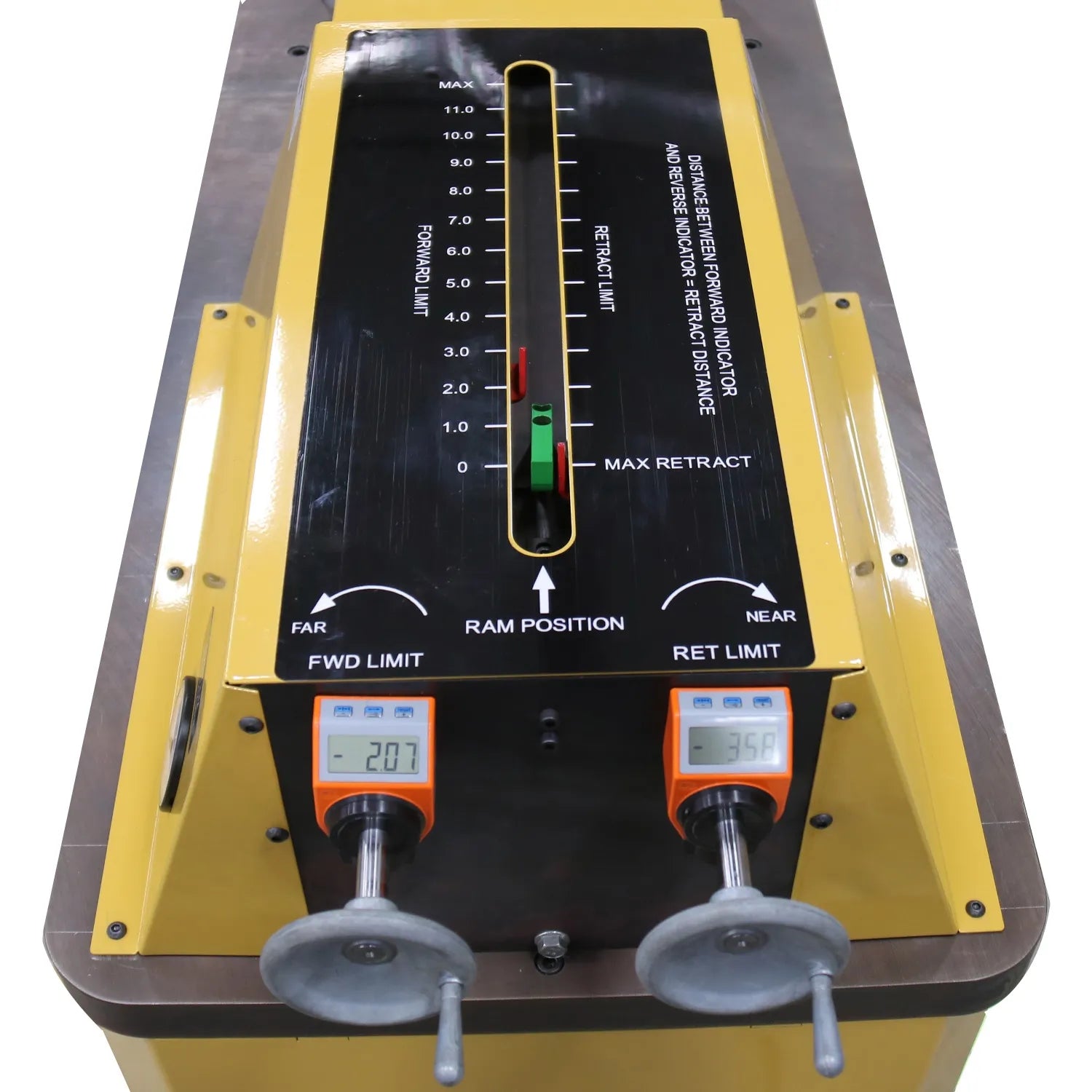

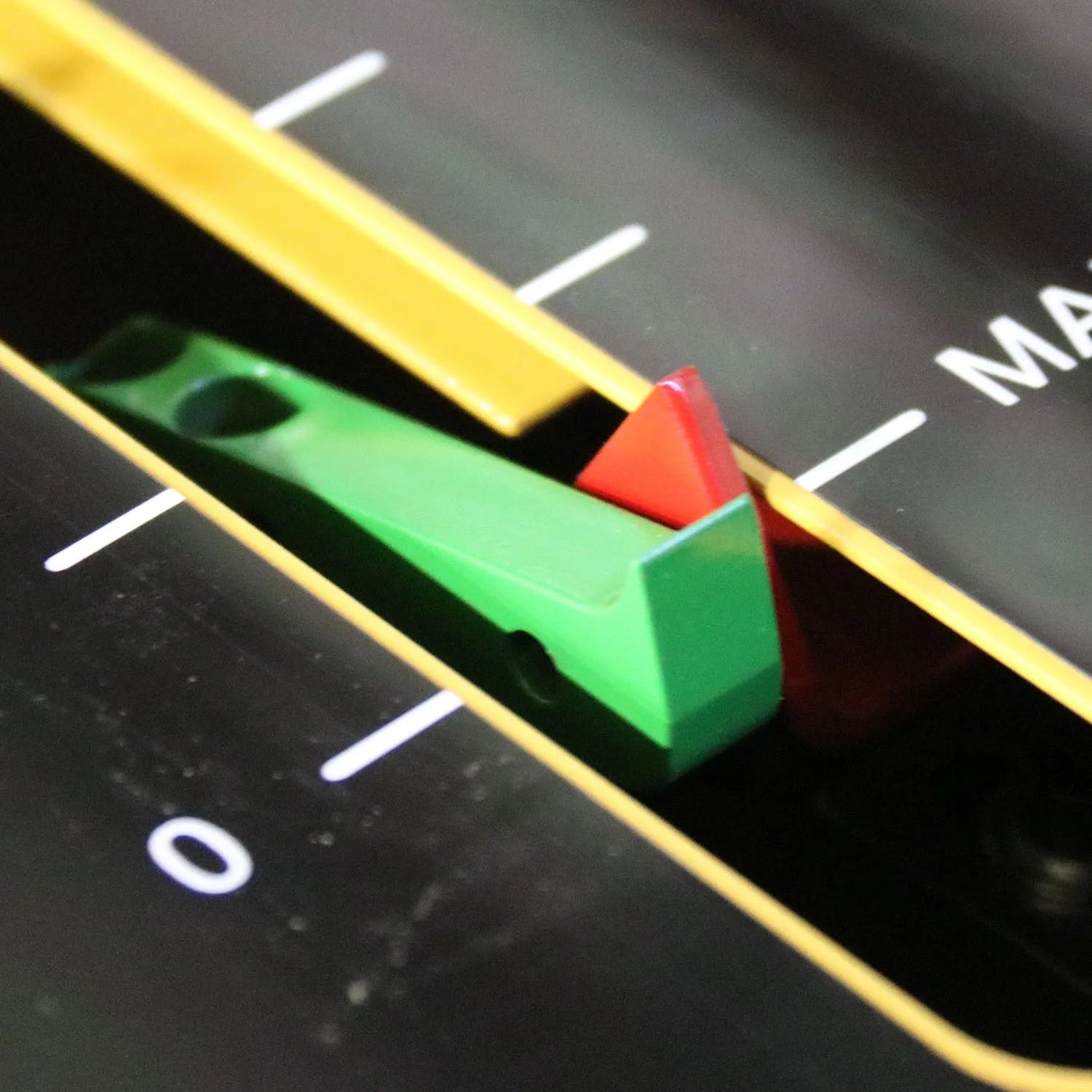

• Stroke length: Features a 12″ stroke length for versatile forming.
• Input power: Operates on 220V 3-phase electrical power.
• Motor power: Driven by a 5 hp motor for robust performance.
• Work height: Machined work surface at 39″ height keeps material level.

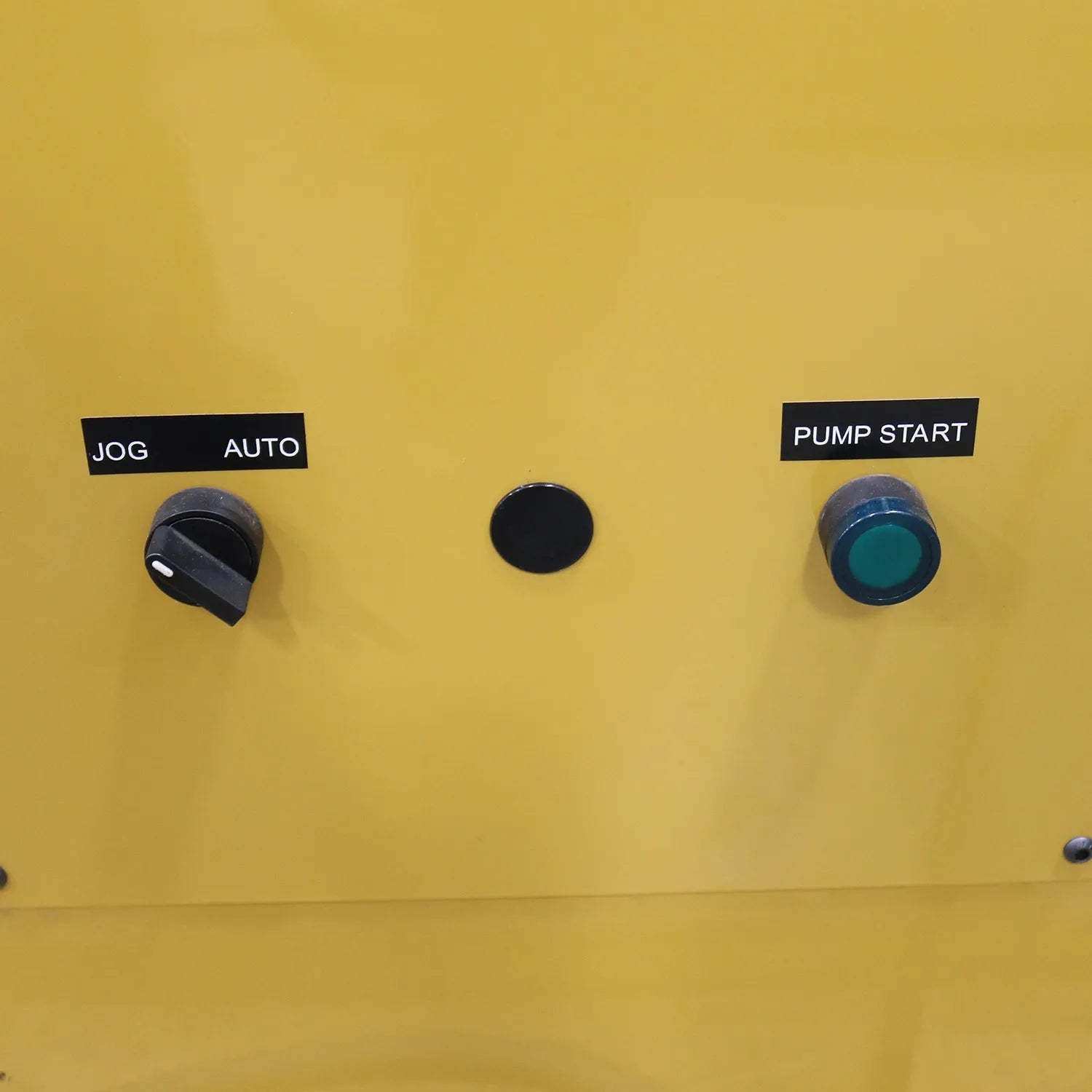

• Control type: Foot pedal control allows hands-free stroke actuation.

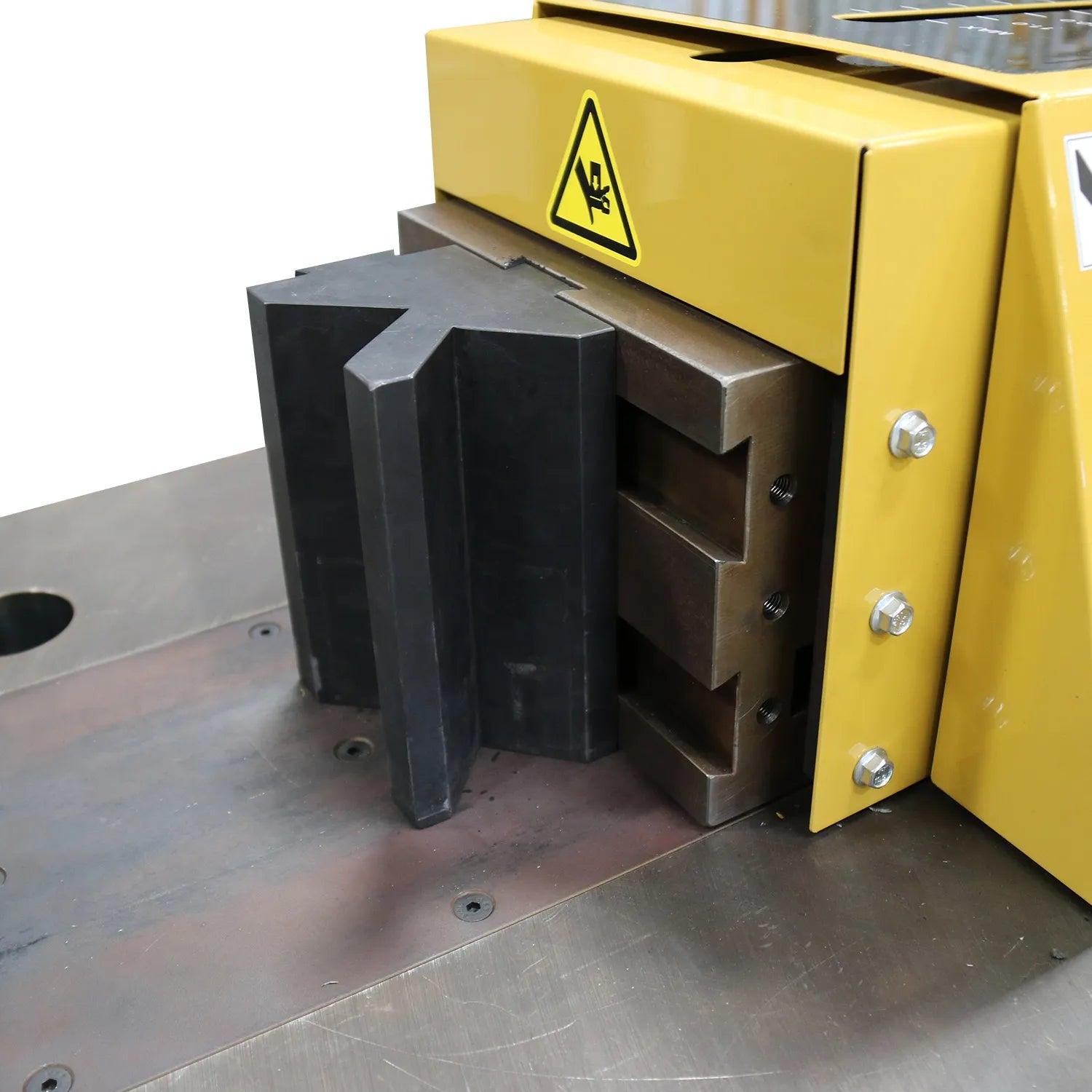

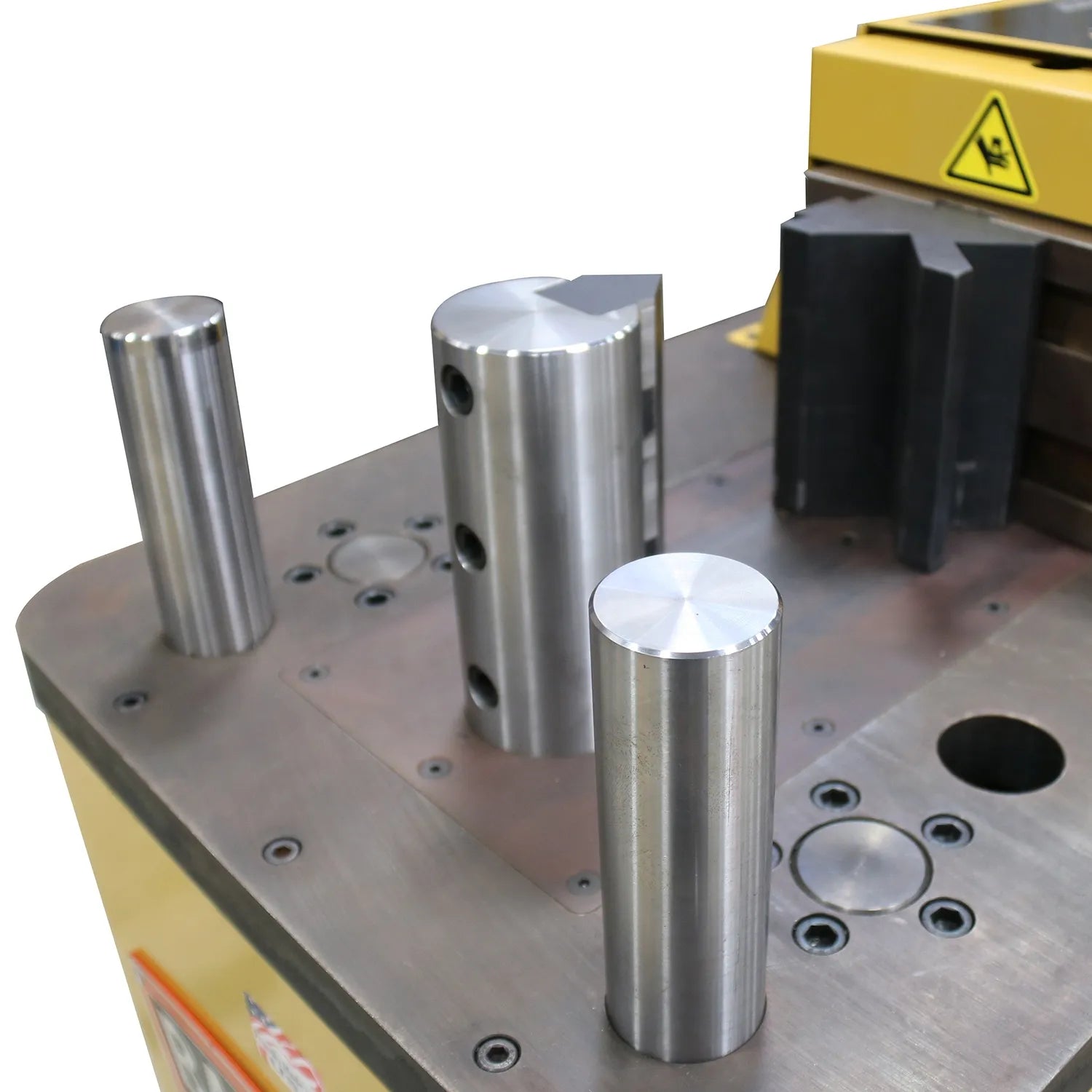

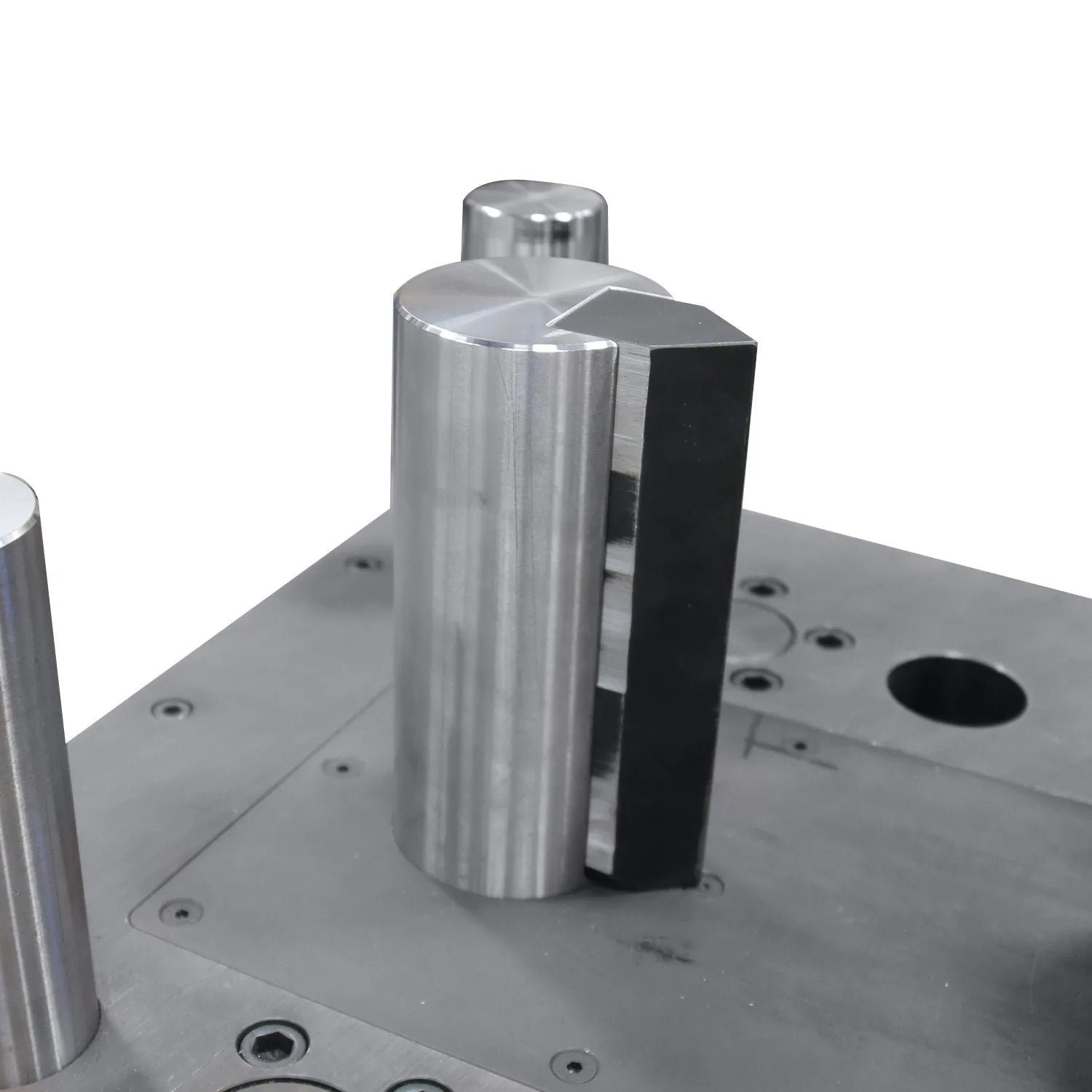

• Tooling system: Quick-release tooling system with Multi-V tooling included.
• Construction: Industrial-grade hydraulic system positioned to minimize flex.
• Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
