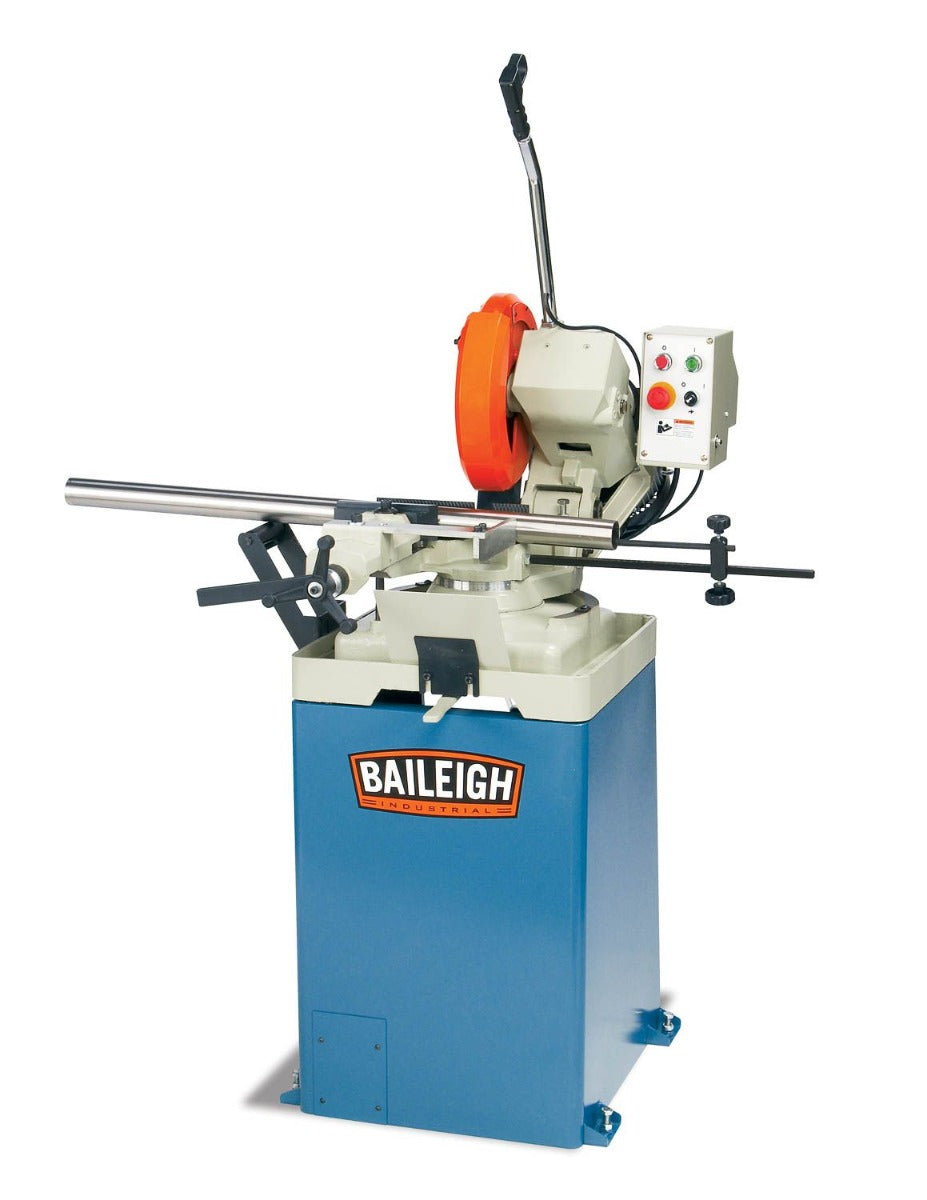

Baileigh CS-315EU, 12.5 in. 315mm Cold Saw 2-1/2HP, 220V Single Phase 1002450
- Runs on 220-volt 1-phase 60Hz power and accepts a 12.5” blade (included) with a 3.5” round tube capacity at 90°
- Miters 45° to the left and right and spins at 52 rpm to cut through solids, tubing, or pipe
- Perfect for cutting mild steel but can handle other material with the proper blade
- Strong 2.5 hp motor coupled with a direct-drive gearbox, lets the blade cut the material chatter-free, increasing blade life
- Operate this manual saw by gradually pulling the blade head into the material and controlling it with your own strength

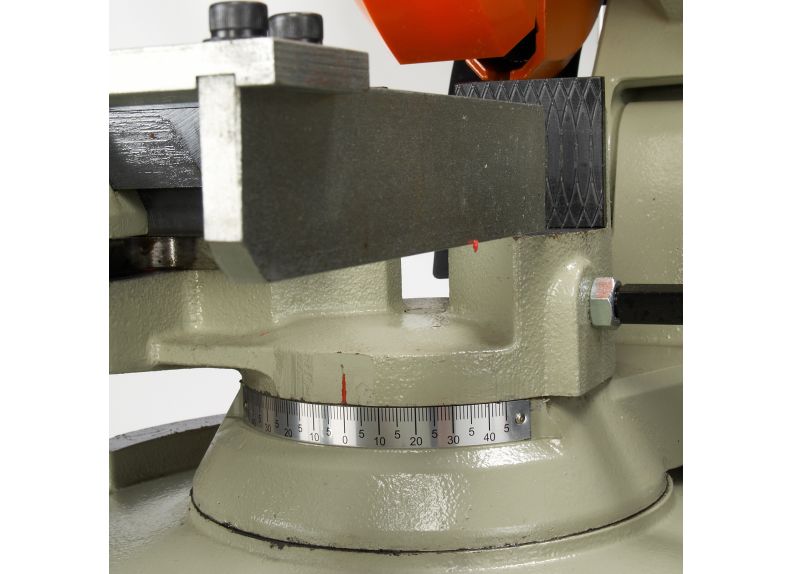

- European-style vise has a taper lock system for fast clamping and unclamping to increase production
- Serrated vise jaws grip the material tightly, so it won’t budge during cutting and vise clamps on both sides of the cut, reduces blade chatter and prolonging blade life

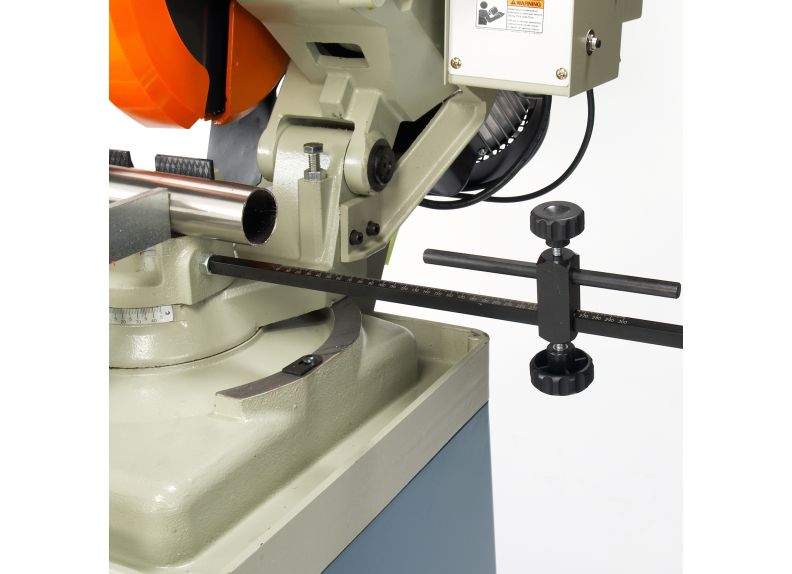

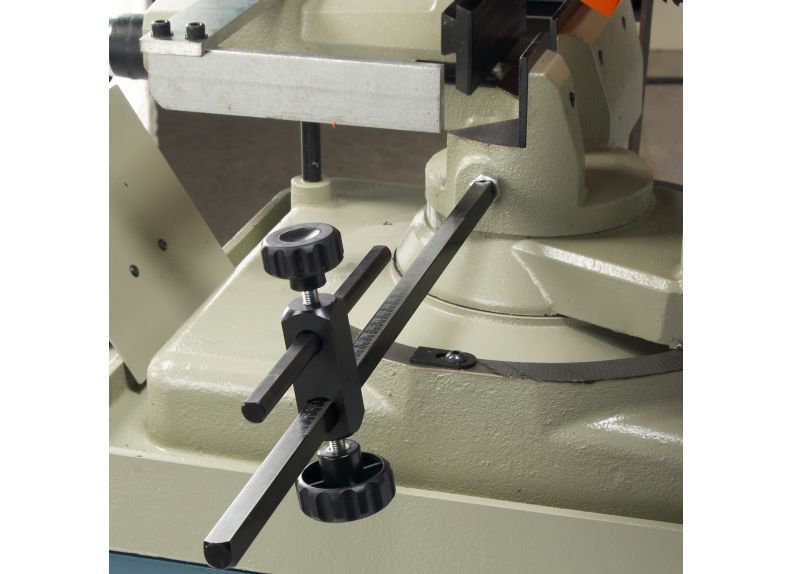

- Stop rod helps you easily cut repeatable lengths for production runs
- Rigid cast iron base stabilizes the machine for straight, accurate cuts and heavy-duty molded steel stand raises the saw to a convenient cutting height

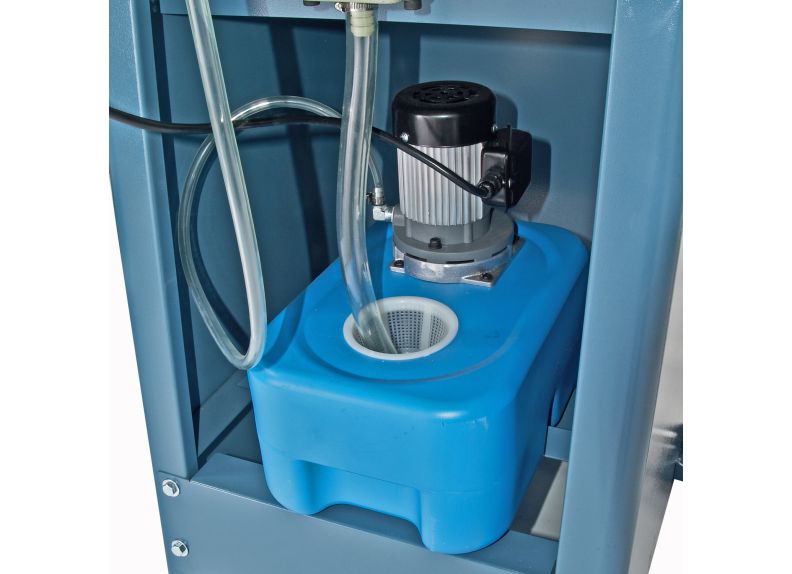

- Powerful integrated coolant pump lubricates the blade and washes chips away and flood coolant system increases cut quality, makes the saw easier to handle, and makes the saw and blades last longer
Specifications
- Motor (HP): 2.5 hp
- Solid Round at 45 Degrees (In.): 2"
- Solid Round at 90 Degrees (In.): 2"
- Style (Type): Single Action with Cam Lock
- Tubing Rectangle at 45 Degrees (In.): 3.25" x 2.75"
- Tubing Rectangle at 90 Degrees (In.): 4" x 2.75"
- Tubing Round at 45 Degrees (In.): 3.5"
- Tubing Square at 45 Degrees (In.): 3.2" x 3.2"
- Tubing Square at 90 Degrees (In.): 3.5"
- Gross Weight: 405.0
Specifications
Specifications
| Baileigh CS-315EU, 12.5 in. 315mm Cold Saw 2-1/2HP, 220V Single Phase 1002450 | |
| APPLICATION | Wood Working |
| Brand | Baileigh |
