Baileigh 20" x 80" Precision Geared Head Metal Lathe 15HP 220V 3Ph PL-2080 BA9-1006176

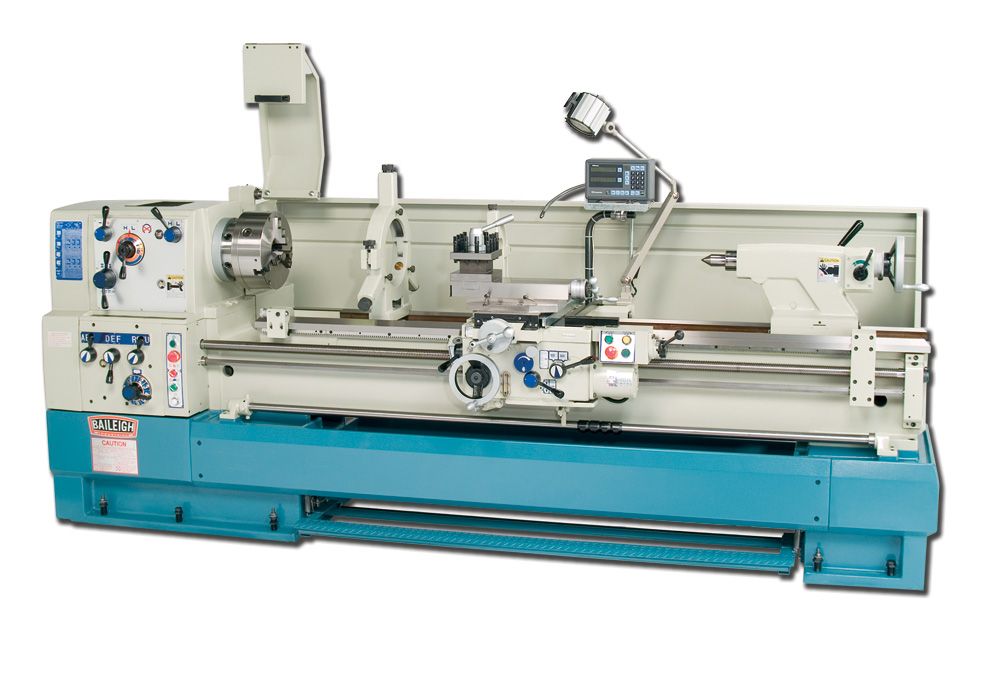

Everything about the PL-2080 industrial lathe is powerful, from its hardened slideways to the cast iron base. This engine lathe also includes a Mitutoyo® DRO.
Features & Benefits
- 15 hp motor runs on 220-volt 3-phase power with 12 speeds from 20 to 1,500 rpm
- Capable of making metric or standard threads

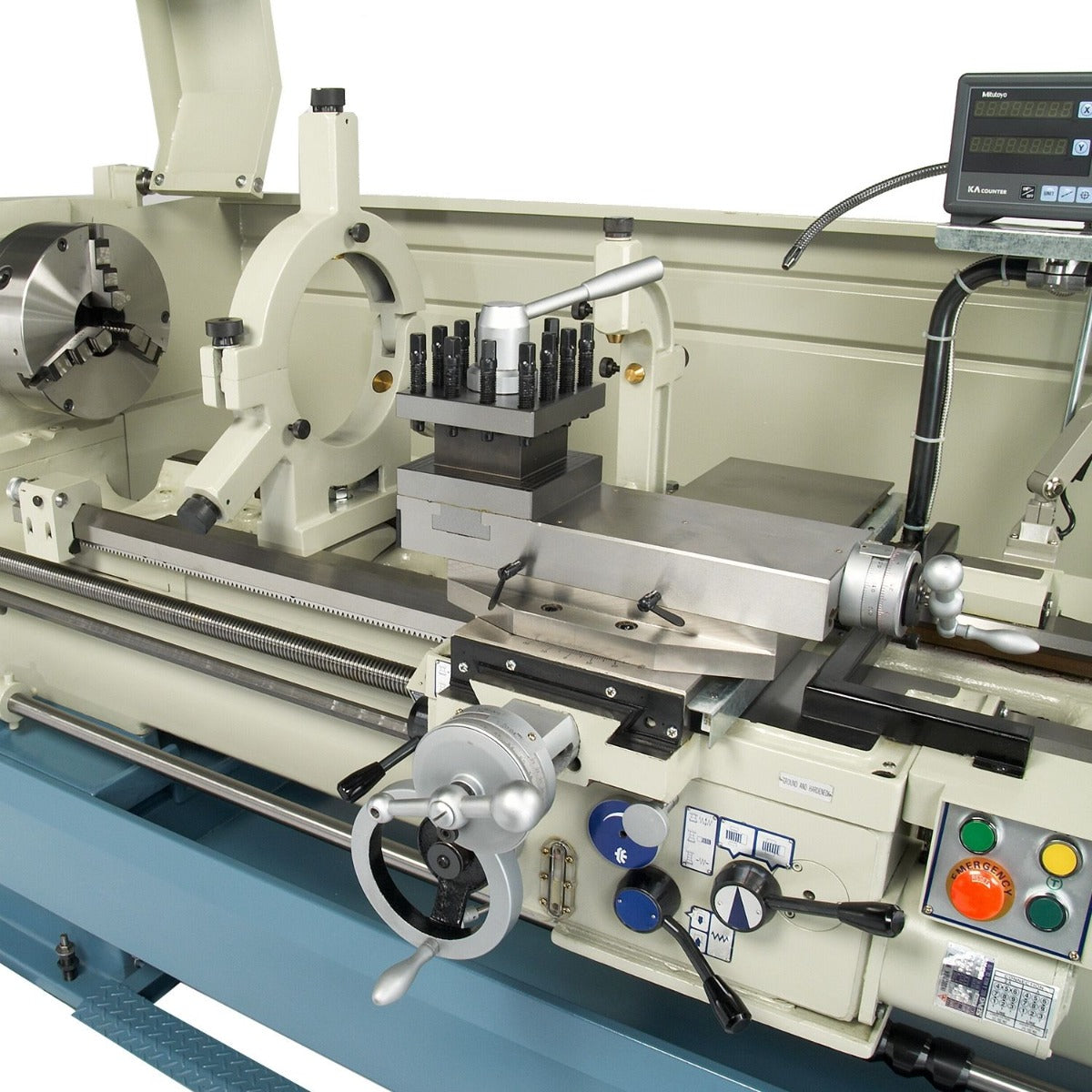

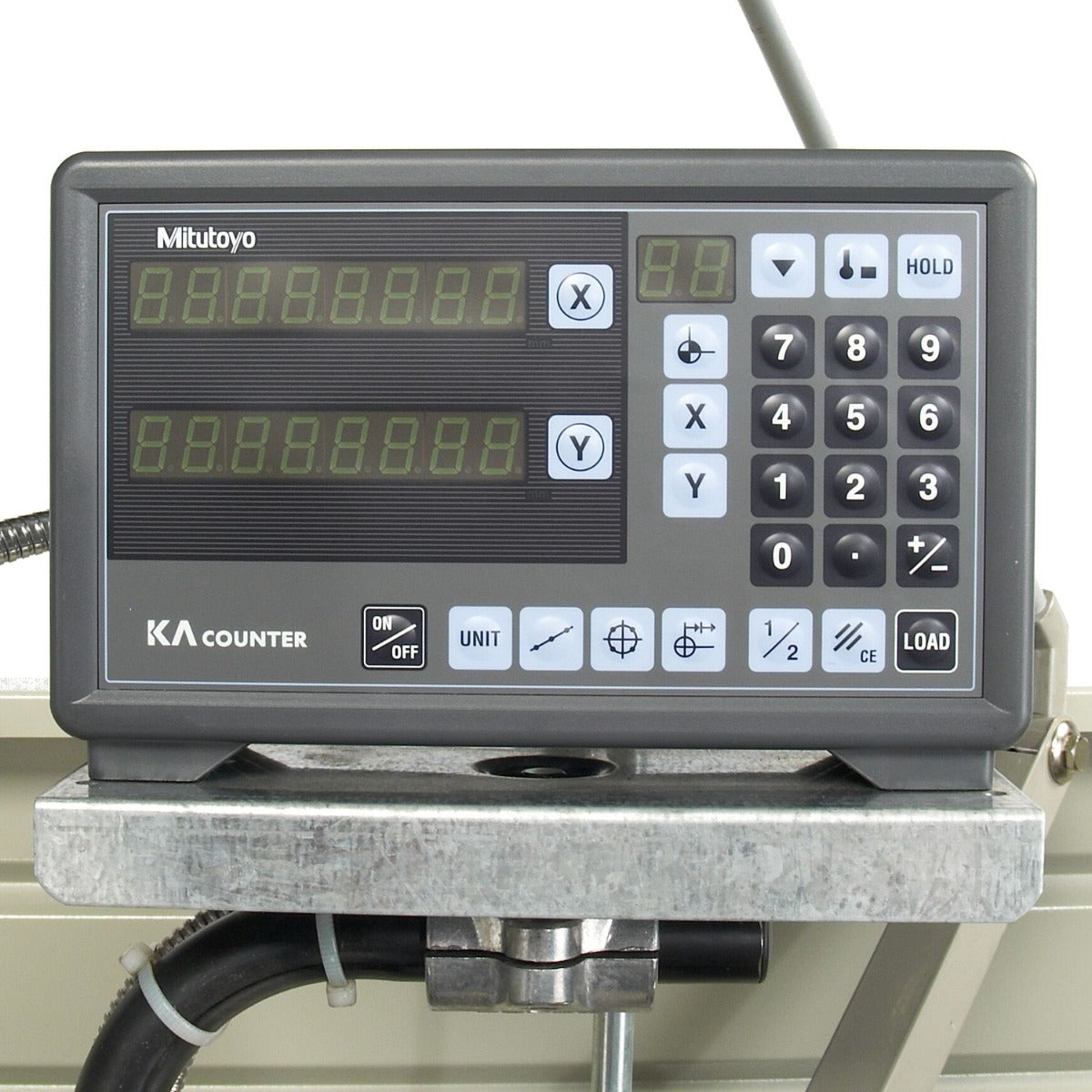

- Mitutoyo® 2-axis digital readout (DRO) system helps you obtain precise results
- Polished ways with integrated wipers move as smoothly as the day they were made for years
- Square indexing tool post
- Lathe body is made from the best iron castings to ensure a rigid and stable platform
- Cast pieces are fully integrated with the head stock, so every joint is tight
- No assembly required

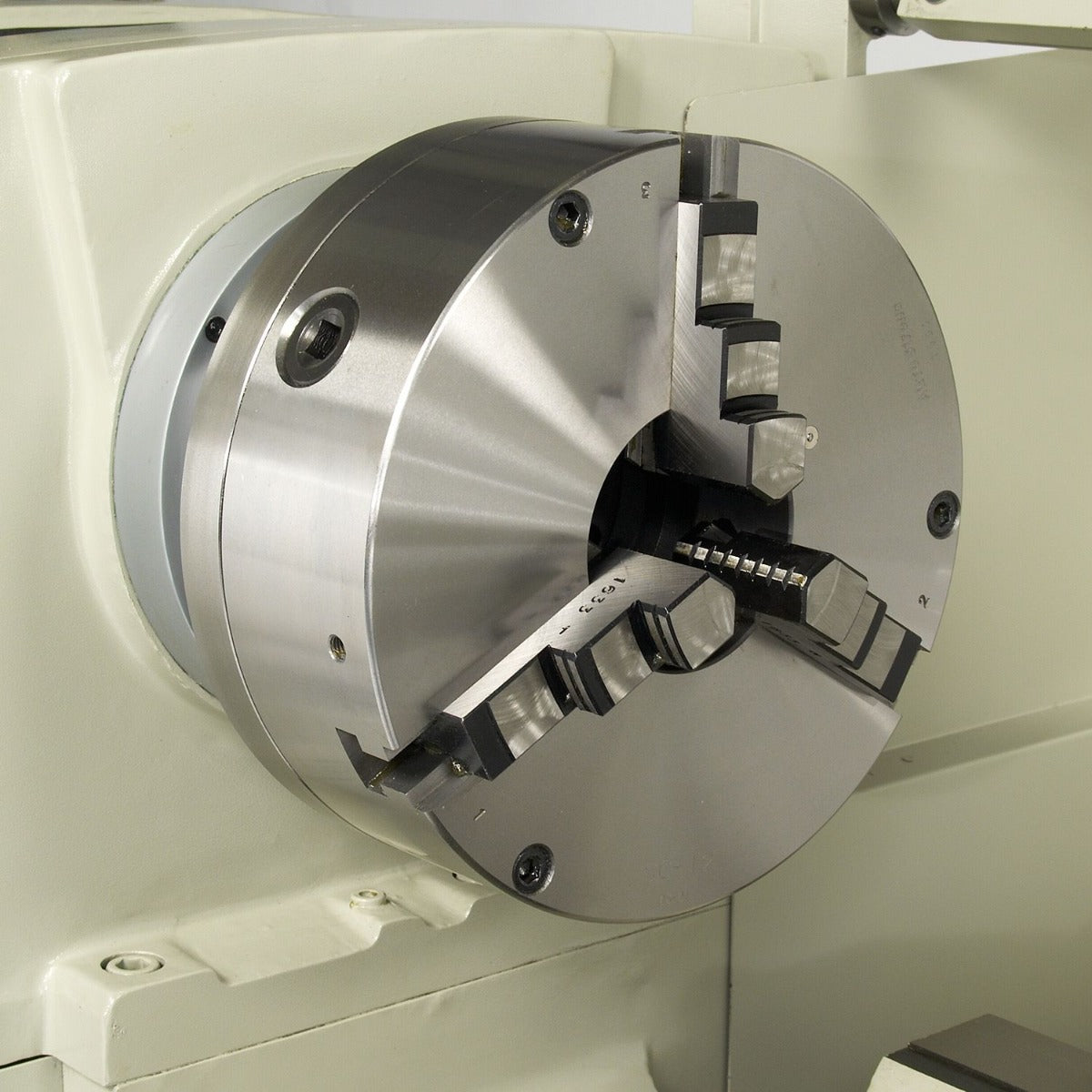

- Comes standard with 3-jaw universal chuck (12”), 10” back plate, micrometer saddle stop, steady rest and follow rest, and longitudinal rapid traverse
- Other features include the headstock chuck guard with automatic safety switch, coolant system with rear splash guard, Halogen work light, and emergency foot brake
Specifications
- Stock Number: BA9-1006176
- Accessories: Included Accessories
- Center Distance (In.): 80.313"
- Center Height: 10
- Compound Rest Travel: 10
- Range of Cross Feeds (MMPR): 50 / .0185 – .52 mm / rev.
- Cross Slide Travel (In.): 12.5
- Input Power: 220V / 3-phase
- Lead Screw Diameter: 1.5
- Leadscrew Thread Pitch: 4 T.P.I.
- Longitudinal Feeds Imperial Qty Speed: 50 / .0014" – .0387" / rev.
- Longitudinal Feeds Metric Qty Speed: 50 / .037 – .983 mm / rev.
- Model Number: PL-2080
- Nose Radius (In.): D1-8"
- Prop 65: Cancer and Reproductive Harm
- Quill Taper: Morse #7
- Shipping Dimensions (L x W x H) (In.): 141x53x66
- Spindle Bore (In.): 3.125"
- Spindle Taper with Sleeve: Morse #5
- Swing Over Bed (In.): 20"
- Swing Over Cross Slide (In.): 13"
- Swing Through Gap (In.): 26.375"
- Tailstock Spindle Travel (In.): 6.3125"
- Taper in Tailstock Spindle: 2.9375"
- Warranty: 1 Year
- Width of Bed (In.): 16.125"
- Gross Weight: 6050.0
- Net weight: 6050.0
- Speed (rpm): 20 – 1550 rpm
- Threads Diametrical Quality Speed (D.P.): 50 / 4–112 D.P.
- Threads Imperial Quality Speed (T.P.I.): 60 / 2–112 T.P.I.
- Threads Metric Quality Speed (mm pitch): 60 / .2–14 mm pitch
- Threads Modular Quality Speed (M.P.): 50 / .2-7 M.P.
Specifications
Specifications
| Baileigh 20" x 80" Precision Geared Head Metal Lathe 15HP 220V 3Ph PL-2080 BA9-1006176 | |
| APPLICATION | Metal Working |
| Brand | Baileigh |
| HORSEPOWER | 15 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Lathes - Metal Working |
| TOOL TYPE | Lathes |
| VOLTAGE | 208V-240V 3Ph |
