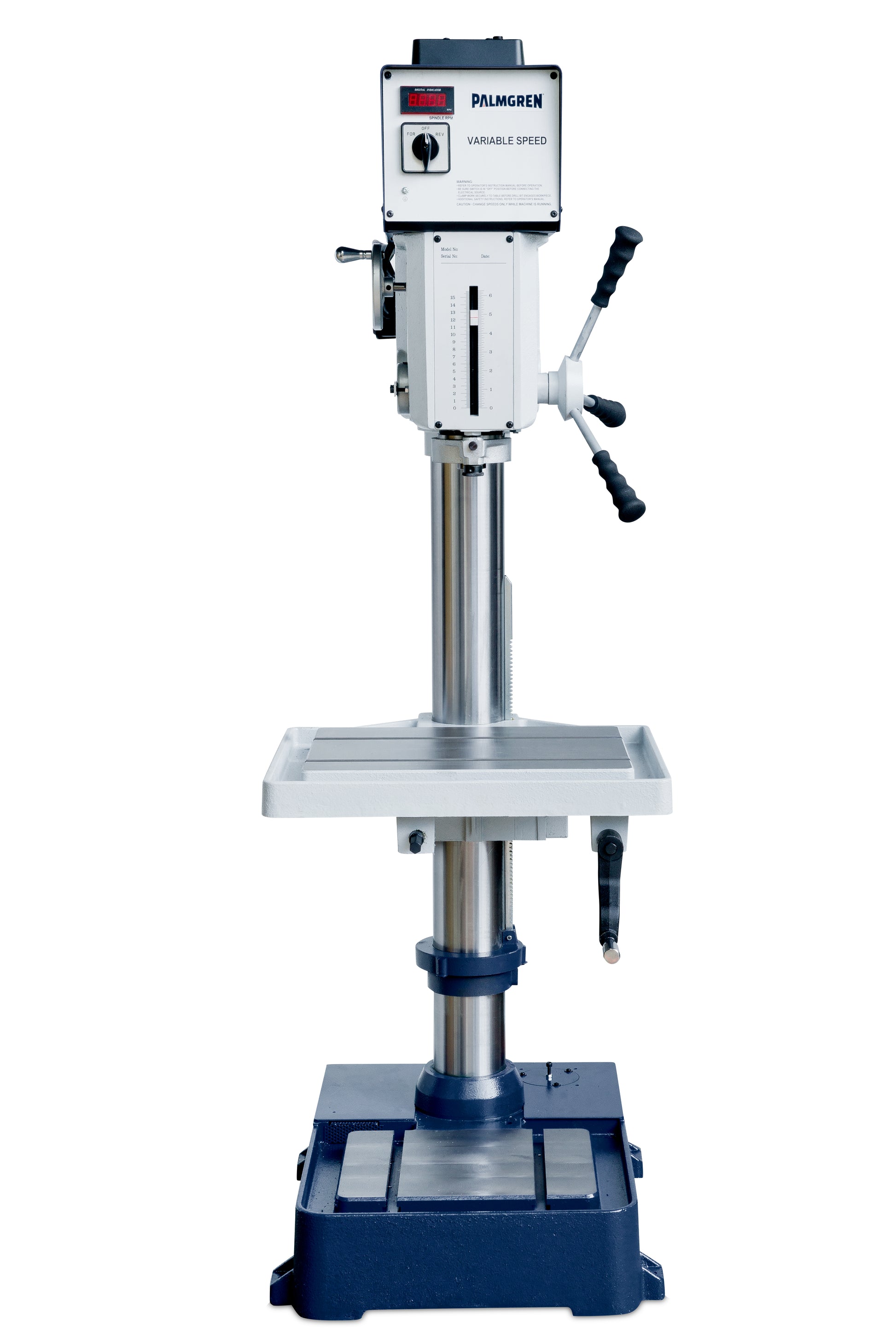

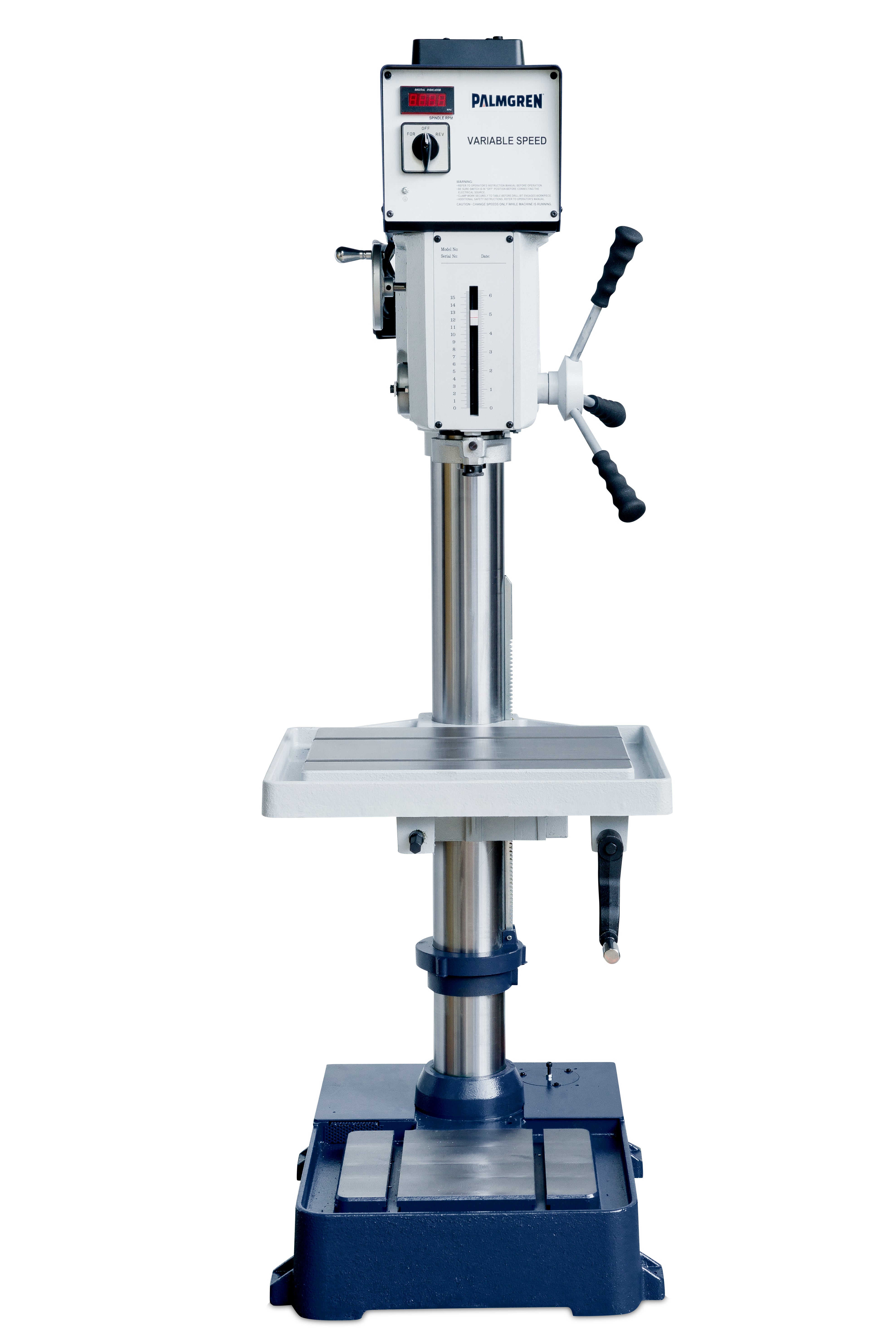

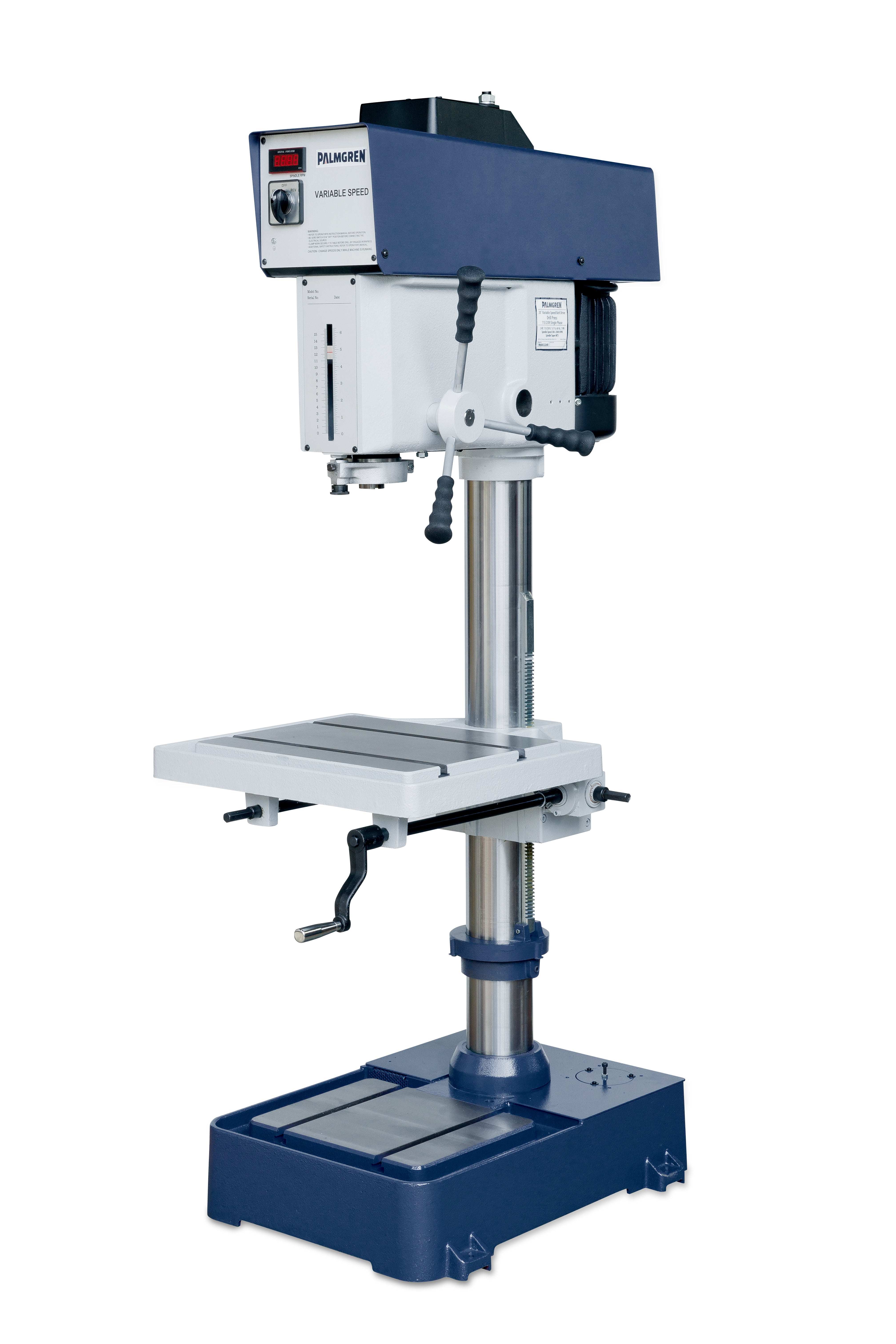

Palmgren 20" Variable Speed Belt Drive Drill Press 230/460V Three Phase 9680227
Palmgren 20" Variable Speed Belt Drive Drill Press 230/460V Three Phase 9680227
Couldn't load pickup availability
Details
Details
Palmgren 20" Variable Speed Belt Drive Drill Press 230/460V Three Phase 9680227
Palmgren's 20" Variable Speed Drill Presses allow the user to dial into the optimal spindle RPM for any material or tooling combination. While the machine is running, the simple hand wheel adjustments and digital RPM readout makes speed changes a breeze. The heavy-duty cast-iron construction increases the machines' accuracy and rigidity in any drilling application.
Features & Benefits
- Front mounted positive control depth stop, Oversized head construction provides for an extended quill travel of 4-1/2"
- Large, ergonomic down feed hand grips designed for end user comfort during operation
- Oversized 3" quill diameter
- Front face LED spindle speed readout
- Worktable can rotate 360° around the machine column
- Precision ground base work surface with t-slots for large workpieces
- Side mounted hand wheel for instant speed changes
Specifications
- Application: Metal and Wood Drilling
- Base Dimension: 27.4 x 19.5 x 6.1 in
- Chuck Size: 1-1/4 in
- Column Diameter: 4.5 in
- Distance spindle - base (max.): 46.5 in
- Distance Spindle-Column: 11 in
- Distance spindle - table (max.): 33.5 in
- Drill Press Model: Floor Model
- Drill Press Type: Variable Speed
- Drilling Capacity in Cast Iron: 1-1/4 in
- Includes: Tool Ejector
- Machine Weight: 649
- Max. Distance Spindle To Table: 27"
- Max. Spindle To Base: 47"
- Motor HP: 2
- Number of Spindle Speeds: Variable 300~2000 rpm
- Number of Table Slots:: 2.0
- Overall Dimensions (LxWxH): 36" x 27" x 78"
- Phase: Three
- Quill Diameter: 3 in
- Speed Range: 300 - 2,000 RPM
- Spindle Taper: MT3
- Spindle Travel: 6 in
- Stand work surface length x width: 22" x 18.5"
- Swing: 20 in
- Table T-slots: 3.0
- Tilting Angle: Non-Tilting
- Tool Weight (Max): 500.0
- Voltage: 230/460V
- Warranty: 3 Year
- Working surface base L x W: 27" x 19"
Specifications
Specifications
| Palmgren 20" Variable Speed Belt Drive Drill Press 230/460V Three Phase 9680227 | |
| Brand | Palmgren |
