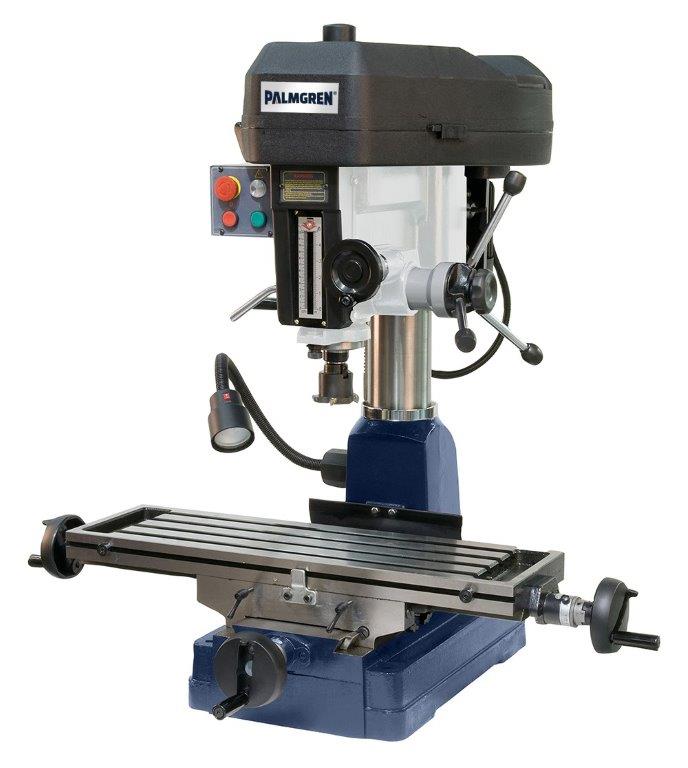

Palmgren 16" 1.5HP Mill/Drill Machine 9680113
Palmgren 16" 1.5HP Mill/Drill Machine 9680113
Couldn't load pickup availability
Details
Details
Palmgren 16" 1.5HP Mill/Drill Machine 9680113
Palmgren 12-Speed Mill Drill Model 9680113 is a ruggedly constructed machine providing accurate milling, drilling, slotting and boring capabilities. One-piece cast-iron head rotates 360° and travels vertically by rack and pinion. Hinged pulley cover allows fast and easy speed changes. A 1-1?2 HP, 1725 RPM, 115/230-volt, 60 Hz single-phase motor and 115v work lamp are included. Prewired for 230V.
Features & Benefits
- 16" Swing
- Fully enclosed R-8 spindle has heavy-duty tapered thrust bearings at top and bottom of quill
- Large 32-3?8 x 9-1?2" table has dovetail ways with adjustable gibs and bronze lead screw nuts for accurate and rigid table positioning
- Table has four 5/8" T-slots, zero-setting handwheel dials with
- 001" graduations, adjustable stops for longitudinal feed and cross feed way cover
- 12 Speeds: 150 to 3000RPM
- Adjustable depth stops with scale
- Draw Bar (7/16"-20) and Way Cover
- Spindle Stroke 5"
- Work Light
- Includes: Drill Chuck Arbor, 1/2" Chuck and Key, Face Mill Arbor, 3" Face Mill, R8/MT3 Adaptor, 6-pc R8 Collet Set
Specifications
- Column Diameter: 4-1/2"
- Draw Bar Thread: 7/16" - 20
- Drilling Capacity in Cast Iron: 1-1/2"
- Milling Capacity Cutter Head (max): 3"
- Milling Capacity End Mill Cutter (max.): 3/4"
- Milling Machines Type: Gear Head
- Motor HP: 1-1/2
- Overall Dimensions (LxWxH): 29" x 32" x 45"
- Phase: Single
- Quill Diameter: 3"
- Quill Travel: 5"
- Speed Range: 150 - 3,000 RPM
- Spindle Taper: R8
- Swing: 16"
- Voltage: 115/230V
- Warranty: 3 Year
- Y-Axis: 7"
Specifications
Specifications
| Palmgren 16" 1.5HP Mill/Drill Machine 9680113 | |
| Brand | Palmgren |
