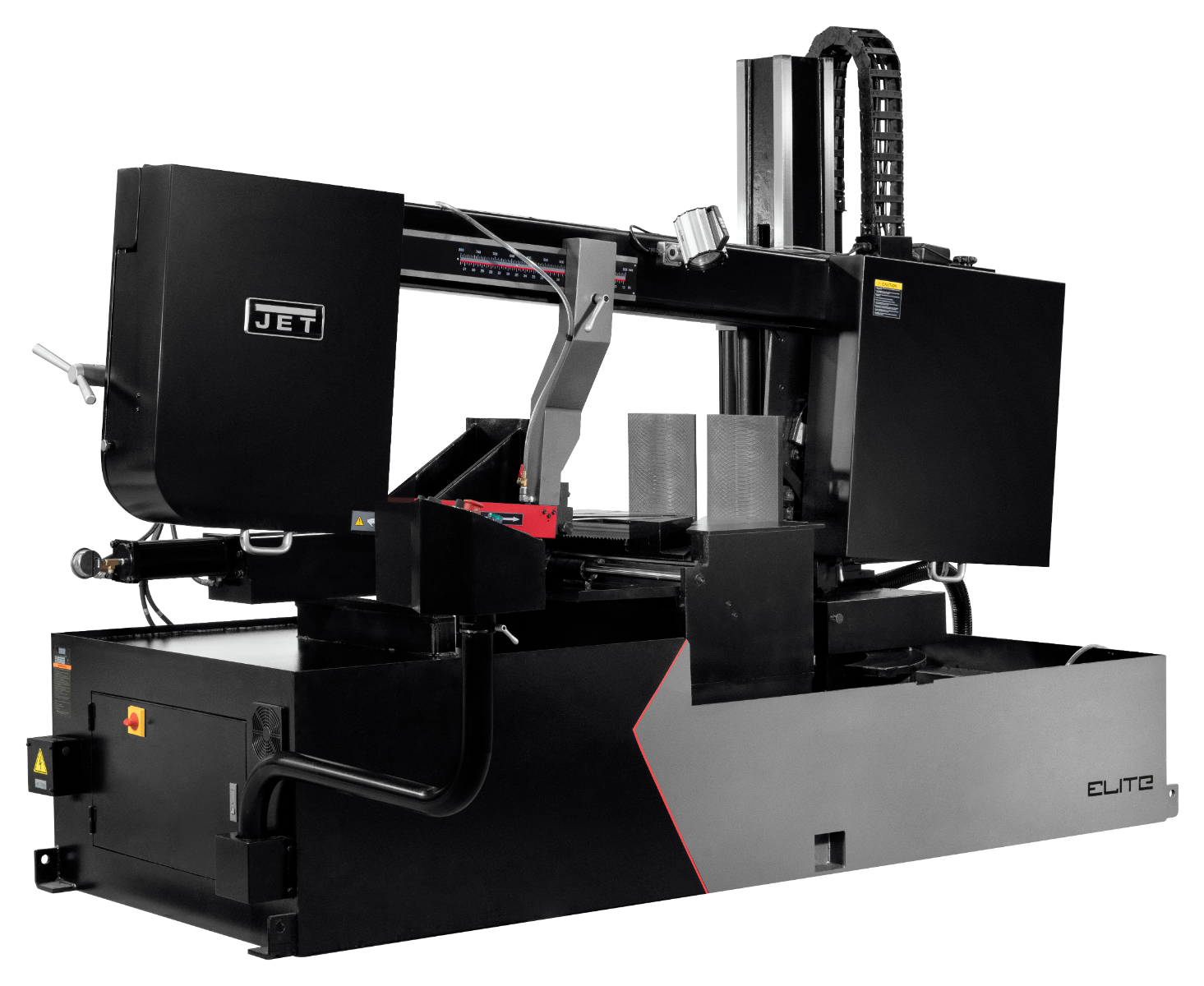

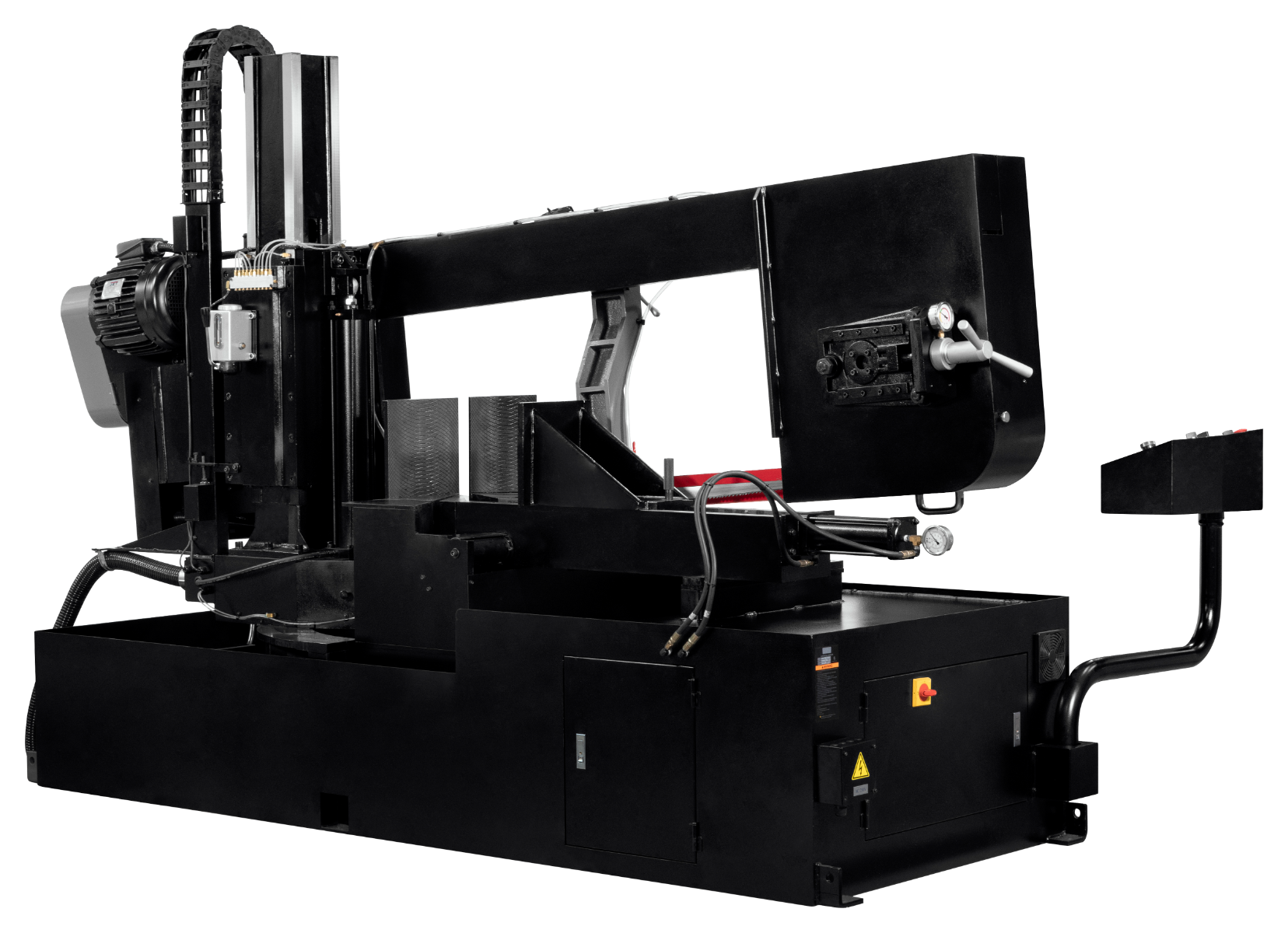

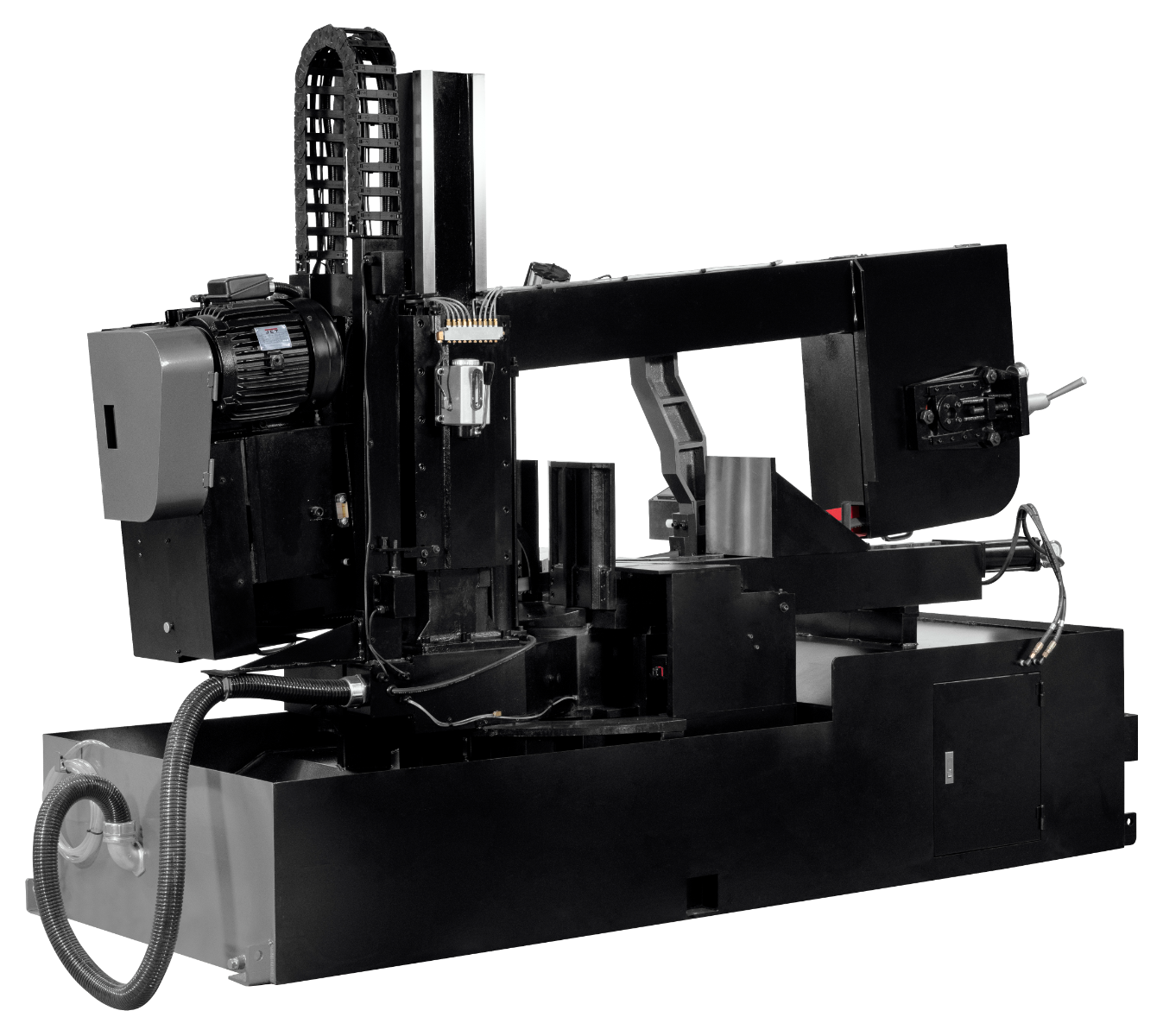

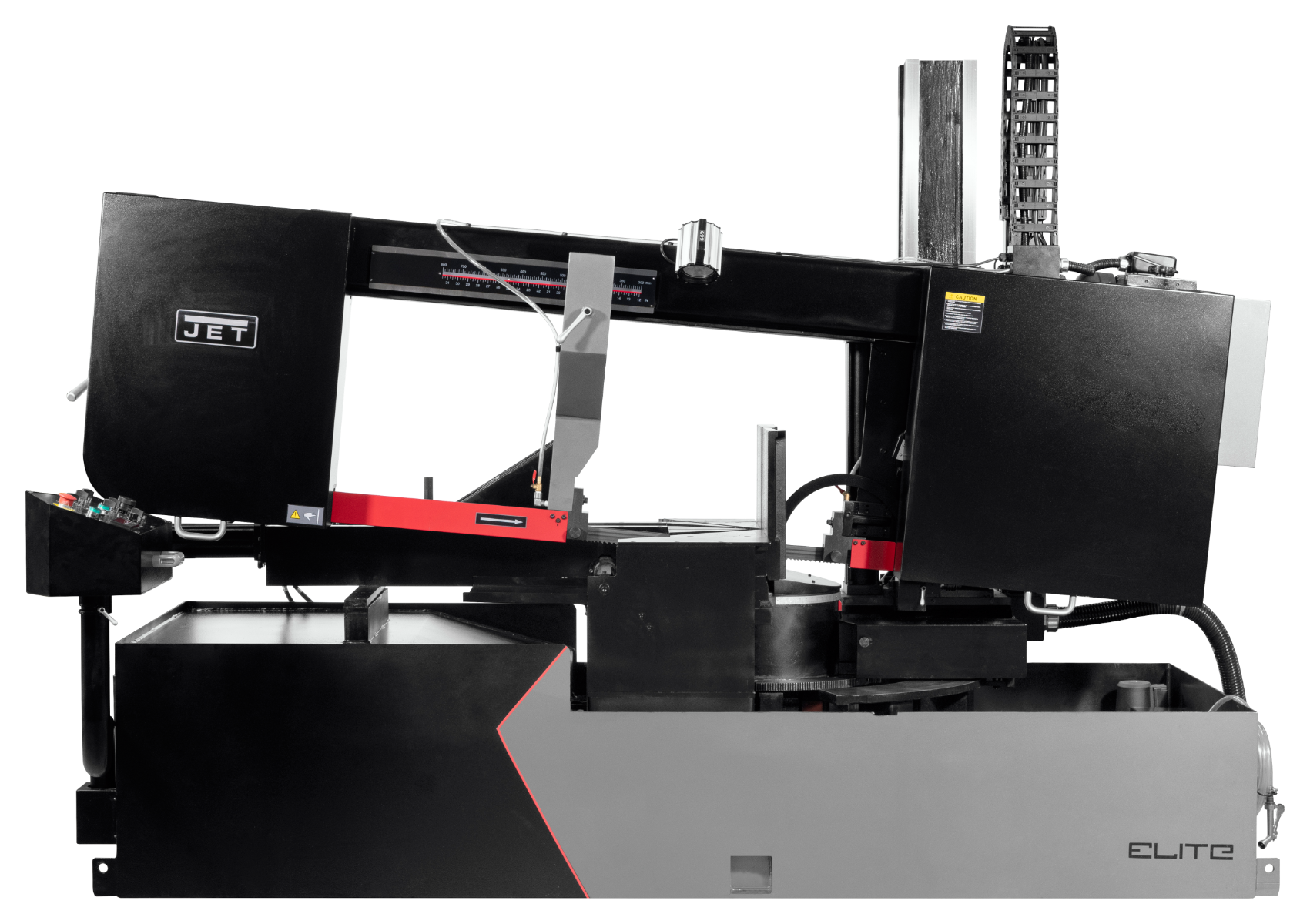

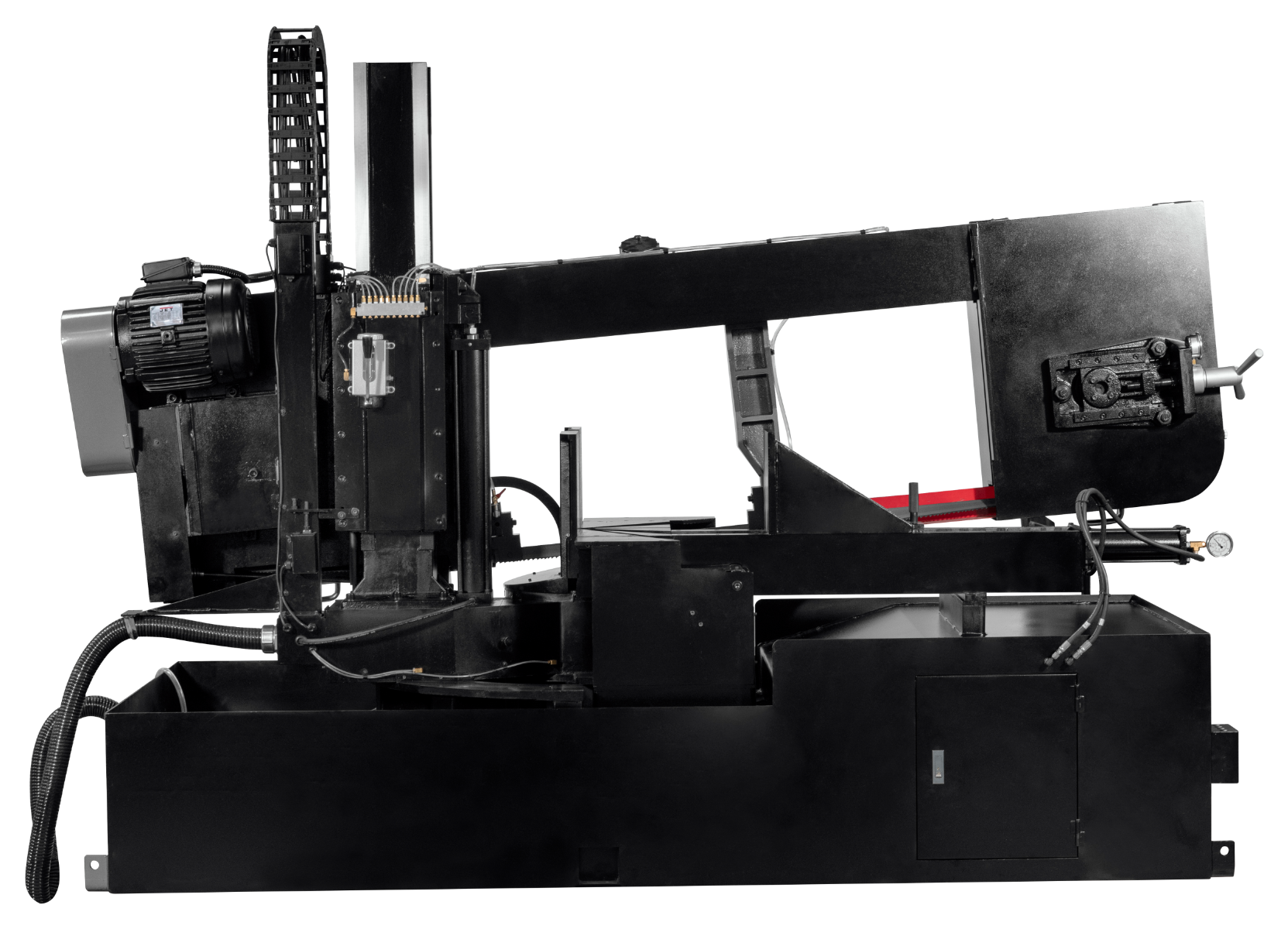

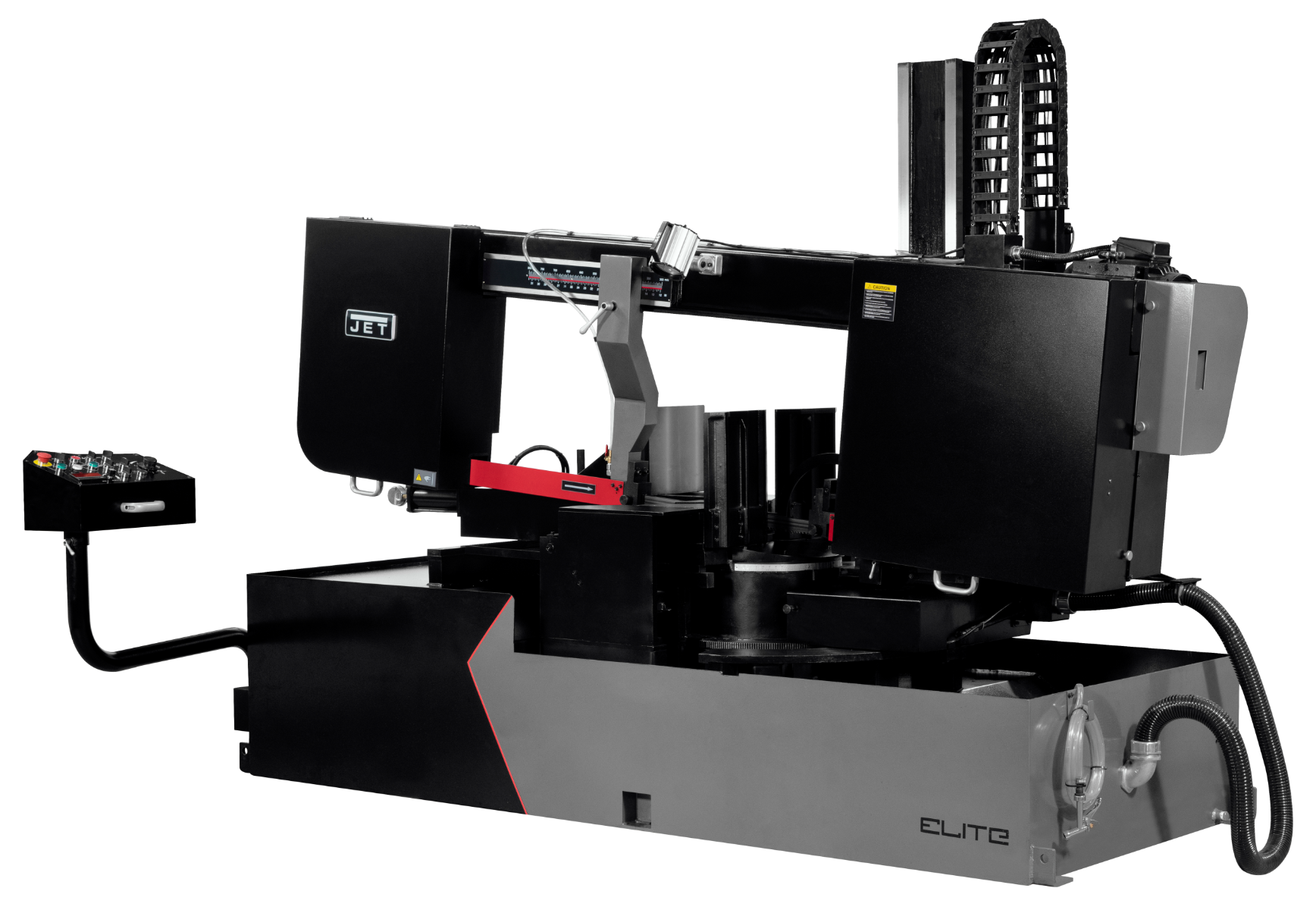

891170, Jet ECB-1833DMEVS-230, 18 x 31in Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph
With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.
Features:
- Auto table swivel
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Electronic variable speed from 50-297 SFPM
- Heavy duty construction reduces vibration and deflection
- Hydraulic assist descent control
- Semi-auto on saw bow lifting and hydraulic vise
- Swing away control box allows Operator to use in any position
Specifications:
- Throat Depth (In.) 18
- Blade Speeds Metal (SFPM) 50.3
- Blade Speeds (SFPM) 50 - 300
- Round at 45 Degrees (In.) 18
- Round at 60 Degrees (In.) 18
- Round at 90 Degrees (In.) 15
- Blade Length (In.) 240
- Rectangle at 45 Degrees (In.) 18 x 20-13/16
- Rectangle at 60 Degrees (In.) 18 x 14-29/32
- Cutting Capacity (W x D) (In.) 18 x 33
- Blade Speed (SFPM) 150-300
- Rectangle at 90 Degrees (In.) 18 x 31-1/2
- Square at 60 Degrees (In.) 15 x 15
- Weight (Lbs.) 5060
- Blade Wheel Diameter (In.) 22-53/64
- Overall Height (In.) 82-5/8
- Electrics 7-1/2HP, 230V, 3Ph
- Bed Height (In.) 33-15/32
- Maximum Vise Opening (In.) 31-1/2
- Square at 45 Degrees (In.) 18 x 18
- Square at 90 Degrees (In.) 18 x 18
- Motor (HP) 7-1/2
- Floor Space Required (In.) 110 x 74 x 82-5/8
- Shipping Weight (Lbs.) 5500
- Coolant Pump Motor 1/8HP, 230V, 3PH
- Overall Dimensions (L x W x H) (In.) 110 x 75 x 83
- Prewired Voltage (V.) 230
- Drive EVS
- Net Weight (Lbs.) 5060
- Gross Weight (Lbs) 5500
Specifications
Specifications
| Jet 18 x 31in Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph, ECB-1833DMEVS-230 891170 | |
| APPLICATION | Metal Working |
| Brand | Jet |
| DIAMETER | 18 in |
| HORSEPOWER | 7.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
