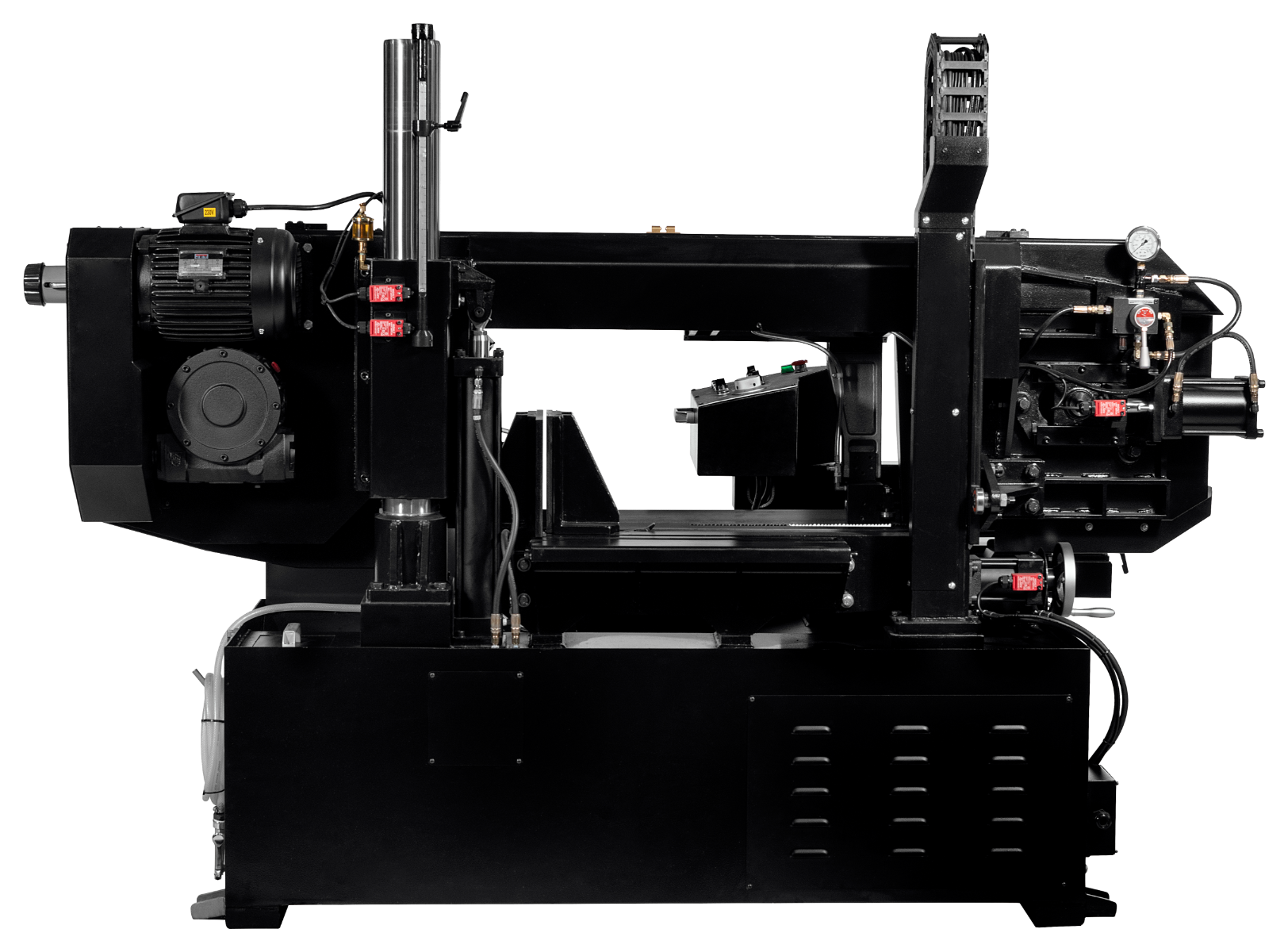

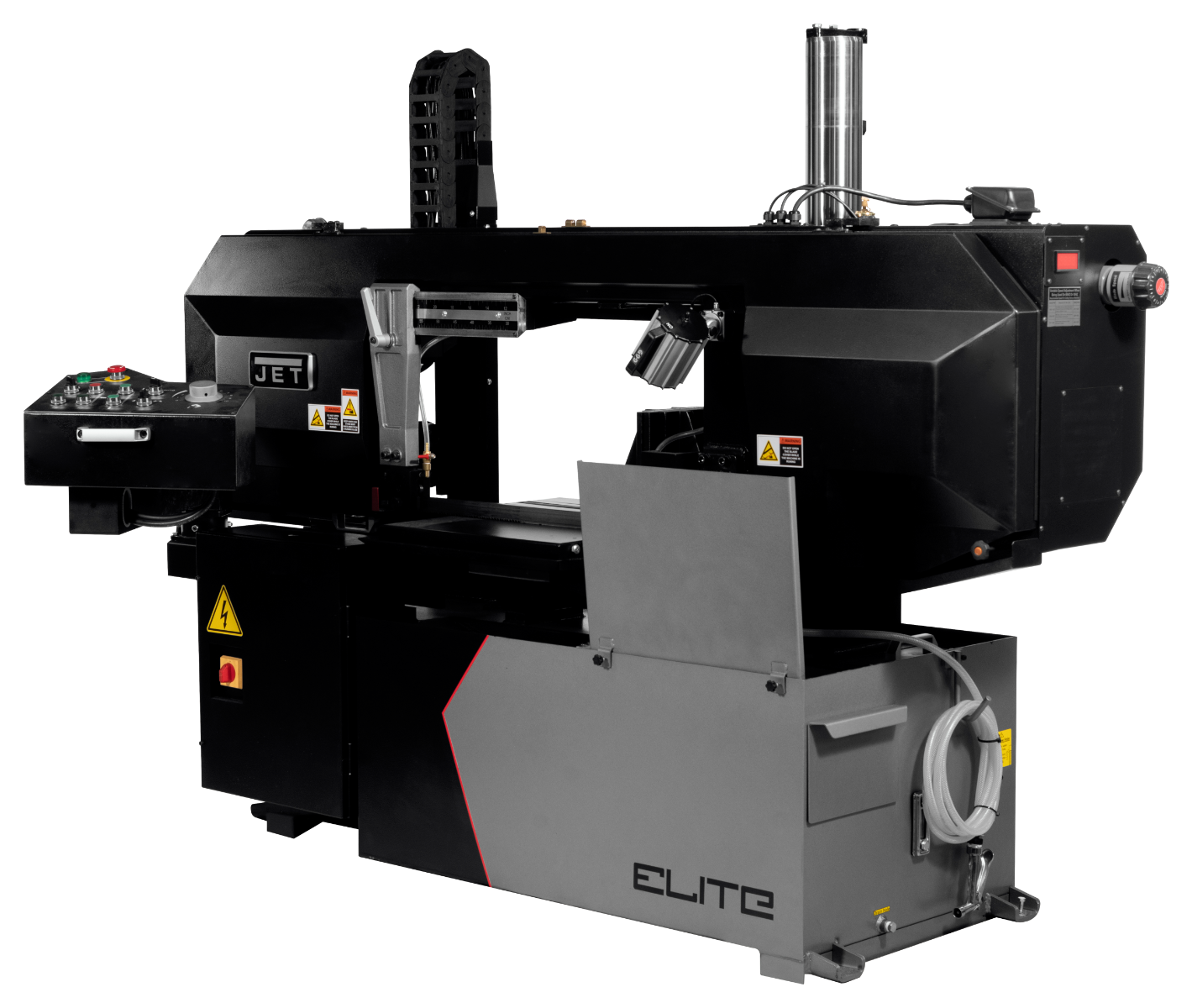

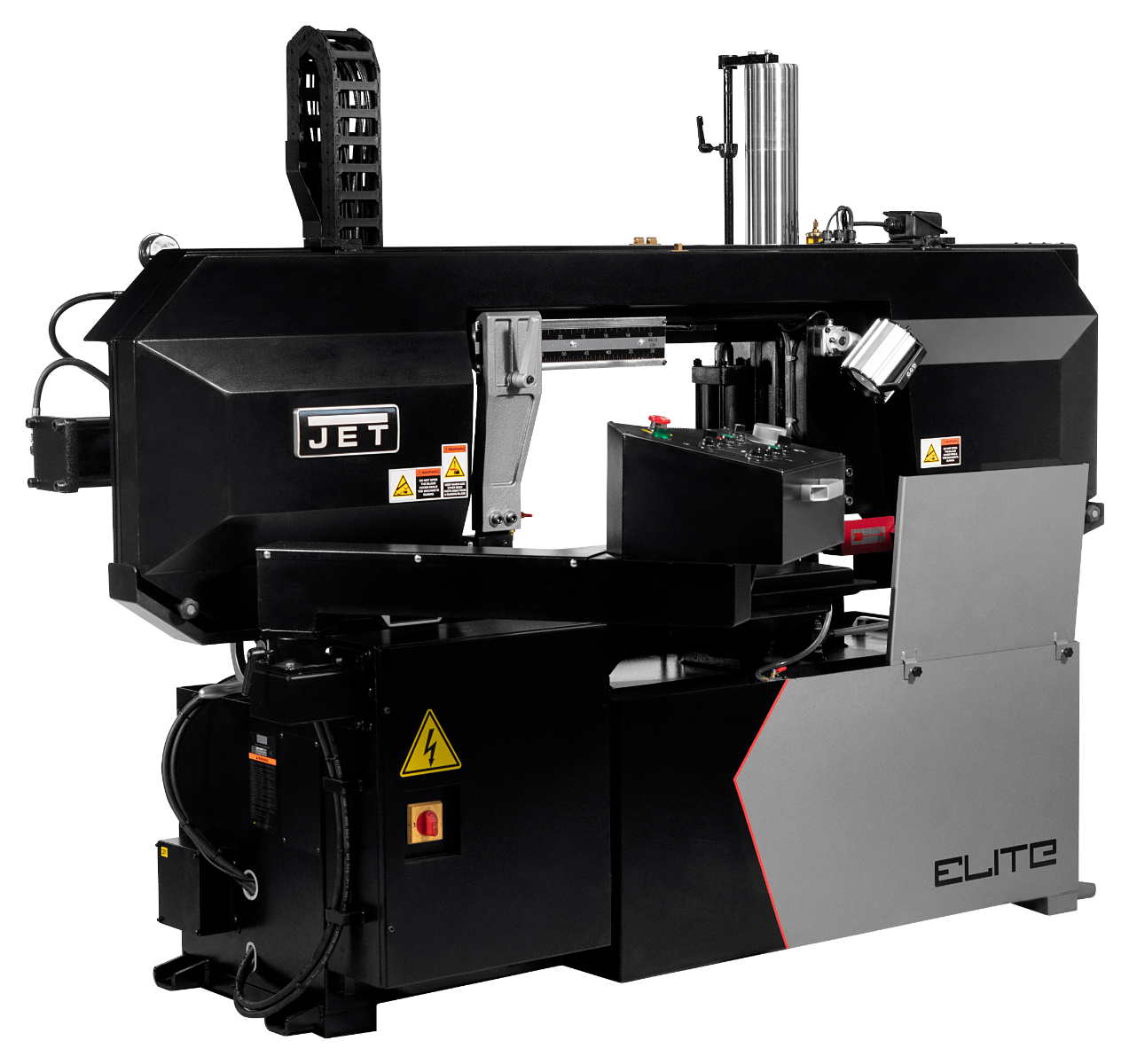

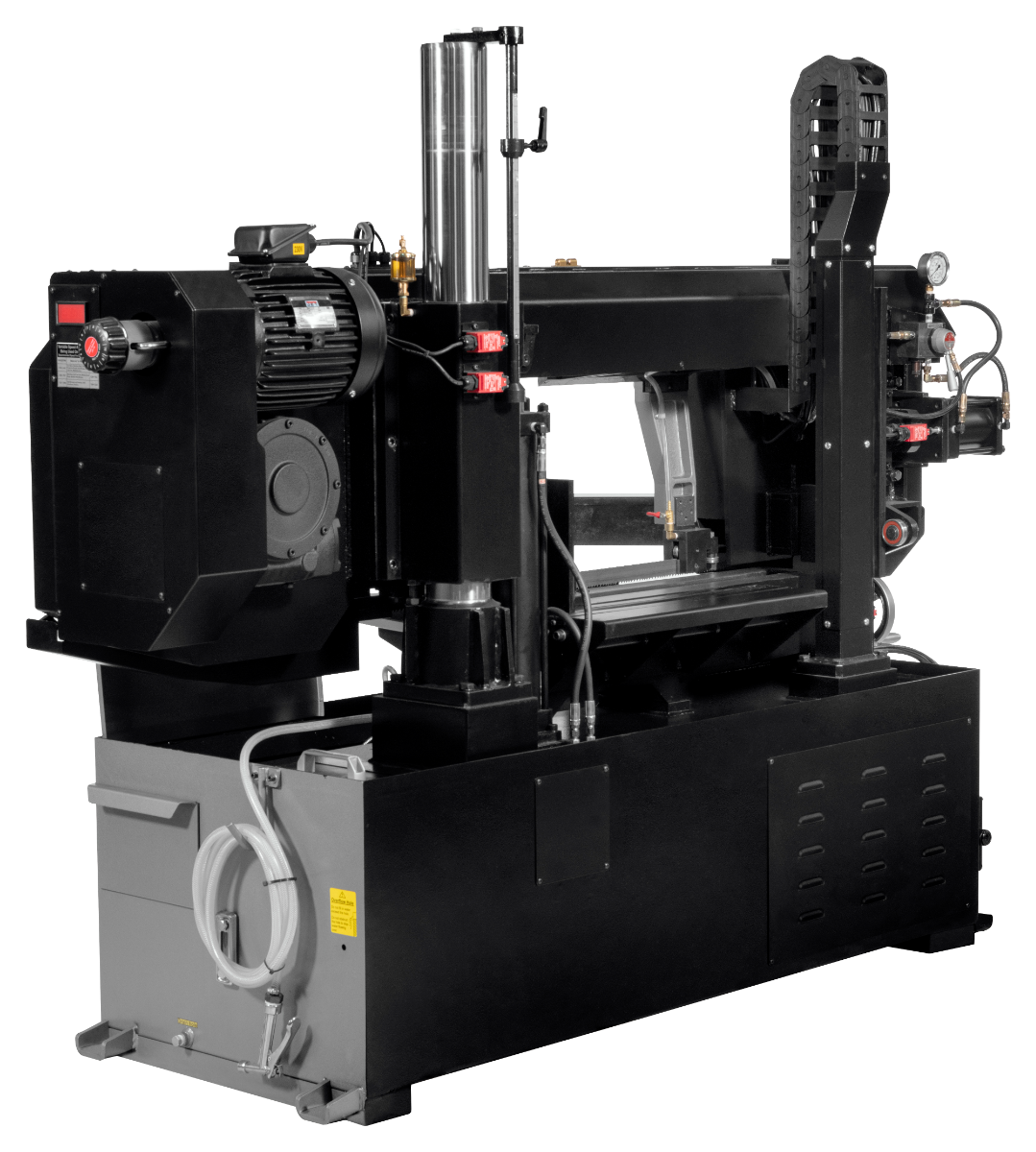

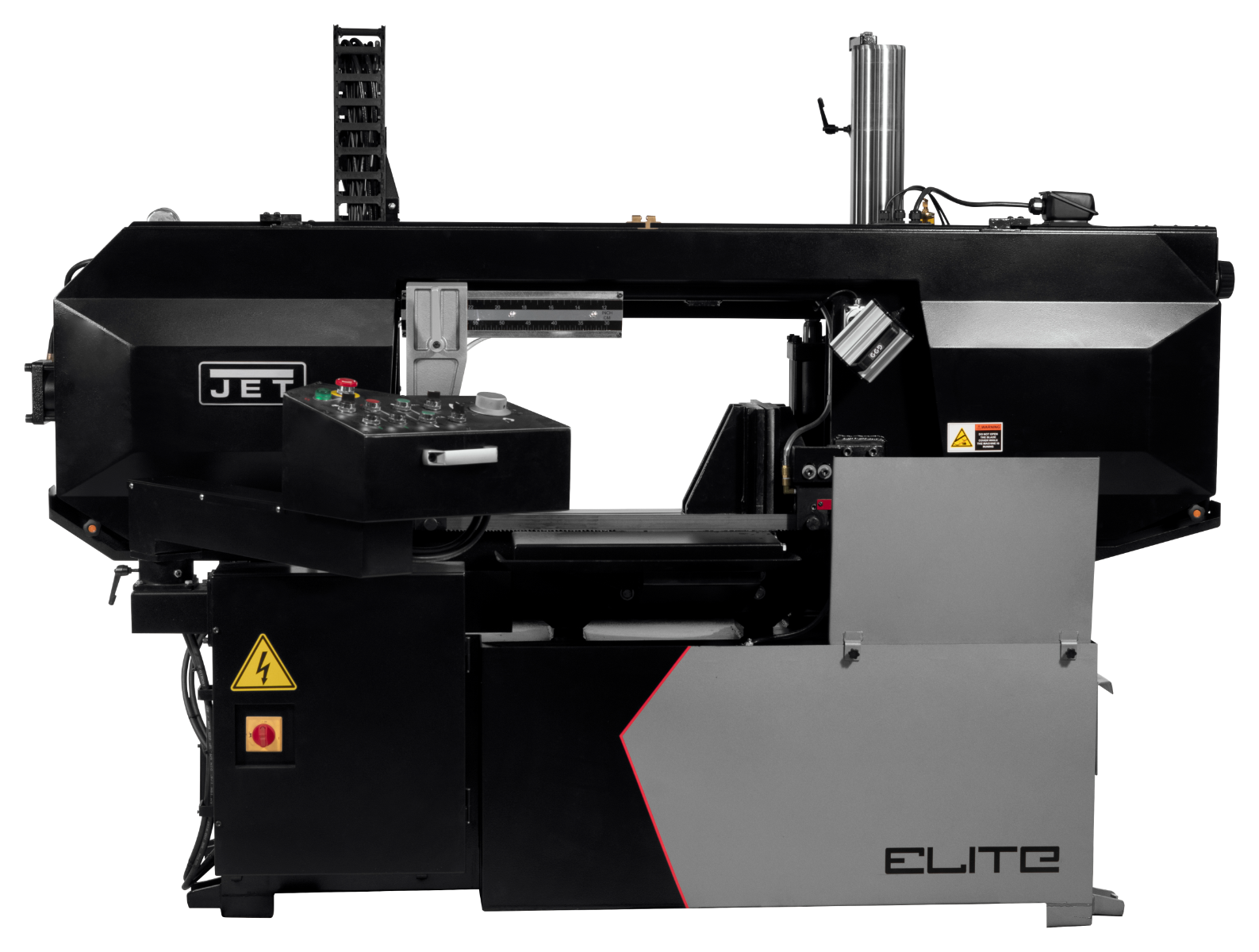

891160, Jet Elite ECB-1422V, 14 x 22in Semi-Automatic Variable Speed Dual Column Bandsaw 5HP, 230/460V, 3Ph
JET Elite's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.
- Blade tension gauge helps to ensure the blade is in the correct cutting position
- Easy frame height adjustment
- Heavy duty construction reduces vibration and deflection
- Mechanical variable speed drive system for easy speed changes
- Semi-auto on saw bow lifting and hydraulic vise

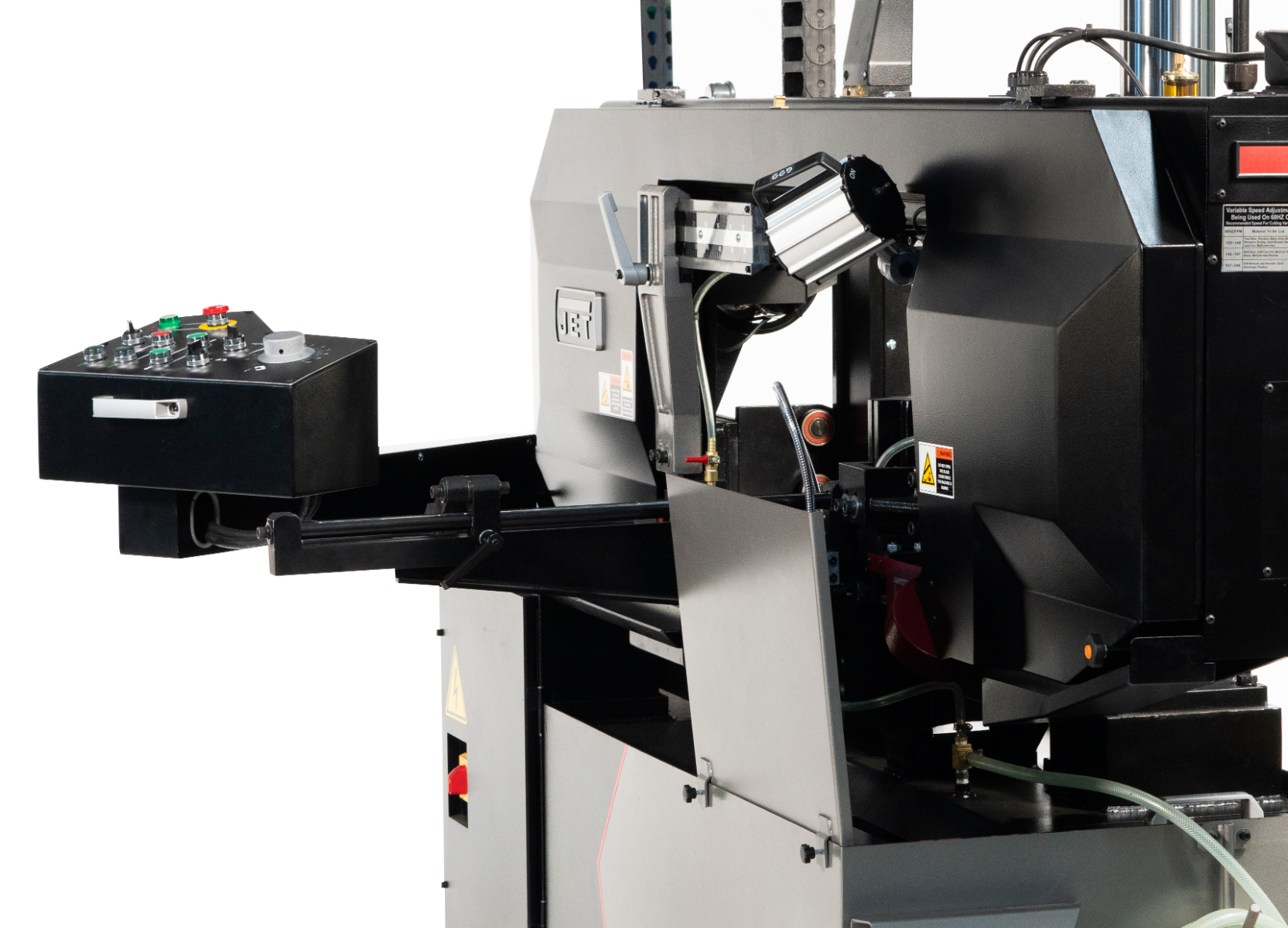

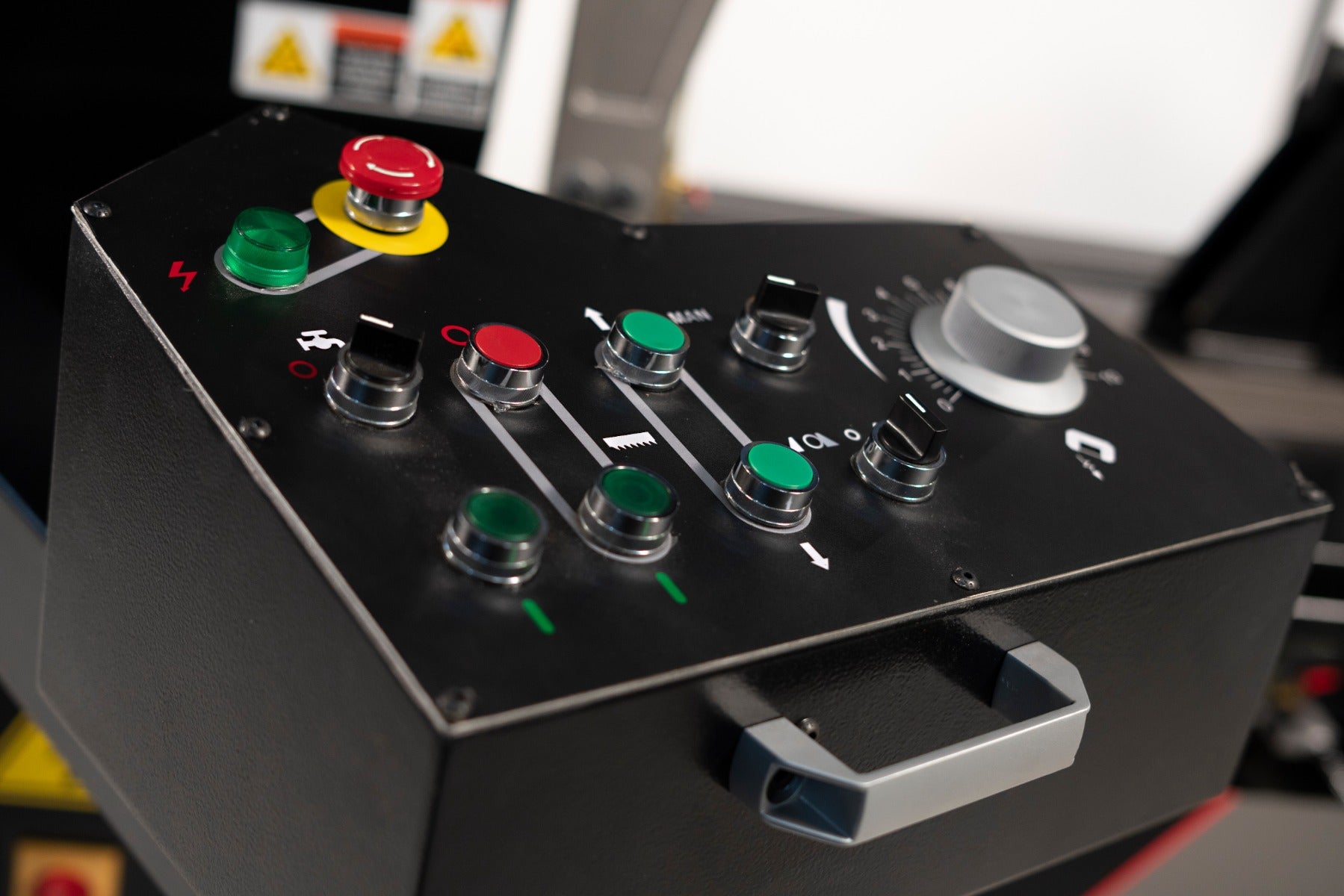

- Swing away control box allows Operator to use in any position
- Two column design for more productive cutting
Specifications:
- Blade Speeds (SFPM)75 - 250
- Throat Capacity (In.)14 x 17
- Round at 90 Degrees (In.)14-1/8
- Rectangle at 90 Degrees (In.)14-1/8 x 22
- Blade Wheel Diameter (In.)18-1/2
- Electrics5HP, 230/460V, 3ph
- Bed Height (In.)29
- Square at 90 Degrees (In.)14-1/8

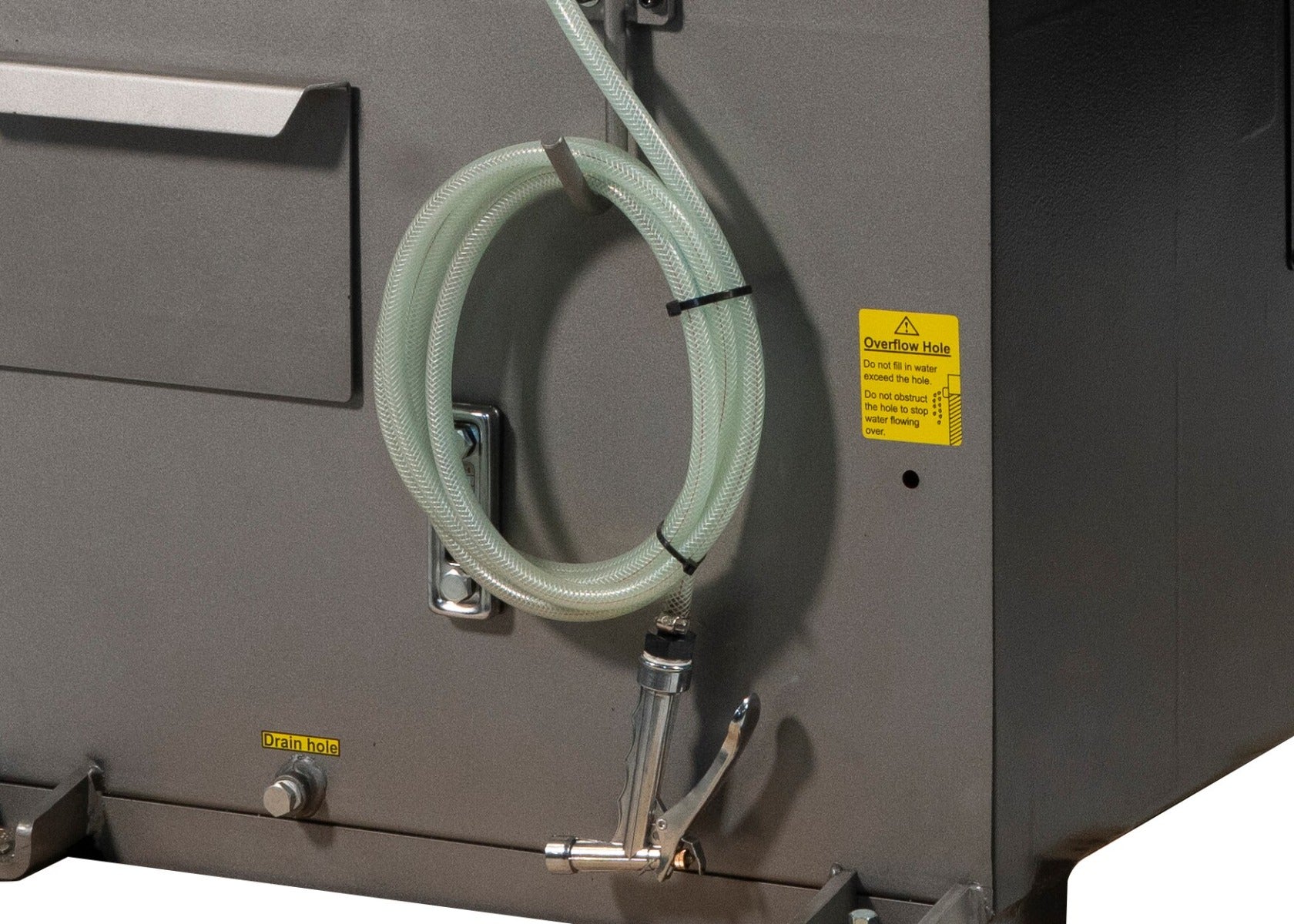

- Coolant Pump Motor1/6HP, 230/460V
- Overall Dimensions (L x W x H) (In.)93-1/2 x 25-29/32 x 72-23/32
- Prewired Voltage (V.)230
- Net Weight (Lbs.)2266
- Gross Weight (Lbs)2508
Specifications
Specifications
| Jet 14 x 22in Semi-Automatic Variable Speed Dual Column Bandsaw 5HP, 230/460V, 3Ph, ECB-1422V 891160 | |
| APPLICATION | Metal Working |
| Brand | Jet |
| DIAMETER | 18.5 in |
| HORSEPOWER | 5.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Band Saws |
| TOOL TYPE | Saws |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
