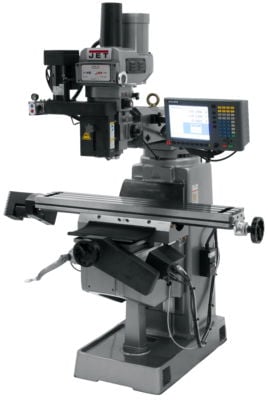

Jet JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar 690949
Jet JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar 690949
Couldn't load pickup availability
Details
Details
JET offers complete, factory-installed CNC packages with your choice of 2 or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. All the features you've come to expect backed by the industry-leading JET Two Year Warranty
Features:
Specifications:
| Style (Type) | CNC |
| CNC Package | ACU-RITE MILLPWR® G2 |
| Number of Axis | 3 |
| Table Size (L x W) (In.) | 9 x 49 |
| Power Draw Bar | Pneumatic |
| Spindle Taper (In. x TPI) | R-8 |
| Quill Diameter (In.) | 3-3/8 |
| Number of Spindle Speeds | Variable |
| Range of Spindle Speeds (RPM) | 60 - 4,200 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Spindle Travel (In.) | 5 |
| Head Movement (Deg.) | 90° R & L, 45° F & B |
| Max Distance Spindle to Table (In.) | 17-1/2 |
| Distance Spindle to Column (Max.) (In.) | 19 |
| Distance Spindle to Column (Min.) (In.) | 4-1/2 |
| Collet Capacity | 1/8 - 7/8 |
| Table Longitudinal Travel (In.) | 34 |
| Table Cross Travel (In.) | 12 |
| T-Slots Number and Size (In.) | 3 and 5/8 |
| T-Slot Centers (In.) | 2-1/2 |
| Work Table Weight Capacity (Lbs.) | 660 |
| Travel of Knee (In.) | 14-1/2 |
| Travel of Ram (In.) | 13-3/8 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 66 x 63 x 85 |
| Weight (Lbs.) | 2,420 |
| Height | 0.0000 |
| Length | 0.0000 |
| Weight | 2600.0000 |
| Width | 0.0000 |
Specifications
Specifications
| Jet JTM-4VS Mill With 3-Axis ACU-RITE G-2 MILLPWR CNC With Air Powered Draw Bar 690949 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | JET |
| Brand | Jet |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Milling Machines |
| VOLTAGE | 208V-240V 3Ph |
| WIDTH | 63 in |
