Festool FS Guide rails are available in eight different lengths from 32 inches to 197 inches (800 - 5000 mm), providing the right rail for every application. The integrated splinter guard aligns perfectly with your cut line, saving setup time and serving as protection against tear, on cuts both with the grain and across. Guide rails can be easily connected using the accessory guide rail connectors for a rigid, secure, and continuous connection. Guide rails make work easier by taking the tool to the work, and save time and money by eliminating laborious measurements, rework, and wasted material. Use the FS 1400 Guide Rail (55 inches) with the Festool TS Plunge cut saw to make precision cuts up to 49 inches long. Connect rails using Festool Guide Rail Connectors to make limitless cuts.

Absolutely straight, safe, and precise. Festool FS guide rails are available in ten different lengths from 32 to 197 inches, providing the right rail for every application. Simply lay the guide rail on the workpiece and line up the splinter guard flush with the scribe line. Now place your Festool circular saw on the guide rail. The guide rib on the rail engages in the guide slot on the tool. You save laborious measurements and obtain perfectly straight and accurate cuts.

Festool guide rails are equipped with a splinter guard. A rubber lip pressing onto the workpiece along the scribe line ensures splinter-free cut edges. Precise angle cuts up to 45 on both sides. With the FSW angle unit and a guide rail, you can quickly set angles of 0 to 45 to either side. This allows you to cut boards and panels to any size at any desired angle, fast, safely, and accurately.

A guide rail fixed into place with the special Festool FSZ clamps, and a guide stop adjusted to be free of backlash, provide the basis for ultra-precise work. For example, use it for dovetail joints produced in several steps. Even when routing against the grain, the router cannot deviate from the desired path, giving perfect results.

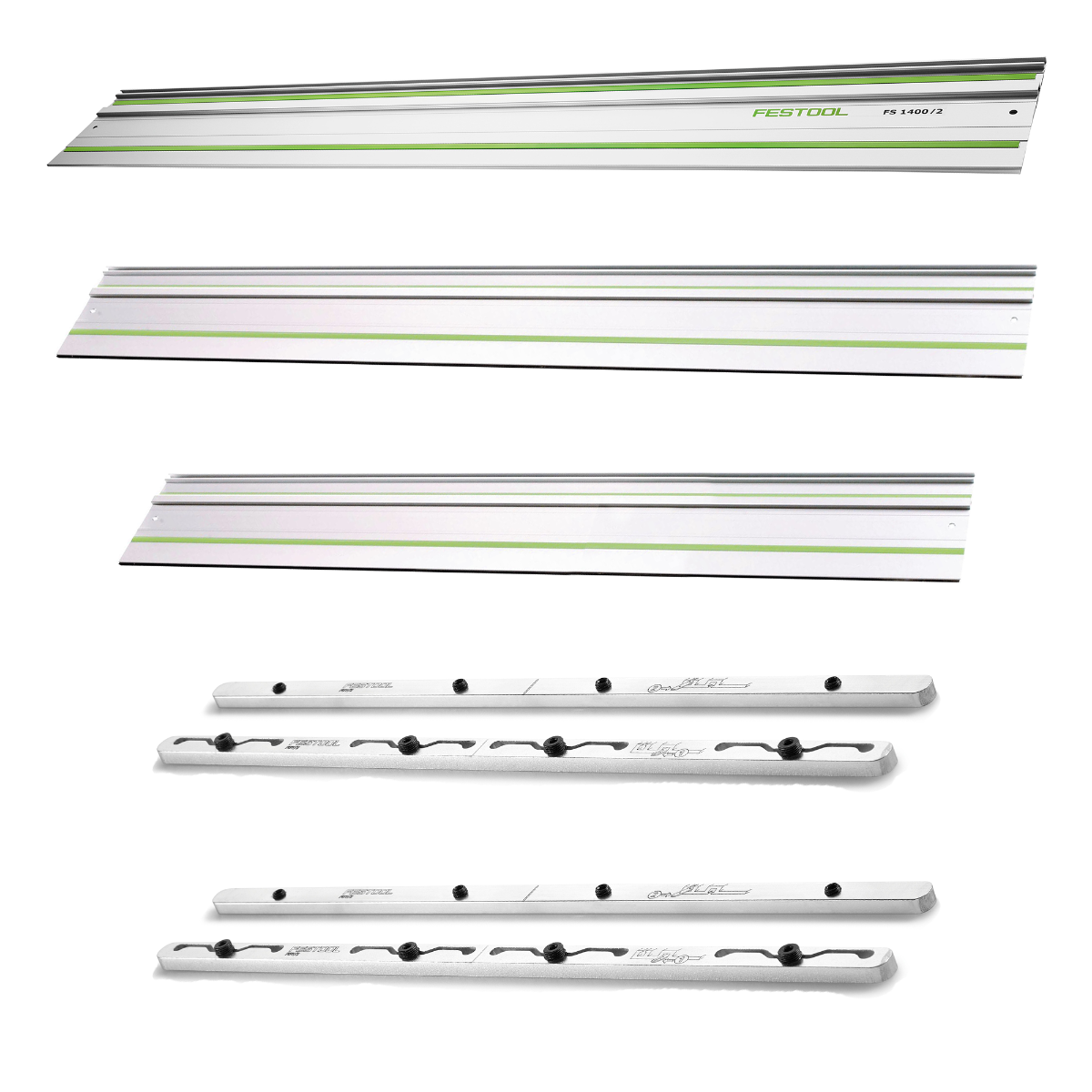

This kit is equipped with everything you need to get started:

• Festool FSV/2 Guide Rail Connector, 2 Pack (577039) 2X
• Festool FS 2700/2, 106-inch Guide Rail (491937)
• Festool FS 1400/2, 55-inch Guide Rail (491498)
• Festool FS 800/2, 32-inch Guide Rail (491499 )

577039, Festool Connector FSV/2

• For long cuts: The connectors allow users to make straight and precise cuts over the length of two or more connected guide rails.
• High level of stability: The guide rails joined with the connectors offer a high level of stability for a connection that holds in any position.​
• Simply connect: The self-aligning function makes it quick and convenient to connect two guide rails.
• Clear marking: The laser engraving ensures that the two connectors are used in the correct order. Use the aligning connector first, followed by the stabilizing one.​

Specifications:

• Height: 0.2"
• Width: 3.35"
• Length: 16.02"
• Weight: 0.89 lb

491937, Festool FS 2700/2, 106-inch Guide Rail

Guide rail features:

• Hard-anodized surface
• Soft, non-slip coating
• Hard rubber splinter guard

Mounting slot for:

• FSW angle unit
• FSV connectors
• FSZ clamps
• FS-AW Deflector

Specifications:

• Height: 1.38"
• Width: 9.84"
• Length: 106"
• Weight: 18.74 lb

491498, Festool FS 1400/2, 55-inch Guide Rail

Guide rail features:

• Hard-anodized surface
• Soft, non-slip coating
• Hard rubber splinter guard

Mounting slot for:

• FSW angle unit
• FSV connectors
• FSZ clamps
• FS-AW Deflector

Specifications:

• Height: 2.56"
• Width: 8.66"
• Length: 59.84"
• Weight: 5.51 lb

491499 Festool FS 800/2, 32-inch Guide Rail

Guide rail features:

• Hard-anodized surface
• Soft, non-slip coating
• Hard rubber splinter guard

Mounting slot for:

• FSW angle unit
• FSV connectors
• FSZ clamps
• FS-AW Deflector

Specifications:

• Height: 0.87"
• Width: 9.45"
• Length: 35.83"
• Weight: 2.91 lb
