Edwards Ironworkers 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher 55231512
Edwards Ironworkers 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher 55231512
Couldn't load pickup availability
Details
Details

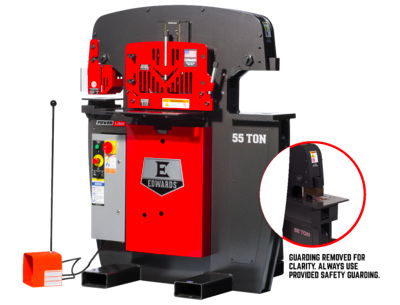

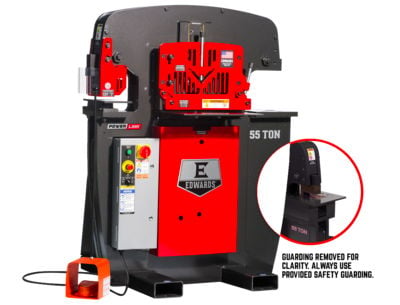

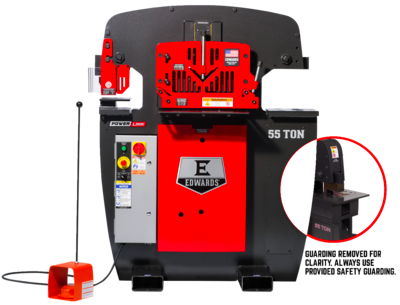

This 55 Ton Ironworker includes a factory installed Coper Notcher and 2 LED Lights and provides more than enough power for the larger projects and offers the ability to customize one of its 4 Workstations with 11 interchangeable Attachments. There are 17 Accessories that improve operator accuracy and productivity. Great for general use from medium size shops to full factory maintenance departments. The PowerLink™ System increases your capabilities by turning your Ironworker into a power source for our line of Hydraulic Tools.
Features:
- • Four Workstations: Standard (3) - Punch, Flat Bar Shear & Angle Shear; Open (1) - Factory installed Coper Notcher
- 14 interchangeable Attachments available to tailor the Ironworker to your needs
- Available with PowerLink System to increases your capabilities with our ever expanding line of Hydraulic Tools
- PowerLink™ System increases your capabilities turning your Ironworker into a power source for our ever expanding line of Hydraulic Tools
- Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend or cope all in one machine
- Optimized workstation heights for improved efficiency
- Electric foot pedal with integrated jog control
- Adjustable electric stoke control
- Bright LED lights increase visibility
- ANSI B11.5-1988(02) Compliant Guarding
- ETL Certified Controls
- Integrated Lock-out/Tag-out system with multiple location E-Stop (foot pedal & control panel) for added safety
- Durable, heavy-duty Made In USA steel construction
- Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
- Punches are easily changeable, long-lasting and available from 1/8" to 4" diameters along with square, oblong, hex, metric, and custom shapes
- Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
- Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
Specifications:
| Flat Bar Shear Max Capacity (In.) | 3/8 x 14, 1/2 x 12, 3/4 x 4 |
| Flat Bar Shear Max Round Capacity (In.) | 7/8 diam. |
| Angle Shear Max Capacity (In.) | 3 x 3 x 3/8, 4 x 4 x 1/4 |
| Open Workstation Throat Depth (In.) | 11-3/16 |
| Open Workstation Work Height (In.) | 34-1/2 |
| Motor | 5 HP 230V 1Ph |
| Amps | 23 |
| Hydraulics (PSI) | 2500 |
| Hydraulic Reservoir (Gal.) | 7 |
| Hydraulics (GPM) | 3-1/2 |
| Product Dimensions (In.) | 44-3/8 x 36-1/8 x 55-1/4 |
| Shipping Dimensions (In.) | 45 x 51 x 62 |
| Height | 62.0000 |
| Length | 45.0000 |
| Weight | 2480.0000 |
| Width | 51.0000 |
Specifications
Specifications
| Edwards Ironworkers 55 Ton Ironworker 1 Phase, 230 Volt, PowerLink, Coper Notcher 55231512 | |
| APPLICATION | Metal Working |
| Brand | Edwards Ironworkers |
| CAPACITY | 55 Ton |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Metal Forming - Notchers / Metal Forming - Ironworkers |
| TOOL TYPE | Metal Forming / Iron Workers |
| VOLTAGE | 208V-240V 1Ph |
