Amana Tool Carbide Tip Countersink #4 Screw 3/8 x 5/64 x 5/16 in 55207
Amana Tool Carbide Tip Countersink #4 Screw 3/8 x 5/64 x 5/16 in 55207
Couldn't load pickup availability
Details
Details

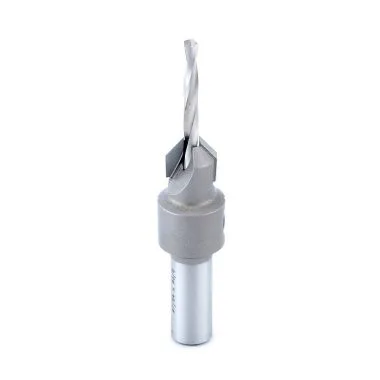

55207, Amana Tool Carbide Tipped Countersink #4 Screw 3/8 Dia x 5/64 Drill Dia x 5/16 Round Shank
Used to countersink holes for the heads of screws in wood, plastic, and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results each and every time. Carbide tips provide chip-free hole edges and last much longer than steel countersinks. Available in a wide variety of sizes, complete with the HSS M2 fully ground drill bit.

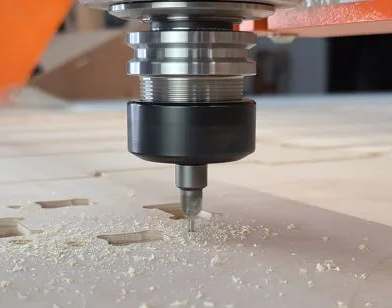

With the adjustable depth drill bit you can adjust them for whatever size material you’re working with. They are best used with a drilling toolpath, utilizing the peck drill option at .25" per pass with a .125" retract height.
For best results run at 3,000 RPM with a 30 IPM (Inches Per Minute) plunge rate. No feed rate needs to be set with these as they only move up and down with the Z axis, not side to side. If your software doesn’t allow a 0 feed rate, you can enter 1 IPM (Inch Per Minute) in the feed rate as a placeholder.
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
- High-Density Polyethylene (HDPE)
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and the drill is stable during drilling.
Specifications:
- (a°) Angle: 49°
- (D) Diameter: 3/8
- (B) Cutting Height: 1/2
- (d) Shank: 5/16
- Overall Length (L): 2-9/16
- Wood Screw Size: #4
- D1: 5/64
- Replacement Drill: 630-001
- L1: 1-5/8
Specifications
Specifications
| Amana Tool Carbide Tip Countersink #4 Screw 3/8 x 5/64 x 5/16 in 55207 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| Brand | Amana Tool |
