Amana Tool Carbide Tip 82 Deg. Countersink 3/8 x 9/64 Drill Dia. 55184
Amana Tool Carbide Tip 82 Deg. Countersink 3/8 x 9/64 Drill Dia. 55184
Couldn't load pickup availability
Details
Details

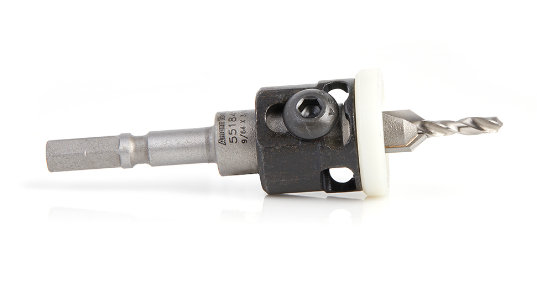

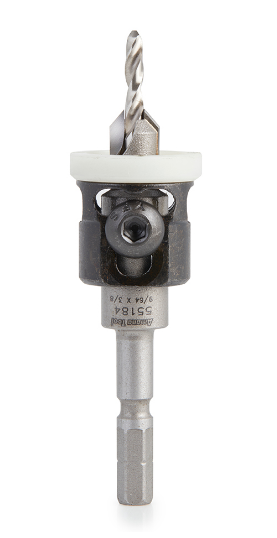

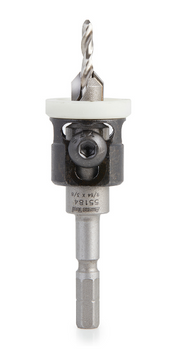

55184, Amana Carbide Tipped 82 Degree Countersink with Adjustable Low Friction Depth Stop, 3/8 Dia x 9/64 Drill Dia, For CENTROTEC
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Tools design with a unique shank with hex part and round part.
It fits Festool® CENTROTEC® drill machines or with any three-jaw keyless chuck system.
Low friction polymer collar. No surface scratches or burn marks!
These tools combine carbide countersink, high-speed-steel drill bit and free-spinning, low friction depth-stop. The countersink leaves a clean hole edge and the adjustable depth-stop doesn’t mar the surface. The large openings around the collar allow the chips to clear effectively and eliminate clogging.
- 2-Wing
- Centrotec® shank
- Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
- Natural Woods
- Man-Made Boards
- MDF
- Chipboard
- Plywood
- Aluminum/Non-Ferrous
- Aluminum Composite Material (ACM)
- Composites
- Composite Decking Materials
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

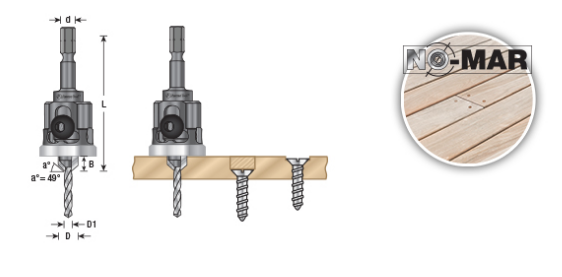

Specifications:
| (a°) Angle | 49° |
|---|---|
| (B) Cutting Height | 5/64-11/32 |
| (D) Diameter | 3/8 |
| (d) Shank | CENTROTEC® |
| Overall Length (L) | 2-7/8 |
| Drill Din | 1897 |
| Wood Screw Size | 6 |
| D1 | 9/64 |
| Replacement Drill | 630-228 |
| Use with Plug Cutter (Optional) | 55220 |
| Use with Plug Cutter (Optional) | 55222 |
Specifications
Specifications
| Amana Tool Carbide Tip 82 Deg. Countersink 3/8 x 9/64 Drill Dia. 55184 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| Brand | Amana Tool |
