54227, Amana Carbide Tipped Traditional Raised Panel with Back Cutter 15 Deg x 1-3/8 Angle x 3-3/8 Dia x 1-1/16 x 1/2 Inch Shank

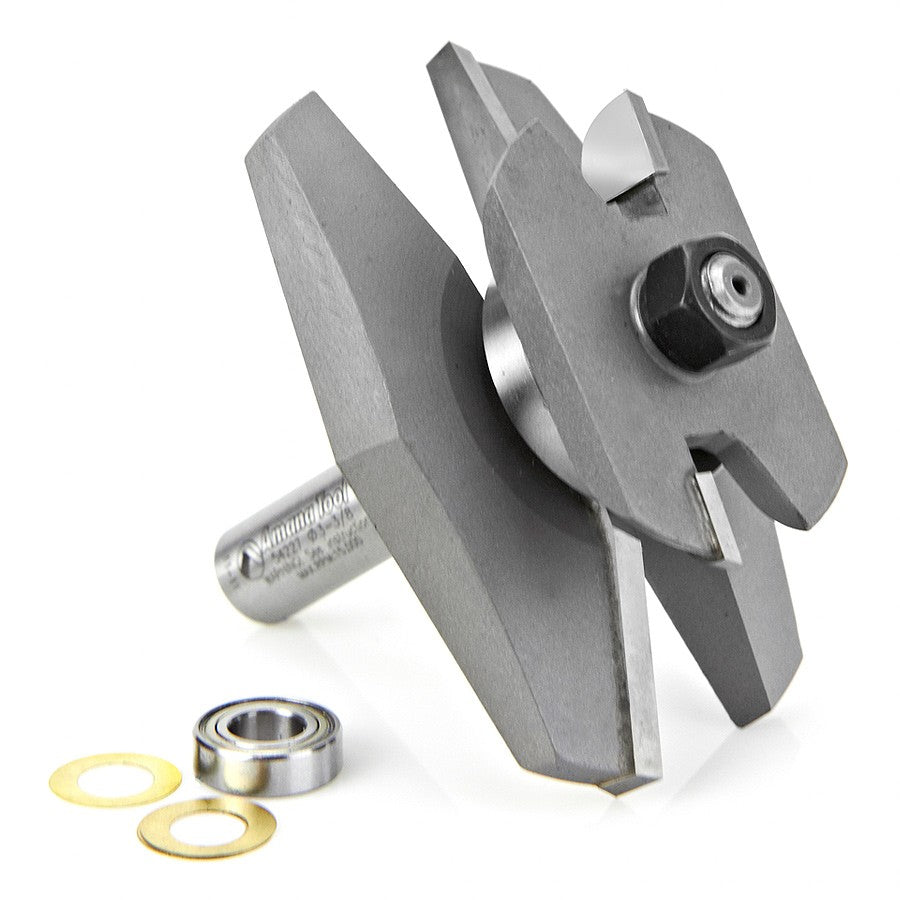

Raised panels fit standard panel grooves, even when the panel thickness exceeds 5/8". As the main cutter raises the front of the panel, the back cutter mills the back to produce a standard-thickness tongue around the panel. Each tool is supplied with two different guide bearings, enabling you to stage cuts on curved edges effectively and safely. All tools have 1/2" shanks. Must be used in a table-mounted 3+ horsepower router and run at reduced speed. Multiple passes recommended. Maximum RPM 12,000.

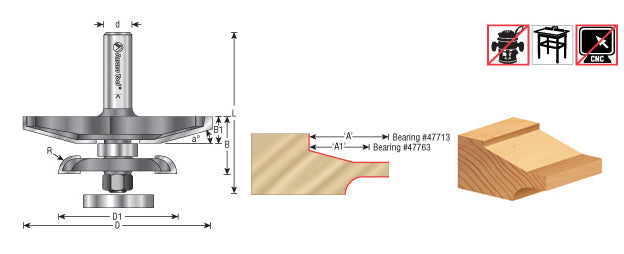

Specifications:
- Tool No. 54227
- Diameter (D) 3-3/8
- Cut Depth (A) 1-3/8
- Angle (a°) 15°
- Radius (R) 5/16
- Cutting Height (B) 1-1/16
- Shank (d) 1/2
- Overall Length (L) 2-15/16
- A1 1-1/16
- B1 1/2
- Replacement Bearing 47713,47763
- Flutes 2
- D1 2-1/8
Specifications
Specifications
| Amana Tool PROVINCIAL R.Panel w/ Back Cutter 54227 | |
| APPLICATION | Contracting & Remodeling / Wood Working |
| Brand | Amana Tool |
| CONSUMABLE TYPE | Saw Blades |
| DIAMETER | 12 in |
| PRODUCT TYPE | Consumables |
| TOOL TYPE | Saws |
