354250, Jet JDPE-20EVS-PDF 20in EVS Drill Press with Power Downfeed 1-1/2HP, 115V, 1Ph

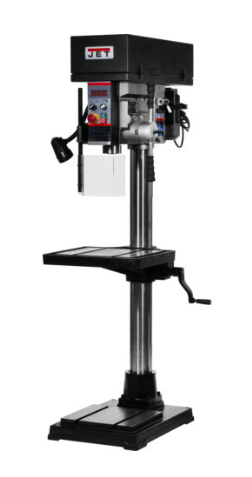

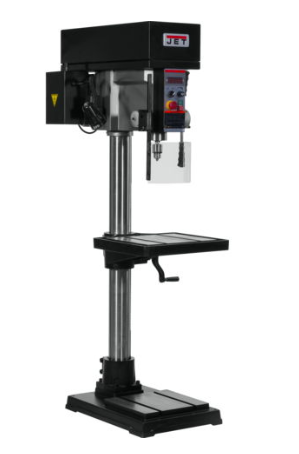

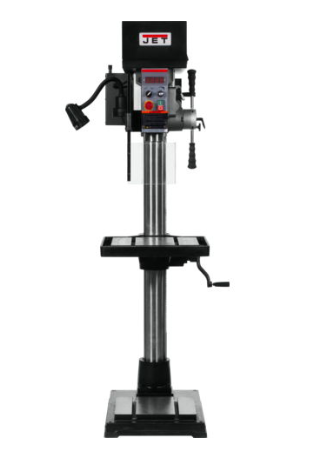

The 20'' JET JDPE-20EVS-PDF EVS drill press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Engineered to maximize output the 20’’ EVS drill press includes a three speed power down feed for heavy drilling applications and is capable of running from 50 to 2000 RPMs.
Features:
- Heavy casted column prevents failures prolonging the life of the machine
- Casted head for more accuracy and rigidity
- Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support

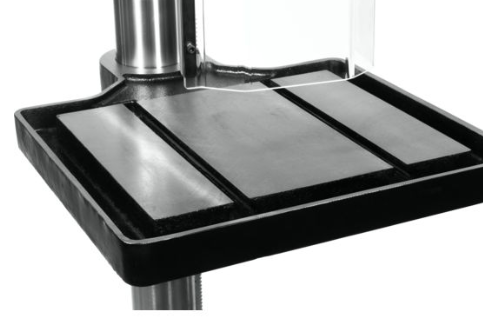

- Large precison ground t-slot production table
- CSA/US Certified

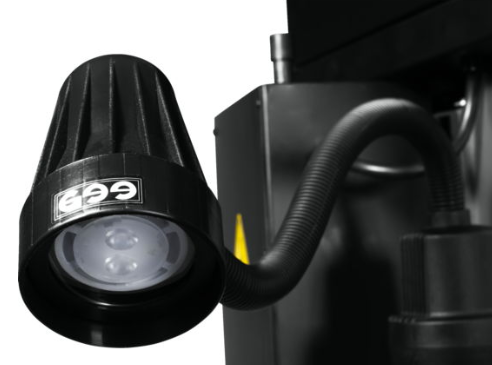

- LED machine lamp delivers extra light for more precise drilling

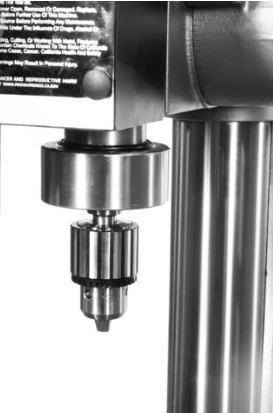

- Spindle guard protects user from flying debris

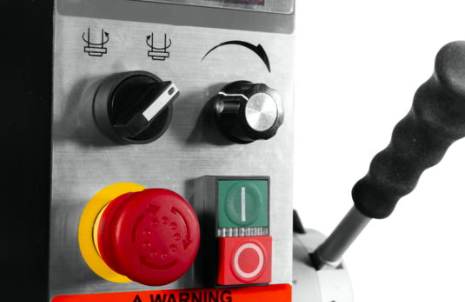

- Emergency stop allows for immediate shut off

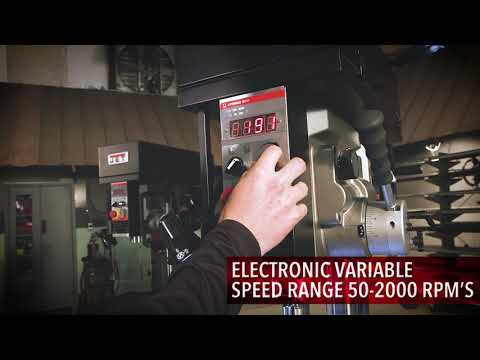

- Various spindle speeds from 50-2000 RPM's

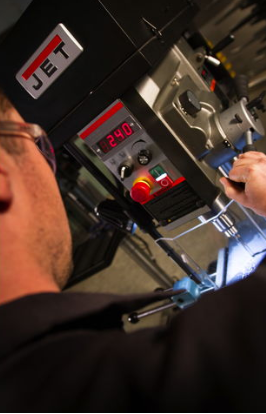

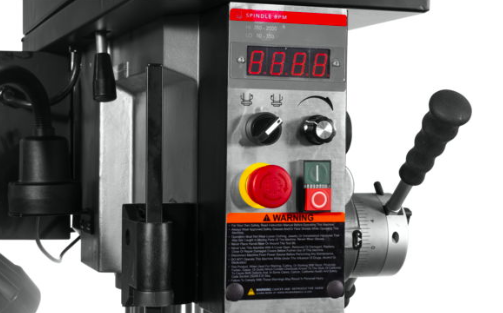

- Front mounted LED spindle RPM readout

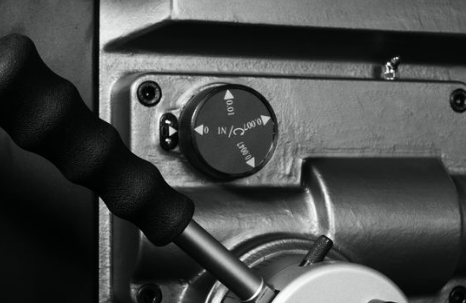

- 3-Speed power downfeed
- High torque at all speeds both forward and reverse
- Large hand grips designed with the user in mind

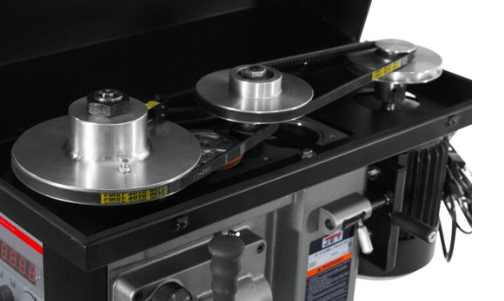

- Speeds changes pulley
- Speed changes using a clutch system
- Forward and reverse switch for instant tapping mode
- STANDARD EQUIPEMENT
- Tapping function
- Spindle power down feed system
- Electronic variable speed
- Large torque inverter
- Speeds changes pulley
- Spindle Guard
- LED Lamp
Specificaitons:
- Quill Diameter (In.) 2.16
- Drills to Center of Circle (in) 10
- Drilling Capacity Cast Iron (In.) 1-1/4
- Drilling Capacity Mild Steel (In.) 1-1/8
- Tapping Capacity Mild Steel (In.) 3/4
- Distance Column to Spindle (In.) 26-1/2
- Quill Down Feed Rate (Number & RPM's) No.3/ 0.005”/0.007”/0.010"
- Number of Spindle Speeds Variable
- Range of Spindle Speeds (RPM) Low: 50 - 390, High 270 - 2000
- Column Diameter (In.) 4
- Spindle Taper (In. x TPI) MT-3
- Spindle Travel, Manual (In.) 5
- Spindle Travel Auto (In.) 4-1/4
- Spindle Distance to Base (In.) 48.85
- Spindle Distance to Table (Max.) (In.) 32.6
- Table T-Slots, Number & Size (In.) 2 Slots for 5/8 bolts
- Table Size (L x W) (In.) 16-1/2 x 18-1/2
- Base Dimensions (In.) 17.7 x 25-1/2
- Base Work Table (In.) 14-3/16 x 13
- Base Slots Number & Size (In.) 2, 5/8
- Motor (HP) 1.5HP, 230V, 3PH
- Inverter Type / Power Source 2HP/115V/1PH
- Overall Dimensions (L x W x H) (In.) 32-3/5 x 22-2/3 x 70-25/64
Red Assurance 2-year Warranty:
JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
.png)
Specifications
Specifications
| Jet JDPE-20EVS-PDF 20 in. EVS Drill Press with Power Downfeed 1-1/2HP, 115V, Single Phase 354250 | |
| APPLICATION | Wood Working / Metal Working |
| BRAND COMPATIBILITY | JET |
| Brand | Jet |
| HORSEPOWER | 1.5 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Drill Presses |
| TOOL TYPE | Drills |
| VOLTAGE | 208V-240V 1Ph |
