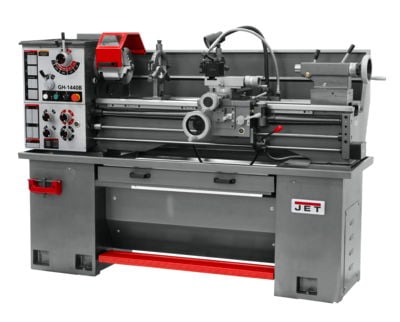

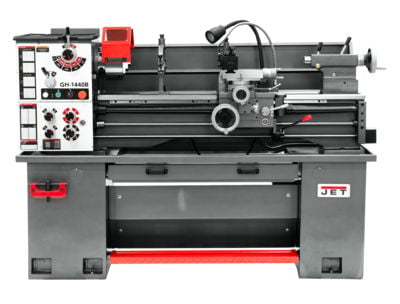

323440, Jet GH-1440B with Acu-Rite 203 DRO

This new JET GH-1440B Geared Head Bench Lathe is engineered for smooth, quiet operation and user versatility. Positioned on a heavy-duty stand with a newly added built-in footbrake, the GH-1440B includes precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability. The GH1440B also includes a patented electronic chuck key docking station that prevents startup without the chuck key when safely docked.

Features:

• Precision spindle roller bearings

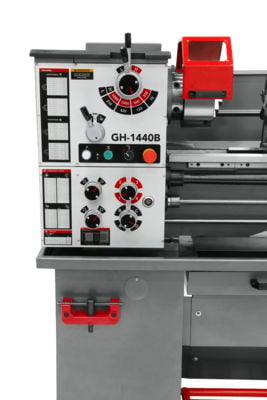

• High quality steel hardened gears in headstock
• Lead screw cover
• Cast iron Stand
• Foot Brake comes standard
• Emergency Stop within easy reach of the Operator
• Chuck Guard
• Electronic Chuck Key Docking Station, provides Operator safety as the Lathe will not turn without the chuck key being docked
• Mounted on Cast Iron stand with foot pedal, coolant, chuck key docking station ready to use

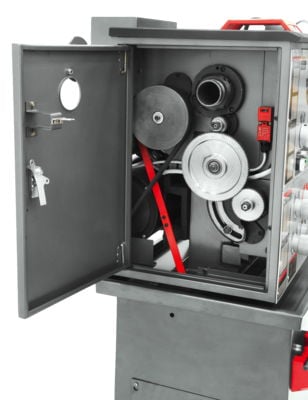

• Enclosed gearbox design provides smooth, quiet operation
• Gap bed section provided for larger diameter work
• Adjustable gibs are incorporated in the carriage & slideways
• Gearbox gives wide range of inch & metric threading & feed capabilities with few gear changes
• Compound and cross slide have backlash adjustment
• Tailstock may be offset for turning tapers and include and inch/metric graduated quill
• Spindle Spider available for ease of turning Gun barrels
• STANDARD ACCESSORIES
• 8" 3-Jaw Chuck
• 8" 4-Jaw Chuck

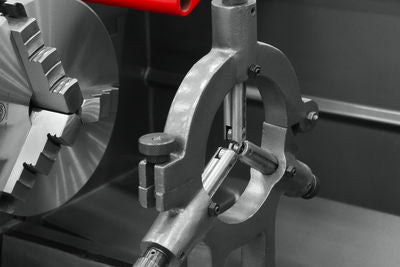

• Steady Rest with Roller Bearings
• Follow Rest

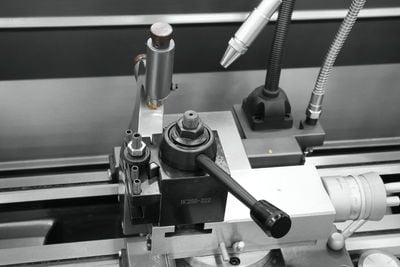

• Quick Change Toolpost
• 5pc Set of Holders
• LED Work Lamp
• MT3 Live Center
• MT-5/3 Sleeve

Specifications:

Digital Readout	ACU-RITE 203
Swing Over Bed (In.)	14
Swing Over Cross Slide (In.)	8
Swing Through Gap (In.)	20
Length of Gap (In.)	8
Distance Between Centers (In.)	36-7/8
Spindle Bore (In.)	2
Spindle Mount	D1-5
Number of Spindle Speeds	8
Range of Spindle Speeds (RPM)	70-1900
Spindle Taper with Sleeve	MT6
Number of Longitudinal and Cross Feed Rates	32/32
Range of Longitudinal Feeds (IPR)	0.002 -0.0548
Range of Cross Feeds (IPR)	0.007 -0.0187
Number of Inch Threads	34
Range of Inch Threads (TPI)	4-56
Number of Metric Threads	26
Range of Metric Threads	0.4-7
Max Tool Size (In.)	4/5 x 4/5
Compound Slide Travel (In.)	3-1/2
Cross Slide Travel (In.)	7
Carriage Travel (In.)	37-2/5
Tailstock Spindle Travel (In.)	4
Taper in Tailstock Spindle	MT4
Follow Rest Capacity (In.)	0.31-2.16
Steady Rest Capacity (In.)	0.31-2.95
Width of Bed (In.)	7.32
Motor (HP)	2 HP, 230V, Single Phase
Prewired (V.)	230V
Overall Dimensions (L x W x H) (In.)	76-13/32 x 29-29/32 x 59-13/16
Weight (Lbs.)	1753
Height	60.0000
Length	76.0000
Weight	1798.0000
Width	30.0000

Jet Lathe with Acu-Rite 203 DRO, GH-1440B 323440
APPLICATION	Wood Working
BRAND COMPATIBILITY	JET
Brand	Jet
HORSEPOWER	2.0 HP
POWER SOURCE	Electric - Corded
PRODUCT TYPE	Tools/Machinery
TOOL TYPE	Lathes
VOLTAGE	208V-240V 1Ph
