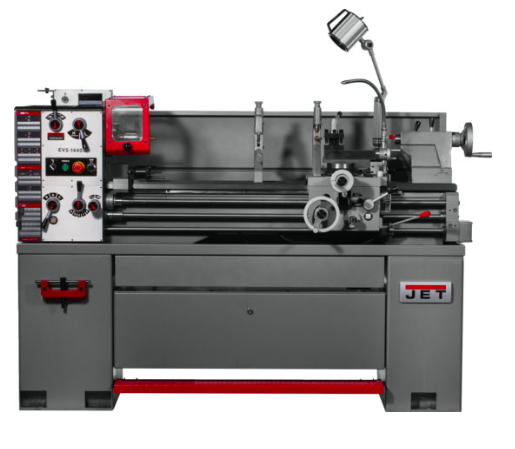

311440, Jet EVS-1440B EVS Bench Lathe 3HP, 230V
The EVS-1440B is engineered to maximize your shop’s output. The D1 4 Spindle is precision ground for accuracy and supported by class 7 tapered roller bearings capable of a run out maximum of .0004’’. The 2 speed gearbox allows operators to easily work at low speeds from 40 to 365 RPM and at high speeds from 220 to 2,000 RPMs
Features:
- V-way bed design is induction hardened and ground
- Splined, not keyed, shafts are utilized
- D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
- Independent leadscrew and feed rod
- Adjustable gibs are incorporated in the carriage and slideways
- Class 7 precision taper roller bearings keep spindle run out to a maximum of 0.0004"
- Meehanite castings retain their tolerance and remain rigid through many years of machining
- Safety on/off switch
- Emergency Stop within easy reach of the Operator

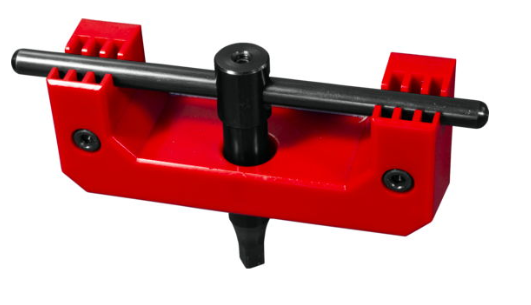

- Electronic Chuck Key Docking Station
- Chuck Guard
- Foot Brake

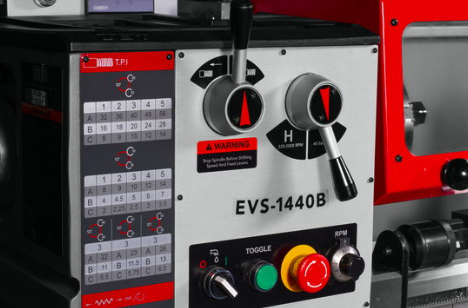

- Two speed gearbox allows low speeds from 40-365 RPM to high speeds from 220-2000 RPM

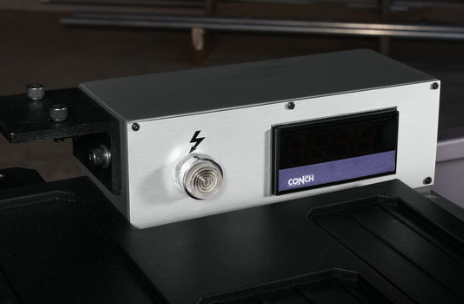

- LED RPM readout allows for precise turning speeds

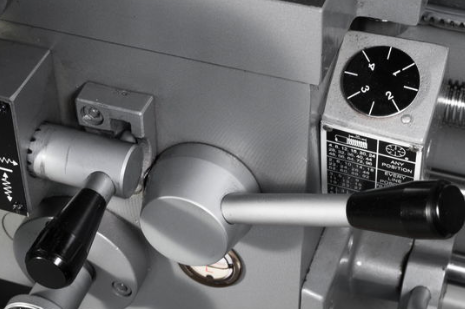

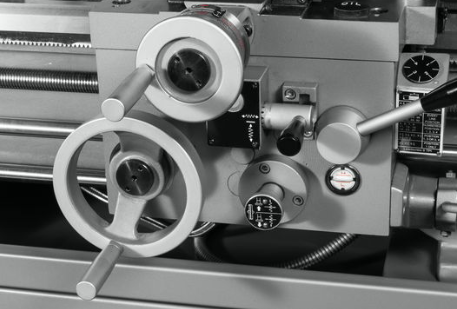

- Spindle actuation control is apron mounted
- Gap bed section provided for larger diameter work

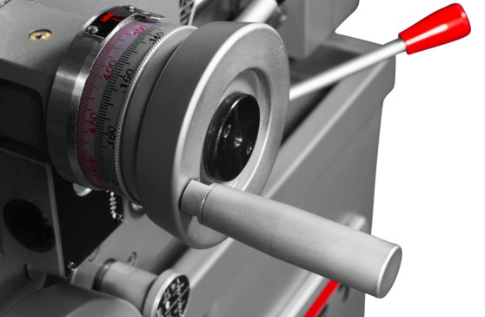

- Compound and cross slide have backlash elimination

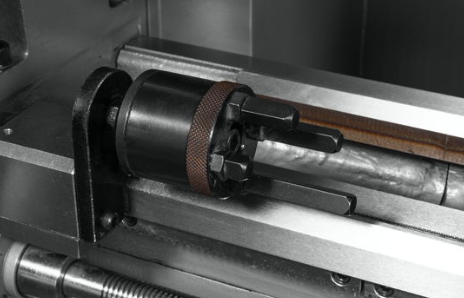

- Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
- Front removable chip tray
- Spindle jog button for easy gear engagement and spindle inching
- Coolant system

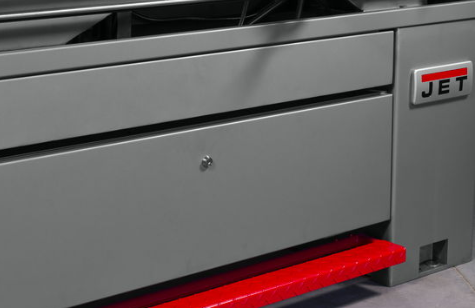

- Integrated locking tool storage cabinet in the stand
- Full length splash guard
- Standard Accessories

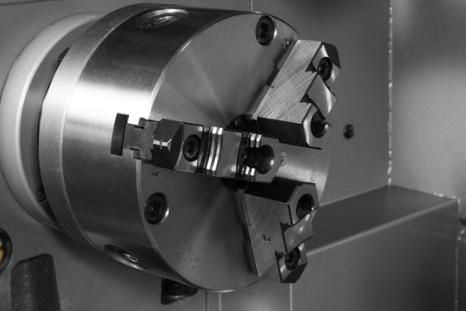

- 6" 3-Jaw Chuck
- Treading Dial Indicator
- Coolant Pump

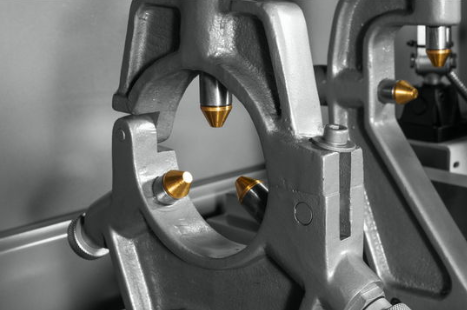

- Steady & Follow Rest
- Metric Change Gears

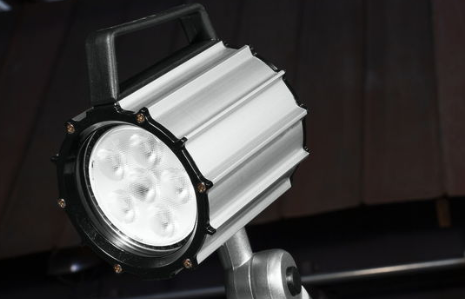

- LED Work Lamp
Specificaitons:
- Swing Over Bed (In.) 14
- Swing Over Cross Slide (In.) 9-1/16
- Swing Through Gap (In.) 19- 1/2
- Length of Gap (In.) 9-1/2
- Distance Between Centers (In.) 40
- Spindle Bore (In.) 1-1/2
- Spindle Mount D1-4
- Number of Spindle Speeds Variable
- Range of Spindle Speeds (RPM) 40-2000
- Spindle Taper with Sleeve MT-5
- Number of Longitudinal and Cross Feed Rates 25
- Range of Longitudinal Feeds (IPR) 0.0016-0.0460
- Range of Cross Feeds (IPR) 25
- Number of Inch Threads 34
- Range of Inch Threads (TPI) 2-56
- Number of Metric Threads 34
- Range of Metric Threads 0.5-12
- Max Tool Size (In.) 3/4 x 3/4
- Compound Slide Travel (In.) 3-1/2
- Cross Slide Travel (In.) 7
- Tailstock Spindle Travel (In.) 6-1/8
- Taper in Tailstock Spindle MT-3
- Follow Rest Capacity (In.) 0.35 - 2.2 Cooper Shaft (standard ) 0.393 - 2 Bearing Roller(OP)
- Steady Rest Capacity (In.) 0.23-0.61 Copper Shaft ( Standard) 0.20-2.36 Bearing Roller(OP)
- Width of Bed (In.) 7.48
- Motor (HP) 3HP, 230/460V, 3Ph
- Overall Dimensions (L x W x H) (In.) 68.5 x 28.3 x 50
- Shipping Dimensions (L x W x H) (In.) 76 x 30 x 61
Red Assurance 2-year Warranty:
JET Tools warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools.
.png)
Specifications
Specifications
| Jet EVS-1440B EVS Lathe 3HP, 230V, Single Phase 311440 | |
| APPLICATION | Wood Working / Metal Working |
| BRAND COMPATIBILITY | JET |
| Brand | Jet |
| HEIGHT | 50 in |
| HORSEPOWER | 3.0 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Lathes - Metal Working |
| TOOL TYPE | Lathes |
| VARIABLE SPEED | Yes |
| VOLTAGE | 208V-240V 3Ph |
