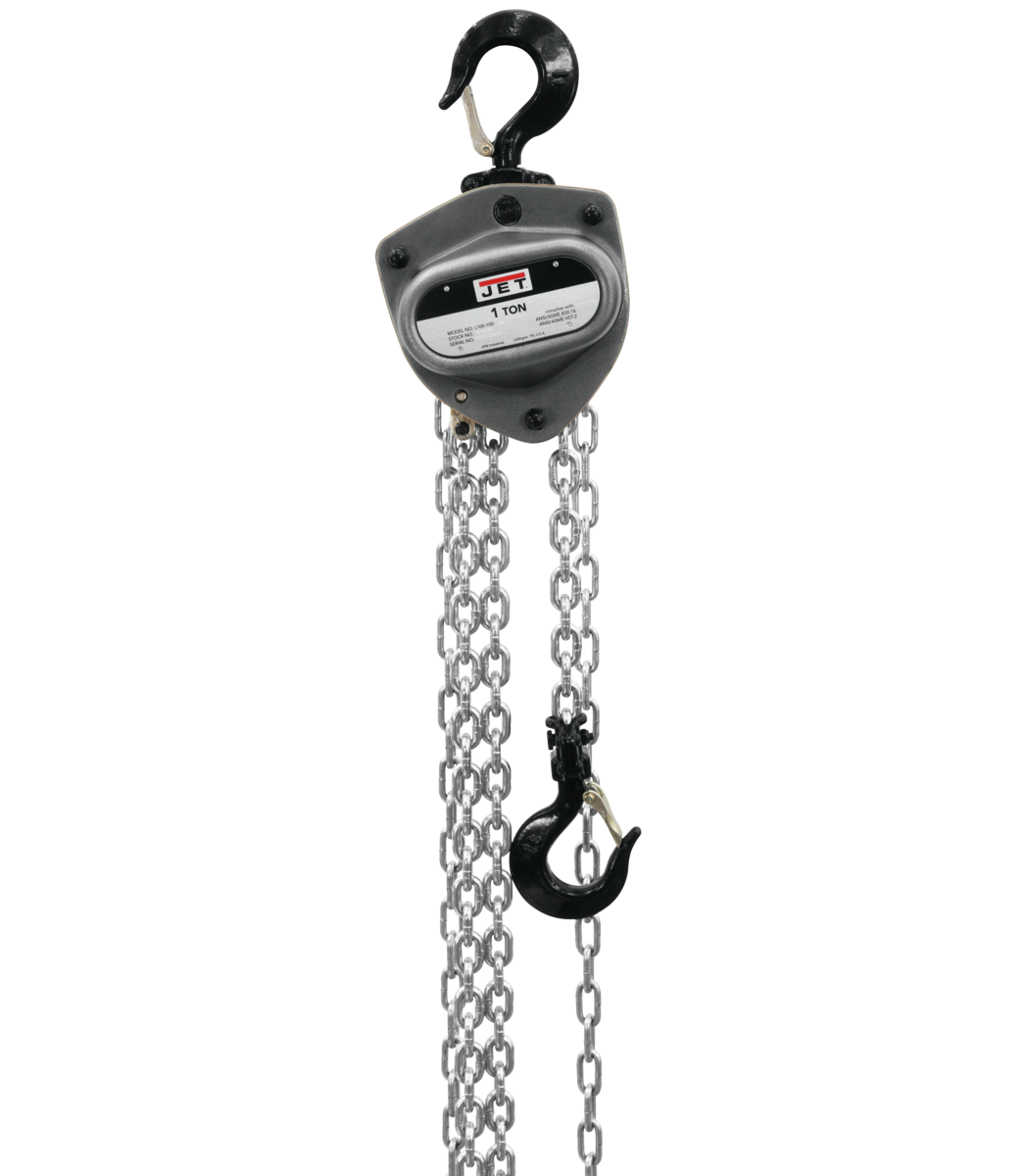

Jet L100-100WO-60, 1 Ton Hand Chain Hoist with 60 ft. Lift and Overload Protection 203160
Jet L100-100WO-60, 1 Ton Hand Chain Hoist with 60 ft. Lift and Overload Protection 203160
Couldn't load pickup availability
Details
Details
Jet L100-100WO-60 1 Ton Hand Chain Hoist with 60 ft. Lift and Overload Protection 203160
The Jet L100-100WO-60 (Stock Number: 203160) is a heavy-duty 1-ton hand chain hoist designed specifically for applications requiring extended vertical reach. With a 60-foot lift capacity and factory-integrated overload protection, this unit ensures operational safety in high-bay industrial environments, construction sites, and maintenance operations. The hoist features an all-steel construction with a compact design, making it ideal for low-headroom applications where durability and space are critical factors.
Features & Benefits
- Integrated Overload Protection: A slip-clutch mechanism prevents the hoist from lifting damaging loads beyond its rated capacity, increasing safety for the operator and the equipment.
- 60-Foot Lift Capacity: Engineered with 60 feet of Grade 100 load chain to handle deep-shaft or high-elevation lifting tasks often found in wind energy and industrial construction.
- Fused Brake System: The patented brake design fuses the ratchet gear, friction discs, and hub into a single assembly, eliminating common maintenance errors and backed by a Lifetime Replacement Warranty.
- Grade 100 Load Chain: Utilizes corrosive-resistant zinc-plated Grade 100 chain, which has a smaller link diameter and is 20% stronger than standard Grade 80 chain.
- Cast Steel Safety Latches: Hooks are equipped with heavy-duty cast steel latches secured by Allen screws and lock nuts, providing superior durability compared to stamped steel alternatives.
- Precision Operation: Double-sealed ball bearings support the load sheave, increasing efficiency and requiring only 64 lbs of pull force to lift the full 1-ton load.
- Safety Compliance: Load tested to 125% of capacity and complies with ANSI/ASME B30.16 and HST-2 standards.
Applications
Ideal for vertical lifting in wind turbine maintenance, multi-story construction, boiler rooms, and industrial facilities requiring long-lift capabilities.
Compatible Accessories
- Jet JBC-1 Beam Clamp (252710): 1-Ton capacity clamp for secure mounting to I-beams.
- Jet 1-PT Plain Trolley (252010): 1-Ton manual push/pull trolley for horizontal mobility.
- Jet 1-GT Geared Trolley (120362): 1-Ton geared trolley for precise load positioning.
Specifications
- Model Number: L100-100WO-60
- Stock Number: 203160
- Load Capacity: 1 Ton (2,000 lbs)
- Lift Height: 60 Feet
- Headroom: 11-5/8 Inches
- Load Chain Material: Grade 100 (Zinc Plated)
- Hand Chain Overhaul: 43 ft. to lift load 1 ft.
- Force Required to Lift Max Load: 64 lbs
- Product Weight: Approx. 90 lbs
What's Included: Jet L100-100WO-60 Hoist, Safety Hooks, 60 ft. Load Chain, Load Test Certificate.
Specifications
Specifications
| Jet L100-100WO-60, 1 Ton Hand Chain Hoist with 60 ft. Lift and Overload Protection 203160 | |
| APPLICATION | Concrete / Wood Working / Metal Working |
| BRAND COMPATIBILITY | JET |
| Brand | Jet |
| POWER SOURCE | Manual |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Hoists |
