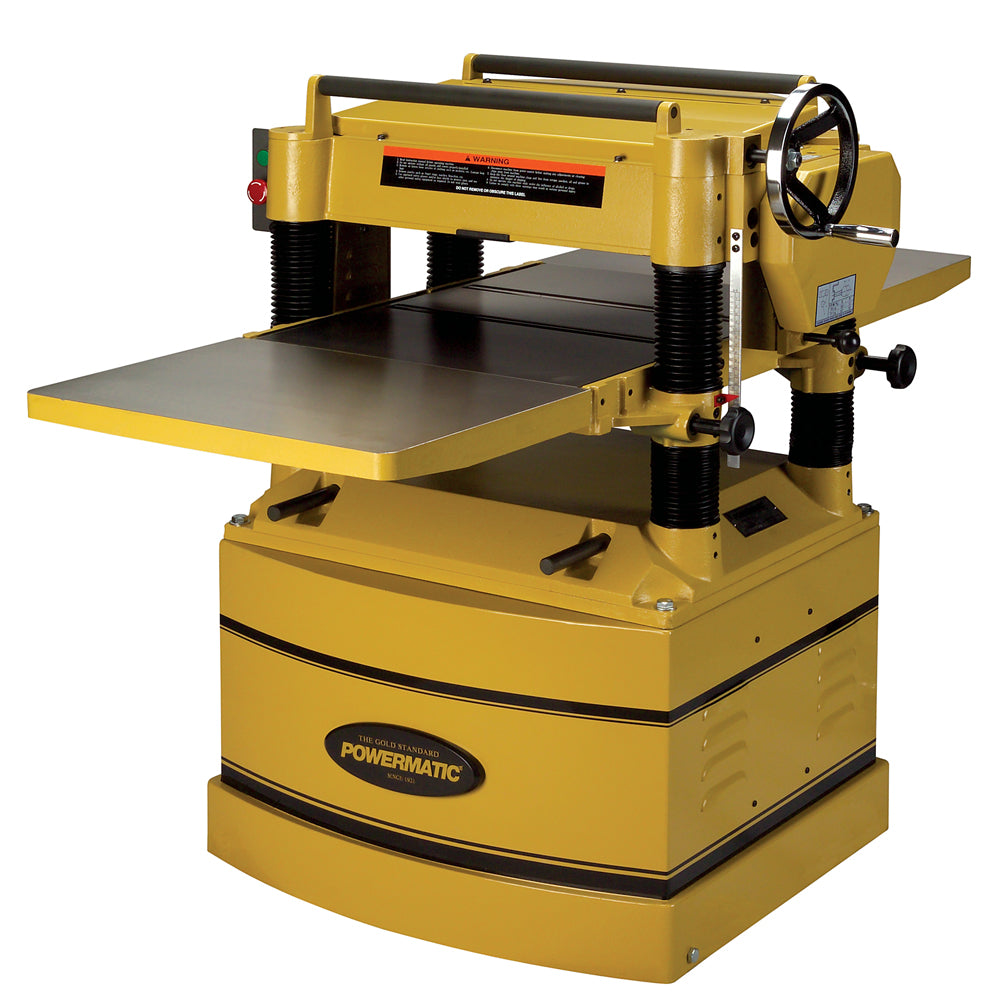

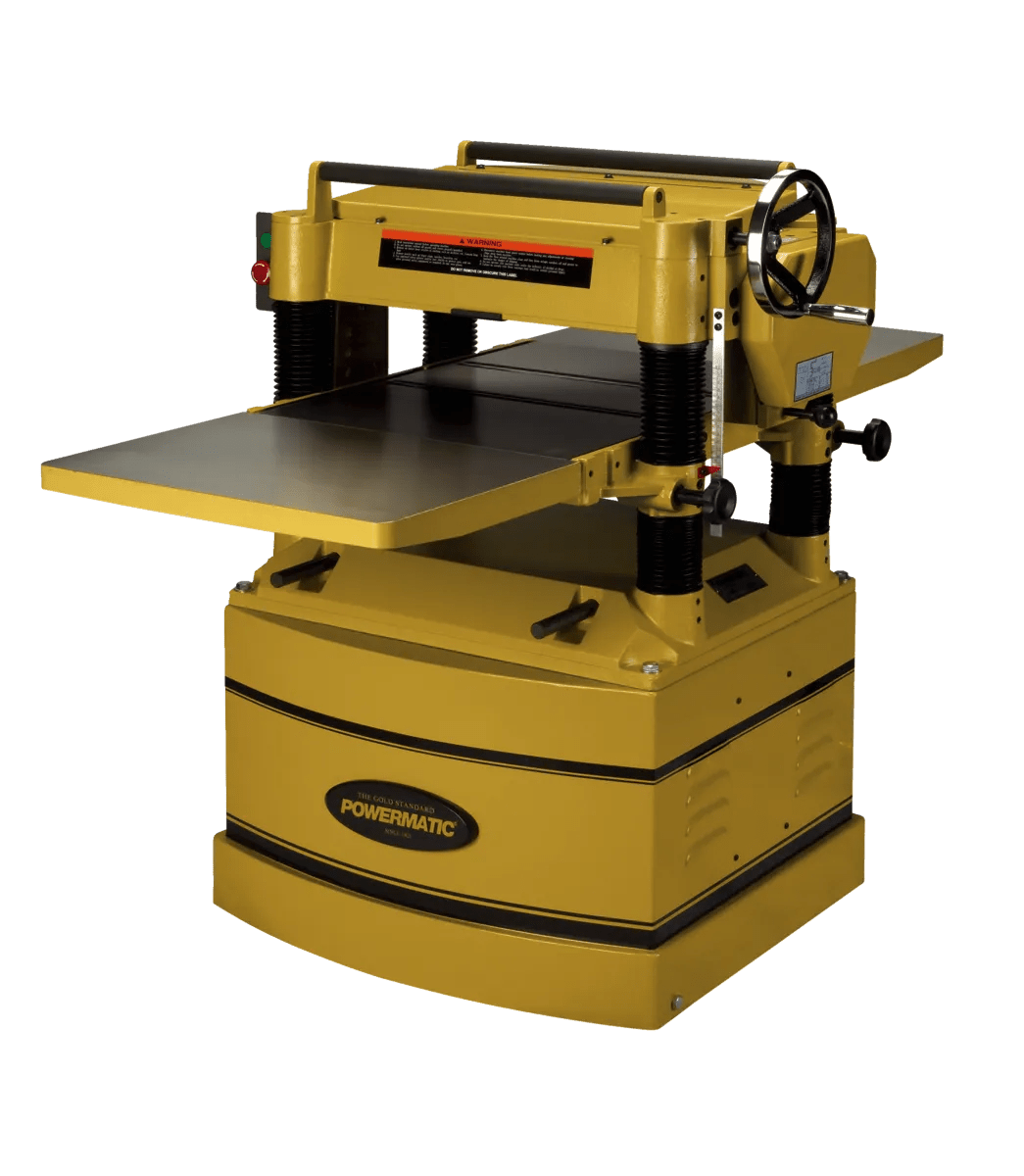

The Powermatic 209 20-inch planer with 230V single-phase power is a proven solution for professional shops that require dependable performance and precision surfacing. Powered by a 5 HP motor, this planer is built to handle demanding workloads and wide stock with consistent results. The 20-inch planing capacity improves efficiency when processing larger boards, making it well suited for cabinetmaking, furniture production, and general woodworking applications. Its straight-knife cutterhead is equipped with four high-speed steel knives that rotate at 5,000 RPM, delivering up to 20,000 cuts per minute for smooth, accurate material removal. Dust collection is supported through a 5-inch port that connects easily to standard systems, helping maintain a cleaner work area. Stock control and safety are enhanced by anti-kickback fingers and a pressure bar positioned close to the cutterhead for reliable feeding and improved surface quality. Heavy cast iron construction throughout the base, table, and head provides rigidity and vibration reduction, while the precision-ground cast iron table is supported by four steel columns to stabilize larger workpieces. Feed rates are driven by a two-speed oil-bath gearbox offering 24 and 31 feet per minute, with an included gear allowing conversion to slower speeds of 16 and 20 FPM for finer finishing. Corrugated infeed and fine-groove outfeed rollers ensure smooth, consistent stock movement from start to finish.

Features & Benefits

• 5 HP single-phase motor operating on 230V provides the power needed for continuous planing of wide stock in professional woodworking shops
• 20-inch planing capacity supports larger boards, reducing the number of passes required when surfacing wide material

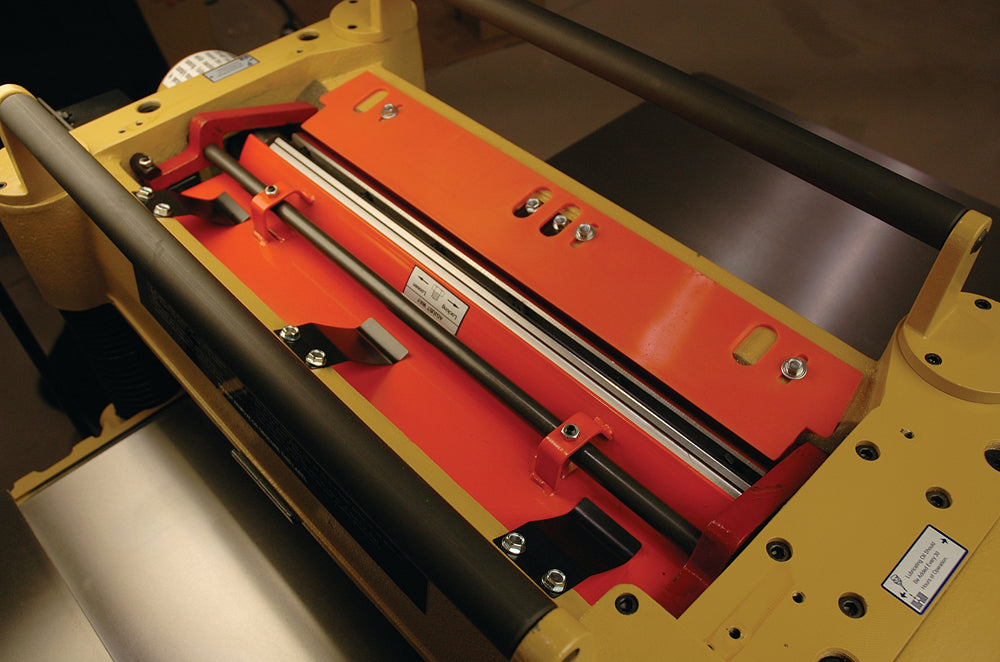

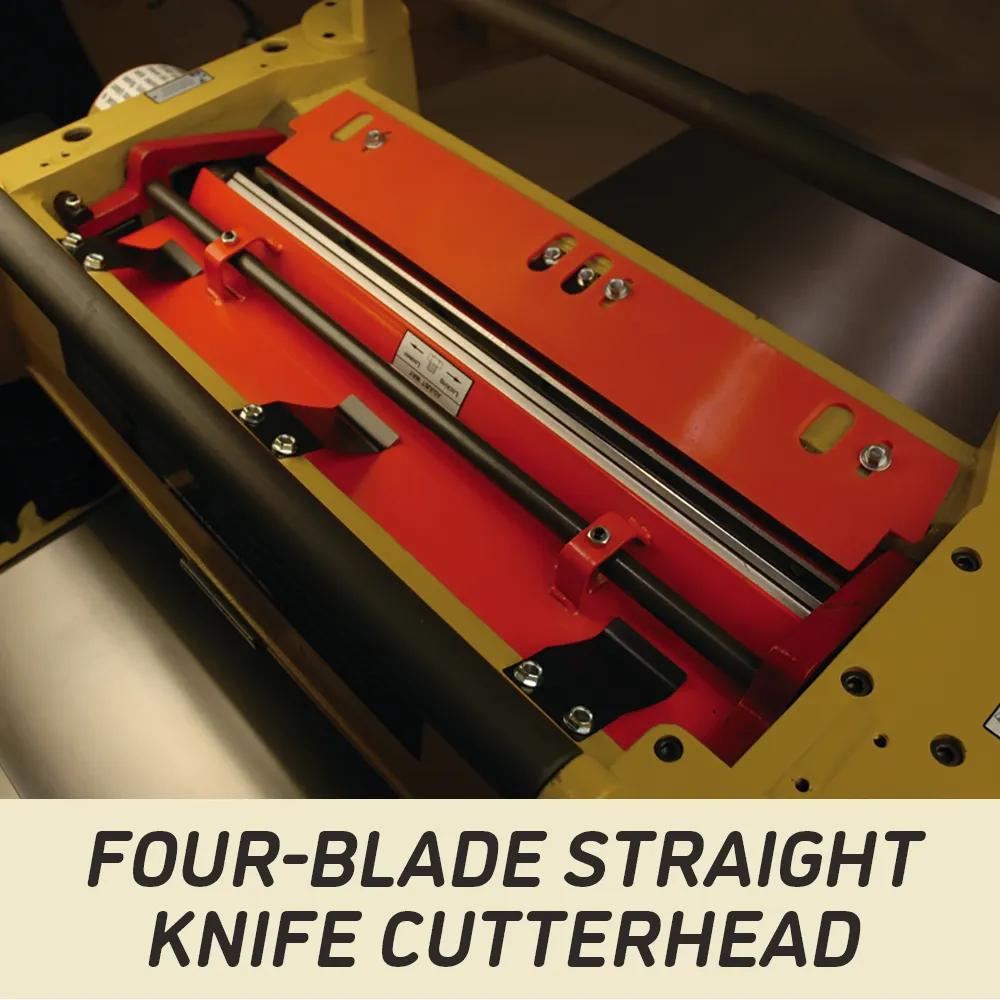

• Straight-knife cutterhead with four high-speed steel knives spins at 5,000 RPM to deliver up to 20,000 cuts per minute for smooth material removal

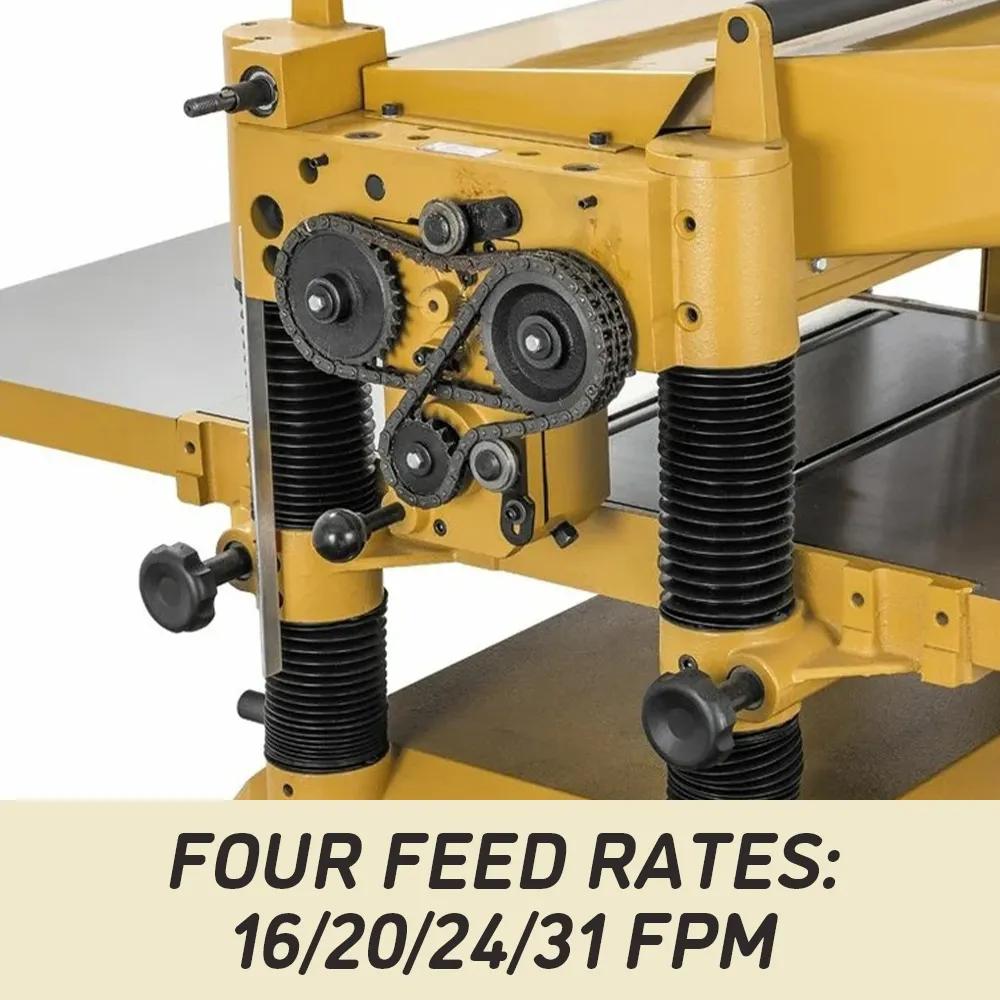

• Two-speed oil-bath gearbox offers feed rates of 24 and 31 FPM, with included gearing for slower speeds of 16 and 20 FPM when finer finishes are required
• Solid cast iron base, table, and head increase machine rigidity and help reduce vibration during heavy planing operations
• Precision-ground cast iron table with extension wings creates a wide, stable work surface for accurate support of long or heavy workpieces
• Anti-kickback fingers and closely positioned pressure bar help maintain controlled stock movement and consistent surface results

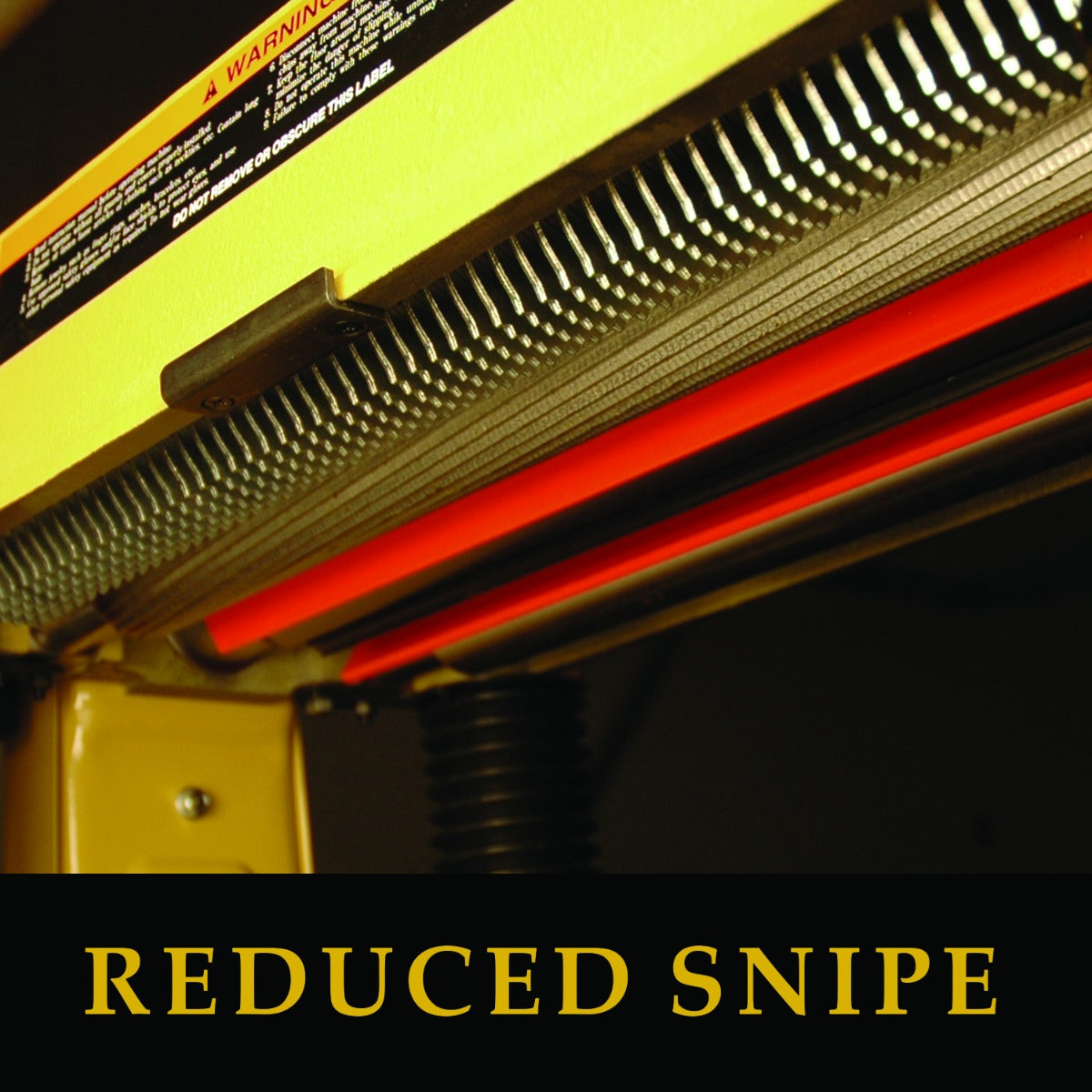

• Corrugated steel infeed roller and fine-groove outfeed roller promote smooth, reliable feeding across varying stock thicknesses
• 5-inch dust port connects directly to dust collection systems to support effective chip removal during planing
