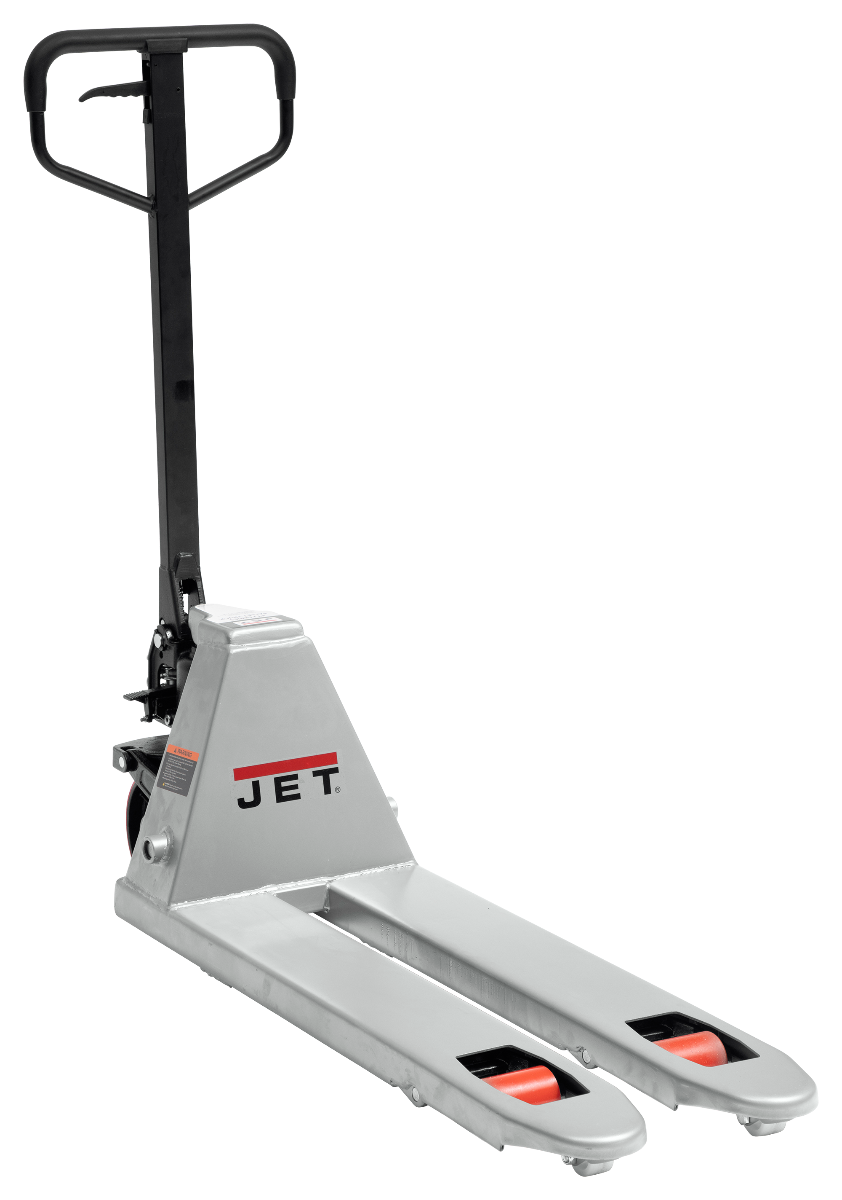

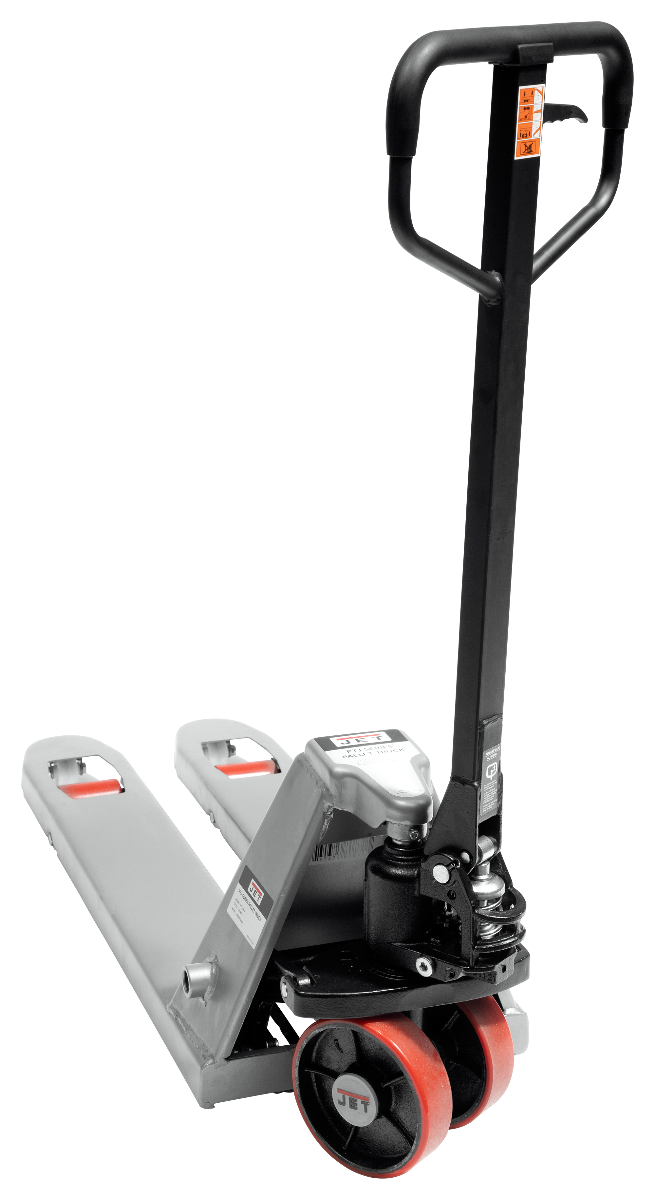

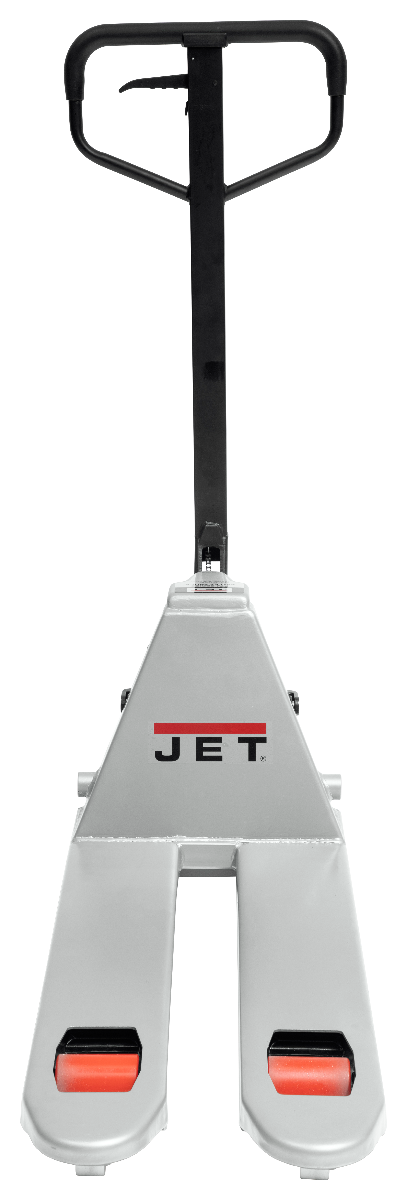

161003 Jet PT-1636J, 16in x 36in Mini Pallet Truck With 5500 LB Capacity
JET® J Series Pallet Trucks are available in 6 different configurations. Each JET J Series Pallet Truck has a low profile of 2-1/2 inches, varying widths of 16 to 27 inches, and multiple lengths from 36 to 48 inches. High quality welded steel construction allows for capacities up to 5,500 pounds. The 180 degree turning radius increases maneuverability and the easy-to-use fingertip controls permit single handed operation. JET J Series Pallet Trucks are built to handle heavy lifting.
Features:
- Capacity: 5,500 pounds

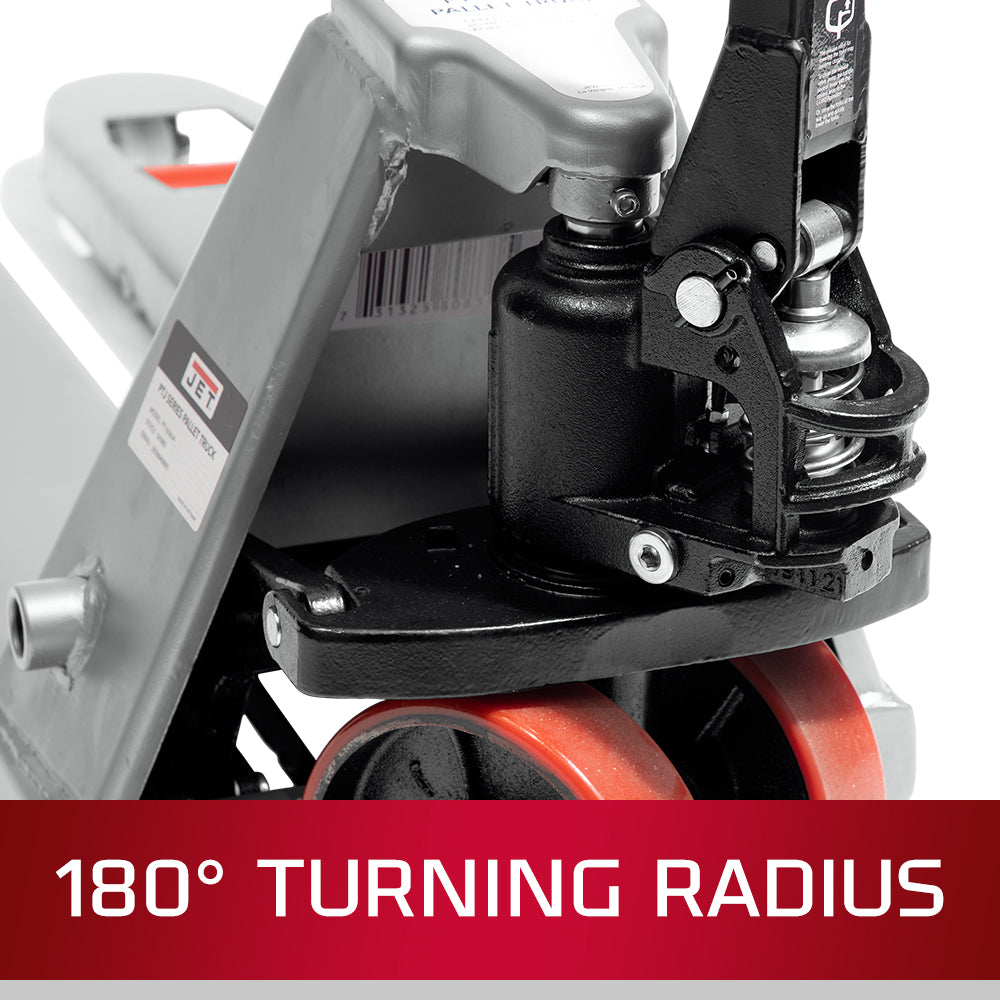

- Turning Radius: 180 degrees
- 2/12 inch low profile allows for easy engagement of pallets
- Pumps designed for any industrial environment
- Lower material in a controlled decent with either hand or foot control for operator convenience
- Overload Protection prevents lifting loads past maximum capacity

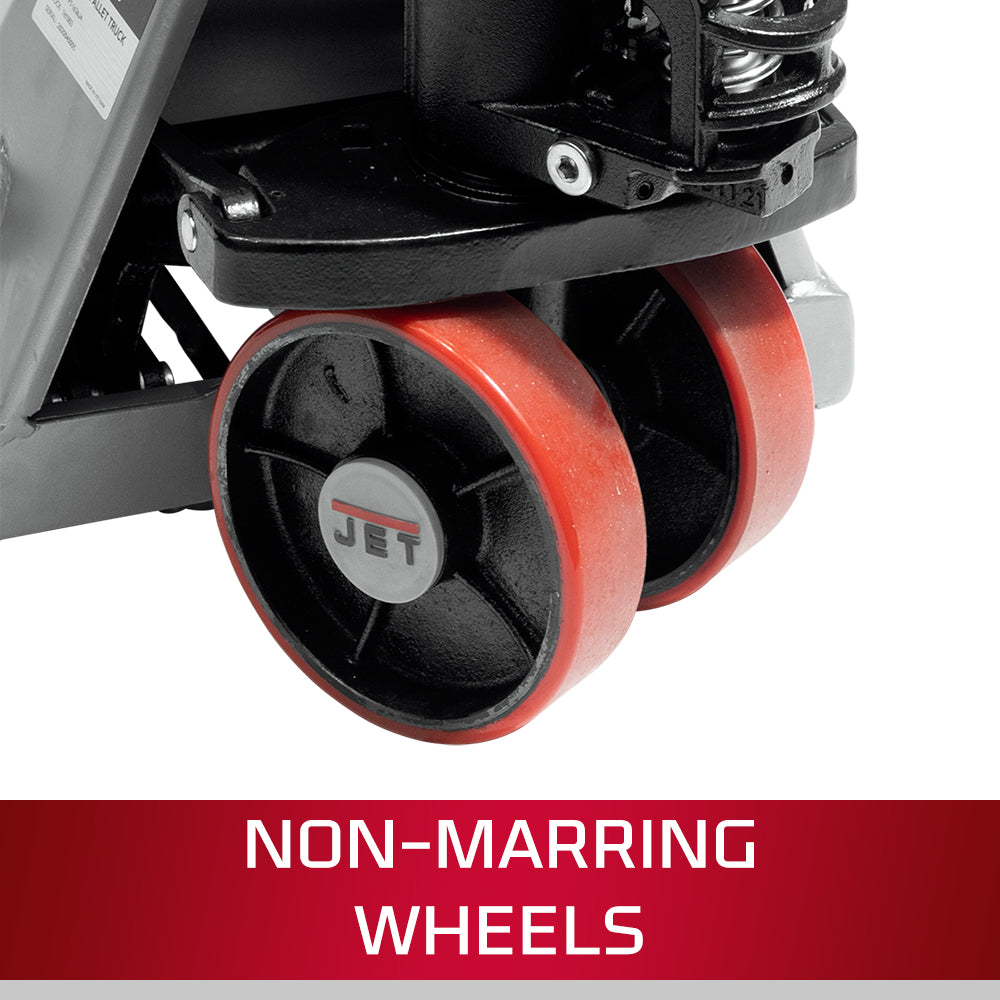

- Polyurethane 6-1/4 x 2 inch steer wheels for non marking of floors and quieter rolling
Specifications:
- Overall Dimensions (L x W x H) (In.) 51 x 16 x 45-1/8
- Capacity (Lbs.) 5500
- Overall Fork Dimensions (L x W) (In.) 36 x 16
- Steer Wheel Size (In.) 6-1/4 x 2
- Fork Width (In.) 6-1/3
- Load Wheel Size (OD x W) (In.) 2-1/2 x 3-11/16

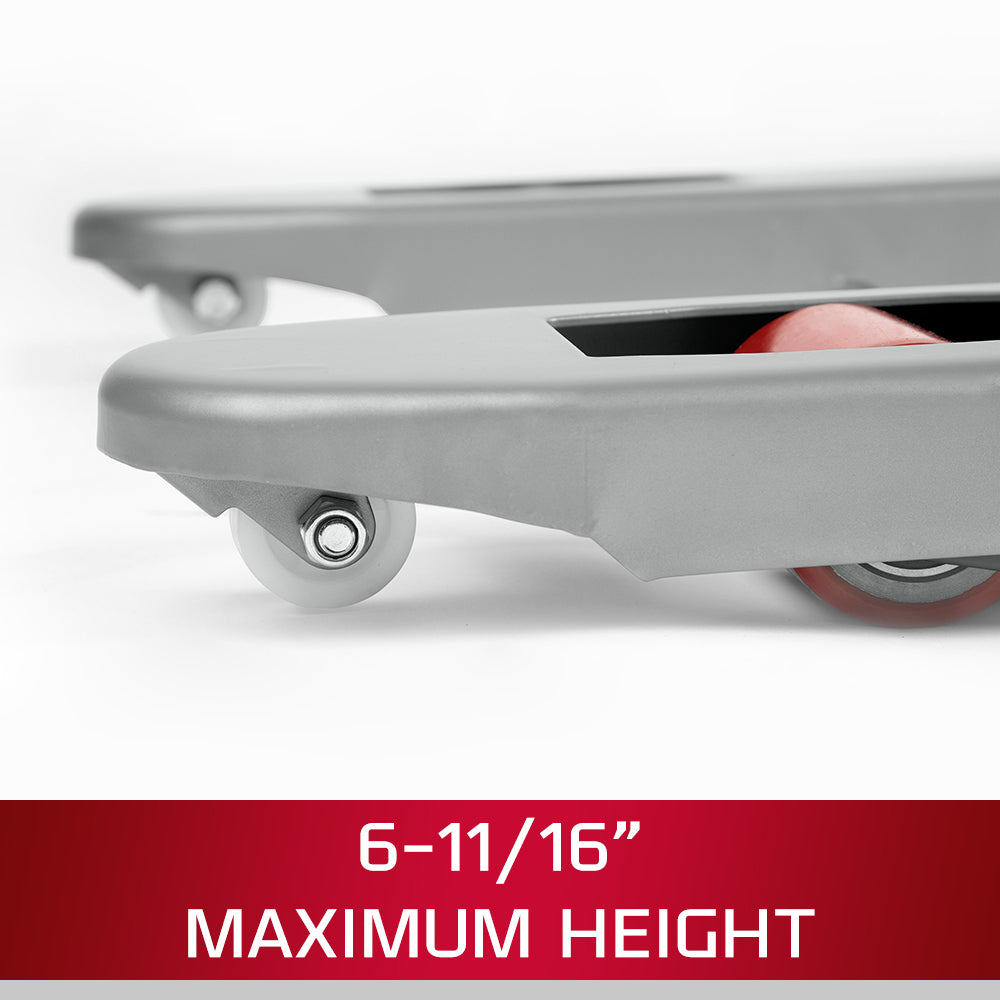

- Maximum Height (In.) 6-11/16
- Lowered Height (In.) 2.56
- W1 Fork Width (In) 6-1/3
- W2 Overall Width (In) 16
- L1 Fork Length (In) 36
- L2 Overall Length (In) 51
- H1 Max. Raised Height (In) 6-11/16
- H2 Min. Raised Height (In) 2-9/16
- A Steer Wheel Dimensions (In) 6-1/4 x 2
- B Fork Wheel Dimensions (In) 2-1/2 x 3-11/16
- C Overall Height (In) 45-1/8
- Weight (Lbs) 118
- Turning Radius (Deg) 180
- Force Required to Pump @ Maximum Load (Lbs) 77
- Force Required to Move Maximum Load (Lbs) 120
- Number of Strokes to Reach Maximum Height 12
