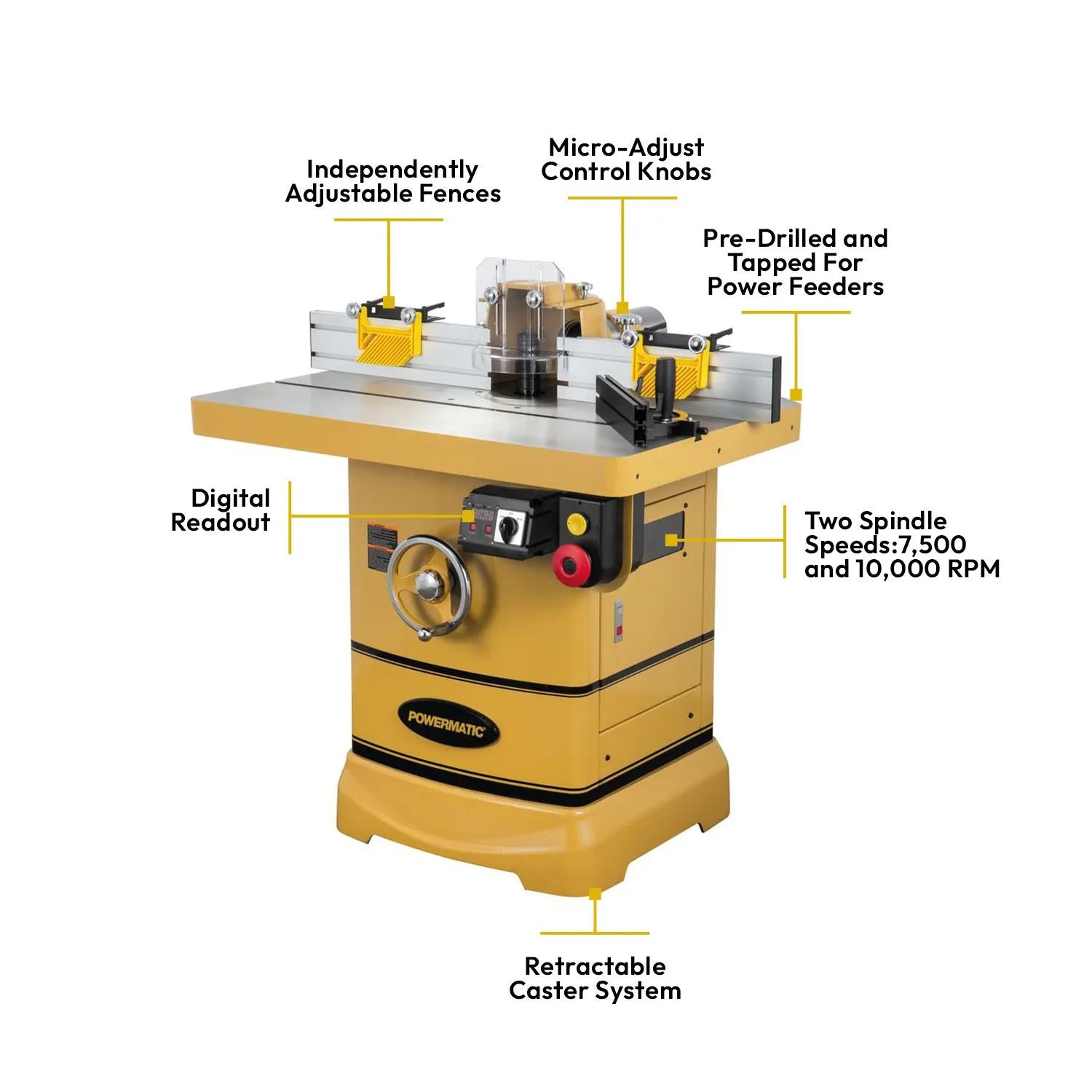

Powermatic PM2700 Shaper with DRO & Casters , 5HP, 3PH, 230/460V 1280102C
Powermatic PM2700 Shaper with DRO & Casters , 5HP, 3PH, 230/460V 1280102C
Low stock
Couldn't load pickup availability
Details
Details

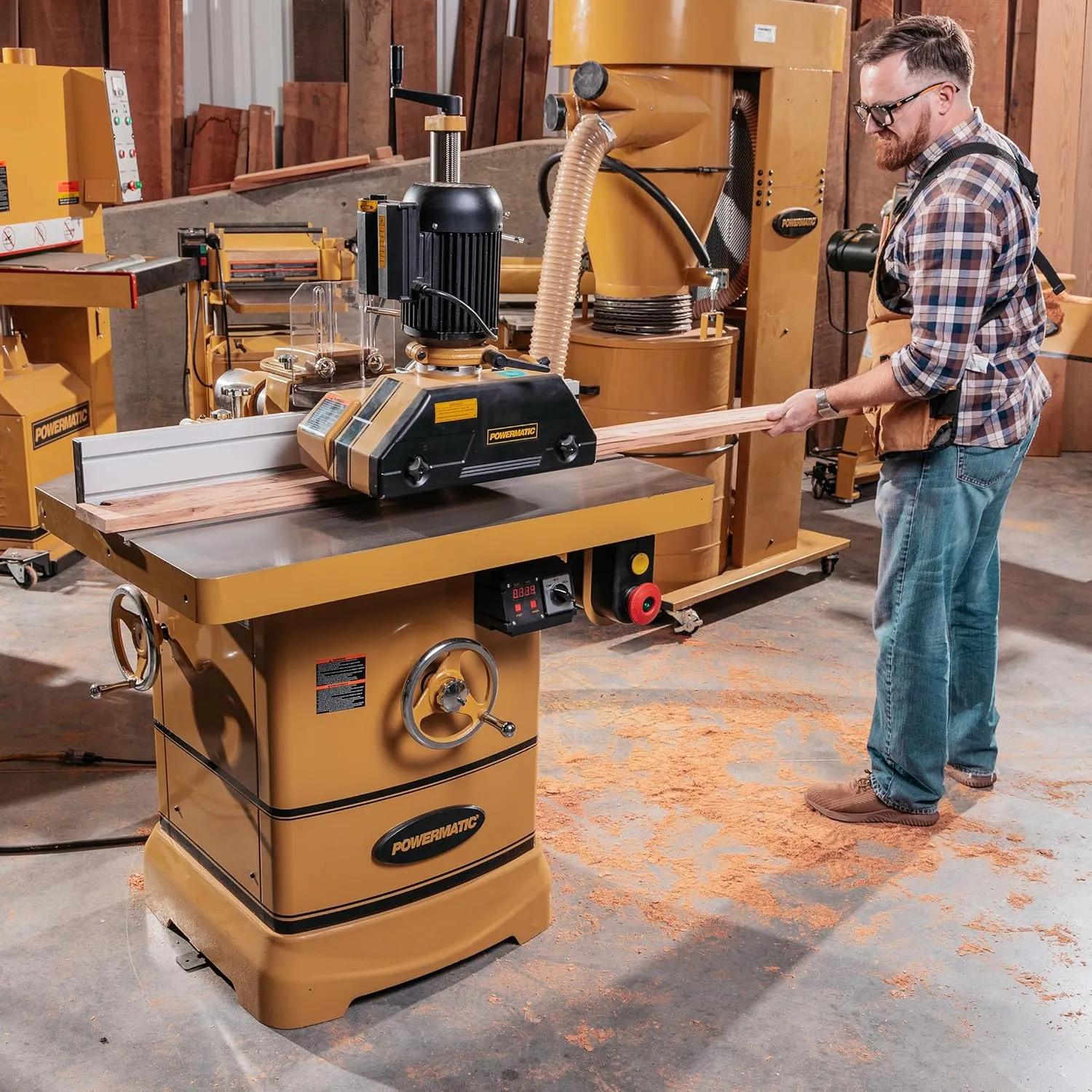

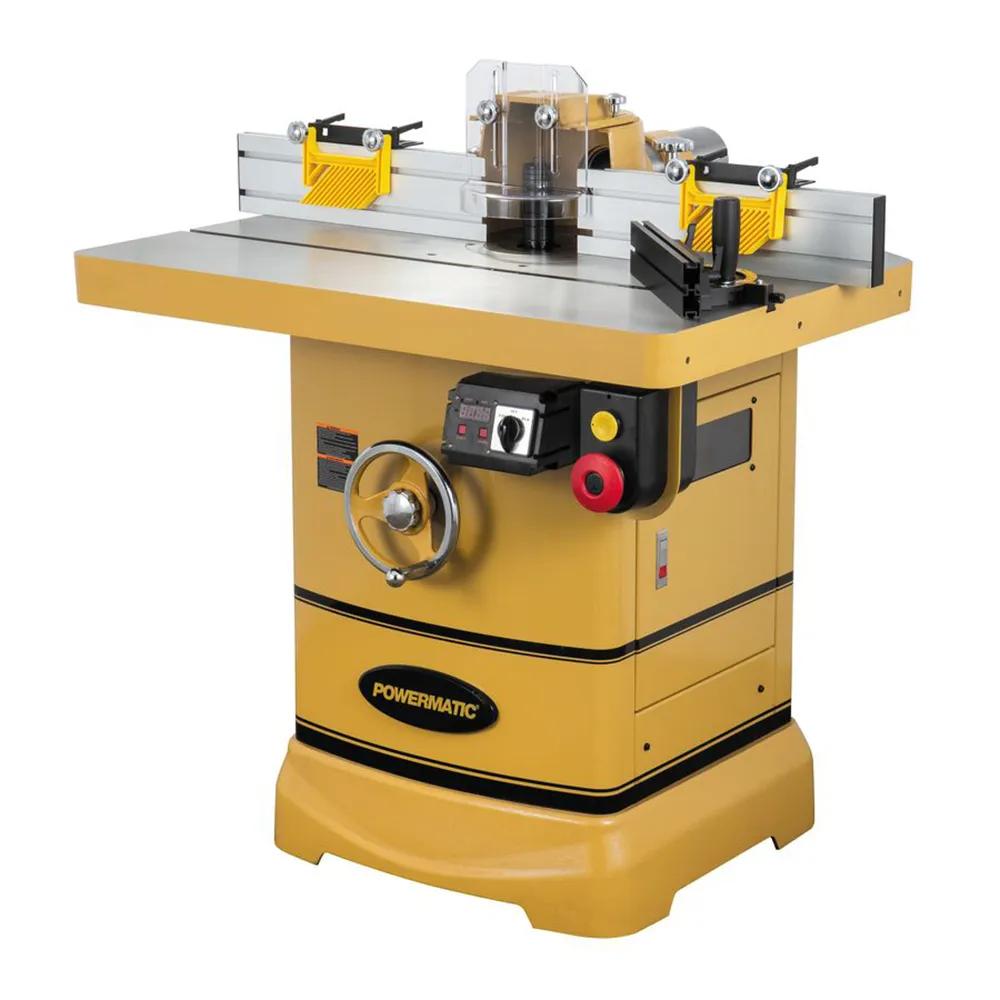

The Powermatic PM2700 Shaper is designed for professional woodworking shops and industrial production environments that require high power, smooth operation, and long-term reliability. Built on the PM2700 platform, this model features a three-phase motor configuration that delivers consistent torque and efficient performance for demanding shaping, profiling, and edge-forming applications.

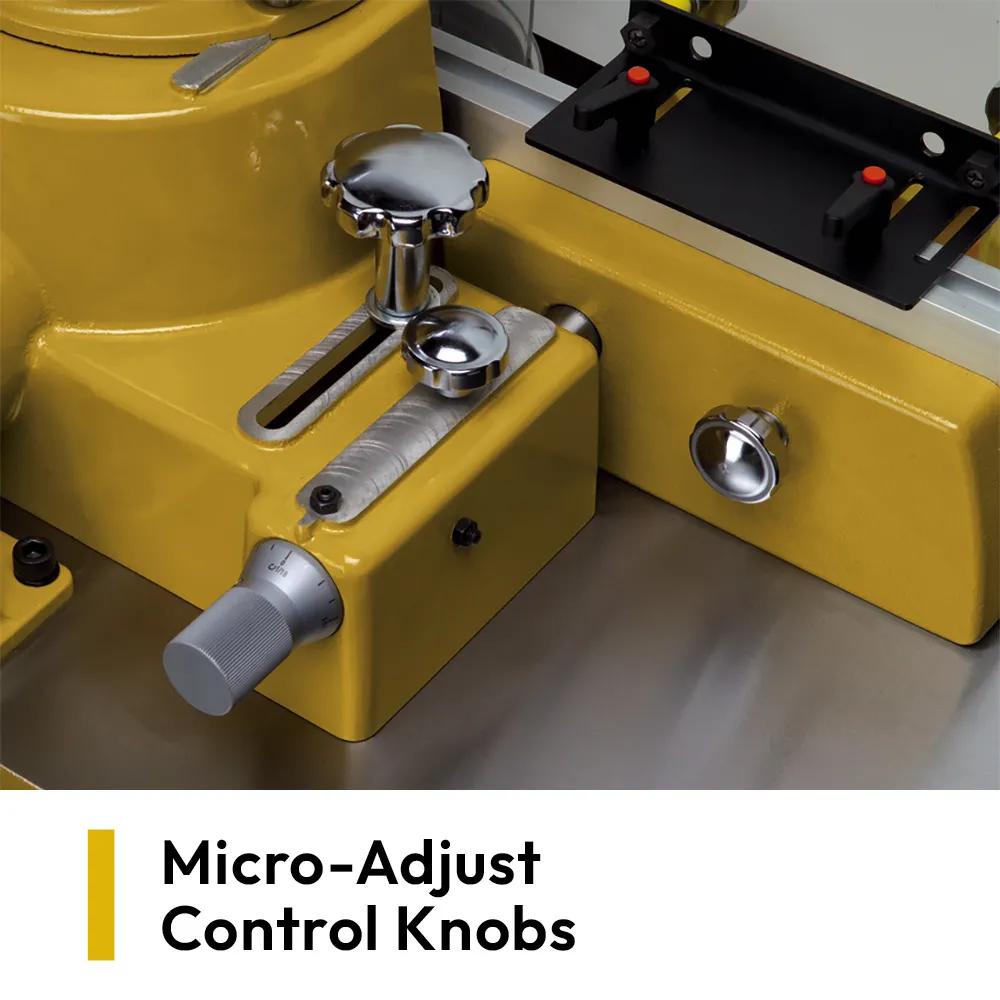

A precision-ground cast iron table provides excellent stability and vibration control, supporting accurate results during extended production runs. The 5 HP industrial-duty motor is engineered for continuous use in commercial and manufacturing environments where performance consistency is critical. User-focused controls and integrated safety features help maintain efficient workflow while supporting operator confidence on the shop floor.
Designed for use in professional workshops and production facilities across North America, the PM2700 Shaper delivers the durability and precision expected from Powermatic equipment. For product information, availability, or ordering assistance, contact Powermatic at 855-657-GOLD.
Features & Benefits
- Three-phase power design supports smooth motor operation and efficient energy use
- Rigid cast iron table construction helps maintain accuracy during high-output production
- High-capacity motor handles larger cutters and demanding shaping applications
- Precision drivetrain components promote consistent spindle performance
- Stable machine platform improves control during extended run times
- Well suited for industrial shops, production facilities, and commercial woodworking environments
Related Products
- PM1280102C-4 - 5-HP Spindle Shaper, 30" x 40" Table, 460V (PM2700)
Specifications
Specifications
| dust port outside diameter in | 4 in. |

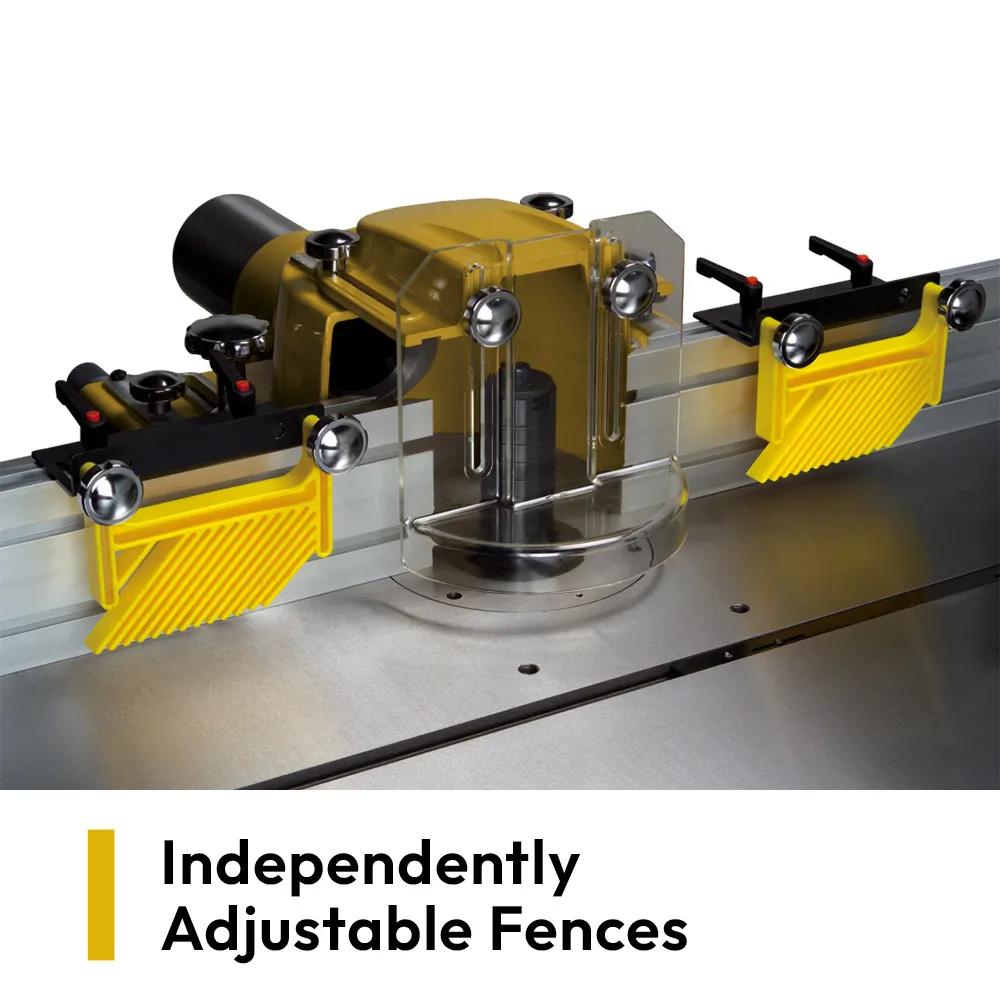

| fence size l x h in | 4-7/8 in. x 18-3/4 in. (2) |
| horse power hp | 5 |
| maximum spindle diameter in | 1-1/4 |
| input power | 230V Three Phase |
| motor amps | 13 |
| motor hp | 5 |
| motor phase | Three |
| motor voltage v | 230 |
| prewired voltage v | 230 |
| recommended circuit size amps | 40 |
| dust collection minimum cfm required cfm | 600 |

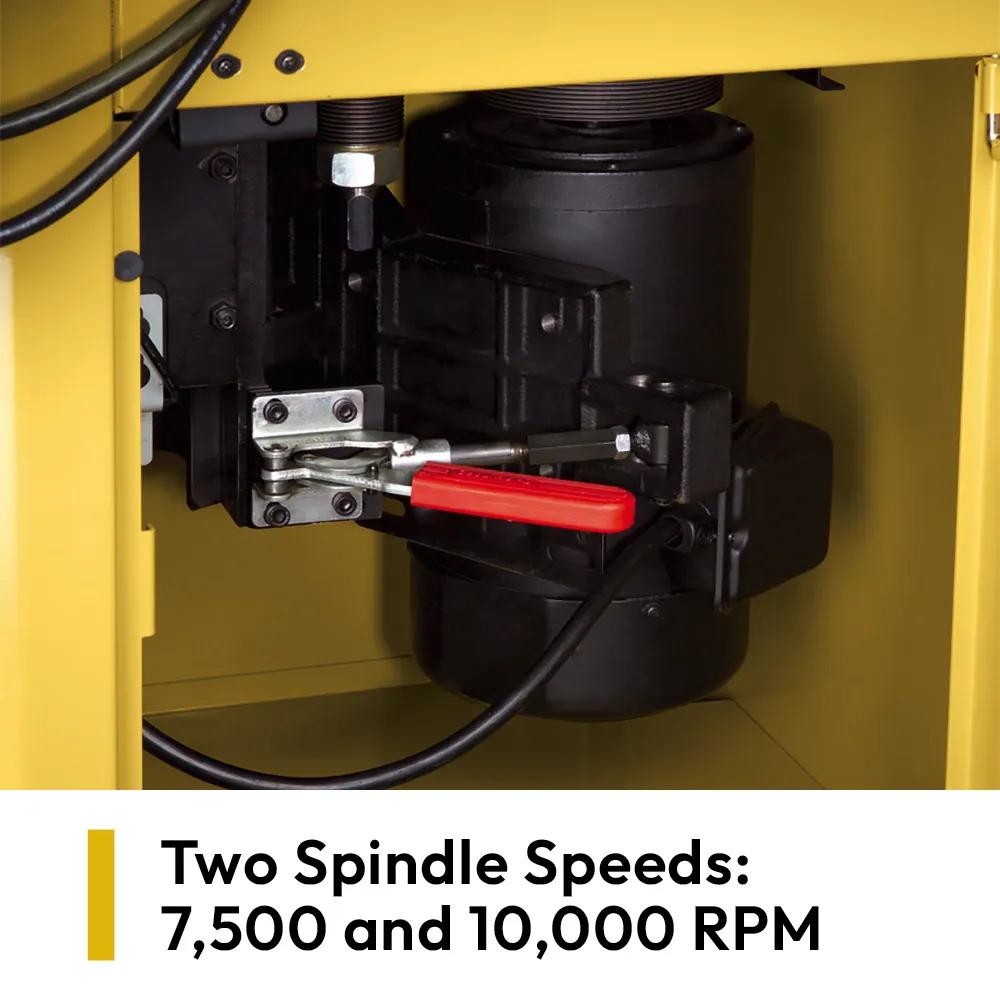

| spindle speed rpm | 7500, 10000 |
| spindle travel in | 4 in. |
| style type | Floor Standing |
| table height from floor in | 35-1/2 |
| table inserts | 3 - 2.55, 4.16, 5.75 |
| table opening diameter in | 7.33 |
| table size l x w in | 40 in. x 30 in. |
| Gross Weight | 690 |
| Net Weight | 664 |
