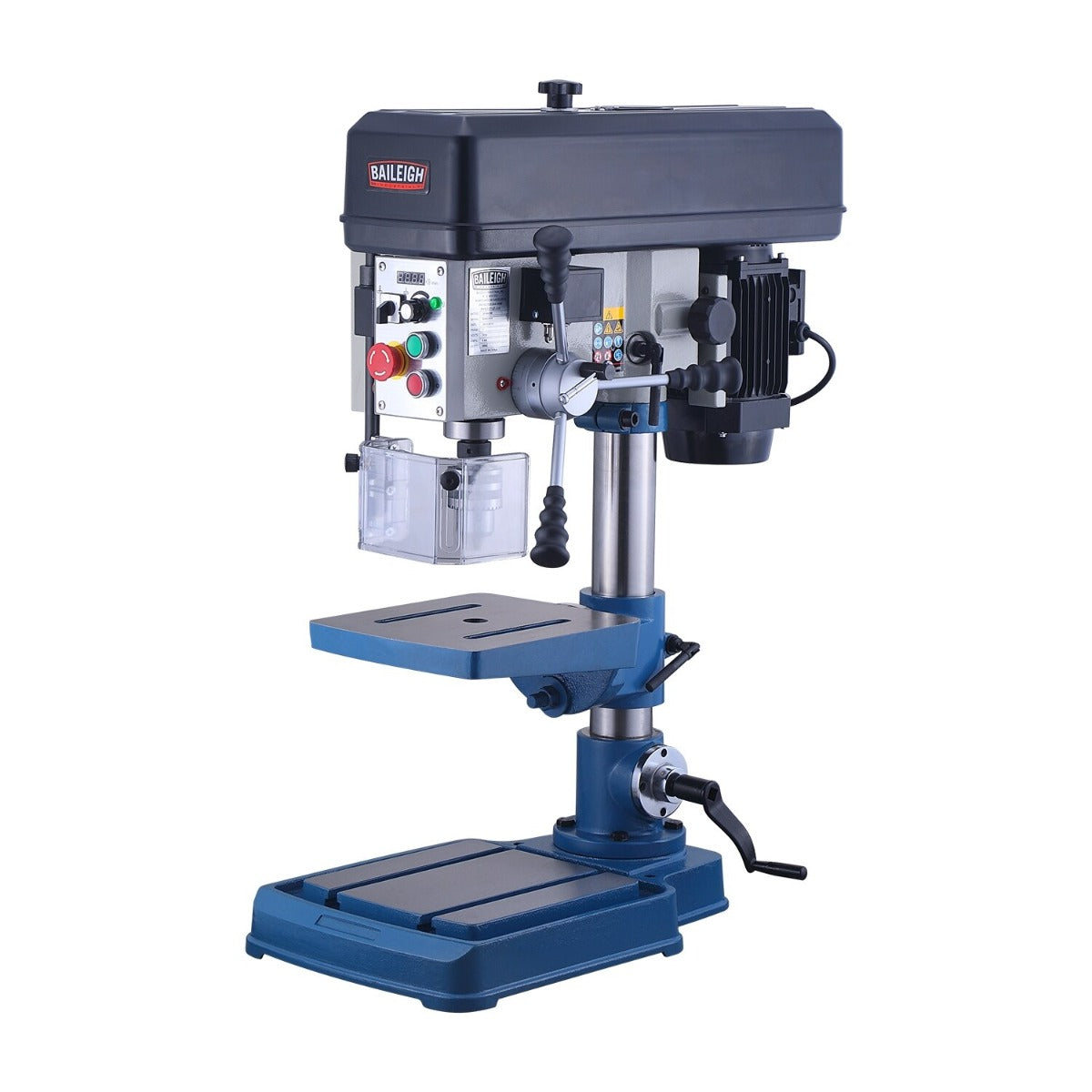

1228213, Baleigh DP-4016B-VS - 16" VARIABLE SPEED BENCH TOP DRILL PRESS
Looking for a small, compact, bench top drill press that has the power to do any task you ask of it including tapping? The DP-4016B-VS is a 16" swing variable speed drill press that might just be what you are looking for. Unlike pulley-driven drills, this 16" drill press lets you run tooling at the proper speed to fit your application and extend tooling life.
Features:
- 3/4 hp motor requires 110-volt power and will work at virtually any shop or site.
- Inverter-driven head drills a maximum capacity of 3/4” steel.
- You can fine-tune the speed in the range from 0 to 2100 rpm to suit your application.
- Auto-reversing tap has a tapping capacity of 1/2” steel.
- 2-3/4" wide steel column eliminates flexing even when drilling at full capacity.

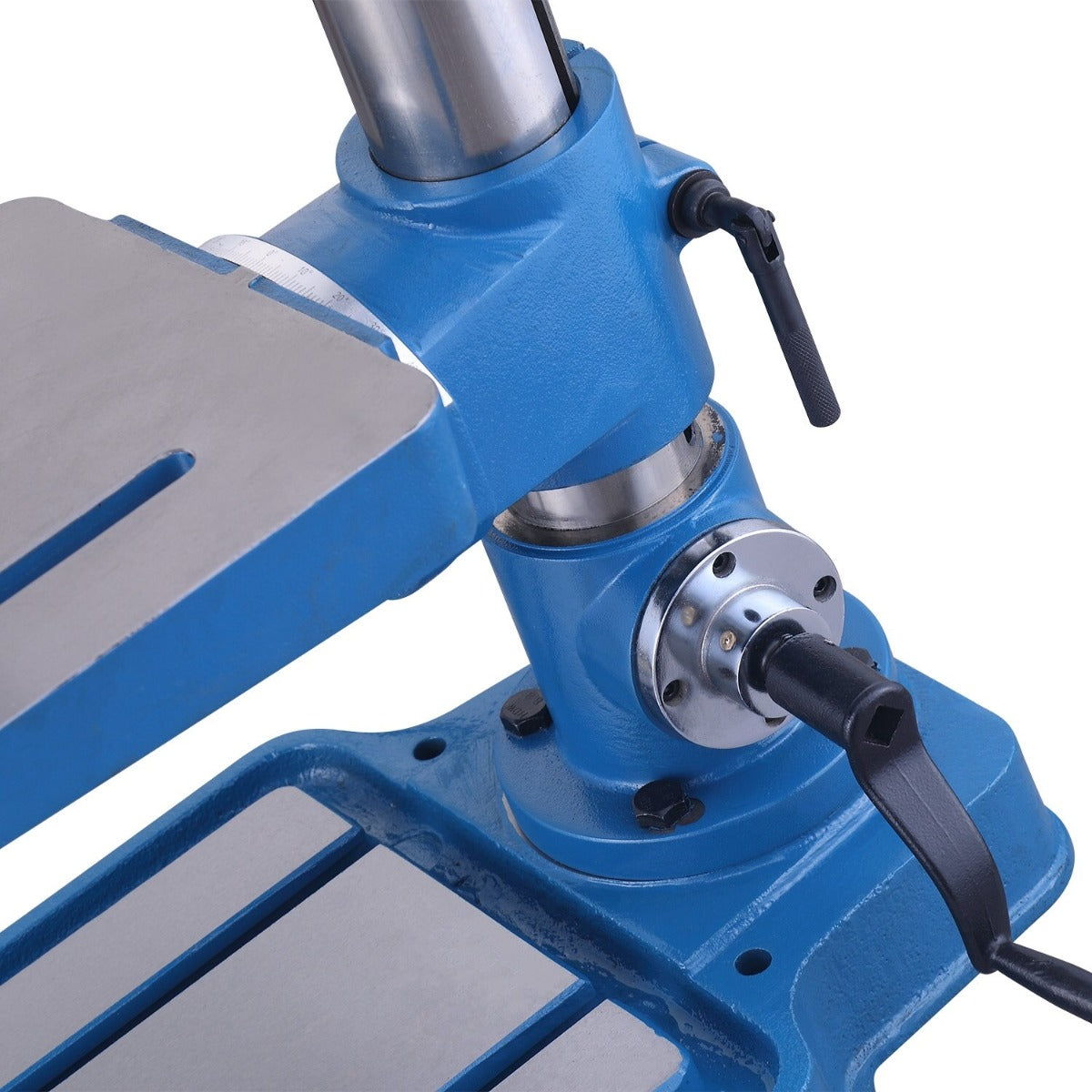

- Rigid cast iron base and table add strength to the drill’s structure.
- The table even tilts left or right to 45 degrees.
- Includes a safety shield around the drill head to protect you.
- Baileigh backs this bench-top drill press machine with a 1-year parts warranty
Specifications:
- Maximum Load Capacity 132 lbs
- Spindle Speeds Variable
- Drilling Capacity 3/4" Mild Steel
- Swing 16"
- Distance from Spindle to Table 13.18"
- Distance from Spindle to Base 22.83"
- Diameter of Column 2-3/4"
- Spindle Taper MT2
- Spindle Travel 3.93"
- Spindle Speed Range 0 – 2100 rpm
- Table Size 11.14” x 9.76”
- Base Size 10.63” x 10.03”
- T-Slot Width 2 @ .531"
- Overall Size 29.13" x 17.52" x 41.33"
- Table Angle Adj L or R 45 Degrees
- Chuck Capacity .03" - .625" (B16)
- Power 110 Volt
- Shipping Weight 275 lbs
- Rotating Head Yes (360 degrees)
- Speeds 16
- Shipping Dimensions (Inches) 48" x 30" x 21"
* specifications subject to change without notice.
Specifications
Specifications
| Baileigh DP-4016B-VS; 110V 16" Variable Speed Bench Top Drill Press, MT-2 Spindle 1228213 | |
| APPLICATION | Wood Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Drills - Drill Presses |
| TOOL TYPE | Drills |
| VARIABLE SPEED | Yes |
| VOLTAGE | 110V-120V |
