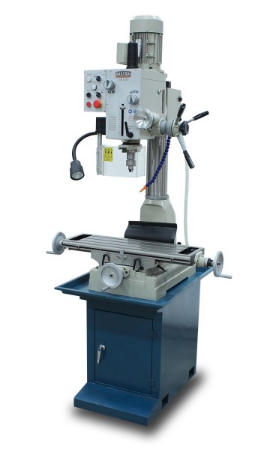

1020692, Baileigh VMD-828G, 110V, VERTICAL MILL DRILL
Don’t have the space for both a gear-driven drill press and a milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.
Features:
- 2 hp motor runs on 110-volt power and will work almost any site.
- 1.5” maximum drilling capacity.
- Includes 29” x 8” milling-style table which expands the machine’s possible uses.

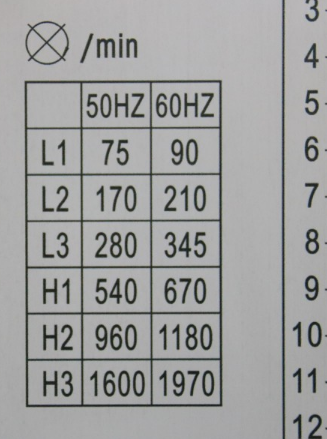

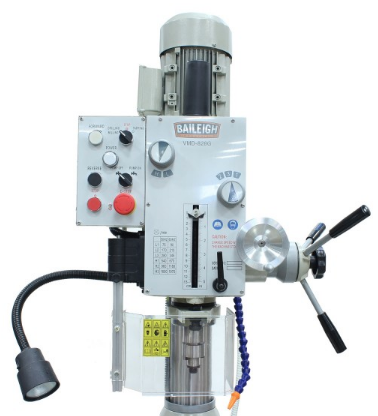

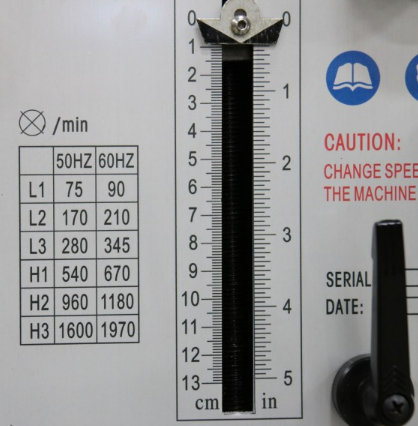

- Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
- Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
Specifications:
- Item Number VMD-828G
- Spindle Speeds 90, 210, 345, 670, 1180, 1970 RPM
- Table Size 28.75" x 8.25"
- Motor 2 hp
- X Axis Travel 19-1/2"
- Y Axis Travel 9"
- Spindle Nose to Base 16.14"
- Spindle Stroke 4-3/4"
- Spindle Taper R8
- T Slots .550"
- Coolant Pump 1/8 hp
- Power 110V
- Shipping Weight 815lbs
- Drill Capacity 1.5"
- Spindle Travel 4.75"
- Shipping Dimensions (Inches) 60x44x51
* specifications subject to change without notice.
Specifications
Specifications
| Baileigh VMD-828G; Round Column Geared Head Mill and Drill, Includes Stand, 2HP, 110V, Single Phase 1020692 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| HORSEPOWER | 2 HP |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL TYPE | Milling Machines |
| VOLTAGE | 110V-120V |
