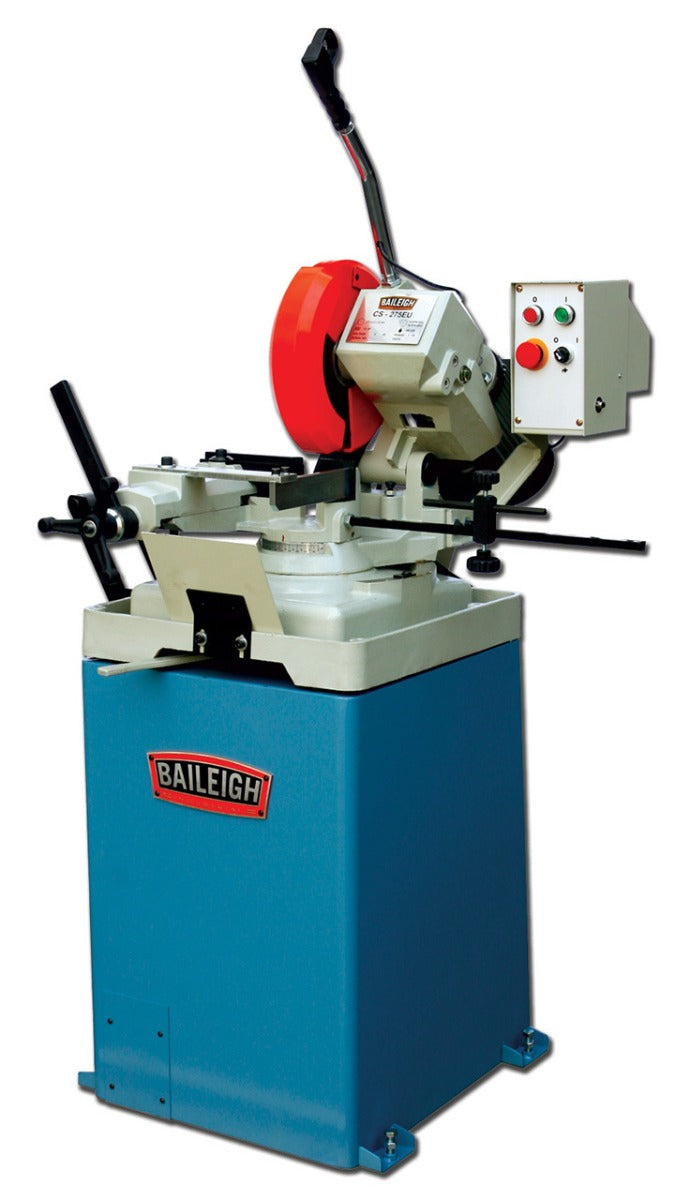

Baileigh CS-275EU; 11" 275mm Cold Saw with Cam-Lock ViSe 1-1/2HP, 110V, Single Phase 1002434
Baileigh CS-275EU; 11" 275mm Cold Saw with Cam-Lock ViSe 1-1/2HP, 110V, Single Phase 1002434
Couldn't load pickup availability
Details
Details
1002434, Baileigh 110 VOLT 11IN COLD SAW
The CS-275EU makes pristine cuts as only a cold saw can. It’s ideal for light metal fabrication and chassis. A cast iron base and flood coolant system ensure a long lifetime of use.
Features:
- Accepts an 11” blade (included).
- 3.25” round tube capacity at 90°, big enough for just about any chassis project.
- Miters up to 45° left and right.
- Dual-mitering head lets you tackle various shapes and materials like pipe, angle iron, and solid bar.
- Blade turns at 54 rpm.
- Robust 1.5 hp motor runs on 110-volt power, so you can use it anywhere.
- Fully cast iron head will deliver clean cuts for many years.
- European-style vise with a cam lock allows for fast material loading and unloading.
- Vise supports the material on opposite sides of the blade to maintain high cut quality.
- Material stop rod lets you conveniently set up repeatable cuts for production runs.
- Solid cast iron saw base keeps the machine stable so that the blade cuts accurately.
- Saw sits on top of a sturdy steel stand that puts the machine at a comfortable cutting height.
- Flood coolant system helps the operator cut material more easily and prolongs blade and machine life.
- Usually in stock for quick deliveries.
- Replacement parts are available and stocked at our Wisconsin headquarters for fast shipping.
- We cover this circular cold saw with a 1-year parts warranty.
- Includes lifetime technical support by phone from Baileigh reps with hands-on machine experience.
Specifications:
- Item Number: CS-275EU
- Max. Blade Diameter: 11"
- Operation: Manual
- Head Miter: 45° Left / 45° Right
- Round Solid at 45°: 3.25"
- Square Tube at 45°: 2.2" x 2.2"
- Round Tube at 45°: 3.25"
- Rectangle Tube at 45°: 2.2" x 2"
- Round Solid at 90°: 3.25"
- Rectangle Tube at 90°: 3.1" x 2"
- Square Tube at 90°: 2.5" x 2.5"
- Round Tube at 90°: 3.25"
- Coolant System: Yes
- Slotting Capable: Yes
- Vice Style: Single Action with Cam Lock
- Max. Vice Opening: 4"
- Head Style: Pivot
- Arbor Size: 1.26"
- Working Height: 38"
- Blade Size: 11"
- Blade Speed: 54 (rpm)
- Power: 110V
- Shipping Weight: 460 lbs
- Shipping Dimensions (Inches): 48 x 31 x 43
Specifications
Specifications
| Baileigh CS-275EU; 11" 275mm Cold Saw with Cam-Lock ViSe 1-1/2HP, 110V, Single Phase 1002434 | |
| APPLICATION | Metal Working |
| BRAND COMPATIBILITY | Baileigh |
| Brand | Baileigh |
| POWER SOURCE | Electric - Corded |
| PRODUCT TYPE | Tools/Machinery |
| TOOL SUB-TYPE | Saws - Cold Saws |
| TOOL TYPE | Saws |
| VOLTAGE | 110V-120V |
